DM2203T-20 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> DM2203T-20

DM2203T-20: DescriptionCache DRAM, 512KX8, 45ns, CMOS, PDSO44; Categorystorage storage; File Size665KB，20 Pages; ManufacturerRamtron International Corporation (Cypress Semiconductor Corporation); Websitehttp://www.cypress.com/

Download Datasheet Parametric Compare View All

DM2203T-20 Overview

Cache DRAM, 512KX8, 45ns, CMOS, PDSO44

DM2203T-20 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	TSOP, TSOP44,.36,32
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST EDO/STATIC COLUMN
Maximum access time	45 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON
JESD-30 code	R-PDSO-G44
JESD-609 code	e0
memory density	4194304 bit
Memory IC Type	CACHE DRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	44
word count	524288 words
character code	512000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP44,.36,32
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum standby current	0.001 A
Maximum slew rate	0.18 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.8 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

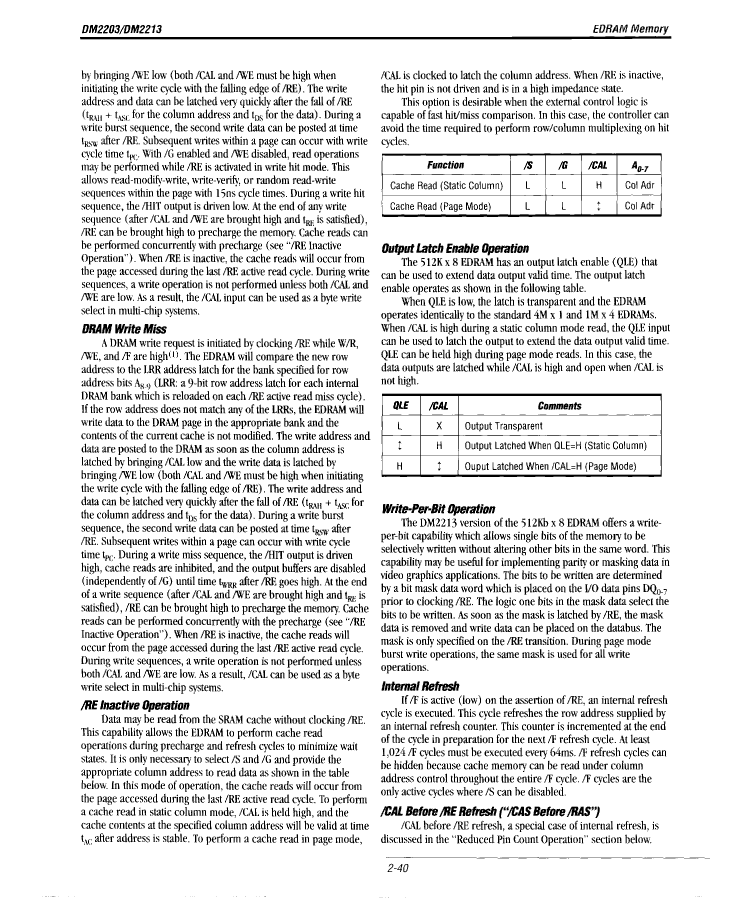

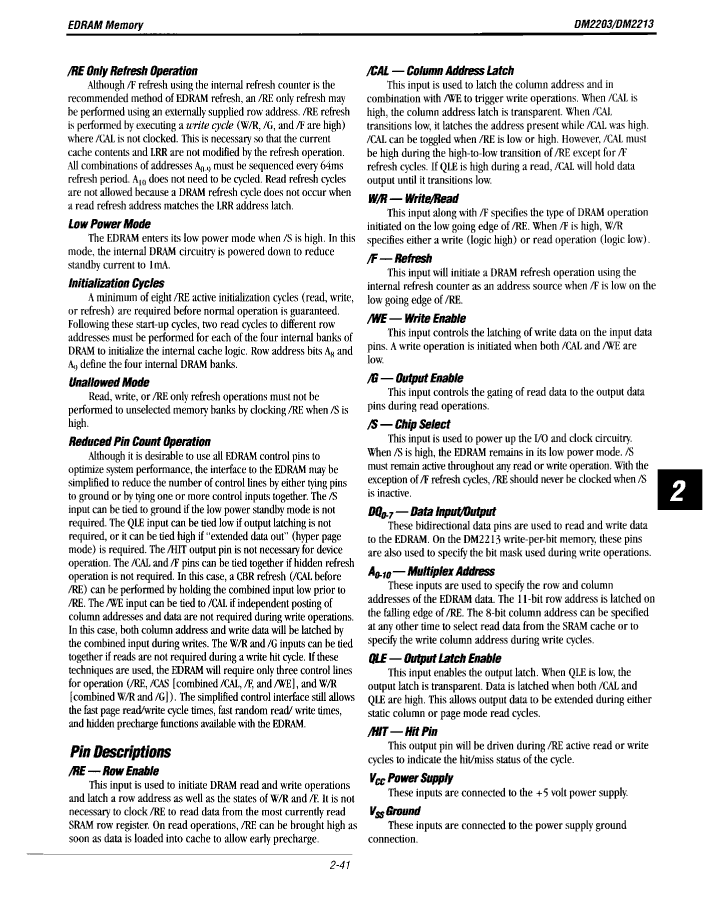

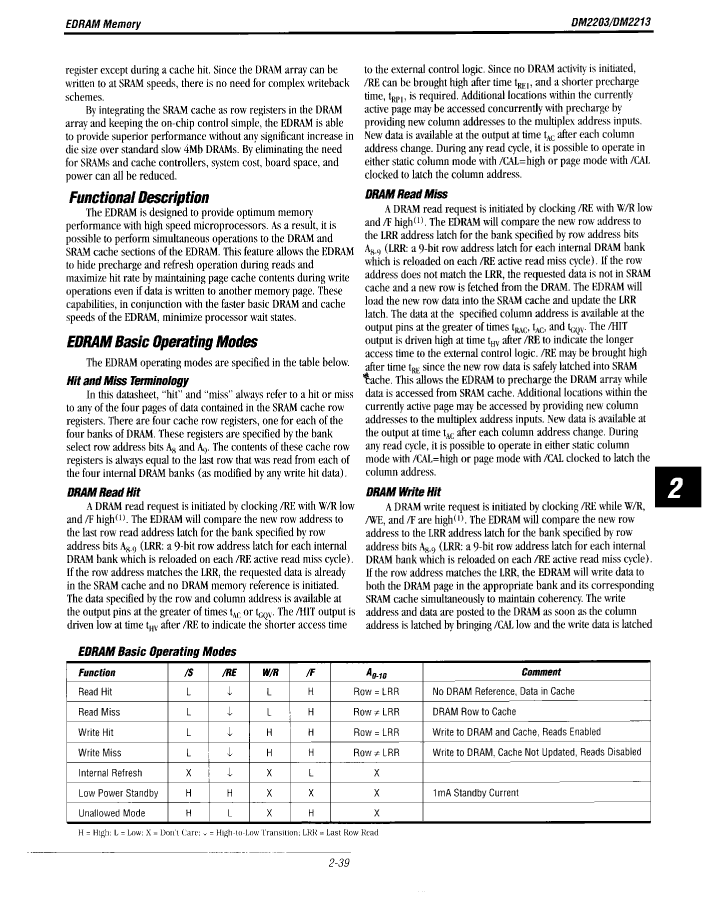

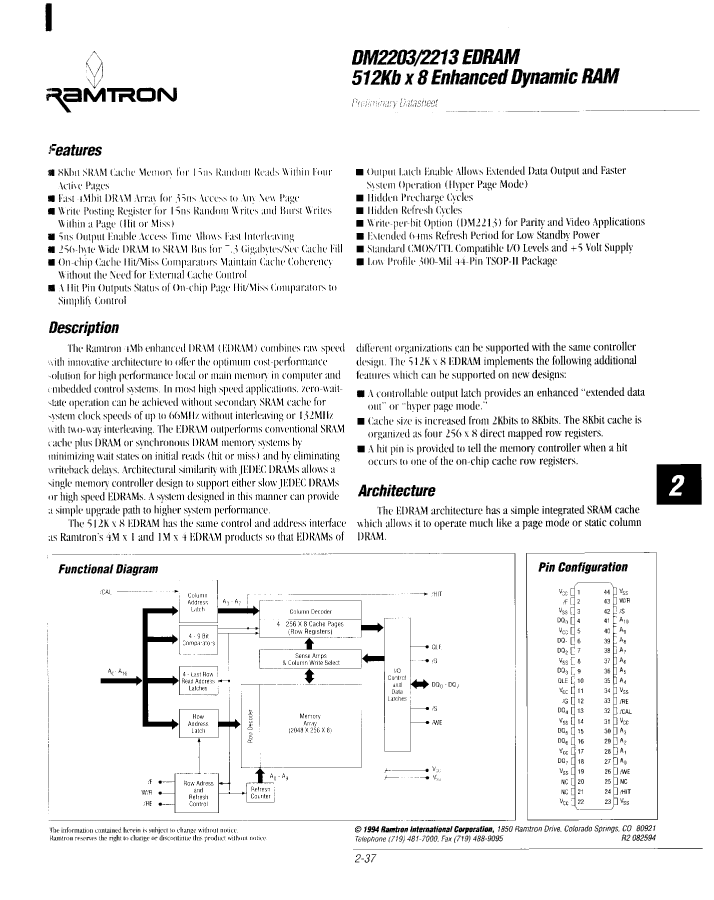

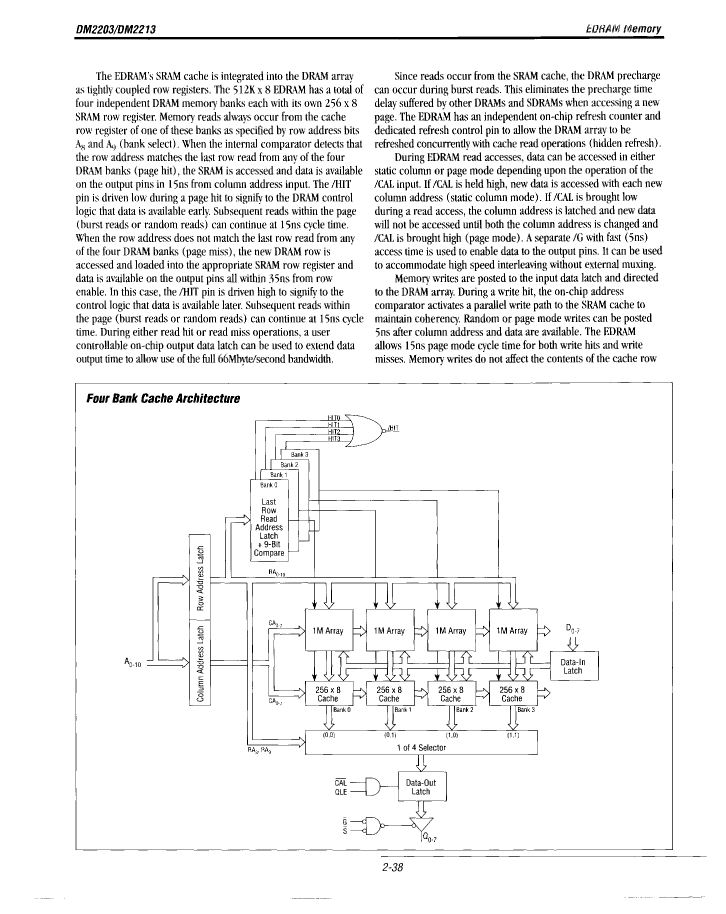

Preview

Download Datasheet

View All

DM2203T-20 Related Products

	DM2203T-20	DM2203T-15	DM2213T-20
Description	Cache DRAM, 512KX8, 45ns, CMOS, PDSO44	Cache DRAM, 512KX8, 35ns, MOS, PDSO44, 0.300 INCH, PLASTIC, TSOP2-44	Cache DRAM, 512KX8, 45ns, CMOS, PDSO44
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
package instruction	TSOP, TSOP44,.36,32	TSOP, TSOP44,.36,32	TSOP, TSOP44,.36,32
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
access mode	FAST EDO/STATIC COLUMN	FAST PAGE/STATIC COLUMN	FAST EDO/STATIC COLUMN
Maximum access time	45 ns	35 ns	45 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH; 1K X 8 SRAM	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G44	R-PDSO-G44	R-PDSO-G44
JESD-609 code	e0	e0	e0
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	CACHE DRAM	CACHE DRAM	CACHE DRAM
memory width	8	8	8
Number of functions	1	1	1
Number of ports	1	1	1
Number of terminals	44	44	44
word count	524288 words	524288 words	524288 words
character code	512000	512000	512000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	512KX8	512KX8	512KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	TSOP
Encapsulate equivalent code	TSOP44,.36,32	TSOP44,.36,32	TSOP44,.36,32
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240	NOT SPECIFIED	240
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024
Maximum standby current	0.001 A	0.001 A	0.001 A
Maximum slew rate	0.18 mA	0.18 mA	0.18 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	MOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.8 mm	0.8 mm	0.8 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	-	Ramtron International Corporation (Cypress Semiconductor Corporation)	Ramtron International Corporation (Cypress Semiconductor Corporation)
