DB601-PB-B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DB601-PB-B

DB601-PB-B: DescriptionToggle Switch, SPST, On-on, Maintained, Quick Connect Terminal, Toggle Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size37KB，1 Pages; ManufacturerCarling Technologies

Download Datasheet Parametric Compare View All

DB601-PB-B Overview

Toggle Switch, SPST, On-on, Maintained, Quick Connect Terminal, Toggle Actuator, Panel Mount

DB601-PB-B Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	BLACK
Actuator length	0.687 inch
Actuator type	TOGGLE
body width	14.9352 mm
body height	17.4498 mm
Body length or diameter	25.4 mm
Nozzle length	0.28 inch
Contact (AC) maximum rated R load	3A@250VAC
Maximum contact current (AC)	3 A
Contact function	ON-ON
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000V V
Electrical life	50000 Cycle(s)
Insulation resistance	100000000 Ω
insulator material	NYLON
Manufacturer's serial number	D
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	MAINTAINED
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

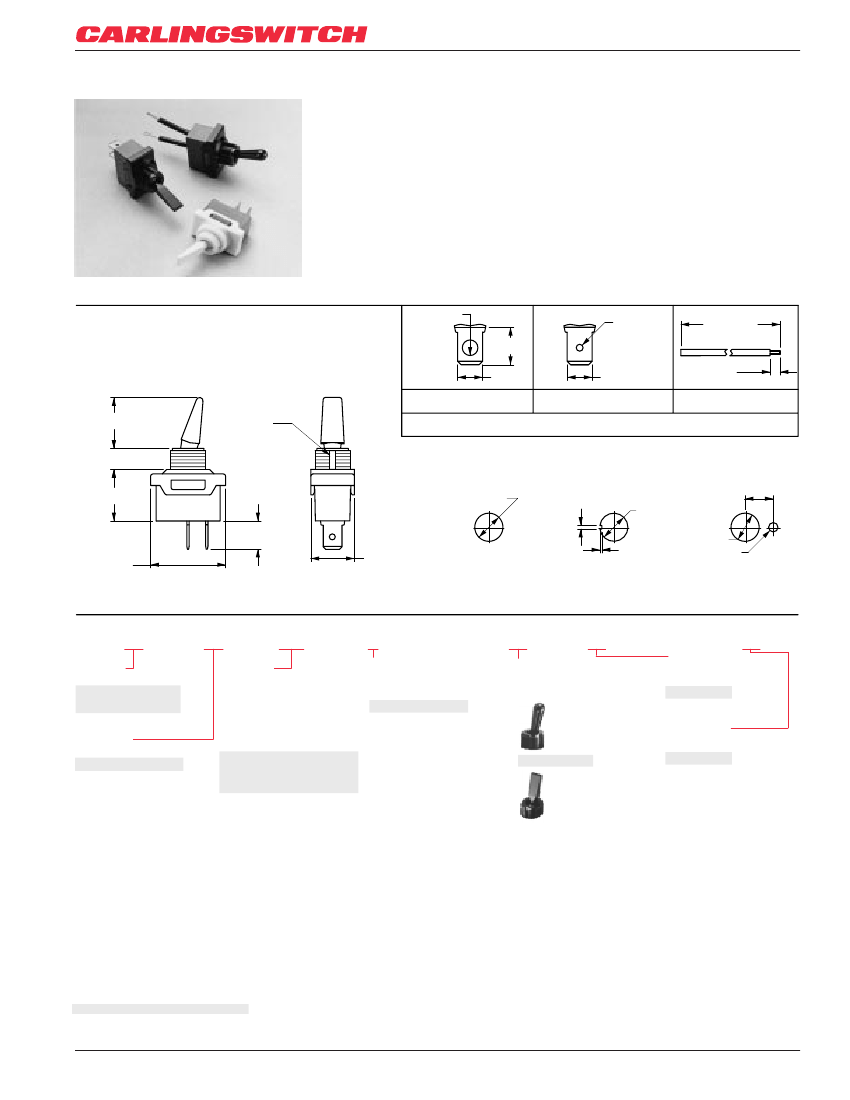

Toggle Switches

D-Series

The D-Series toggle switches are single

pole and have ratings up to 20 amps and

1-1/2 horsepower. These switches have a

nylon toggle and base, and are also

available with integrated wire leads.

Specifications

•Certifications*: UL, CSA

•Dielectric Strength: 1,000 V (minimum)

•Insulation Resistance: 100 Megohms

(minimum)

•Base Material: Nylon

•Actuator Material: Nylon

•Bushing Material: Polycarbonate

* Due to ongoing technological advances, consult factory for

certification specifics.

Dimensional Specifications: in. [mm]

.156[3.96] DIA

.069[1.75] DIA

6.000[152.4]

.375[9.52]

.500[12.70]

INTEGRATED WIRE LEAD

(no exposed conductors)

.250[6.35]

SOLDER LUG

.687[17.44]

KEYWAY

.072[1.82]

.038[.965] DP

.250[6.35]

.250 TAB (Q.C.)

TERMINAL TYPE

.280[7.11]

.687[17.44]

.500[12.70] DIA

.062[1.57]

.500[12.70] DIA

.376[9.55]

.375[9.52]

.038[9.65]

1.000[25.40]

.588[14.93]

MOUNTING HOLE

WITH KEYWAY

.500[12.70] DIA

.125[3.17] DIA

WITH LOCKING RING

SERIES

SINGLE POLE

TOGGLE

RATING

5A 250VAC

10A 125VAC

1/2HP 125-250VAC

5A 250VAC

10A 125VAC

10A 250VAC

20A 125VAC

1 1/2HP 125-250VAC

10A 250VAC

20A 125VAC

3A 250VAC

6A 125VAC

1/4HP 125-250VAC

SOLDER LUG

.250TAB (QC)

WIRE LEAD

BAT

BLACK

WHITE

BUSHING

TERMINATION

TOGGLE STYLE

TOGGLE COLOR

CIRCUIT

ON-NONE-OFF

ON-NONE-ON

ON-OFF-ON

PADDLE

BLACK

WHITE

NOTES:

Shading indicates standard configurations.

Available with neoprene seal. Consult factory.

Custom colors are available. Consult factory.

Carlingswitch,Inc. (860) 793-9281• Carlingswitch, LTD. Int + 44 1392-364422 • Carlingswitch Asia-Pacific, LTD. Int + 852-2737-2277

DB601-PB-B Related Products

	DB601-PB-B	DA101-PB-B	DA235-BB-B	DC605-PB-B	DA101-BB-B	DA601-BB-B
Description	Toggle Switch, SPST, On-on, Maintained, Quick Connect Terminal, Toggle Actuator, Panel Mount	Toggle Switch, SPST, On-off, Maintained, Quick Connect Terminal, Toggle Actuator, Panel Mount	Toggle Switch, SPST, On-off, Maintained, Wire Terminal, Toggle Bat Actuator, Panel Mount	Toggle Switch, SPDT, On-off-on, Maintained, Wire Terminal, Toggle Actuator, Panel Mount	Toggle Switch, SPST, On-off, Maintained, Quick Connect Terminal, Toggle Bat Actuator, Panel Mount	Toggle Switch, SPST, On-off, Maintained, Quick Connect Terminal, Toggle Bat Actuator, Panel Mount
Reach Compliance Code	compliant	compli	compli	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Actuator length	0.687 inch	0.687 inch	0.687 inch	0.687 inch	0.687 inch	0.687 inch
Actuator type	TOGGLE	TOGGLE	TOGGLE BAT	TOGGLE	TOGGLE BAT	TOGGLE BAT
body width	14.9352 mm	14.9352 mm	14.9352 mm	14.9352 mm	14.9352 mm	14.9352 mm
body height	17.4498 mm	17.4498 mm	17.4498 mm	17.4498 mm	17.4498 mm	17.4498 mm
Body length or diameter	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm	25.4 mm
Nozzle length	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch	0.28 inch
Contact (AC) maximum rated R load	3A@250VAC	5A@250VAC	10A@250VAC	3A@250VAC	5A@250VAC	3A@250VAC
Maximum contact current (AC)	3 A	5 A	10 A	3 A	5 A	3 A
Contact function	ON-ON	ON-OFF	ON-OFF	ON-OFF-ON	ON-OFF	ON-OFF
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	250 V
Dielectric withstand voltage	1000V V	1000V V	1000V V	1000V V	1000V V	1000V V
Electrical life	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)	50000 Cycle(s)
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	D	D	D	D	D	D
Installation features	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
surface mount	NO	NO	NO	NO	NO	NO
Switch action	MAINTAINED	MAINTAINED	MAINTAINED	MAINTAINED	MAINTAINED	MAINTAINED
switch function	SPST	SPST	SPST	SPDT	SPST	SPST
Switch type	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
Termination type	QUICK CONNECT	QUICK CONNECT	WIRE	WIRE	QUICK CONNECT	QUICK CONNECT
