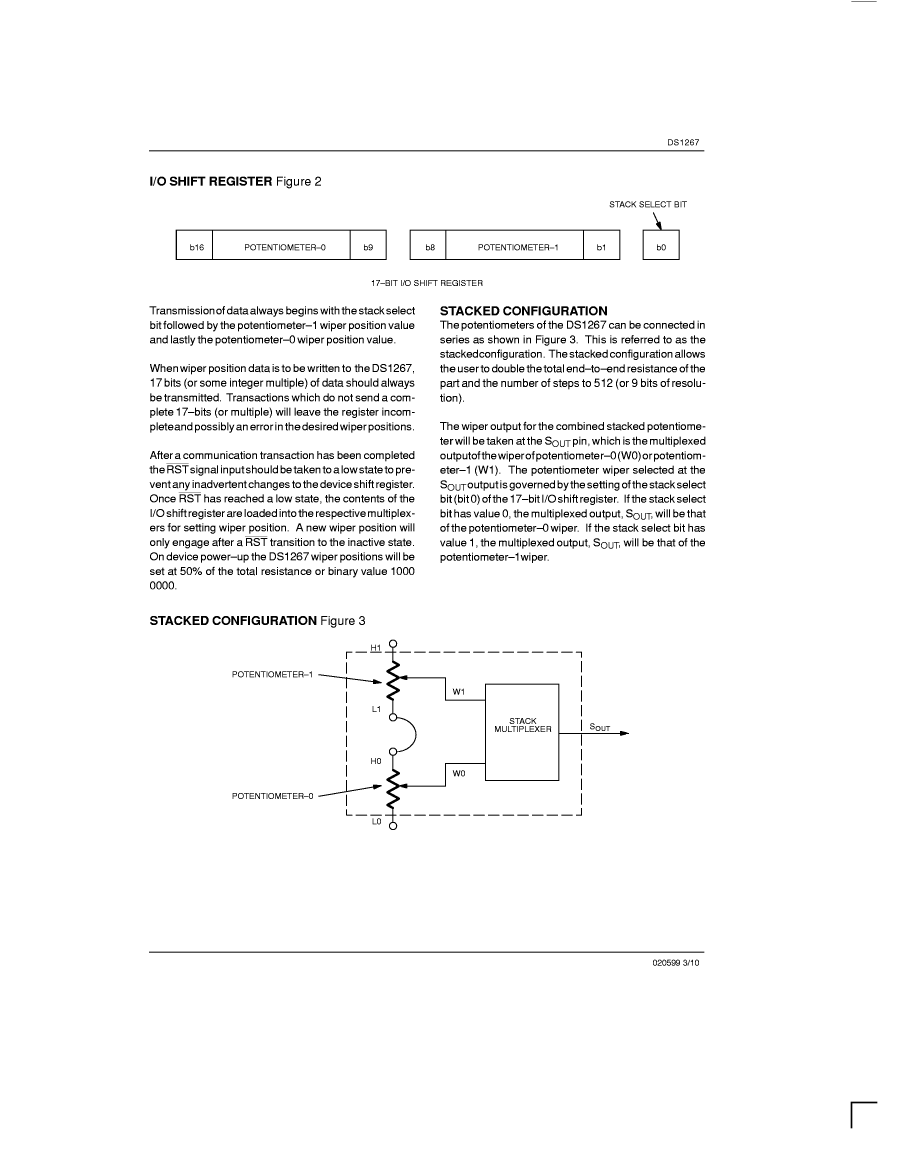

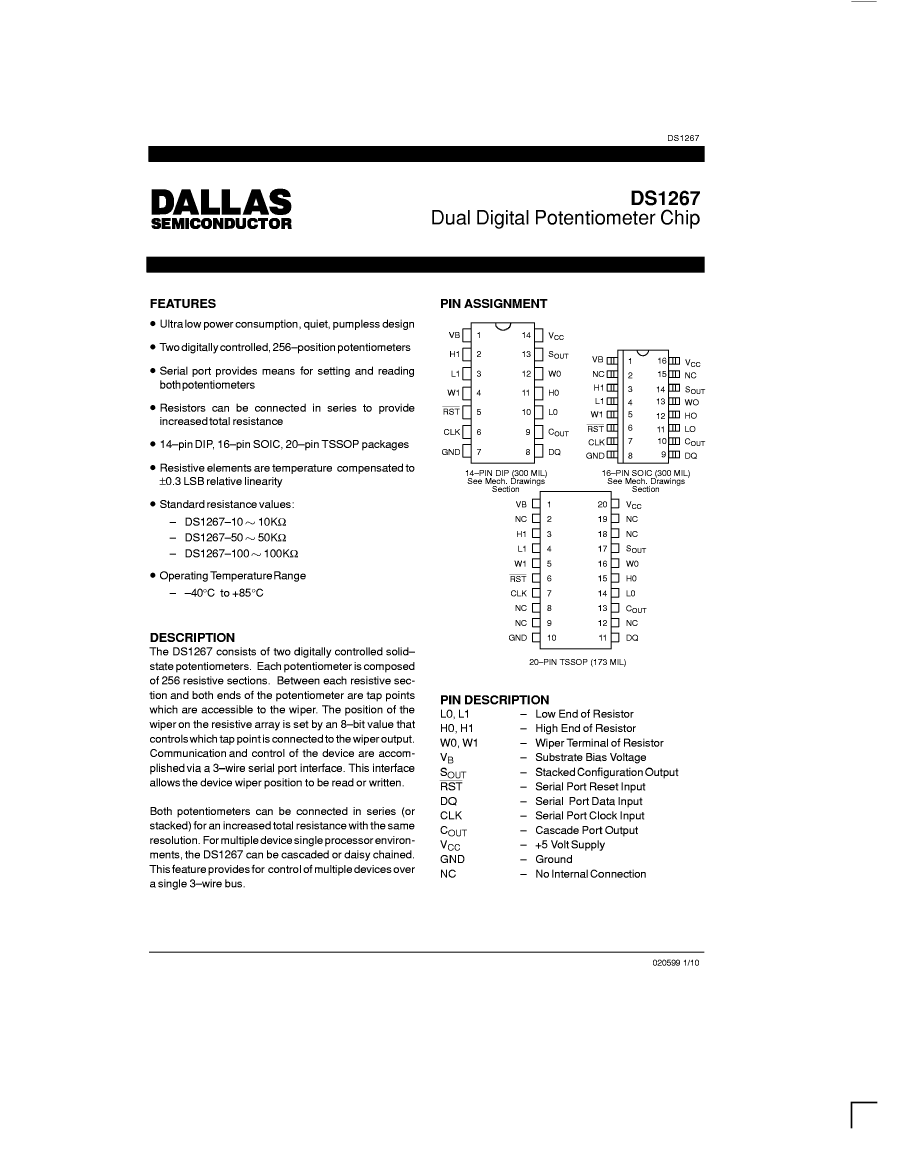

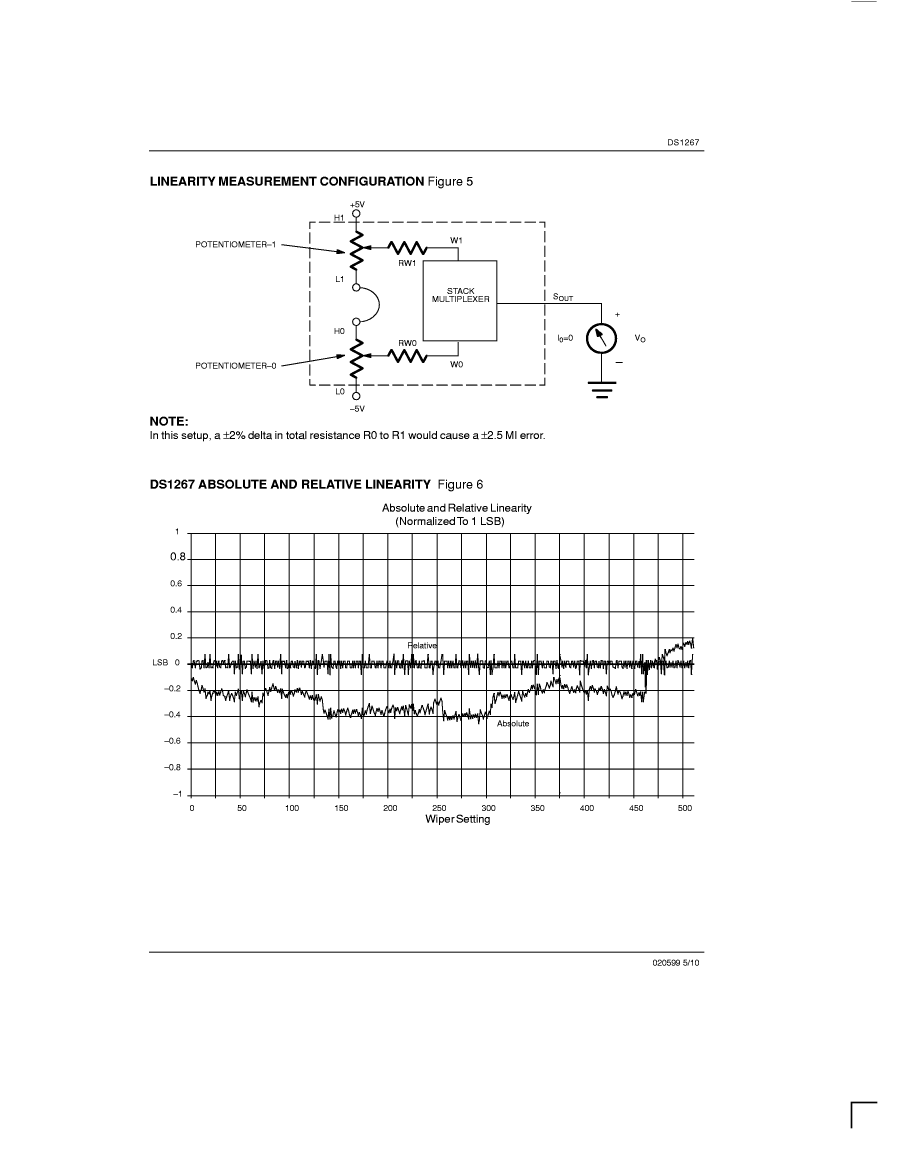

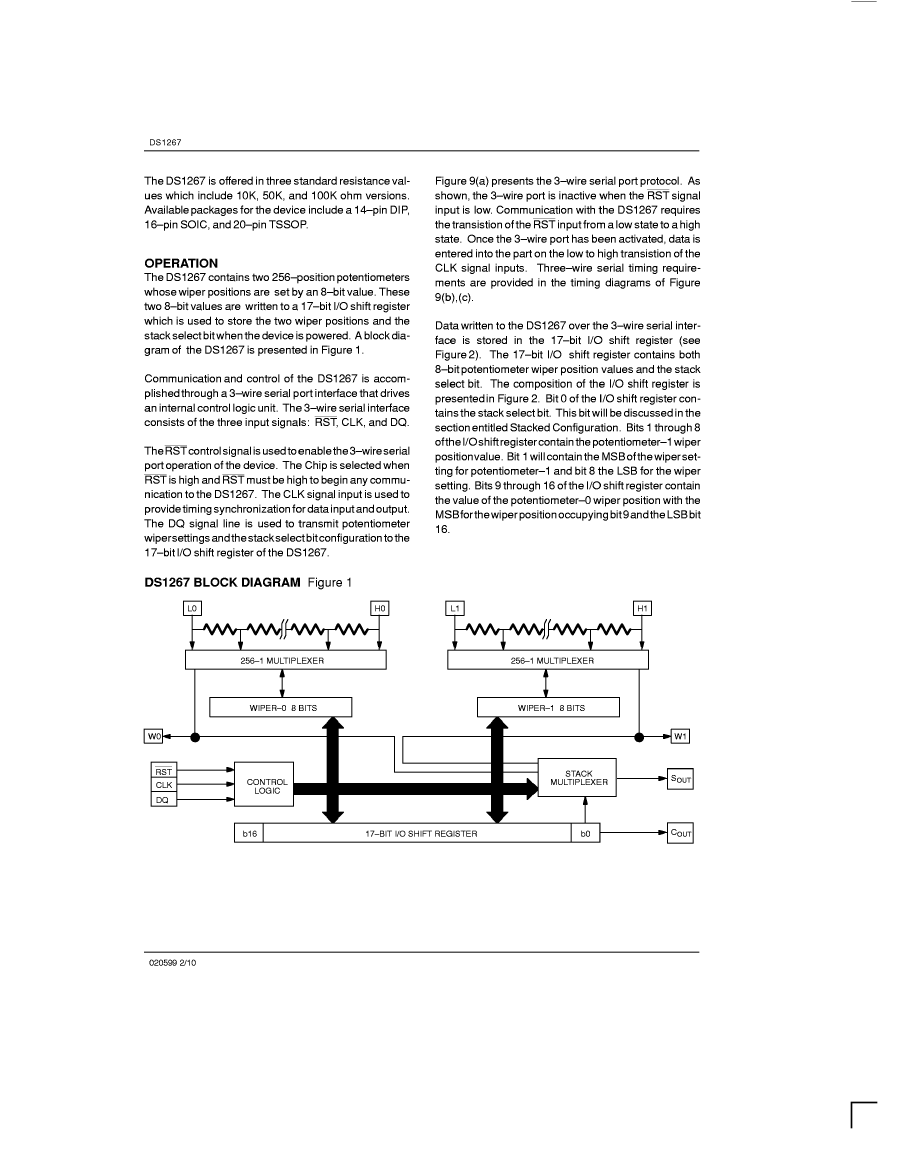

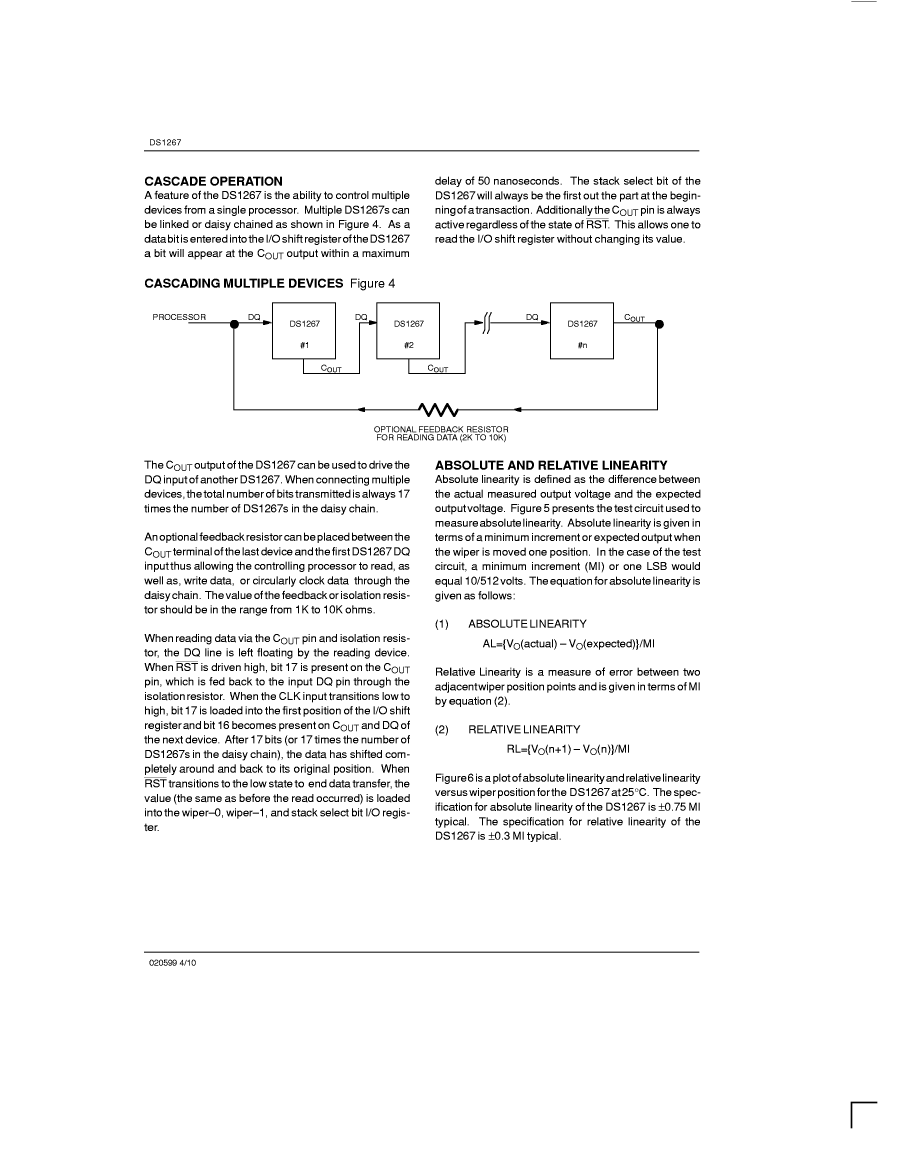

Digital Potentiometer, 2 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO20, PLASTIC, SOIC-20
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| package instruction | PLASTIC, SOIC-20 |
| Reach Compliance Code | unknown |
| control interface | 3-WIRE SERIAL |
| Converter type | DIGITAL POTENTIOMETER |
| JESD-30 code | R-PDSO-G20 |
| JESD-609 code | e0 |
| Number of functions | 2 |
| Number of positions | 256 |
| Number of terminals | 20 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSSOP |
| Encapsulate equivalent code | TSSOP20,.25 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Certification status | Not Qualified |
| resistance law | LINEAR |
| Nominal supply voltage | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 0.635 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Nominal total resistance | 50000 Ω |
| Base Number Matches | 1 |
| DS1267EN-50 | DS1267N-10 | DS1267SN-10 | DS1267SN-50 | DS1267EN-10 | DS1267N-50 | |
|---|---|---|---|---|---|---|
| Description | Digital Potentiometer, 2 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO20, PLASTIC, SOIC-20 | Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDIP14, PLASTIC, DIP-14 | Digital Potentiometer, 1 Func, 10000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, PLASTIC, SOIC-16 | Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO16, PLASTIC, SOIC-16 | Digital Potentiometer, 2 Func, 10000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDSO20, PLASTIC, SOIC-20 | Digital Potentiometer, 1 Func, 50000ohm, 3-wire Serial Control Interface, 256 Positions, CMOS, PDIP14, PLASTIC, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| package instruction | PLASTIC, SOIC-20 | PLASTIC, DIP-14 | PLASTIC, SOIC-16 | PLASTIC, SOIC-16 | PLASTIC, SOIC-20 | PLASTIC, DIP-14 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| control interface | 3-WIRE SERIAL | 3-WIRE SERIAL | 3-WIRE SERIAL | 3-WIRE SERIAL | 3-WIRE SERIAL | 3-WIRE SERIAL |
| Converter type | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER | DIGITAL POTENTIOMETER |
| JESD-30 code | R-PDSO-G20 | R-PDIP-T14 | R-PDSO-G16 | R-PDSO-G16 | R-PDSO-G20 | R-PDIP-T14 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Number of functions | 2 | 1 | 1 | 1 | 2 | 1 |
| Number of positions | 256 | 256 | 256 | 256 | 256 | 256 |
| Number of terminals | 20 | 14 | 16 | 16 | 20 | 14 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSSOP | DIP | SOP | SOP | TSSOP | DIP |
| Encapsulate equivalent code | TSSOP20,.25 | DIP14,.3 | SOP16,.4 | SOP16,.4 | TSSOP20,.25 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | IN-LINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| resistance law | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR | LINEAR |
| Nominal supply voltage | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | YES | YES | YES | NO |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL | INDUSTRIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 0.635 mm | 2.54 mm | 1.27 mm | 1.27 mm | 0.635 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal total resistance | 50000 Ω | 10000 Ω | 10000 Ω | 50000 Ω | 10000 Ω | 50000 Ω |
| Maker | - | DALLAS | DALLAS | DALLAS | DALLAS | DALLAS |
