DTC115E series
NPN 100mA 50V Digital Transistor (Bias Resistor Built-in Transistor)
Datasheet
l

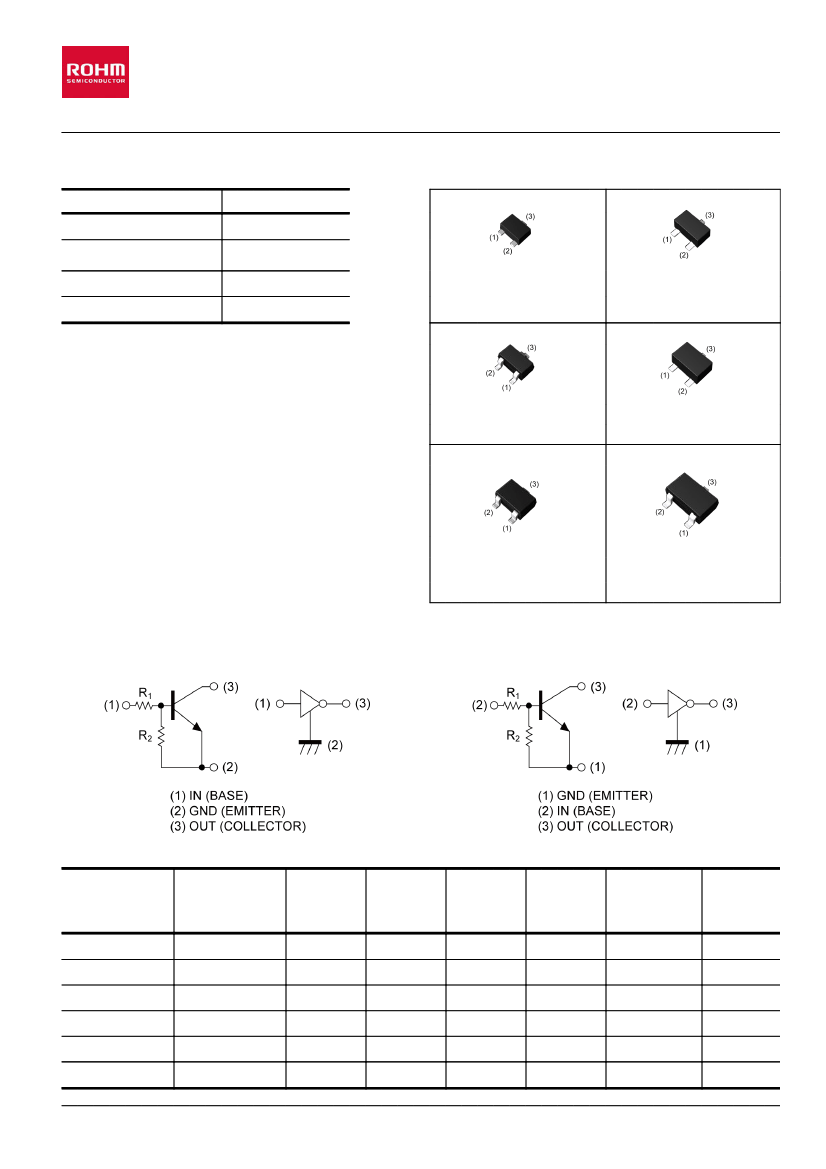

Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
Value
50V
100mA
100kΩ
100kΩ
SOT-723
SOT-416FL
DTC115EM
(VMT3)
SOT-416
DTC115EEB
(EMT3F)
SOT-323FL
l
Features
1) Built-In Biasing Resistors, R
1
= R
2
= 100kΩ
2) Built-in bias resistors enable the configuration of
an inverter circuit without connecting external
input resistors (see inner circuit) .
3) Only the on/off conditions need to be set
for operation, making the circuit design easy.
4) Complementary PNP Types: DTA115E series
l
Application
INVERTER, INTERFACE, DRIVER
l
Inner circuit
DTC115EM/ DTC115EEB/ DTC115EUB
DTC115EE
(EMT3)
SOT-323
DTC115EUB
(UMT3F)
SOT-346
DTC115EUA
(UMT3)
DTC115EKA
(SMT3)
DTC115EE/ DTC115EUA/ DTC115EKA
l
Packaging specifications
Part No.
DTC115EM
DTC115EEB
DTC115EE
DTC115EUB
DTC115EUA
DTC115EKA
Package
SOT-723
SOT-416FL
SOT-416
SOT-323FL
SOT-323
SOT-346
Package
size
1212
1616
1616
2021
2021
2928
Taping
code
T2L
TL
TL
T106
T106
T146
1/10
Reel size Tape width
(mm)
(mm)
180
180
180
180
180
180
8
8
8
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
3000
3000
3000
Marking
29
29
29
29
29
29
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
20160208 - Rev.002
DTC115E series
Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Supply voltage
Input voltage
Output current
Collector current
DTC115EM
DTC115EEB
DTC115EE
Power dissipation
DTC115EUB
DTC115EUA
DTC115EKA
Junction temperature
Range of storage temperature
l
Electrical characteristics
(T
a
= 25°C)
Symbol
V
CC
V
IN
I
O
I
C(MAX)*1
Values
50
-10 to 40
20
100
150
150
Unit
V
V
mA
mA
P
D*2
150
mW
200
200
200
T
j
T
stg
150
-55 to +150
℃
℃
Values
Parameter
Symbol
V
I(off)
V
I(on)
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T*1
Conditions
Min.
Input voltage
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
CC
= 5V, I
O
= 100μA
V
O
= 0.3V, I
O
= 1mA
I
O
= 5mA, I
I
= 0.25mA
V
I
= 5V
V
CC
= 50V, V
I
= 0V
V
O
= 5V, I
O
= 5mA
-
-
V
CE
= 10V, I
E
= -5mA,
f = 100MHz
-
3.0
-
-
-
82
70
0.8
-
Typ.
-
-
100
-
-
-
100
1.0
250
Max.
0.5
V
-
300
150
500
-
130
1.2
-
mV
μA
nA
-
kΩ
-
MHz
Unit
*1 Characteristics of built-in transistor
*2 Each terminal mounted on a reference land
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
2/10
20160208 - Rev.002
DTC115E series
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

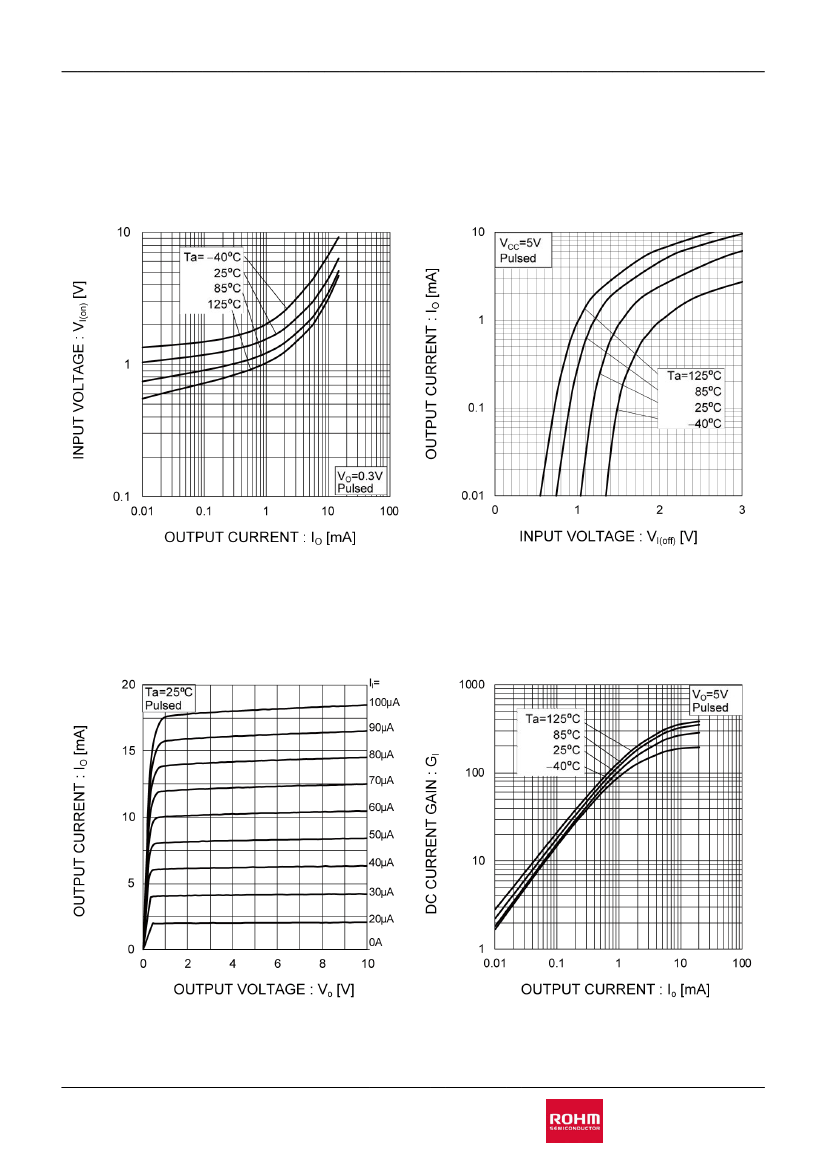

Fig.1 Input voltage vs. output current (ON
characteristics)
Fig.2 Output current vs. input voltage (OFF
characteristics)
Fig.3 Output current vs. output voltage
Fig.4 DC current gain vs. output current
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
3/10
20160208 - Rev.002
DTC115E series
Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

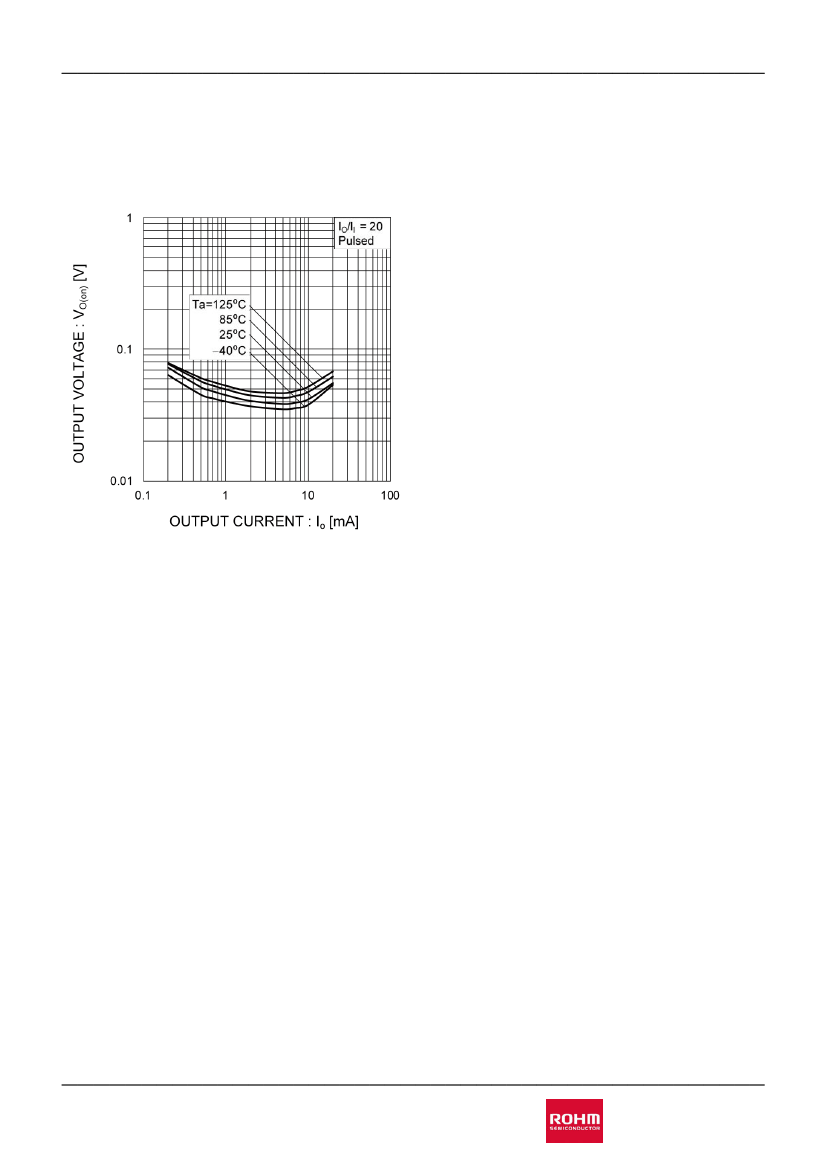

Fig.5 Output voltage vs. output current
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
4/10
20160208 - Rev.002
DTC115E series
l
Dimensions
Datasheet
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
5/10
20160208 - Rev.002
