DPZ2MX8H3-12C

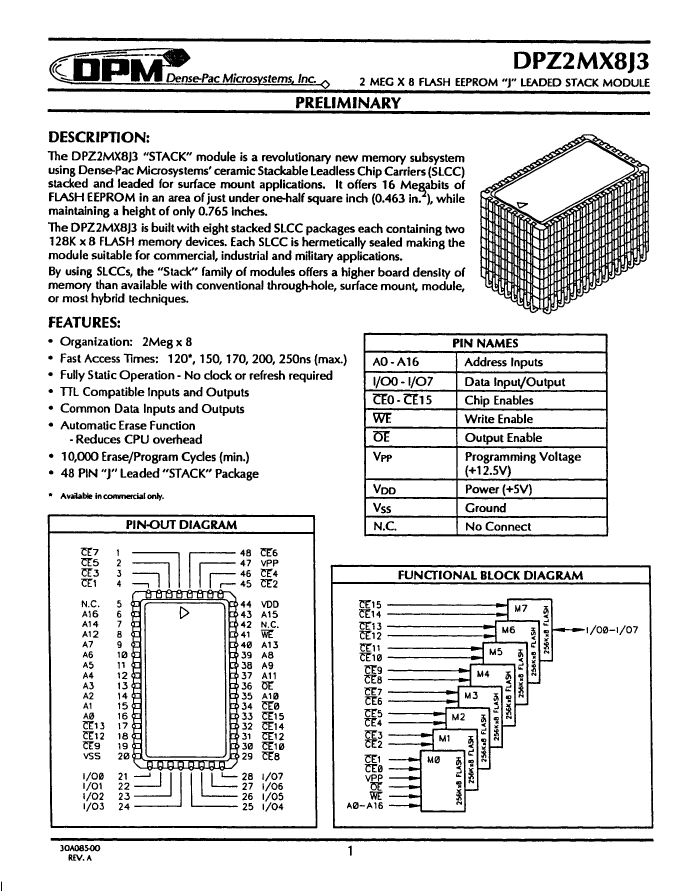

Description
Flash Module, 2MX8, 120ns, CQFP48
Categorystorage    storage
File Size718KB,12 Pages
ManufacturerB&B Electronics Manufacturing Company
Download Datasheet Parametric Compare View All

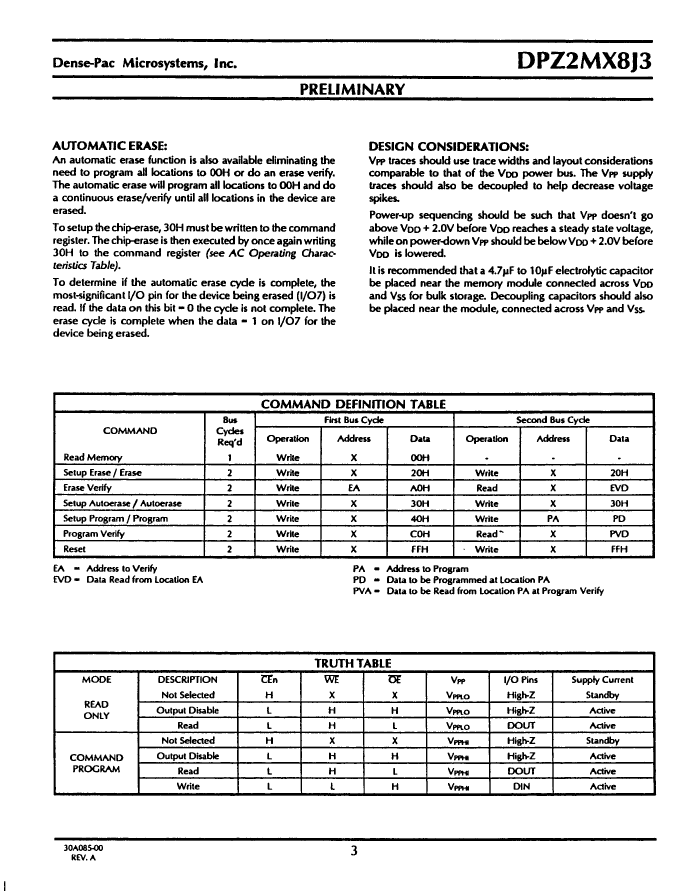

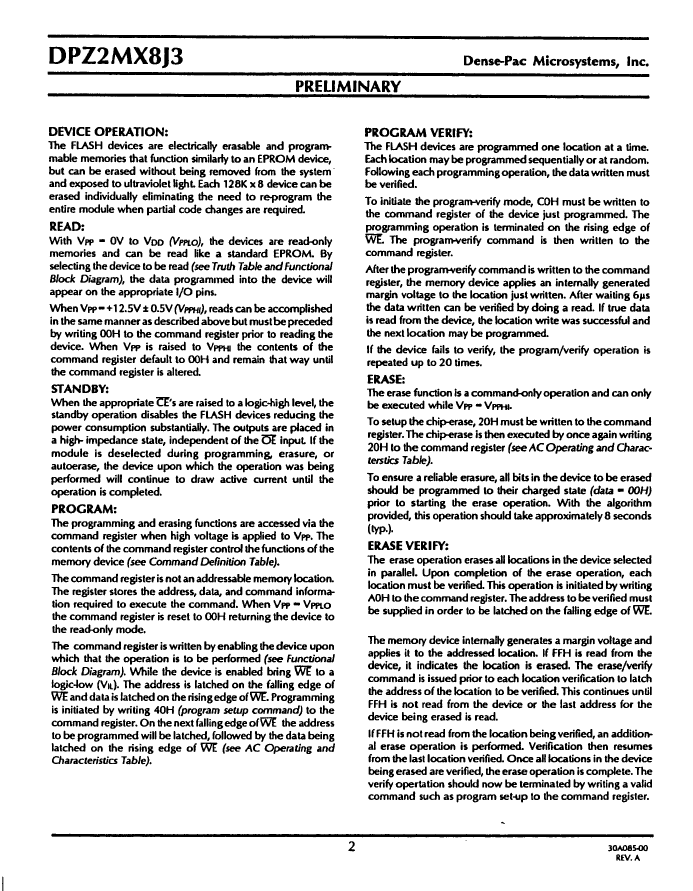

DPZ2MX8H3-12C Overview

Flash Module, 2MX8, 120ns, CQFP48

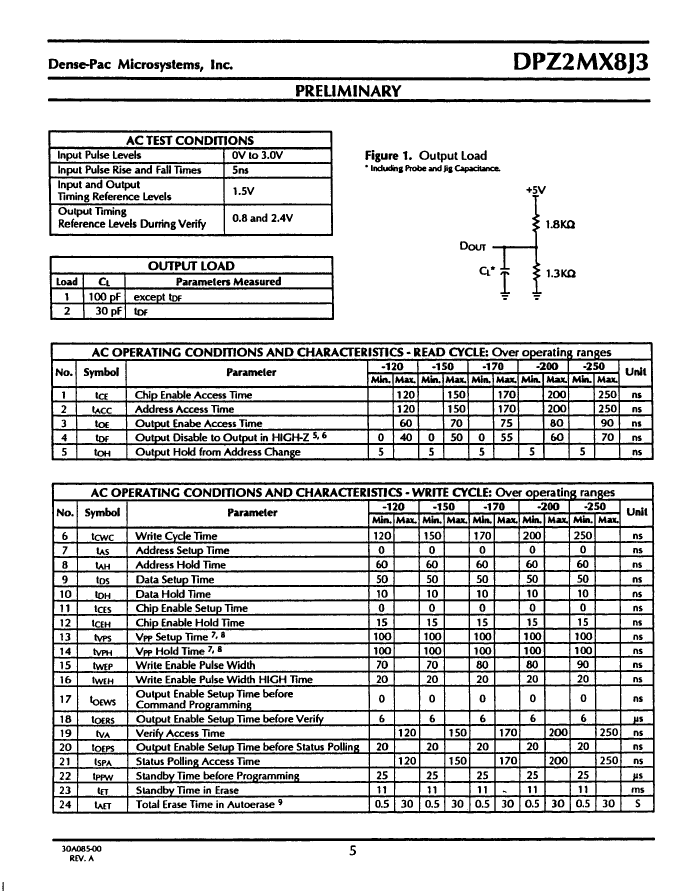

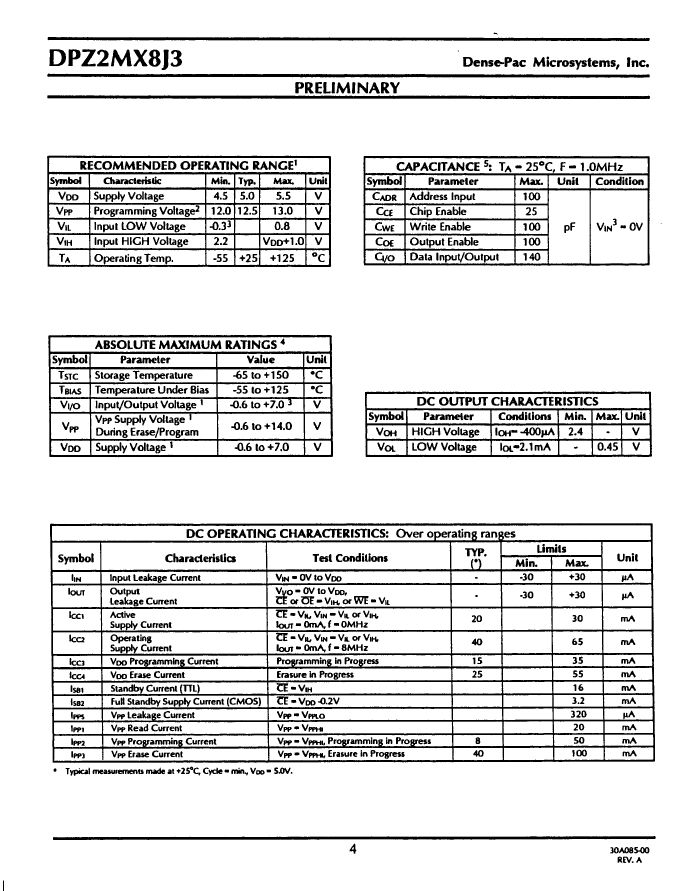

DPZ2MX8H3-12C Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionQFP, QFP48,.7X1.1,50
Reach Compliance Codeunknown
Maximum access time120 ns
Data pollingNO
JESD-30 codeR-XQFP-G48
JESD-609 codee0
memory density16777216 bit
Memory IC TypeFLASH MODULE
memory width8
Number of terminals48
word count2097152 words
character code2000000
Maximum operating temperature70 °C
Minimum operating temperature
organize2MX8
Package body materialCERAMIC
encapsulated codeQFP
Encapsulate equivalent codeQFP48,.7X1.1,50
Package shapeRECTANGULAR
Package formFLATPACK
Parallel/SerialPARALLEL
power supply5 V
Certification statusNot Qualified
Maximum standby current0.0032 A
Maximum slew rate0.065 mA
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationQUAD
switch bitNO
typeNOR TYPE
Base Number Matches1

DPZ2MX8H3-12C Related Products

DPZ2MX8H3-12C DPZ2MX8H3-20B DPZ2MX8A3-20B DPZ2MX8H3-17B
Description Flash Module, 2MX8, 120ns, CQFP48 Flash Module, 2MX8, 200ns, CQFP48 Flash Module, 2MX8, 200ns, CPGA50 Flash Module, 2MX8, 170ns, CQFP48
Is it Rohs certified? incompatible incompatible incompatible incompatible
package instruction QFP, QFP48,.7X1.1,50 QFP, QFP48,.7X1.1,50 PGA, PGA50,5X10 QFP, QFP48,.7X1.1,50
Reach Compliance Code unknown unknown unknown unknown
Maximum access time 120 ns 200 ns 200 ns 170 ns
Data polling NO NO NO NO
JESD-30 code R-XQFP-G48 R-XQFP-G48 R-XPGA-P50 R-XQFP-G48
JESD-609 code e0 e0 e0 e0
memory density 16777216 bit 16777216 bit 16777216 bit 16777216 bit
Memory IC Type FLASH MODULE FLASH MODULE FLASH MODULE FLASH MODULE
memory width 8 8 8 8
Number of terminals 48 48 50 48
word count 2097152 words 2097152 words 2097152 words 2097152 words
character code 2000000 2000000 2000000 2000000
Maximum operating temperature 70 °C 125 °C 125 °C 125 °C
Minimum operating temperature - -55 °C -55 °C -55 °C
organize 2MX8 2MX8 2MX8 2MX8
Package body material CERAMIC CERAMIC CERAMIC CERAMIC
encapsulated code QFP QFP PGA QFP
Encapsulate equivalent code QFP48,.7X1.1,50 QFP48,.7X1.1,50 PGA50,5X10 QFP48,.7X1.1,50
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK FLATPACK GRID ARRAY FLATPACK
Parallel/Serial PARALLEL PARALLEL PARALLEL PARALLEL
power supply 5 V 5 V 5 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum standby current 0.0032 A 0.0032 A 0.0032 A 0.0032 A
Maximum slew rate 0.065 mA 0.065 mA 0.065 mA 0.065 mA
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V
surface mount YES YES NO YES
technology CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form GULL WING GULL WING PIN/PEG GULL WING
Terminal pitch 1.27 mm 1.27 mm 2.54 mm 1.27 mm
Terminal location QUAD QUAD PERPENDICULAR QUAD
switch bit NO NO NO NO
type NOR TYPE NOR TYPE NOR TYPE NOR TYPE
Base Number Matches 1 1 1 1
Filter level - MIL-STD-883 Class B (Modified) MIL-STD-883 Class B (Modified) MIL-STD-883 Class B (Modified)
