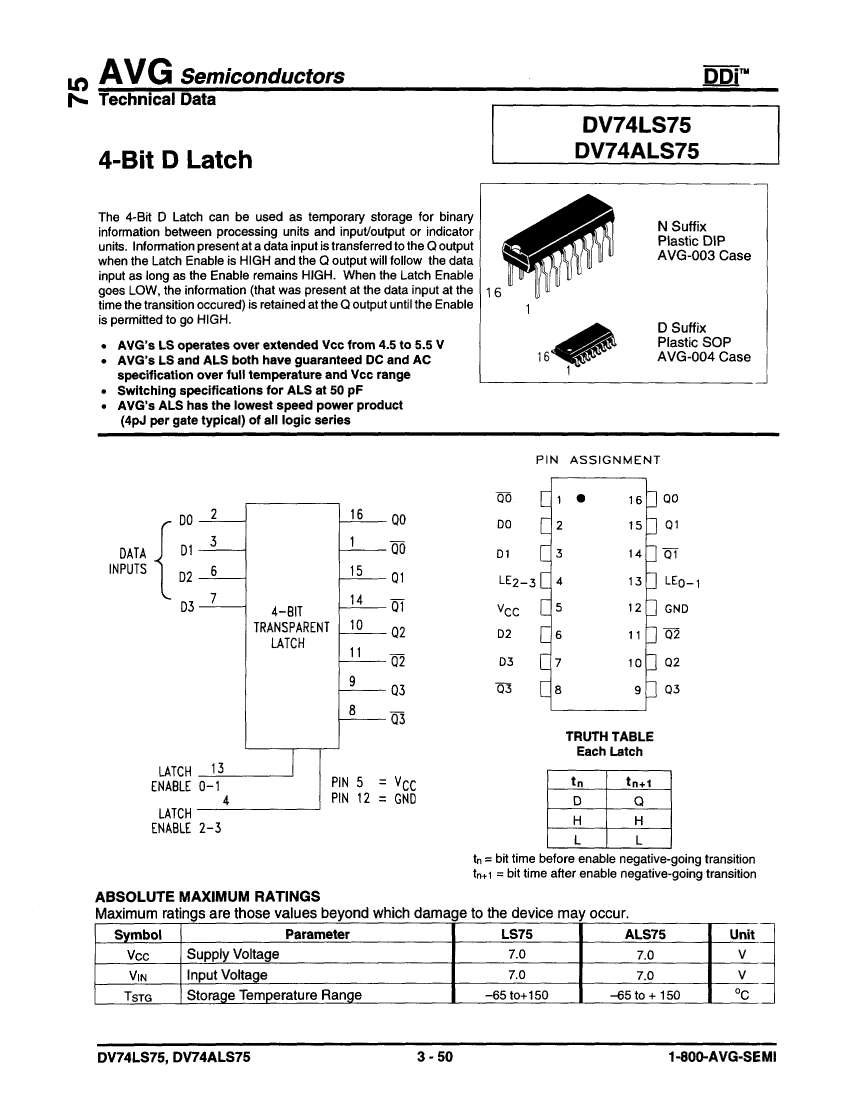

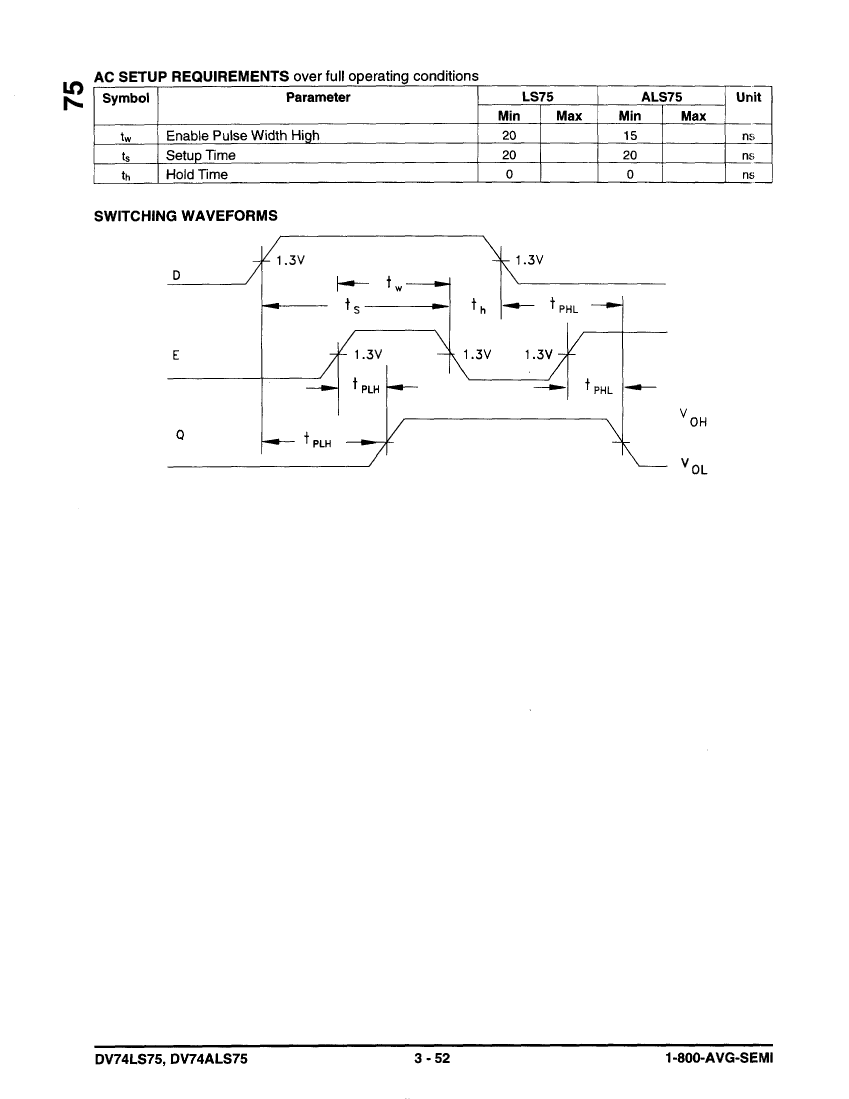

D Latch, ALS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16
| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| series | ALS |
| JESD-30 code | R-PDIP-T16 |
| length | 19.175 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D LATCH |
| Number of digits | 2 |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | -10 °C |
| Output polarity | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Maximum supply current (ICC) | 6 mA |
| propagation delay (tpd) | 16 ns |
| Certification status | Not Qualified |
| Maximum seat height | 4.44 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| technology | TTL |
| Temperature level | COMMERCIAL |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Trigger type | HIGH LEVEL |
| width | 7.62 mm |
| Base Number Matches | 1 |
| DV74ALS75N | DV74LS75D | DV74LS75N | DV74ALS75D | |
|---|---|---|---|---|
| Description | D Latch, ALS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16 | D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOP-16 | D Latch, LS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDIP16, PLASTIC, DIP-16 | D Latch, ALS Series, 2-Func, High Level Triggered, 2-Bit, Complementary Output, TTL, PDSO16, PLASTIC, SOP-16 |
| Parts packaging code | DIP | SOIC | DIP | SOIC |
| package instruction | DIP, | SOP, | DIP, | SOP, |
| Contacts | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown |
| series | ALS | - | LS | ALS |
| JESD-30 code | R-PDIP-T16 | - | R-PDIP-T16 | R-PDSO-G16 |
| length | 19.175 mm | - | 19.175 mm | 9.9 mm |
| Load capacitance (CL) | 50 pF | - | 15 pF | 50 pF |
| Logic integrated circuit type | D LATCH | - | D LATCH | D LATCH |
| Number of digits | 2 | - | 2 | 2 |
| Number of functions | 2 | - | 2 | 2 |
| Number of terminals | 16 | - | 16 | 16 |
| Maximum operating temperature | 70 °C | - | 70 °C | 70 °C |
| Minimum operating temperature | -10 °C | - | -10 °C | -10 °C |
| Output polarity | COMPLEMENTARY | - | COMPLEMENTARY | COMPLEMENTARY |
| Package body material | PLASTIC/EPOXY | - | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | - | DIP | SOP |
| Package shape | RECTANGULAR | - | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | - | IN-LINE | SMALL OUTLINE |
| Maximum supply current (ICC) | 6 mA | - | 12 mA | 6 mA |
| propagation delay (tpd) | 16 ns | - | 27 ns | 16 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified |
| Maximum seat height | 4.44 mm | - | 4.44 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 5.5 V | - | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | - | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | - | 5 V | 5 V |
| surface mount | NO | - | NO | YES |
| technology | TTL | - | TTL | TTL |
| Temperature level | COMMERCIAL | - | COMMERCIAL | COMMERCIAL |
| Terminal form | THROUGH-HOLE | - | THROUGH-HOLE | GULL WING |
| Terminal pitch | 2.54 mm | - | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | - | DUAL | DUAL |
| Trigger type | HIGH LEVEL | - | HIGH LEVEL | HIGH LEVEL |
| width | 7.62 mm | - | 7.62 mm | 3.9 mm |
| Base Number Matches | 1 | 1 | 1 | - |
| Maker | - | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] | AVG [AVG Semiconductors(HITEK)] |
