D2SB05 thru D2SB80
Taiwan Semiconductor
CREAT BY ART

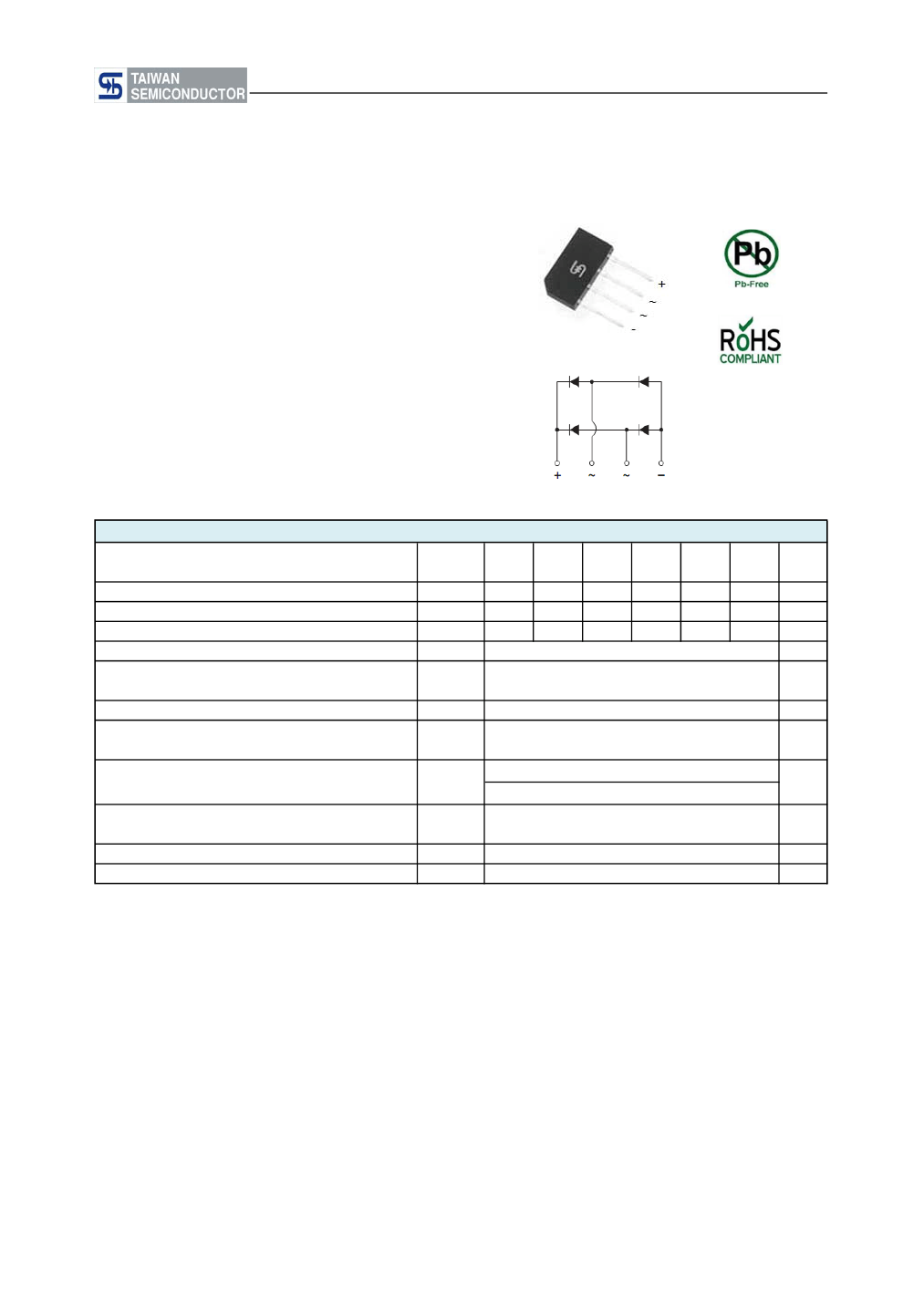

FEATURES
Glass Passivated Single-Phase Bridge Rectifier
- UL Recognized File # E-326243
- Ideal for printed circuit board
- High case dielectric strength
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
GBL
MECHANICAL DATA
Case：GBL
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - halogen-free, RoHS compliant
Terminal：Matte
tin plated leads, solderable per JESD22-B102
Polarity：As
marked
Weight：2
gram (approximately)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERSTICS
(T
A
=25℃ unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half sine-
wave superimposed on rated load
Rating of fusing ( t<8.3ms)
Maximum Instantaneous Forward Voltage (Note 1)
IF= 2 A
Maximum reverse current @ rated VR
T
J
=25
℃
T
J
=125
℃
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
I
2
T
V
F
I
R
R
θjL
R
θjA
T
J
T
STG
D2SB D2SB D2SB D2SB D2SB D2SB
05
50
35
50
10
100
70
100
20
200
140
200
2
80
26
1.1
10
500
10
47
- 55 to + 150
- 55 to + 150
O
40
400
280
400
60
600
420
600
80
800
560
800
UNIT
V
V
V
A
A
A
2
S
V
μA
C/W
O
O
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1：Pulse test with PW=300u sec, 1% duty cycle
C
C
Document Number：DS_D1311021
Version:H13
D2SB05 thru D2SB80
Taiwan Semiconductor
ORDERING INFORMATION
PART NO.
PACKING CODE
C2
D2SBxx
(Note 1)
X0
D2
X2
Note 1: "xx" defines voltage from 50V (D2SB05) to 800V (D2SB80)
Suffix "G"
GREEN COMPOUND
CODE
GBL
GBL
GBL
GBL
25 / Tube
25 / Tube / Forming
25 / Tube
Forming
PACKAGE
PACKING
EXAMPLE
PREFERRED P/N
D2SB80 C2
D2SB80 C2G
PART NO.
D2SB80
D2SB80
PACKING CODE
C2
C2
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION

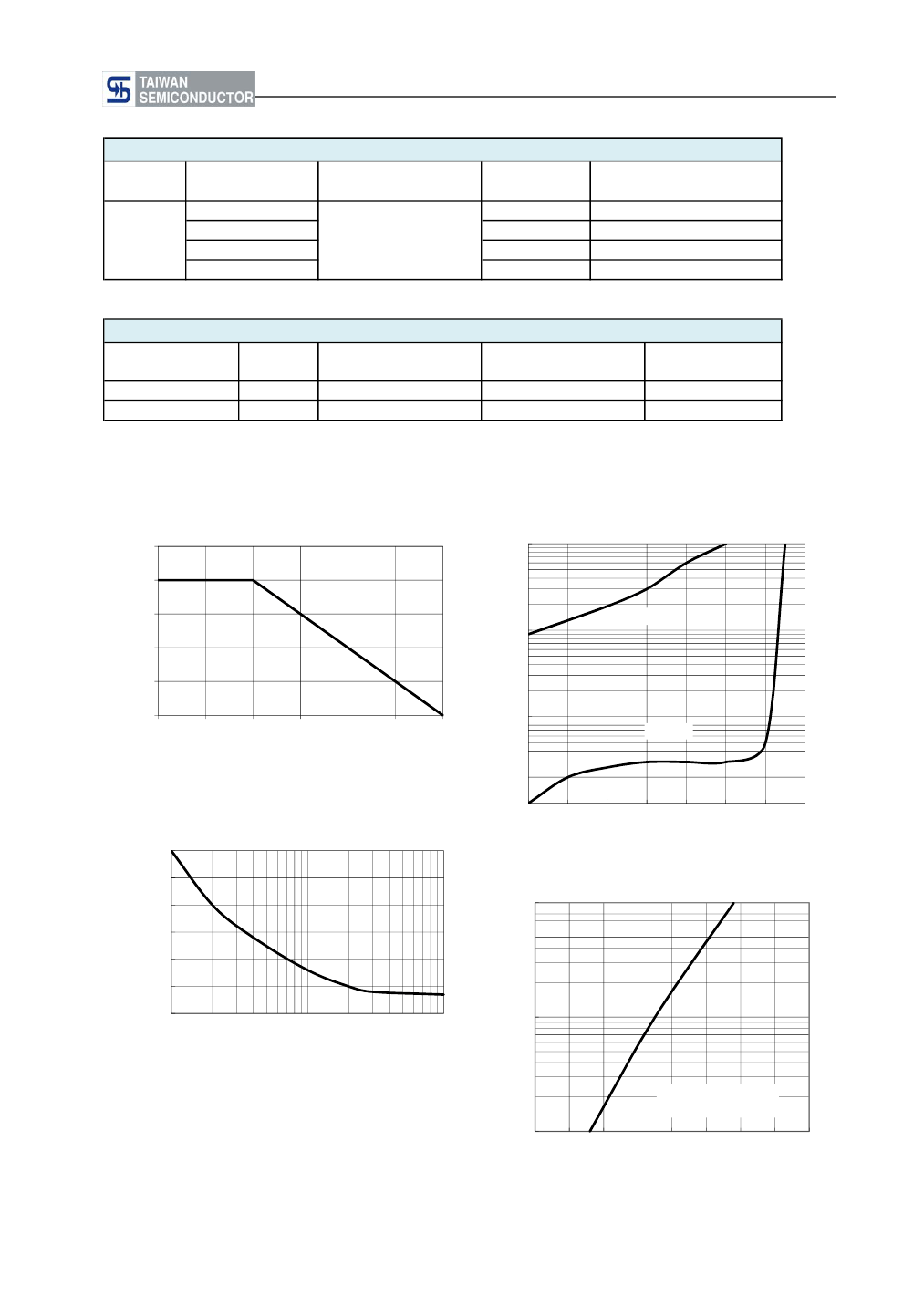

RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
2.5
2
1.5
1
0.5
0
0
25
50
75
100
125
(
o
C)
150
AMBIENT TEMPERATURE
INSTANTANEOUS REVERSE CURRENT (uA)
100
FIG. 2 TYPICAL REVERSE CHARACTERISTICS
AVERAGE FORWARD
A
CURRENT (A)
TJ=125℃
10
1
TJ=25℃
0.1
PEAK FORWARD SURGE CURRENT (A)

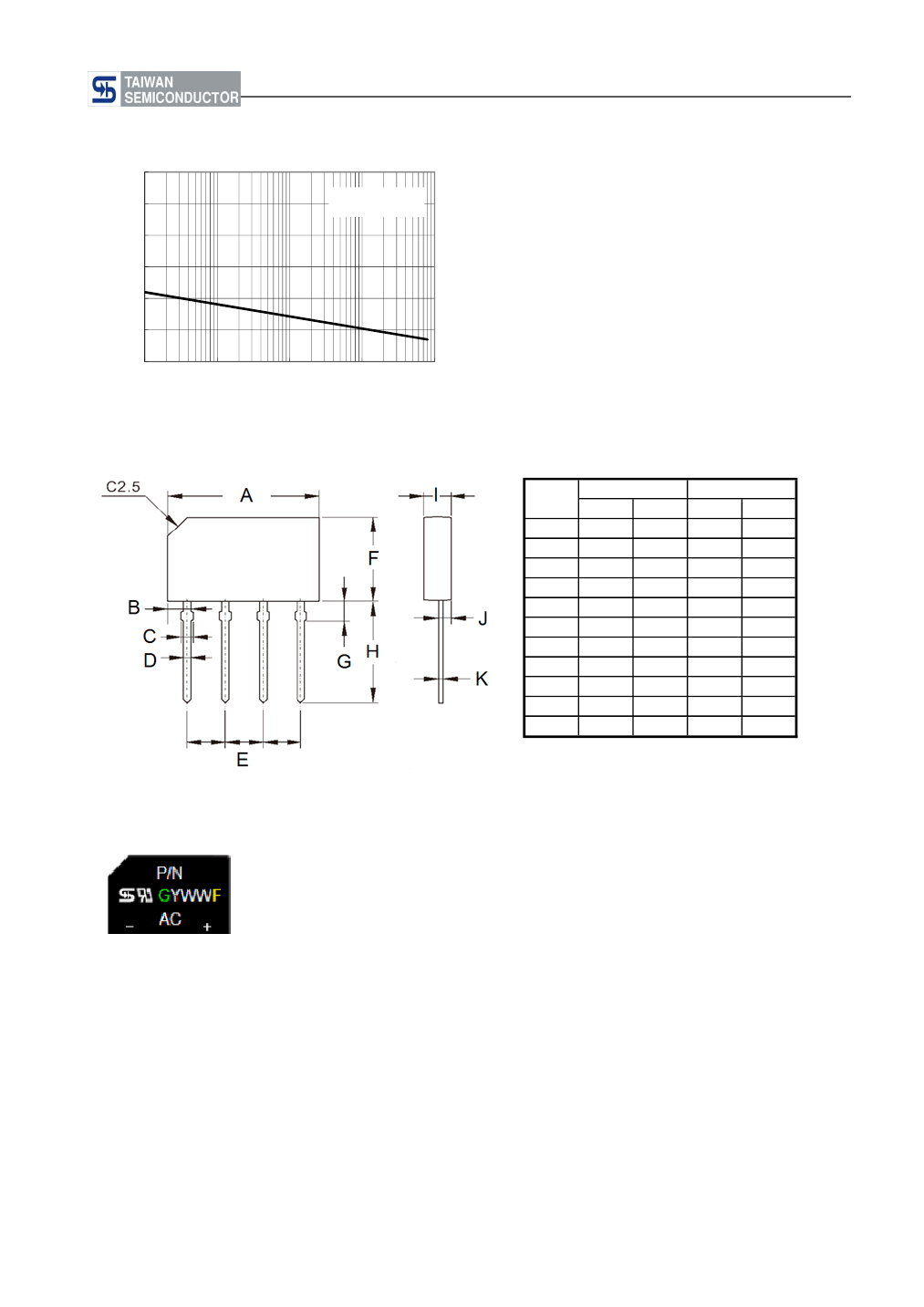

FIG. 3 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
80
70
60
INSTANTANEOUS FORWARD CURRENT (A)
50
40
30
20
1
10
NUMBER OF CYCLES AT 60 Hz
100
10
FIG. 4 TYPICAL FORWARD CHARACTERISTICS
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
1
PULSE WIDTH-300uS
1% DUTY CYCLE
0.1
0.6
0.7
0.8
0.9
1
1.1
1.2
1.3
1.4
FORWARD VOLTAGE (V)
Document Number：DS_D1311021
Version:H13
