BHD-B1-52-SM-9.0-SG-BL datasheet, PDF

Datasheet> All Categories > The connector> The connector> BHD-B1-52-SM-9.0-SG-BL

BHD-B1-52-SM-9.0-SG-BL: DescriptionBoard Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size104KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-B1-52-SM-9.0-SG-BL Overview

Board Connector, 52 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

BHD-B1-52-SM-9.0-SG-BL Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Other features	ROHS COMPLIANT
Board mount options	SPLIT BOARD LOCK
body width	0.222 inch
subject depth	0.453 inch
body length	1.426 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	BHD
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.3942 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	52
Base Number Matches	1

Preview

Download Datasheet

View All

SPECIFICATIONS

Current rating:

Contact material:

Contact resistance:

Insulator material:

Insulation resistance:

Withstanding:

Operating temperature:

1 amp

Copper alloy

20 milliohms max.

Polyester Nylon 6T, UL94V-0

1,000 megohms min.

300VAC for 1 min.

-40°C to +105°C

(H)

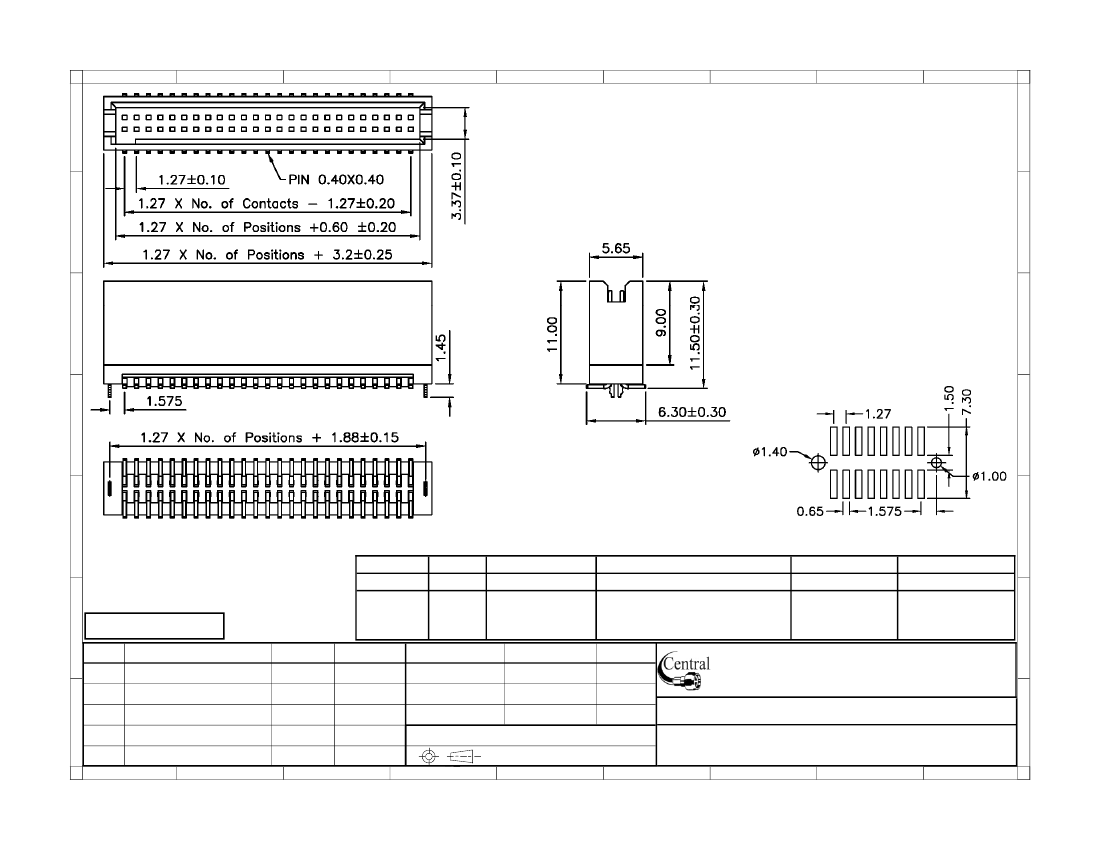

Recommended PC Board Layout

RoHS compliant

Rev.

Description

Date

Series

BHD-B1

Box header

.050 X .050

multi profile

Approved

Positions

Type

Dimension H (mm)

Plating

Options

10-80

SM=Surface mount 7.0, 7.4, 7.6, 8.2, 8.3, 8.4, 8.7, 9.0, TN=Tin

[blank]=None

9.2, 9.5, 10.2, 11.5, 12.1, 12.2, 13.2, SG=Selective gold CP=Centering post

13.6, 15.3, 15.6, 16.6, 16.9, 17.3,

GD=Gold

BL=Board lock

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

Date

08/10/99

08/10/99 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-B1-XX-SM-9.0-XX-XX

0.00 ± 0.20 Angles ± 3’

UNIT: mm

Description: Box header, 1.27mm pitch, dual row, SMT type with post
