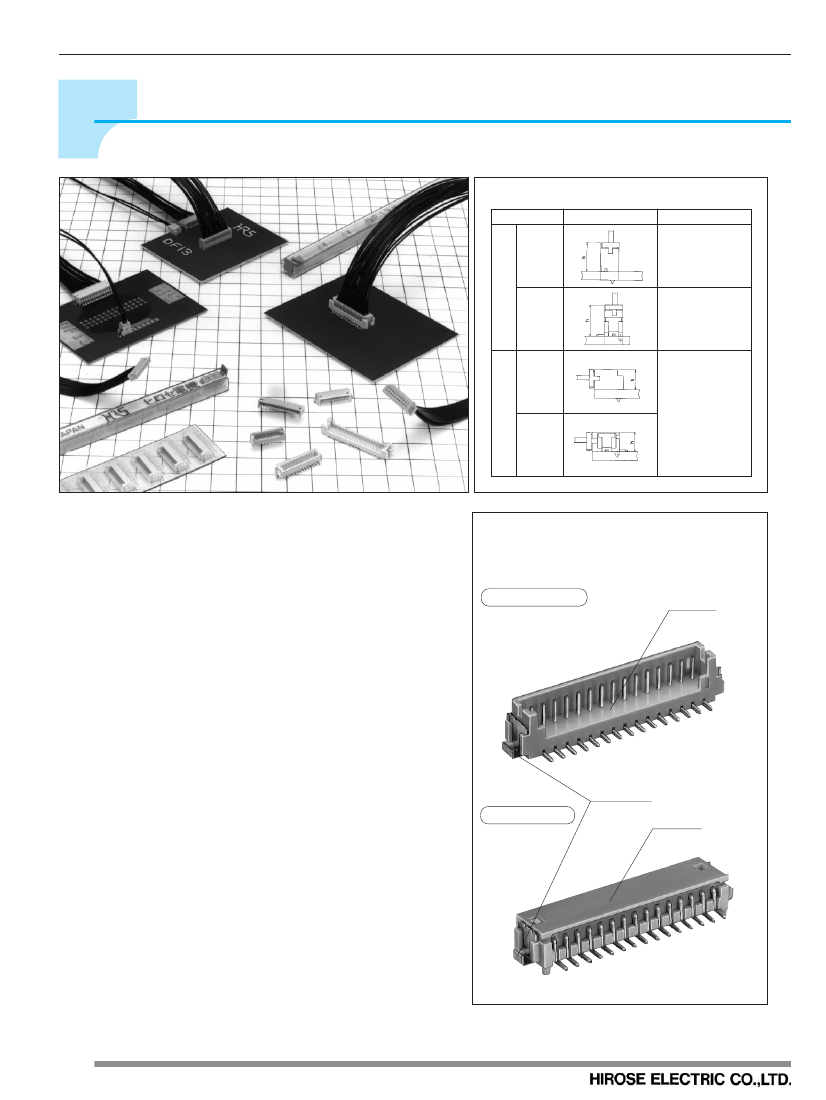

DF13 Series (1.25mm Pitch)
NC
Nylon Connectors
DF13 SERIES
1.25 mm Pitch Compact Crimp Connectors
Low profile with package height
Type
DIP
Straight
SMT
5.8mm
DIP
3.6mm
SMT
Right-angle
System
Height (h)
5.3mm
s
Features
1. Compact
Low profile with package height of 5.8 mm (SMT straight type).
DIP straight type: 5.3 mm, DIP right-angle type: 3.6 mm. For
details, see "APPLICATION" on page 52.
2. Multi-pin
Double-row type available with up to 40 pins, 30% higher
packaging density than single-row type.
3. Compatible with automatic packaging
Vacuum-operated header allows automatic embossed packaging.
See Fig. 1.
Can be packed in magazines for delivery.
4. Enhanced functions packed into compact unit
Box construction prevents prying-out, completely preventing mis-
insertion.
In addition, the SMT-compatible headers are reinforced to prevent
separation of the solder connection.
See Fig. 1.
Designed for automatic packaging
Suction plane provided for suction type automatic packaging
machine
Straight type
Suction plane
Reinforcement
Angle type
Suction plane
s
Application
Notebook computers, portable information terminals, compact
OA equipment, and various consumer equipment such as video movies.
Fig. 1
44
NC
Nylon Connectors
s
Product standard
Rating
Item
1. Insulation resistance
2. Withstand voltage
3. Contact resistance
5. Vibration resistance
6. Moisture resistance
7.Temperature cycle
8. Insertion/extraction life
9. Solder heat resistance
500 MΩ or more
No flashover or dielectric breakdown allowed
30 mΩ or less
No electrical discontinuity of 1
µs
or more allowed
Contact resistance: 30 mΩ or less, insulation resistance: 500 MΩ or more
Contact resistance: 30 mΩ or less, insulation resistance: 500 MΩ or more
Contact resistance: 30 mΩ or less
No melting of resin affecting the connector performance allowed
DF13 Series (1.25mm Pitch)
Rated current
Rated voltage
1A
AC 150 V
Standard
Operating temp.
Operating humidity
-35~85˚C(Note 1)
40~80%
Measured at 100 VDC
AC500V 1 minute
Measured at 100 mA
Storage temp.
Storage humidity
Conditions
-10~60˚C (Note 2)
40~70% (Note 2)
4. Insertion and withdrawals force MIN 0.3 N(30gf), MAX 3 N(300gf)
To be measured with a steel pin of
M0.35±0.002mm
Frequency: 10 - 55 Hz, single-side amplitude: 0.75 mm, 3 directions for 2 hours
Temperature: 40±2°C, humidity: 90 - 95%, allow 96 hours before measurement .
(-55°C for 30 min.
/
5 - 35°C for 10 min.
/
85°C for 30 min.
/
5 - 35°C for 10 min.) 5 cycles
Solder-plated: 30 insertions/extractions
Dip type
SMT type
Flow: 250°C for 10 min.
Reflow: At recommended
temperature profile
Gold-plated
:
50 insertions/extractions
Manual soldering: solder temperature:
300°C for 3 seconds
Manual soldering: solder temperature:
300°C for 3 seconds
Note 1:
Note 2:
Note 3:
Includes temperature rise when power is on.
"Storage" refers to a long period of storage without use of the product before being mounted on a board.
The operating temperature and humidity ranges apply to the connectors mounted on a board when turned off, and connectors under
temporary storage such as those being transported.
The above standards are typical for the DF13 series. The formal standards are stated in the delivery specifications.
s
Material
Part
Material
Insulation
Polyamide resin
Terminal
Phosphor bronze
Insulation
Polyamide resin
Terminal
Brass
Insulation
Polyamide resin
Pin header
Terminal
Brass
(SMTsingle-row)
Fittings
Phosphor bronze
Insulation
Polyamide resin
Pin header
Terminal
Brass
(SMTdouble-row)
Fittings
Phosphor bronze
Note: Our tin plating is protected from whiskers.
Product
Crimp socket
Crimp socket terminal
Pin header
(Dip)
Processing
Beige
Solder-plated or Gold-plated
Beige
Solder-plated
Beige
Solder-plated or Gold-plated
Solder-plated
Beige
Solder-plated or Gold-plated
Solder-plated
UL Rating
UL94V-0
UL94V-0
UL94V-0
UL94V-0
s
Structure of the product number
The product specifications can be determined from the product number.
When ordering, select products using the product numbers listed in this catalog 46 to 52 pages.
q
Connector
DF13# -
T
S - 1.25C
Series Name : DF
Series No. : 13
Shape symbol
Contact pitch: 1.25 mm
Connection form/Type of termination
C: Crimp case
DSA: Straight DIP
DS: Right-angle DIP
V: Straight SMT
H: Right-angle SMT
For V type only
No. of contacts: Single row: : 2~12, 14, 15
Double-row: : 10, 20, 30, 40
Types of connectors
Blank: With guide post
S: Single-row socket
A: Without guide post
P: Single-row pin header
B: With guide post,embossed type packing
DS: Double-row socket
C: Without guide post, embossed type
DP: Double-row pin header
packing
q
Terminal
DF13 - 2630SCFA
Applicable wire size
2630 : AWG26~30
Type of form/Type of packaging
SCF : Socket contact
•
reel
Type of plating
Blank: Tin-plated
A: Gold-plated
45
DF13 Series (1.25mm Pitch)
NC
Nylon Connectors
s

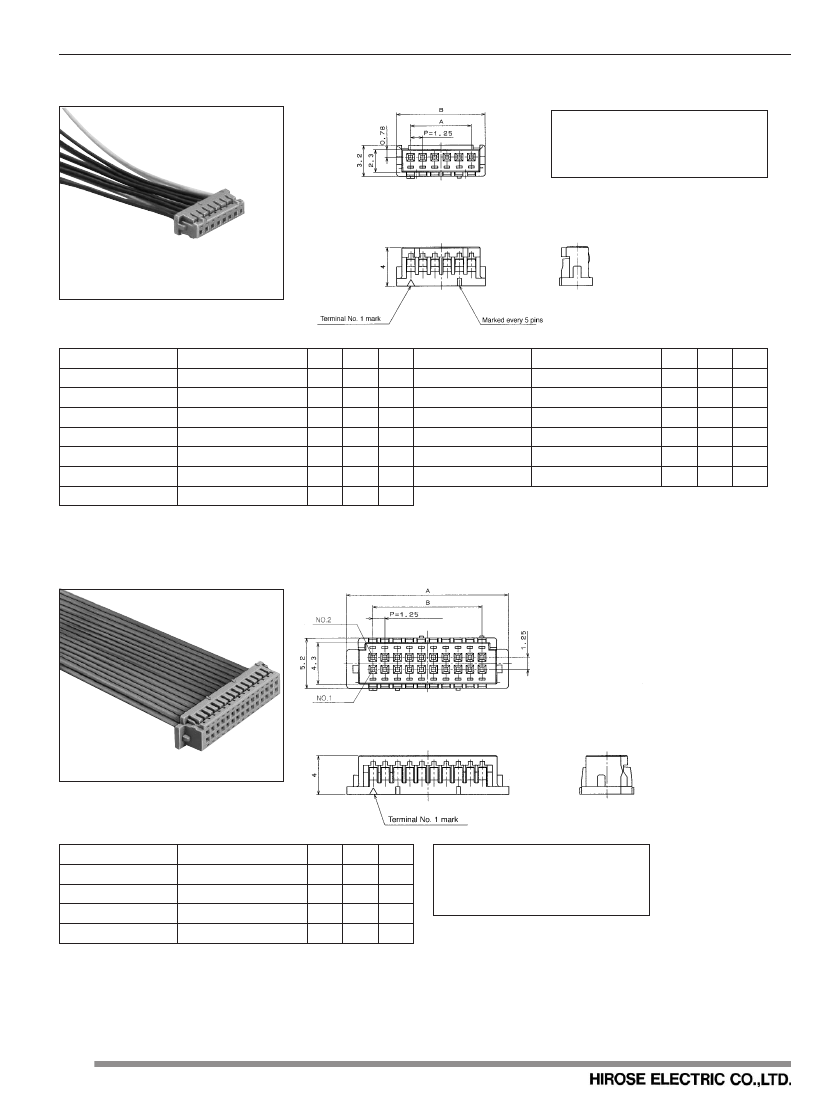

Single-row socket
[Specification No.]: -**,(**)
Blank : 100 pcs. per pack
(40) : 500 pcs. per package
(41) : 1000 pcs. per package
Photo shows engaged pins
Unit : mm
HRS No.
536-0001-4-TT
536-0002-7-TT
536-0003-0-TT
536-0004-2-TT
536-0005-5-TT
536-0006-8-TT
536-0007-0-TT
Product No.
DF13-2S-1.25C (TT)
DF13-3S-1.25C (TT)
DF13-4S-1.25C (TT)
DF13-5S-1.25C (
TT
)
DF13-6S-1.25C (TT)
DF13-7S-1.25C (TT)
DF13-8S-1.25C (TT)
No. of
contacts
A
1.25
2.50
3.75
5.00
6.25
B
4.15
5.40
6.65
7.90
9.15
HRS No.
536-0008-3-TT
536-0009-6-TT
536-0010-5-TT
536-0011-8-
TT
536-0013-3-TT
536-0014-6-TT
Product No.
DF13- 9S-1.25C (TT)
DF13-10S-1.25C (TT)
DF13-11S-1.25C (TT)
DF13-12S-1.25C (
TT
)
DF13-14S-1.25C (TT)
DF13-15S-1.25C (TT)
No. of
contacts
A
B
2
3
4
5
6
7
8
9
10
11
12
14
15
10.00 12.90
11.25 14.15
12.50 15.40
13.75 16.65
16.25 19.15
17.50 20.40
7.50 10.40
8.75 11.65
Note 1: Minimum order quantity of the models without a number specified is one pack containing 100 sockets.
Note 2: Models available in (40): 500 pieces per package and (41): 1000 pieces per pack should be ordered in quantity of sockets. Order in multiples
of order units, e.g., 500, 1000, 1500,-- .
s
Double-row socket
Photo shows engaged pins
Unit : mm
HRS No.
536-0550-2-TT
536-0555-6-TT
536-0560-6-TT
536-0565-0-TT
Product No.
DF13-10DS-1.25C (TT)
DF13-20DS-1.25C (TT)
DF13-30DS-1.25C (TT)
DF13-40DS-1.25C (TT)
No. of
contacts
A
10.40
B
5.00
10
20
30
40
16.65 11.25
22.90 17.50
29.15 23.75
[Specification No.]: -**,(**)
Blank : 100 pcs. per pack
(40) : 500 pcs. per package
(41) : 1000 pcs. per package
Note 1: Minimum order quantity of the models without a number specified is one pack containing 100 sockets.
Note 2: Models available in (40): 500 pieces per package and (41): 1000 pieces per pack should be ordered in quantity of sockets. Order in multiples
of order units, e.g., 500, 1000, 1500,-- .
46
NC
Nylon Connectors
s

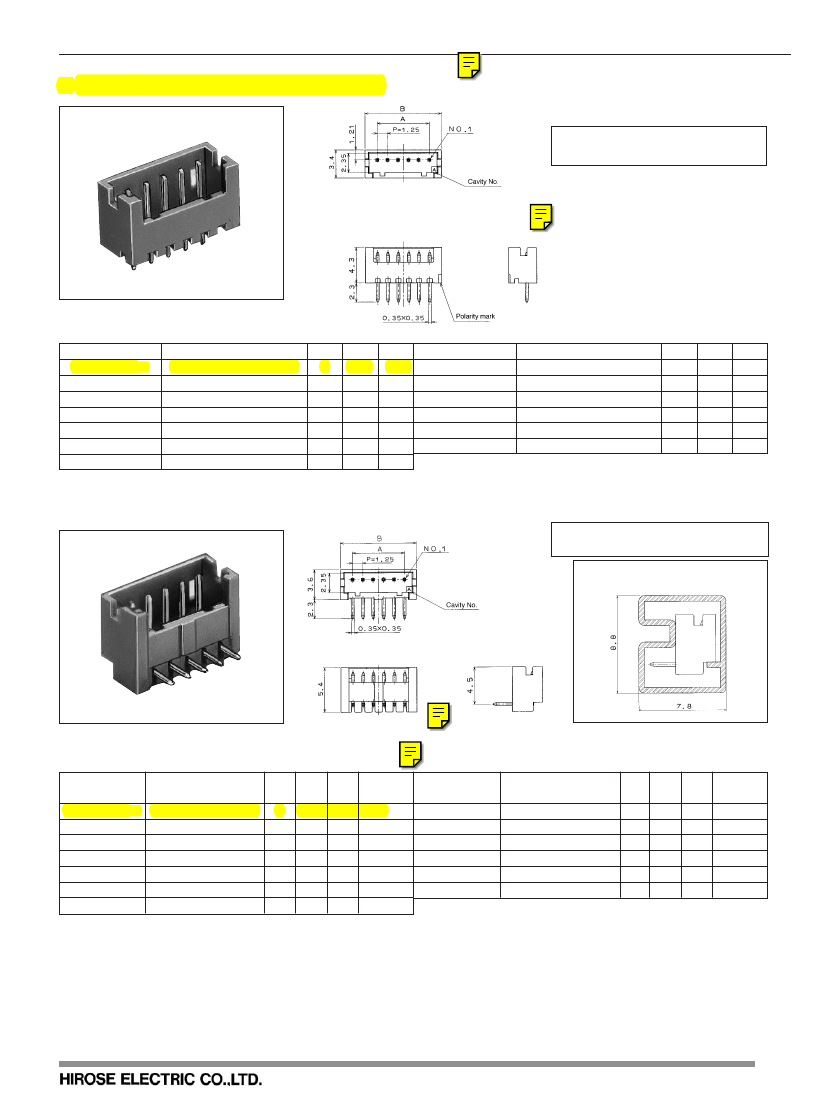

Single-row Straight Pin Header (DIP)
DF13 Series (1.25mm Pitch)
[Specification No.]: -**,(**)
Blank : Tin-plated
qBoard
through-hole diameter : ø0.6±0.03
Unit : mm
HRS No.
Product No.
A
B
HRS No.
Product No.
536-0101-9-
TT
DF13-2P-1.25DSA (TT)
2
1.25 4.15 536-0108-8-
TT
DF13- 9P-1.25DSA (TT)
536-0102-1-
TT
DF13-3P-1.25DSA (TT)
3
2.50 5.40 536-0109-0-TT
DF13-10P-1.25DSA (TT)
536-0103-4-
TT
DF13-4P-1.25DSA (TT)
4
3.75 6.65 536-0110-0-TT
DF13-11P-1.25DSA (TT)
536-0104-7-TT
DF13-5P-1.25DSA (TT)
5
5.00 7.90 536-0111-2-TT
DF13-12P-1.25DSA (TT)
536-0105-0-TT
DF13-6P-1.25DSA (TT)
6
6.25 9.15 536-0113-8-TT
DF13-14P-1.25DSA (TT)
536-0106-2-TT
DF13-7P-1.25DSA (TT)
7
7.50 10.40 536-0114-0-TT
DF13-15P-1.25DSA (TT)
536-0107-5-TT
DF13-8P-1.25DSA (TT)
8
8.75 11.65
Note : Minimum order quantity of the models without a number specified is one pack containing 100 sockets.
No. of
contacts
No. of
contacts
9
10
11
12
14
15
A
10.00
11.25
12.50
13.75
16.25
17.50
B
12.90
14.15
15.40
16.65
19.15
20.40
s
Single-row Right-angle Pin Header (DIP)
[Specification No.]: -**,(**)
(20):Tin-plated, magazine packaging
y
Magazine
dimension
qBoard
through-hole diameter : ø0.6±0.03
Unit : mm
HRS No.
Product No.
No. of
contacts
A
B
No. of products
in a magazine
HRS No.
Product No.
No. of
contacts
A
B
No. of products
in a magazine
536-0151-7-TT DF13-2P-1.25DS (TT)
2 1.25 4.15 115
536-0158-6-TT DF13- 9P-1.25DS (TT)
536-0152-0-
TT
DF13-3P-1.25DS (TT)
3 2.50 5.40 89
536-0159-9-TT DF13-10P-1.25DS (TT)
536-0153-2-
TT
DF13-4P-1.25DS (TT)
4 3.75 6.65 72
536-0160-8-TT DF13-11P-1.25DS (TT)
536-0154-5-TT DF13-5P-1.25DS (TT)
5 5.00 7.90 61
536-0161-0-TT DF13-12P-1.25DS (TT)
536-0155-8-TT DF13-6P-1.25DS (TT)
6 6.25 9.15 52
536-0163-6-TT DF13-14P-1.25DS (TT)
536-0156-0-TT DF13-7P-1.25DS (TT)
7 7.50 10.40 46
536-0164-9-TT DF13-15P-1.25DS (TT)
536-0157-3-TT DF13-8P-1.25DS (TT)
8 8.75 11.65 41
Note: Order magazine-packaged products in multiples of the amount contained in a magazine.
9
10
11
12
14
15
10.00 12.90
11.25 14.15
12.50 15.40
13.75 16.65
16.25 19.15
17.50 20.40
37
34
31
29
25
23
47
DF13 Series (1.25mm Pitch)
NC
Nylon Connectors
s

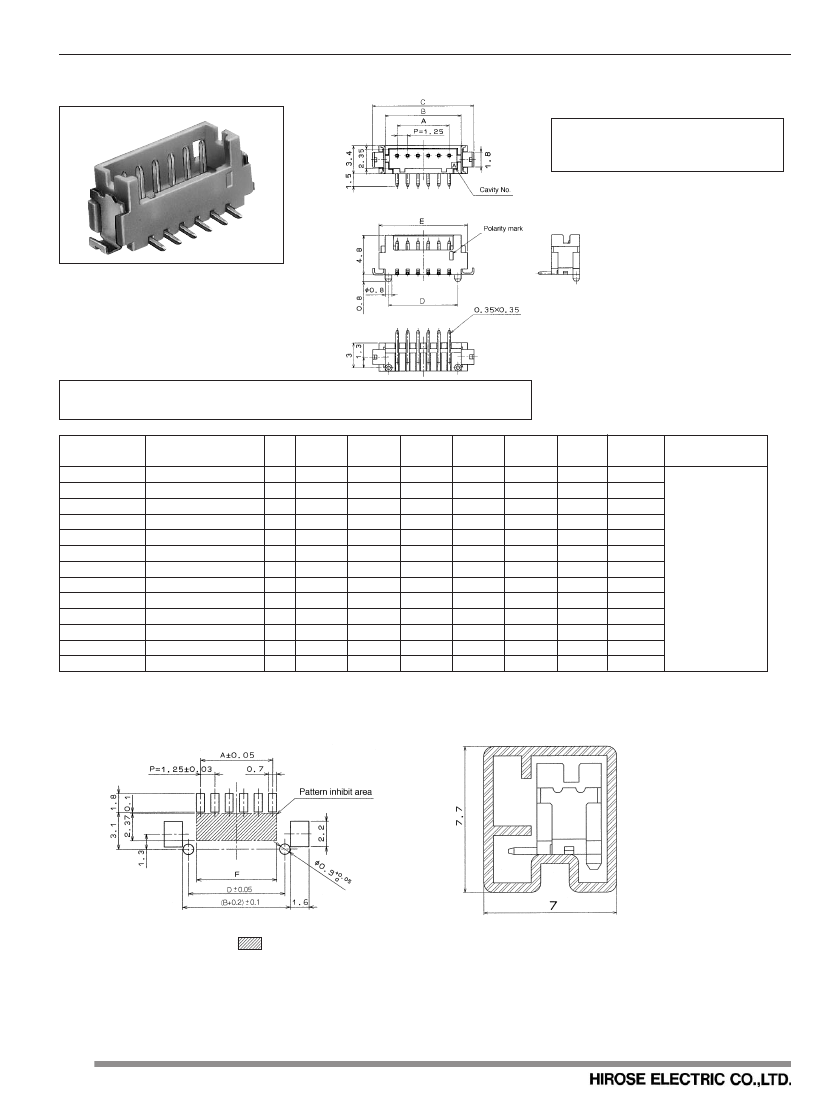

Single-row Straight Pin Header (SMT)
[Specification No.]: -**,(**)
(20) : Tin-plated, magazine packaging
(50) : Gold-plated, magazine packaging
Having a box type housing, the pin headers of this model have no embossed suction surface
and are not available in the embossed packaging specification.
Unit : mm
HRS No.
Product No.
No. of
contacts
No. of products
in a magazine
A
B
C
D
E
5.65
6.90
8.15
9.40
10.65
11.90
13.15
14.40
15.65
16.90
18.15
20.65
21.90
F
1.95
3.20
4.45
5.70
6.95
8.20
9.45
10.70
11.95
13.20
14.45
16.95
18.20
Remarks
536-0201-3-
TT
DF13- 2P-1.25V (TT) 2
1.25
4.15
7.15
3.35
536-0202-6-TT DF13- 3P-1.25V (TT) 3
2.50
5.40
8.40
4.60
536-0203-9-TT DF13- 4P-1.25V (TT) 4
3.75
6.65
9.65
5.85
536-0204-1-TT DF13- 5P-1.25V (TT) 5
5.00
7.90
10.90
7.10
536-0205-4-TT DF13- 6P-1.25V (TT) 6
6.25
9.15
12.15
8.35
536-0206-7-
TT
DF13- 7P-1.25V (TT) 7
7.50
10.40
13.40
9.60
536-0207-0-
TT
DF13- 8P-1.25V (TT) 8
8.75
11.65
14.65
10.85
536-0208-2-
TT
DF13- 9P-1.25V (TT) 9
10.00
12.90
15.90
12.10
536-0209-5-TT DF13-10P-1.25V (TT) 10
11.25
14.15
17.15
13.35
536-0210-4-TT DF13-11P-1.25V (TT) 11
12.50
15.40
18.40
14.60
536-0211-7-TT DF13-12P-1.25V (TT) 12
13.75
16.65
19.65
15.85
536-0213-2-TT DF13-14P-1.25V (TT) 14
16.25
19.15
22.15
18.35
536-0214-5-
TT
DF13-15P-1.25V (TT) 15
17.50
20.40
23.40
19.60
Note: Order magazine-packaged products in multiples of the amount contained in a magazine.
67
57
49
44
39
36
33
30
28
26
24
21
20
Guide post:
Provided
y
Recommended board pattern
y
Magazine dimensional drawing
Note: When a part marked with
has a pattern and no resist on it, take care to prevent the connector terminal from contacting it.
48
stm32/stm8
京公网安备 11010802033920号
EEWORLD
