DF11-32DS-2R26(21) datasheet, PDF

Datasheet> All Categories > The connector> The connector> DF11-32DS-2R26(21)

DF11-32DS-2R26(21): DescriptionBoard Connector, 32 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking Mech, Black Insulator, Socket; CategoryThe connector The connector; File Size66KB，1 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet Parametric View All

DF11-32DS-2R26(21) Overview

Board Connector, 32 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking Mech, Black Insulator, Socket

DF11-32DS-2R26(21) Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TUBE PACKAGING
body width	0.256 inch
subject depth	0.362 inch
body length	1.339 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHORUS-COPPER
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	650VAC V
Durability	30 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	4.3924 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYAMIDE
MIL compliance	NO
Manufacturer's serial number	DF11
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING MECH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Options	WITH CABLE ASSEMBLY
polarization key	POLARIZED RIB(S)
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length
Termination type	IDC
Total number of contacts	32
Maximum wire diameter	26 AWG
Minimum wire diameter	26 AWG
Evacuation force-minimum value	.3058 N
Base Number Matches	1

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

sID

Socket

Note1: Port 1-piece indicates odd number row,

and port 2- pcs. indicate even number row.

Note2: Use the dip type header as follows.

Straight angle type : DF11-*DP-2DSA ( 08 )

Angle type: DF11-*DP-2DS(24)

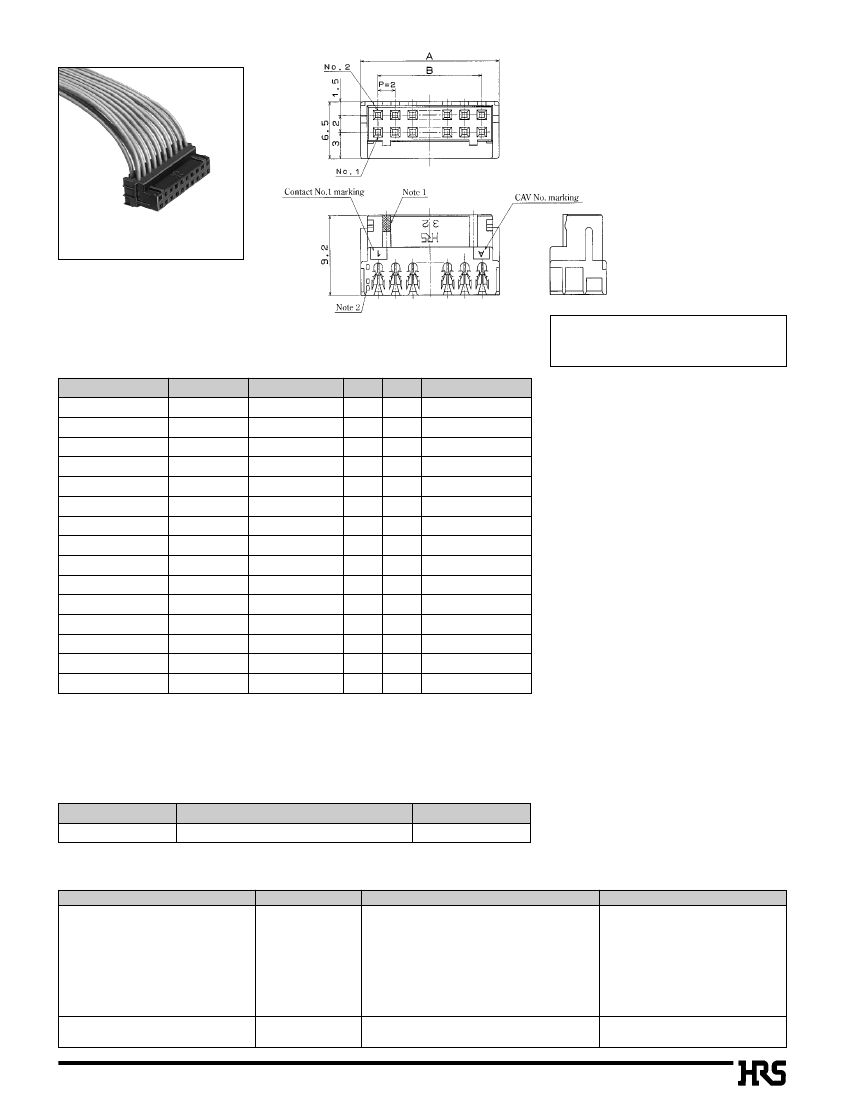

Photo: Cable connection status

[Specific No.]

–

* *

Blank :Tin plated, 100 pcs. per bag

(21)

:Tin plated, Tube packaging

Unit: mm

Part Number

CL No.

Number of Contacts

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

32.0

34.0

2.0

4.0

6.0

8.0

10.0

12.0

14.0

16.0

18.0

20.0

22.0

24.0

26.0

28.0

30.0

Tube Packaging Quantity

188

140

112

DF11- 4DS-2R26(**) 543-0652-0-**

DF11- 6DS-2R26(**) 543-0653-3-**

DF11- 8DS-2R26(**) 543-0654-6-**

DF11-10DS-2R26(**) 543-0655-9-**

DF11-12DS-2R26(**) 543-0656-1-**

DF11-14DS-2R26(**) 543-0657-4-**

DF11-16DS-2R26(**) 543-0658-7-**

DF11-18DS-2R26(**) 543-0659-0-**

DF11-20DS-2R26(**) 543-0660-9-**

DF11-22DS-2R26(**) 543-0661-1-**

DF11-24DS-2R26(**) 543-0662-4-**

DF11-26DS-2R26(**) 543-0663-7-**

DF11-28DS-2R26(**) 543-0664-0-**

DF11-30DS-2R26(**) 543-0665-2-**

DF11-32DS-2R26(**) 543-0666-5-**

Note1: The specific No. "None" item is delivered per bag unit (100 pcs.). Please order products per bag unit.

Note2: To use the full automatic insulation displacement machine to punch the DF11 single contact, the (20) tube packaging specification

should be applied.

Note3: Please order the tube packaging products by multiplying the packaging quantity ( pcs.).

sApplicable

Cable

Part Number

DF11-*DS-2R26

Applicable Cable

UL1061 AWG26 (7/0.16)

Jacket Diameter

Ø0.9 to

1.05mm

sDF11-*DS-2R

Insulation Displacement Machine

Type

Part Number

Connection Type

sEffective

harness form

1. DF11-both ended, one ended

2. DF11-DF11, separation

3. DF11-DF3, separation

sEffective

harness length

100 to 2,000mm

sContinuity

Inspection Mechanism Equipped

sUsed

for DF11 only, No restricted condition

Remarks

Punching full automatic ID

machine DF11 single contact

AM700/DF11

The connector is applicable to

(20) tube packaging.

Desktop ID Machine

SA700/DF11

CL903-0013-5

Desktop machine for small lot

A269
