DF17B(3.0)-20DS-0.5V(57) datasheet, PDF

DF17B(3.0)-20DS-0.5V(57): DescriptionBoard Stacking Connector, 20 Contact(s), 2 Row(s), Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle,; CategoryThe connector The connector; File Size331KB，2 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/; Environmental Compliance

Download Datasheet Parametric View All

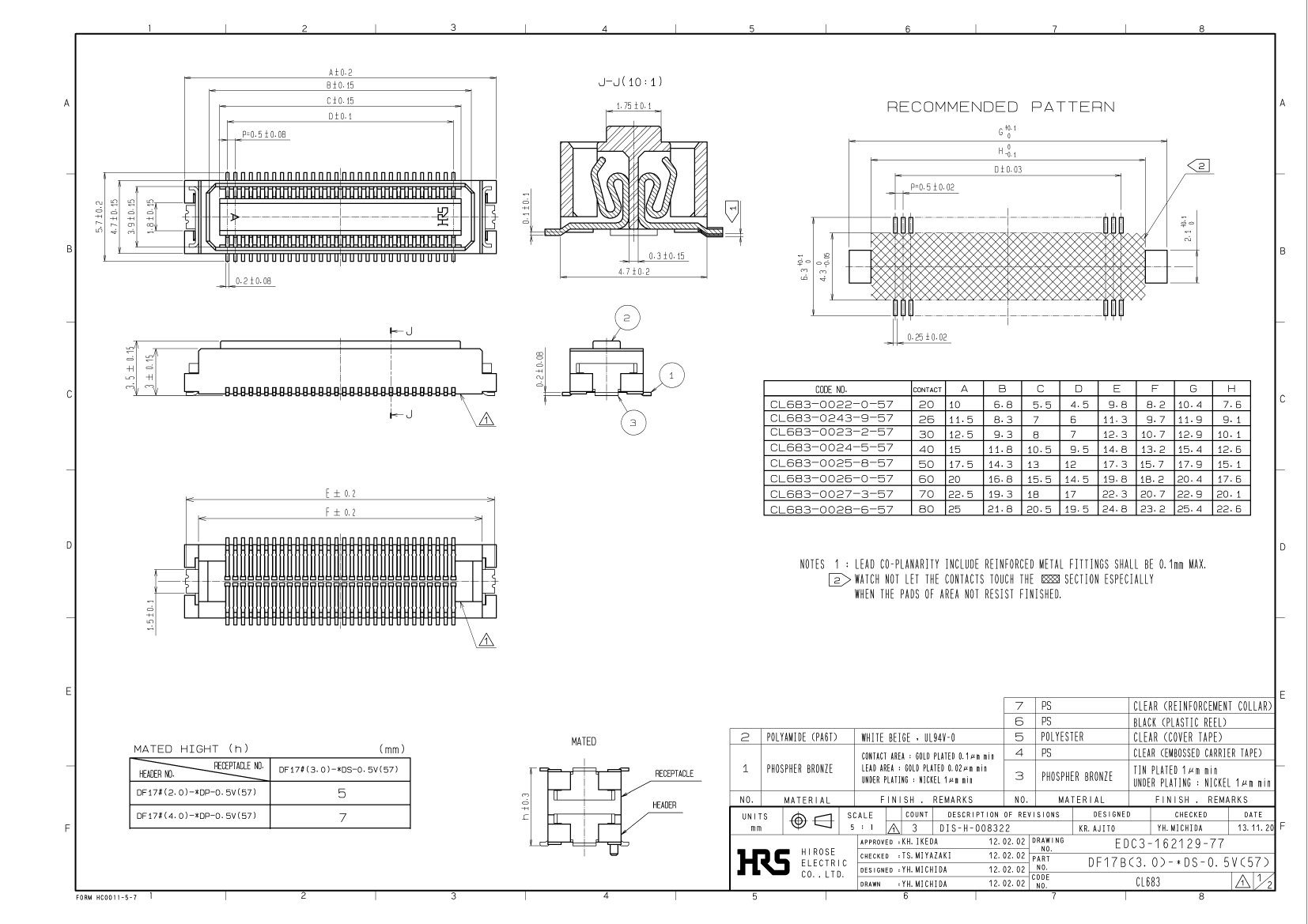

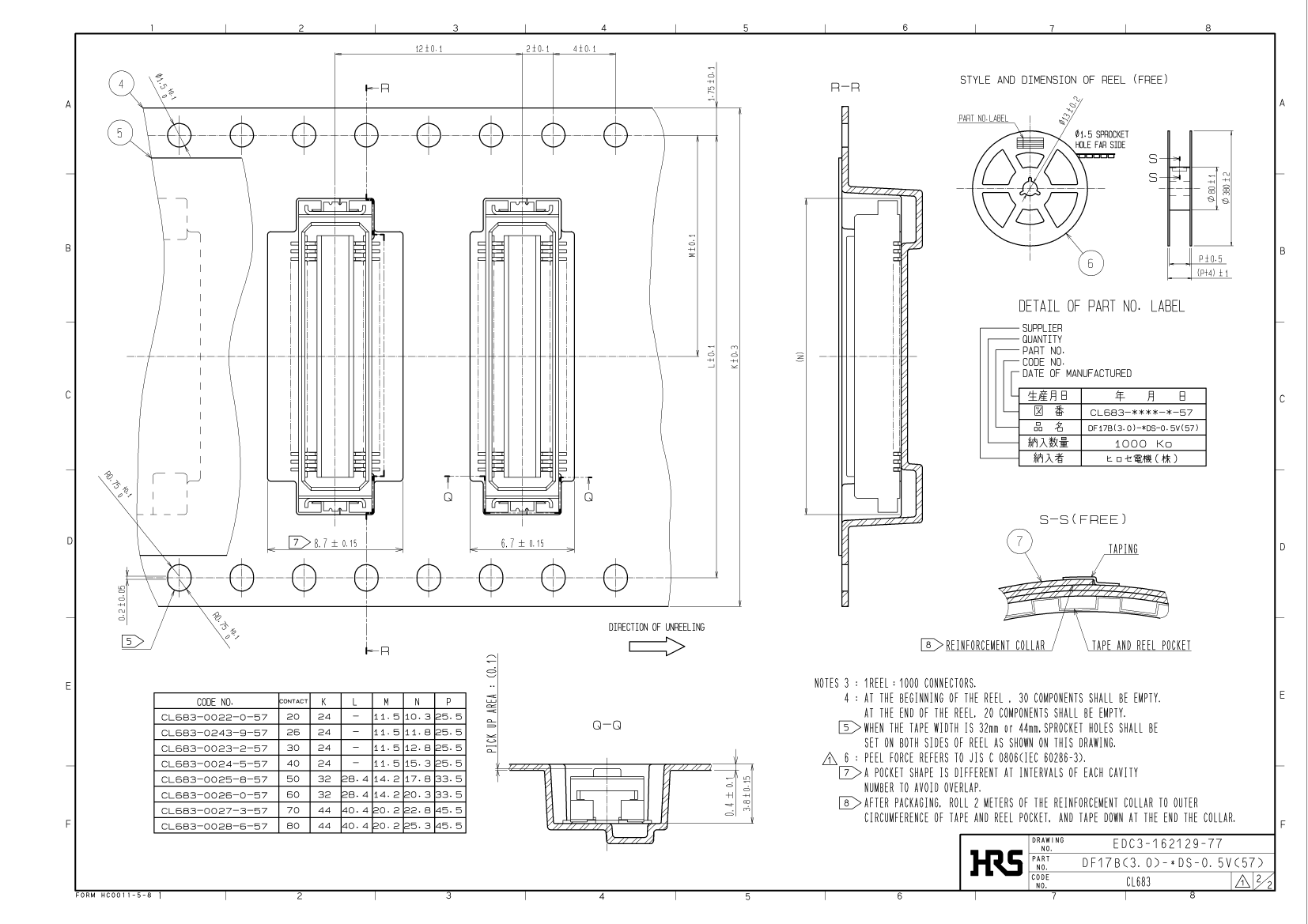

DF17B(3.0)-20DS-0.5V(57) Overview

Board Stacking Connector, 20 Contact(s), 2 Row(s), Straight, 0.019 inch Pitch, Surface Mount Terminal, Locking, White Insulator, Receptacle,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.185 inch
subject depth	0.118 inch
body length	0.394 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	60 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	150VAC V
Durability	50 Cycles
Insulation resistance	500000000 Ω
Insulator color	WHITE
insulator material	POLYAMIDE
Plug contact pitch	0.019 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-35 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.3086 mm
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	20
Base Number Matches	1
