0.4 mm Contact Pitch Board-to-Board /Board-to-FPC Connectors
DF40 Series
Decrease in the board-occupied area
Smaller width
Other HRS
connector
3.38mm
Shock-absorbing rib
Header
Interlock indentations
(for 10 to 50 positions)
5.0mm
DF40
s

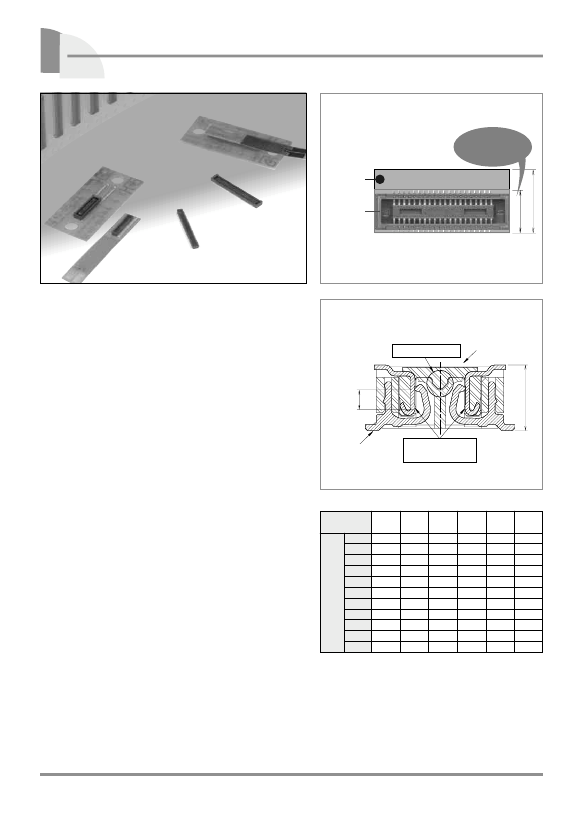

Features
1. Higher density of the board-mounted components
Extremely small board mounting pattern and low above-
the-board profile makes the connectors ideally suited for
small device applications.
High contact reliability – Effective connection wipe of 0.45 mm
Despite connectors small size and low profile the contacts
provide strong contact forces and long contact wipe (0.45
mm), guaranteeing reliable electrical and mechanical
performance.
0.45mm
4. Large self-alignment distance
The connectors will self-align within 0.33 mm.
5. Confirmation of the fully mated condition
Positive “click” sensation confirms correct insertion and
connection of all contacts.
Receptacle
6. Built-in shock absorbing feature
The protrusions and indents in the insulator bodies protect
the connectors from failures when exposed to sudden
impact.
Stacking Height variation
Stacking
Height
10
20
24
30
40
44
50
60
70
80
100
1.5mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm
K
K
K
K
K
----
K
K
K
K
K
----
K
----
K
K
----
K
----
----
----
----
K
----
K
K
K
----
----
----
----
----
----
K
----
----
K
K
----
----
----
----
----
----
----
7. Solder wicking prevention
Nickel-plated barriers provide protection against solder
wicking into the contact areas.
Number of Contacts
8. Contact area protection
External walls protect the exposed contact areas from
intrusion of flux or foreign particles.
∆
∆
----
K
K
----
----
----
∆
K
K
----
K
----
9. RoHS compliant
All components and materials comply with the
requirements of the EU Directive 2002/95/EC.
s
Applications
Cellular phones, Digital Video Cameras, Digital Still
Cameras, portable devices and other small applications
requiring reliable board-to-board or FPC-to-board
connections.
∆: Reserved for product expansion
121
1.5~4.0mm
2. Stacking height variation : 1.5mm to 4.0mm
3. High contact reliability
∆
----
∆
----
----
----
----
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF40 Seriesq0.4 mm Contact Pitch Board-to-Board /Board-to-FPC Connectors
sProduct
Specifications
Ratings
Current rating 0.3A
Voltage rating 30V AC, DC
Operation temperature range -35ç to +85ç (Note 1)
Operation humidity range
RH 20% to 80%
Storage temperature range -10ç to +60ç (Note 2)
Storage humidity range
RH 40% to 70% (Note 2)
Item
1. Insulation resistance
2. Withstanding voltage
3. Contact resistance
4. Vibration
5. Humidity
50 Mø min.
Specification
100V DC
No flashover or insulation breakdown.
90 mø max.
No electrical discontinuity of 1 µs or more.
Contact resistance: 90 mø max.
IInsulation resistance: 25 Mø min.
Contact resistance: 90 m ø max.
Insulation resistance: 50 Mø min.
Contact resistance: 90 mø max.
No deformation of components
affecting performance.
Conditions
100V AC / one minute
1mA, 20mV AC, 1 kHz
Frequency: 10 to 55 Hz, single amplitude of 0.75mm, 2 hours, 3 axis
96 hours at +40±2ç and humidity of 90% to 95%.
Temperature: -55/+5ç to 35ç/+85ç/+5ç to +35ç
Time: 30/10/30/10 (Minutes)
5 cycles
30 cycles
Reflow: At the recommended temperature profile
Manual soldering: 350ç for 3 seconds
6. Temperature cycle
7. Durability
(insertion/withdrawal)
8. Resistance to
soldering heat
Note 1: Includes temperature rise caused by current flow.
Note 2: The term “storage” refers to products stored for long period of time prior to mounting and use. Operating temperature range
and humidity range covers non-conducting condition of installed connectors in storage, shipment or during transportation.
sMaterials
Product
Receptacles
Headers
Part
Insulator
Contacts
Material
LCP
Phosphor bronze
Finish
Color : Black
Gold plated
Remarks
UL94V-0
-------------
sOrdering
information
qReceptacle
q
Series Name
w
Configuration
C: Without metal fittings
HC: Without metal fittings
(Stacking height : 2.5mm to 4.0mm)
Blank
2.0
2.5
3.0
3.5
4.0
DF40
q
#
(**)
-
*
DS - 0.4 V
(**)
w
e
r
t
y
u
i
e
Stacking Height
Stacking Height
1.5mm
2.0mm
2.5mm
3.0mm
3.5mm
4.0mm
: DF40
t
Connector Type
DS : Double-row receptacle
y
Contact Pitch : 0.4mm
u
Terminal Type V: SMT vertical mount
i
Packaging
(51) : Embossed tape packaging
r
Number of Contacts
qHeader
q
Series Name
w
Configuration
C: Without metal fittings
: DF40
DF40
q
# -
*
DP - 0.4 V (
**
)
w
e
r
t
y
u
t
Contact Pitch : 0.4mm
y
Terminal Type V: SMT vertical mount
u
Packaging
(51) : Embossed tape packaging
e
Number of Contacts
r
Connector Type
DP : Double-row pin header
122
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF40 Seriesq0.4 mm Contact Pitch Board-to-Board /Board-to-FPC Connectors
sReceptacles

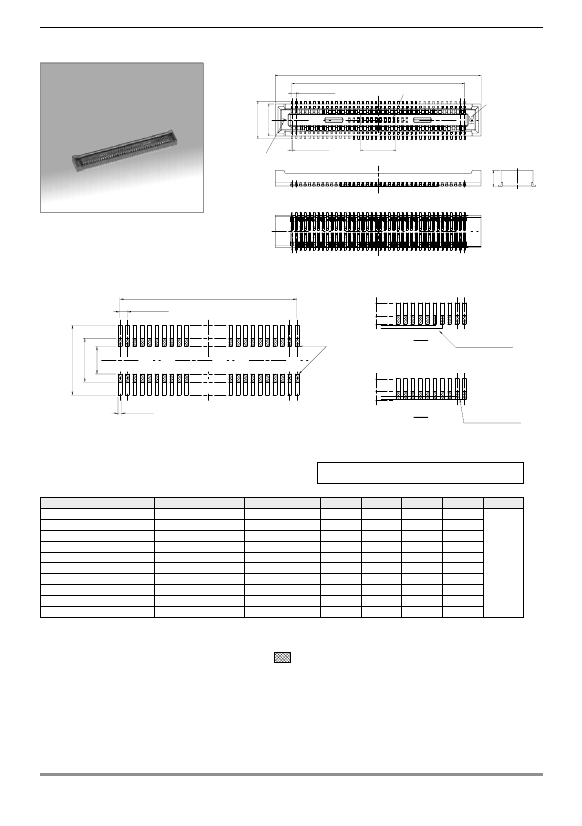

(Stacking Height : 1.5mm)
A±0.2
B±0.08
P=0.4±0.05
3.38±0.2
2.88±0.2
Note 2
HRS logo
0.12±0.02
Cavity identification
Pick-and-place area : C±0.2
D±0.15
BRecommended
PCB mounting pattern
B±0.02
P=0.4±0.02
Ill.1
YES
3.78
+0.05
0
0
2.38
-0.05
1.5MAX
Note 3
Conductive traces
Ill.2
0.2±0.02
NO
Conductive traces
q
Stacking Height : 1.5mm
Part Number
DF40C- 10DS-0.4V(51)
DF40C- 20DS-0.4V(51)
DF40C- 24DS-0.4V(51)
DF40C- 30DS-0.4V(51)
DF40C- 40DS-0.4V(51)
DF40C- 50DS-0.4V(51)
DF40C- 60DS-0.4V(51)
DF40C- 70DS-0.4V(51)
DF40C- 80DS-0.4V(51)
DF40C-100DS-0.4V(51)
CL No.
684-4036-2-51
684-4005-9-51
684-4006-1-51
684-4007-4-51
684-4008-7-51
684-4009-0-51
684-4004-6-51
684-4016-5-51
684-4002-0-51
684-4033-4-51
Number of contacts
10
20
24
30
40
50
60
70
80
100
[Specification number]
(51): Embossed tape packaging (5,000 pieces per reel)
A
4.6
6.6
7.4
8.6
10.6
12.6
14.6
16.6
18.6
22.6
B
1.6
3.6
4.4
5.6
7.6
9.6
11.6
13.6
15.6
19.6
C
1.0
1.0
1.2
1.5
3.2
3.2
3.2
3.2
3.2
3.2
D
1.45
1.45
1.45
1.45
1.45
1.45
1.45
1.45
1.45
1.45
Unit: mm
RoHS
YES
Note 1: Order by number of reels.
Note 2: Connectors with 60 or 100 contacts may have several recessed areas in this location. Pick-and-place operation will
NOT be affected.
Note 3: No conductive traces through the areas indicated by
.
Refer to
Ill.1
and
Ill.2.
for specific restrictions and exception to the above requirement.
Note 4: This connector is NOT polarized.
123
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF40 Seriesq0.4 mm Contact Pitch Board-to-Board /Board-to-FPC Connectors
sReceptacles
(Stacking Height : 2.0mm)
A±0.2
B±0.08
P=0.4±0.05
2.94±0.2
0.12±0.02
Pick-and-place area : C±0.2
D±0.15
3.38±0.2
BRecommended
PCB mounting pattern
C±0.02
P=0.4±0.05
+0.05
0
2.38
-0.05
3.78
1.5MAX
0.2±0.02
0
q
Stacking Height : 2.0mm
Part Number
DF40C(2.0)- 20DS-0.4V(51)
DF40C(2.0)- 30DS-0.4V(51)
DF40C(2.0)- 40DS-0.4V(51)
DF40C(2.0)- 44DS-0.4V(51)
DF40C(2.0)- 50DS-0.4V(51)
DF40C(2.0)- 60DS-0.4V(51)
DF40C(2.0)- 80DS-0.4V(51)
CL No.
684-4040-0-51
684-4058-5-51
684-4042-5-51
Reserved for product expansion
684-4091-0-51
684-4034-7-51
684-4132-6-51
Number of contacts
20
30
40
44
50
60
80
[Specification number]
(51): Embossed tape packaging (4,000 pieces per reel)
A
6.6
8.6
10.6
11.4
12.6
14.6
18.6
B
3.6
5.6
7.6
8.4
9.6
11.6
15.6
C
1.0
1.5
3.2
3.2
3.2
3.2
3.2
D
1.95
1.95
1.95
1.95
1.95
1.95
1.95
Unit: mm
RoHS
YES
Note 1: Order by number of reels.
Note 2: Connectors with 60 or 100 contacts may have several recessed areas in this location. Pick-and-place operation will
NOT be affected.
Note 3: No conductive traces through the areas indicated by
.
Refer to
Ill.1
and
Ill.2.
for specific restrictions and exception to the above requirement.
Note 4: This connector is NOT polarized.
124
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
DF40 Seriesq0.4 mm Contact Pitch Board-to-Board /Board-to-FPC Connectors
sReceptacles

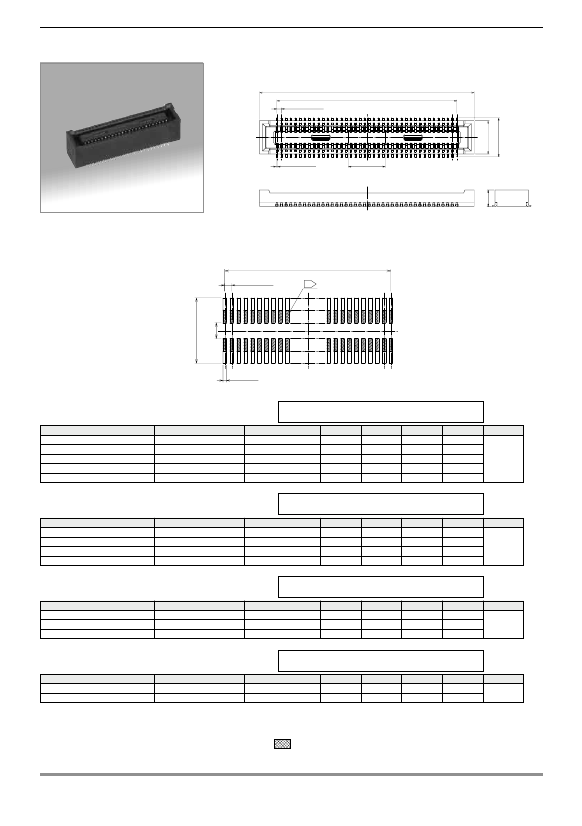

(Stacking Height : 2.5mm to 4.0mm)
A±0.2
B±0.08
P=0.4±0.05
2.94±0.2
0.12±0.02
Pick-and-place area : C±0.2
D±0.15
3.38±0.2
BRecommended
PCB mounting pattern
C±0.02
P=0.4±0.02
2
0.92MAX
0.2±0.02
3.78
+0.05
0
q
Stacking Height : 2.5mm
Part Number
DF40HC(2.5)- 20DS-0.4V(51)
DF40HC(2.5)- 30DS-0.4V(51)
DF40HC(2.5)- 40DS-0.4V(51)
DF40HC(2.5)- 50DS-0.4V(51)
DF40HC(2.5)- 60DS-0.4V(51)
CL No.
684-4126-3-51
Reserved for product expansion
Reserved for product expansion
684-4101-2-51
684-4085-8-51
[Specification number]
(51): Embossed tape packaging (3,000 pieces per reel)
Number of contacts
20
30
40
50
60
A
6.6
8.6
10.6
12.6
14.6
B
3.6
5.6
7.6
9.6
11.6
C
1.0
1.5
3.2
3.2
3.2
D
2.4
2.4
2.4
2.4
2.4
Unit: mm
RoHS
YES
q
Stacking Height : 3.0mm
Part Number
DF40HC(3.0)- 30DS-0.4V(51)
DF40HC(3.0)- 44DS-0.4V(51)
DF40HC(3.0)- 50DS-0.4V(51)
DF40HC(3.0)- 60DS-0.4V(51)
CL No.
684-4098-0-51
684-4076-7-51
684-4099-2-51
684-4100-0-51
[Specification number]
(51): Embossed tape packaging (3,000 pieces per reel)
Number of contacts
30
44
50
60
A
8.6
11.4
12.6
14.6
B
5.6
8.4
9.6
11.6
C
1.5
3.2
3.2
3.2
D
2.9
2.9
2.9
2.9
Unit: mm
RoHS
YES
q
Stacking Height : 3.5mm
Part Number
DF40HC(3.5)- 30DS-0.4V(51)
DF40HC(3.5)- 50DS-0.4V(51)
DF40HC(3.5)- 60DS-0.4V(51)
CL No.
684-4136-7-51
684-4109-4-51
684-4102-5-51
[Specification number]
(51): Embossed tape packaging (2,000 pieces per reel)
Number of contacts
30
50
60
A
8.6
12.6
14.6
B
5.6
9.6
11.6
C
1.5
3.2
3.2
D
3.4
3.4
3.4
Unit: mm
RoHS
YES
q
Stacking Height : 4.0mm
Part Number
DF40HC(4.0)- 40DS-0.4V(51)
DF40HC(4.0)- 50DS-0.4V(51)
CL No.
Reserved for product expansion
Reserved for product expansion
[Specification number]
(51): Embossed tape packaging (2,000 pieces per reel)
Number of contacts
40
50
A
10.6
12.6
B
7.6
9.6
C
3.2
3.2
D
3.9
3.9
Unit: mm
RoHS
YES
Note 1: Order by number of reels.
Note 2: Connectors with 60 or 100 contacts may have several recessed areas in this location. Pick-and-place operation will
NOT be affected.
Note 3: No conductive traces through the areas indicated by
.
Refer to
Ill.1
and
Ill.2.
for specific restrictions and exception to the above requirement.
Show the design plan + transplant TI grilb graphics library project to STM32F429i under MDK5.0. Although there are still some problems in some places, GRLIB can basically run under STM32F429. Tested "...
Abstract: In order to solve the problem of excessive power consumption during the long-term tubing downhole pressure test, a test system for perforating pressure in the tubing transmission perforating...
[font=宋体] I really started using TI chips in the 2012 National College Student Electronic Design Competition TI Cup. I applied for various TI op amp chips, power chips, comparator chips, motor driver ...
In recent years, with the increasing demand for manufacturing and automated production management, industrial barcode scanners have gradually become an indispensable part of the industrial manufact...[Details]
If the ultimate form of a car is a silicon-based life form, then in
the field of
intelligent driving
, it has gradually taken on the appearance of a "veteran driver." In
the field of
the ...[Details]
EtherCAT (Ethernet for Control Automation Technology) is a real-time industrial fieldbus communication protocol based on an Ethernet-based development framework. EtherCAT is one of the fastest indu...[Details]
With the rapid development of technology, automotive intelligence is increasing at an unprecedented rate. This not only enhances vehicle functionality and comfort, but also places higher deman...[Details]
When we travel in cities, we all find that electric vehicles have many advantages. As a means of transportation, they can also fulfill their mission well. Now, more and more residential communities...[Details]
New energy pure electric vehicles generally accelerate faster than comparable fuel-powered vehicles, both from a standing start and while accelerating. Many believe this is simply due to the motor'...[Details]
Multi-touch mobile phone
Multi-touch is a system that can respond to multiple touches on the screen at the same time. Multi-touch phones are divided into capacitive and resistive types. Capaci...[Details]
Introduction to the principles of speech recognition technology
Automatic speech recognition (ASR) technology aims to enable computers to understand human speech and extract the textual inform...[Details]
The structure of an LCD TV primarily consists of the LCD display module, power module, driver module (primarily including the main driver board and tuner board), and keypad module. LCD display modu...[Details]
Recently, South Korean robotics giant WIRobotics launched its first general-purpose humanoid robot, ALLEX, at the Robotics Innovation Center (RIH) at the Korea University of Science and Technology....[Details]
Smartphones have become essential digital devices, and the growing number of smartphone-centric applications is enriching people's lives. As users, they desire a better app experience and a wider r...[Details]
The difference between a series inverter and a parallel inverter is that they use different oscillation circuits. A series inverter connects L, R, and C in series, while a parallel inverter connect...[Details]
We often hear about the precautions for using pure electric vehicles in winter, and many owners even develop relevant strategies, such as adopting a "charge as you go" principle for their vehicles,...[Details]
For today's new energy vehicles, they have different configurations from fuel vehicles, and some configurations have also become a selling point for manufacturers. Compared with traditional vehicle...[Details]
Electric vehicles are composed of three main components: electric motors, electric motors, and electric vehicles. Maintenance is much simpler than for gasoline-powered vehicles. Maintenance for ele...[Details]
stm32/stm8
京公网安备 11010802033920号
EEWORLD
