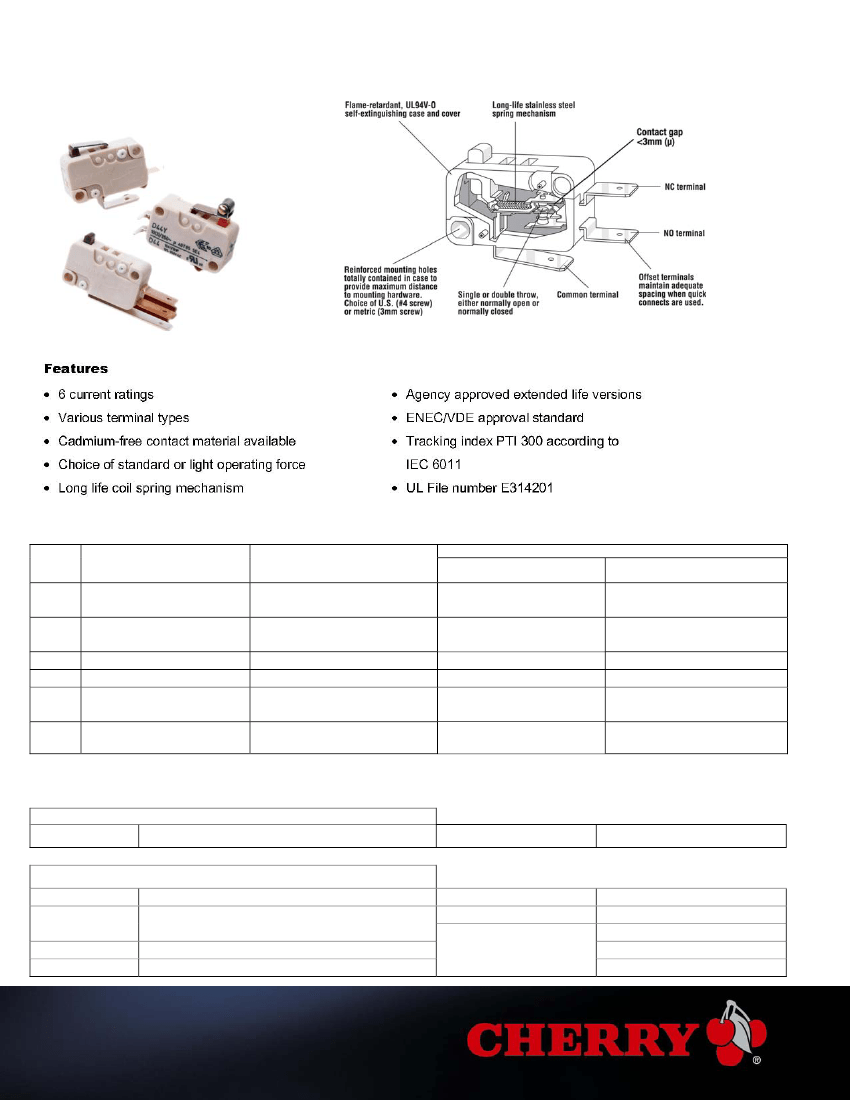

Miniature Snap Action Switch
D4 Series
Electrical Ratings
Switch
Series
D41
D42
D43
D44
D45
D48
EN61058 Rating
0.1(0.05)A, 250V~;
0.5A 30VDC
3(1)A, 250V~
6(2)A, 250V~
10(3)A, 250V~
16(4)A, 250V~
10(3)A, 400V~
(Std. force only)
21(8)A, 250V~
UL1054 Rating
0.1A, 125/250VAC; 0.5A 30VDC,
1A 125VAC
(6k life only)
3A, 125/250VAC; 1/10HP,
250VAC
5A, 125/250VAC, 1/4HP, 250VAC
10A, 1/2HP, 125/250VAC
15A, 1/2HP, 125/250VAC
21A, 250VAC; 1HP, 125VAC; 2HP,
250VAC
Electrical Life at Rated Load at 85º C
According to EN
According to UL
(Min. Operations)
(Min. Operations)
50,000
50,000
50,000
50,000
50,000
10,000
6,000*
6,000*
6,000*
6,000*
6,000*
6,000
*Denotes extended life versions available
Operating life for 125°C and 150°C available upon request.
.
Electrical Specifications
Temperature
Rating:
-40° to +85°C, 125°C or 150°C
Flammability Rating:
UL 94V-0
Materials
Case/Cover:
Actuating Button:
Auxiliary Actuator:
Common Terminal:
Thermoplastic Polyester (PET)
Thermoplastic Acetal (POM), 85°C
Thermoplastic Polyester (PET), 125°C or 150°C
Stainless Steel or Cold-Rolled Steel (Nickel-Plated)
Brass
Contacts:
NO/NC Terminals
Moving Blade:
Brass
Silver Plated Brass
Gold Crosspoint (D41)
Silver (D42)
Silver Alloy (D43-D48)
Miniature Snap Action Switch
D4 Series

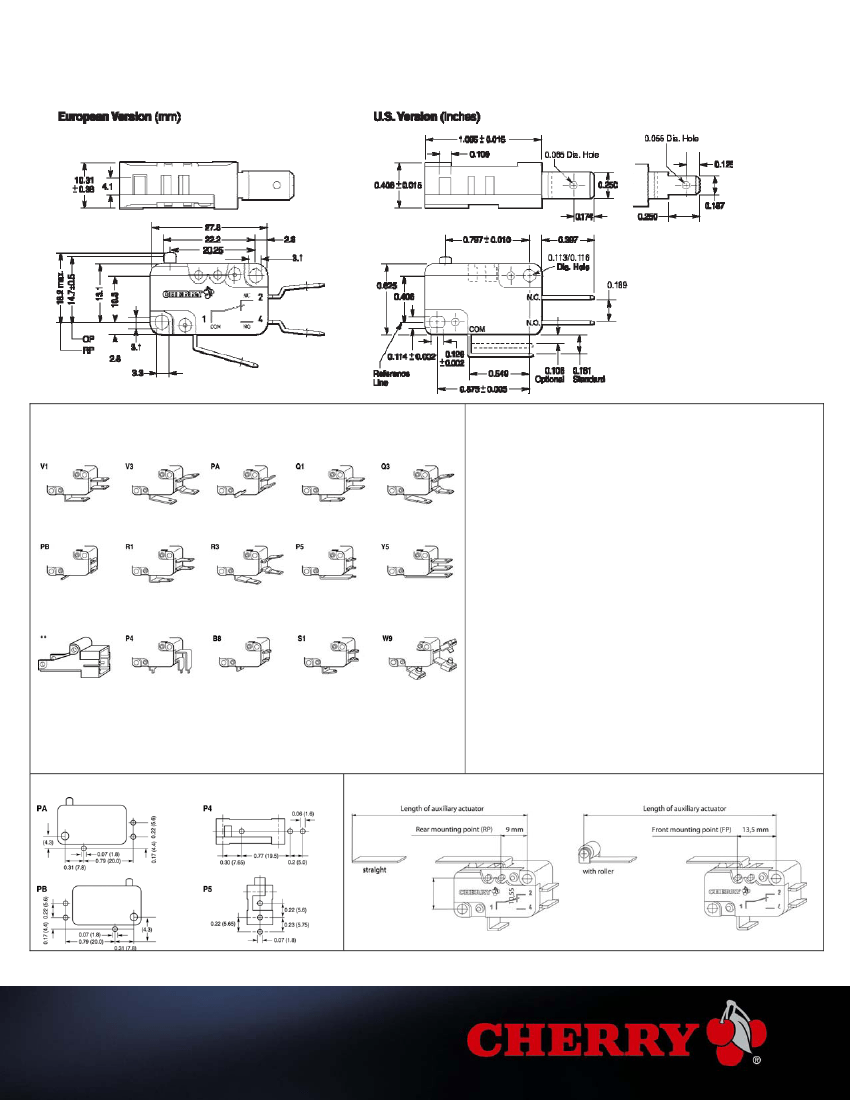

Terminals
Actuators
Many special forms and lengths of actuators are available. Standard type
integral hinged lever and roller actuators are available in choice of 2
mounting positions. Actuation lengths are dimensioned from centerline of
switch
mounting hole as shown below.

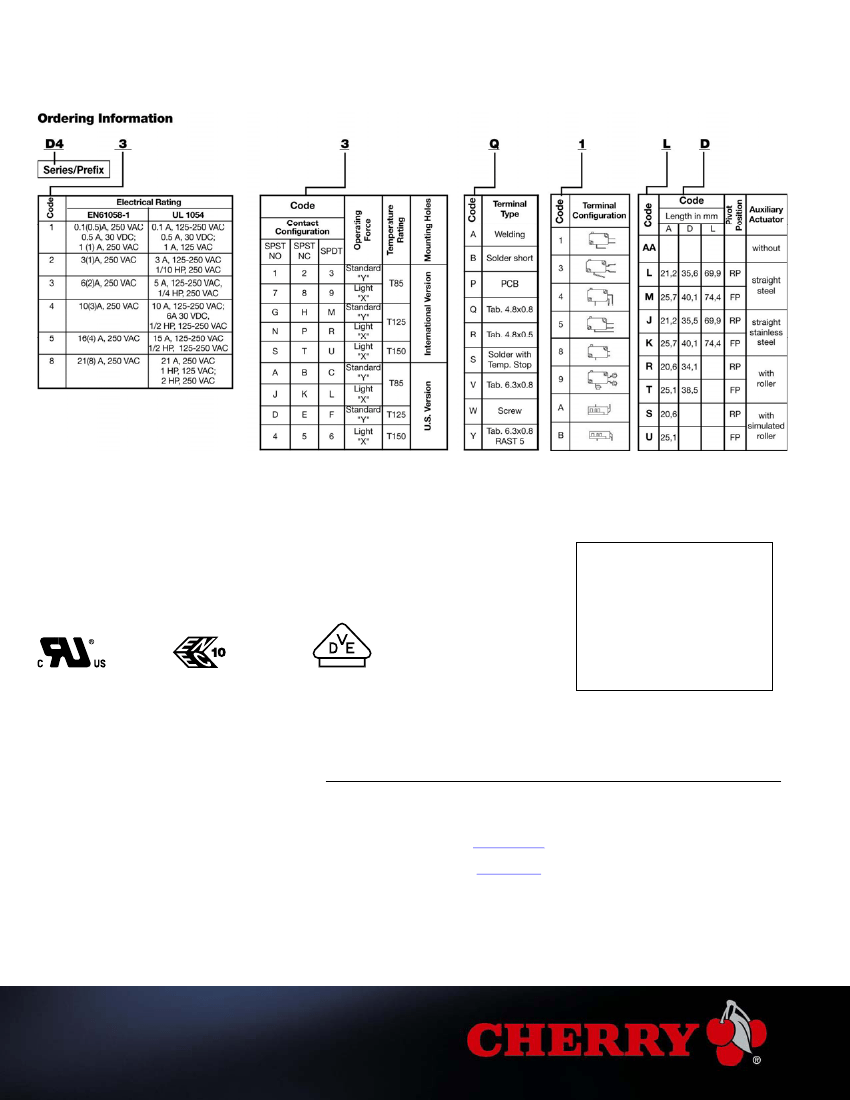

Identifiers
Switches with a “standard” operating force are identified by
a ‘Y’ next to the standard model description, e.g. D43Y.
Switches with a “light” operating force are identified by
an ‘X’ next to the standard model description, e.g. D43X.
Switches with 100,000 cycles approved per UL1054 are marked with ‘L’ in
circle.
Mounting — US Version
Recommended mounting screw size: #4-40 Round head
* Connector part #823-0518 (mates with Y5 only)
** Connector housing for RAST 5 QC terminals
with washer. Recommended torque on screw: 60 NCM max.
Mounting — European Version
Recommended mounting screw size with washer: M3. Recommended
torque on screw: 60 NCM max
.
Drilling Patterns for PCB Terminals
Length of Auxiliary Actuator
Miniature Snap Action Switch
D4 Series
Item
Number
D41CR1AA
D41CR1LA
D41CR1LD
D41CR1RA
D41LR1AA
D42LR1AA
D42LRGAA
D43CR1AA
D44CR1AA
D44CR1LD
D44CR1RA
D44CR1RD
D44LR1AA
D44LR1LD
D44LR1LL
D44LR1MD
D44LR1ML
D44LR1RA
D44LR1RD
D45CR1AA
D45LR1AA
D45LR1LL
D45LR1ML
EN Rating
0.1 (0.05) A, 250 VAC
0.5 A, 30 VDC
1(1) A, 250 VAC
0.1 (0.05) A, 250 VAC
0.5 A, 30 VDC
1(1) A, 250 VAC
0.1 (0.05) A, 250 VAC
0.5 A, 30 VDC
1(1) A, 250 VAC
0.1 (0.05) A, 250 VAC
0.5 A, 30 VDC
1(1) A, 250 VAC
0.1 (0.05) A, 250 VAC
0.5 A, 30 VDC
1(1) A, 250 VAC
3(1) A, 250 VAC
3(1) A, 250 VAC
6(2) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
10(3) A, 250 VAC
UL Rating
0.1 A, 125/250 VAC
0.5 A, 30 VDC
1 A, 125 VAC
0.1 A, 125/250 VAC
0.5 A, 30 VDC
1 A, 125 VAC
0.1 A, 125/250 VAC
0.5 A, 30 VDC
1 A, 125 VAC
0.1 A, 125/250 VAC
0.5 A, 30 VDC
1 A, 125 VAC
0.1 A, 125/250 VAC
0.5 A, 30 VDC
1 A, 125 VAC
3A, 125/250 VAC,
1/10 HP, 250 VAC
3A, 125/250 VAC,
1/10 HP, 250 VAC
5A, 125/250 VAC
1/4 HP, 250 VAC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
10 A, 1/2 HP,
125/250 VAC
6 A, 30 VDC
15 A, 1/2 HP,
125/250 VAC
15 A, 1/2 HP,
125/250 VAC
15 A, 1/2 HP,
125/250 VAC
15 A, 1/2 HP,
125/250 VAC
Commonly Stocked Distributor Items
Terminals
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" X
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
0.187" x
0.020"
Maximum
Operating
Force (cN)
170
190
86
190
45
45
2
170
285
144
330
144
75
40
17
25
10
75
40
400
100
22
13
Maximum
Pretravel
inches (mm)
0.047" (1.2)
0.047" (1.2)
0.126" (3.2)
0.047" (1.2)
0.047" (1.2)
0.047" (1.2)
0.500" (12.7)
0.047" (1.2)
0.047" (1.2)
0.126" (3.2)
0.047" (1.2)
0.126" (3.2)
0.047" (1.2)
0.126" (3.2)
0.030" (7.6)
0.020" (5.1)
0.050" (12.7)
0.047" (1.2)
0.126" (3.2)
0.047" (1.2)
0.047" (1.2)
0.030" (7.6)
0.050" (12.7)
Operating Point
inches (mm)
0.559 / 0.599
(14.2 / 15.2)
0.579" / .618"
(14.7 / 15.7)
0.551" / 0.646"
(14.0 / 16.4)
0.776" / 0.839"
(19.7 / 21.3)
0.559" / 0.599"
(14.2 / 15.2)
0.559" / 0.599"
(14.2 / 15.2)
0.433" / 0.764"
(11.0 / 19.4)
0.559" / 0.599"
(14.2 / 15.2)
0.559" / 0.599"
(14.2 / 15.2)
0.551" / 0.646"
(14.0 / 16.4)
0.776" / 0.839"
(19.7 / 21.3)
0.764" / 0.850"
(19.4 / 21.6)
0.559" / 0.599"
(14.2 / 15.2)
0.551" / 0.646"
(14.0 / 16.4)
0.472" / .724"
(12.0 / 18.4)
0.535" / 0.661"
(13.6 / 16.8)
0.433" / .763"
(11.0 / 19.4)
0.776" / 0.839"
(19.7 / 21.3)
0.764" / 0.850"
(19.4 / 21.6)
0.559" / 0.599"
(14.2 / 15.2)
0.559" / 0.599"
(14.2 / 15.2)
0.472" / .724"
(12.0 / 18.4)
0.433" / .763"
(11.0 / 19.4)
Minimum
Overtravel
inches (mm)
0.05" (1.3)
0.035" (0.9)
0.090" (2.3)
0.039" (1.0)
0.05" (1.3)
0.05" (1.3)
0.311" (7.9)
0.05" (1.3)
0.05" (1.3)
0.090" (2.3)
0.039" (1.0)
0.087" (2.2)
0.05" (1.3)
0.090" (2.3)
0.185" (4.7)
0.142" (3.6)
0.311" (7.9)
0.039" (1.0)
0.087" (2.2)
0.05" (1.3)
0.05" (1.3)
0.185" (4.7)
0.311" (7.9)
Max. Movement
Differential
inches (mm)
0.012" (0.3)
0.012" (0.3)
0.031" (0.8)
0.012" (0.4)
0.012" (0.3)
0.012" (0.3)
0.098" (2.5)
0.012" (0.3)
0.012" (0.3)
0.031" (0.8)
0.012" (0.4)
0.031" (0.8)
0.012" (0.3)
0.031" (0.8)
0.067" (1.7)
0.051" (1.3)
0.098" (2.5)
0.012" (0.4)
0.031" (0.8)
0.012" (0.3)
0.012" (0.3)
0.067" (1.7)
0.098" (2.5)
Actuation
Length
inches (mm)
N/A
0.835"
(21.2)
1.40"
(35.6)
0.811"
(20.6)
N/A
N/A
2.93"
(74.4)
N/A
N/A
1.40"
(35.6)
0.811"
(20.6)
1.34"
(34.1)
N/A
1.40"
(35.6)
2.75"
(69.9)
1.58"
(40.1)
2.92"
(74.4)
0.811"
(20.6)
1.34"
(34.1)
N/A
N/A
2.75"
(69.9)
2.92"
(74.4)
Housing
Mark
D41Y
D41Y
D41Y
D41Y
D41X
D42X
D42X
D43Y
D44Y
D44Y
D44Y
D44Y
D44X
D44X
D44X
D44X
D44X
D44X
D44X
D45Y
D45X
D45X
D45X
Miniature Snap Action Switch
D4 Series
Specifications subject to change without notice
Mounting — US Version
Recommended mounting screw size: #4-40 Round head
with washer. Recommended torque on screw: 60 NCM max.
Mounting — European Version
Recommended mounting screw size with washer: M3.
Recommended torque on screw: 60 NCM max
.
Notes:
D48 only available as light force
D45 not VDE approved with
terminal code ‘R’
D48 only available with terminal
codes ‘A’, ‘S’, or ‘V’
Contact
Call, fax or visit our
Website for more information.
ZF Electronics Corporation
11200 88th Avenue
Pleasant Prairie, WI 53158
The manufacturer accepts no liability for errors or
non-availability, and reserves the right to change
specifications without
prior notice.
Phone: 262.942.6500
Web:
www.cherrycorp.com
Last Updated: 081712
Email:
cep_sales@zf.com
Fax: 262.942.6566
