DC37P-F179-K87: DescriptionD Subminiature Connector, 37 Contact(s), Male, Wire Wrap Terminal, Plug,; CategoryThe connector The connector; File Size33KB，1 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric Compare View All

DC37P-F179-K87 Overview

D Subminiature Connector, 37 Contact(s), Male, Wire Wrap Terminal, Plug,

DC37P-F179-K87 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	STANDARD: DIN 41652
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	PLASTIC
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD AND PANEL
Shell surface	TIN
Shell material	STEEL
Housing size	4/C
Termination type	WIRE WRAP
Total number of contacts	37
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

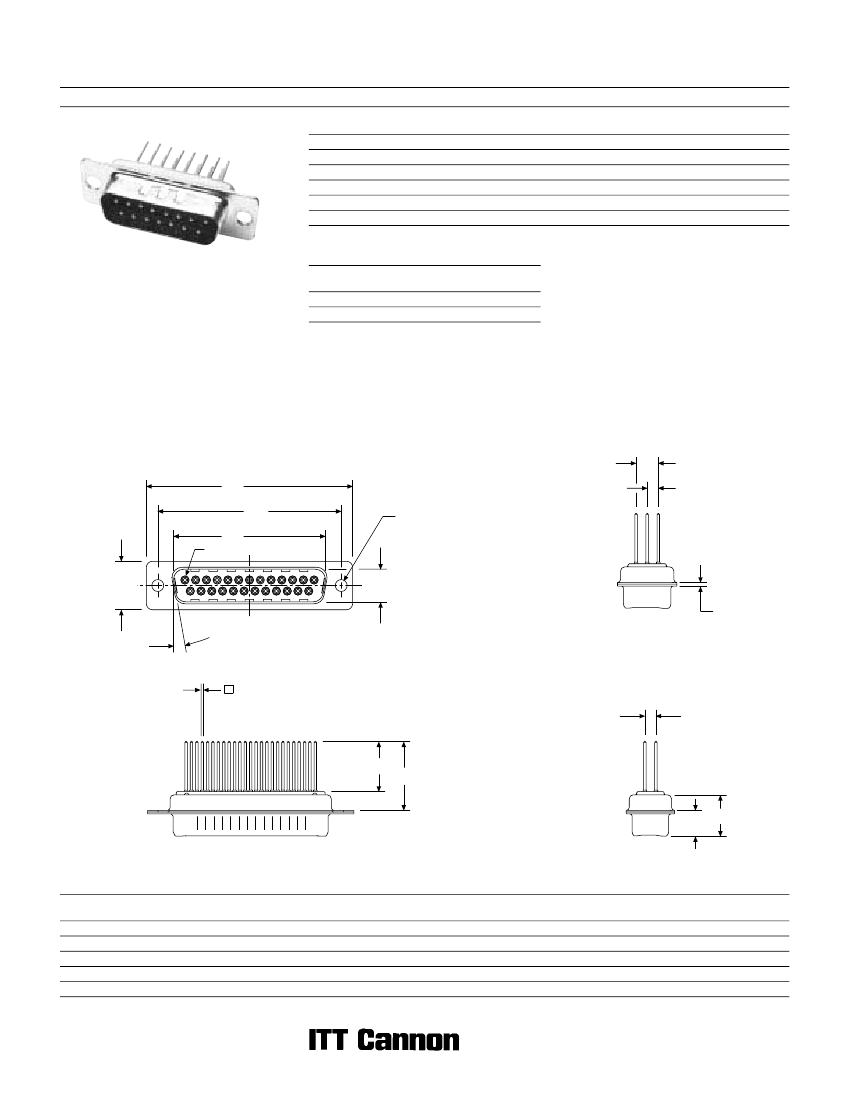

D Subminiature

Wrap Post Termination

Plug

Part Numbers

Shell Size

DE

DA

DB

DC

DD

Layout

9

15

25

37

50

Through Hole

DE9P-F179A-K87

DA15P-F179A-K87

DB25P-F179A-K87

DC37P-F179A-K87

DD50P-F179A-K87

D*

Selection Guide

For Product Features, Specifications,

Materials and Finishes, see pages 2-3.

Reader’s Resource

For contact cavity arrangements,

see page 224.

For P.C. hole patterns, see page 274.

For panel cutouts, see page 221.

For hardware views (Standard), see page 226.

Modification

Code

F179

F179A

Number of

Wraps

2

3

X

max.

10,21 (.402)

13,61 (.536)

Y

±0,89

(.035)

15,20 (.598)

18,60 (.732)

Engaging Face

5,69 (.224)

A

C

B

POSITION 1

Ø 3,05 (.120)

DD Configuration

2,84 (.112)

E

D

L

10°

0,61 (.024)

REF

2,84 (.112)

X

Y

W

F

Dimensions

Shell Size

DE

DA

DB

DC

DD

A

±0,38

(.015)

30,81 (1.213)

39,14 (1.541)

53,04 (2.088)

69,32 (2.729)

66,93 (2.635)

B

±0,13

(.005)

16,92 (.666)

25,25 (.994)

38,96 (1.534)

55,42 (2.182)

52,81 (2.079)

C

±0,13

(.005)

24,99 (.984)

33,32 (1.312)

47,04 (1.852)

63,50 (2.500)

61,11 (2.406)

D

±0,13

(.005)

8,36 (.329)

11,07 (.436)

E

±0,38

(.015)

12,55 (.494)

15,37 (.605)

F

±0,25

(.010)

10,72 (.422)

10,82 (.426)

W

±0,368

(.0145)

6,693 (.2635)

—

W

±0,41

(.016)

—

6,64 (.269)

L

±0,25

(.010)

0,76 (.030)

0,99 (.039)

12

Dimensions are shown in mm (inch)

Dimensions subject to change

DC37P-F179-K87 Related Products

	DC37P-F179-K87	DE9P-F179-K87	DD50P-F179-K87	DB25P-F179-K87	DA15P-F179-K87
Description	D Subminiature Connector, 37 Contact(s), Male, Wire Wrap Terminal, Plug,	D Subminiature Connector, 9 Contact(s), Male, Wire Wrap Terminal, Plug,	D Subminiature Connector, 50 Contact(s), Male, Wire Wrap Terminal, Plug,	D Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal, Plug,	D Subminiature Connector, 15 Contact(s), Male, Wire Wrap Terminal, Plug,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Other features	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652	STANDARD: DIN 41652
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE
DIN compliance	YES	YES	YES	YES	YES
empty shell	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	PLASTIC	PLASTIC	PLASTIC	PLASTIC	PLASTIC
MIL compliance	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO
Installation type	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL	BOARD AND PANEL
Shell surface	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	1/E	5/D	3/B	2/A
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	37	9	50	25	15
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	-	-	ITT	ITT	ITT
