Part Number

Search

DG187BP

Description
1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP14
CategoryAnalog mixed-signal IC    The signal circuit
File Size74KB,2 Pages
ManufacturerRenesas Electronics Corporation
Websitehttps://www.renesas.com/
Download Datasheet Parametric View All

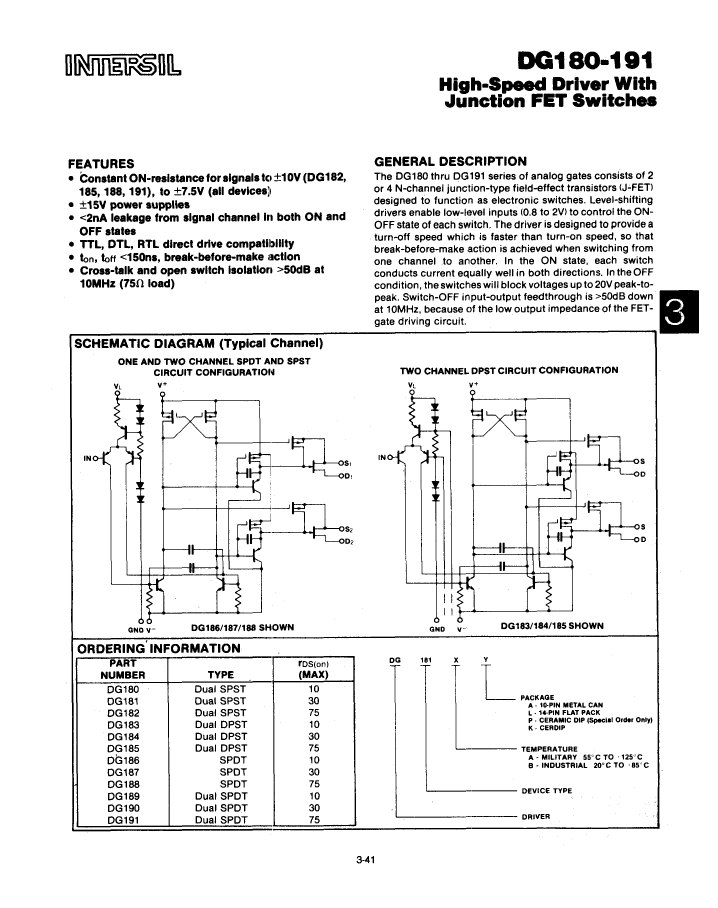

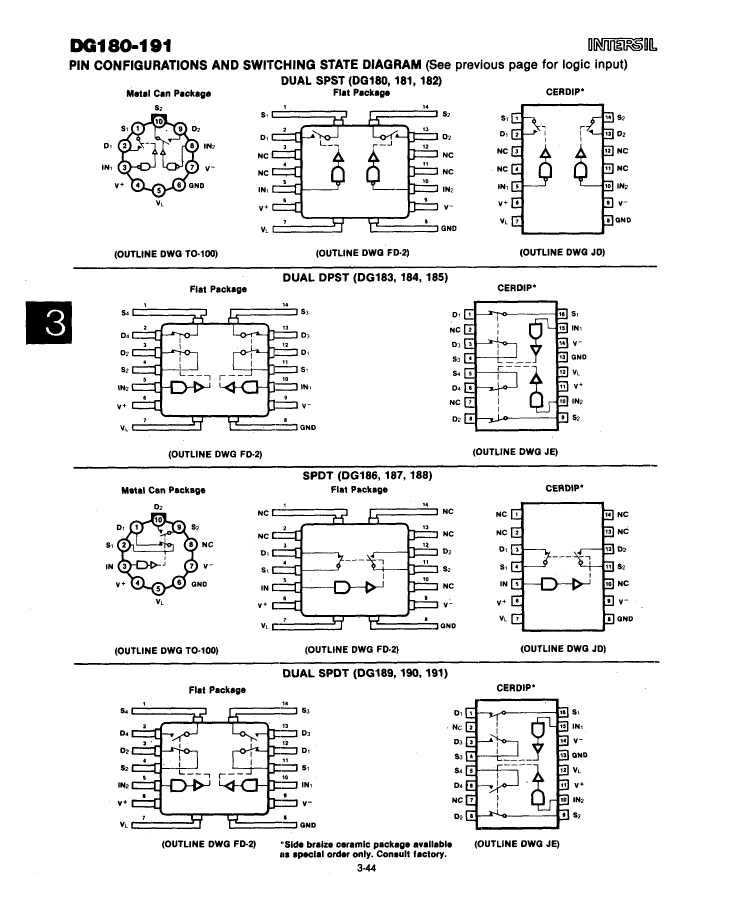

DG187BP Overview

1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, CDIP14

DG187BP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP14,.3
Contacts14
Reach Compliance Codenot_compliant
Analog Integrated Circuits - Other TypesSPDT
JESD-30 codeR-CDIP-T14
JESD-609 codee0
Nominal Negative Supply Voltage (Vsup)-15 V
Number of channels1
Number of functions1
Number of terminals14
Nominal off-state isolation50 dB
Maximum on-state resistance (Ron)50 Ω
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply+-15 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)15 V
surface mountNO
Maximum disconnect time150 ns
Maximum connection time180 ns
switchBREAK-BEFORE-MAKE
technologyJFET
Temperature levelOTHER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
