COMMUNICATIONS TEST & MEASUREMENT

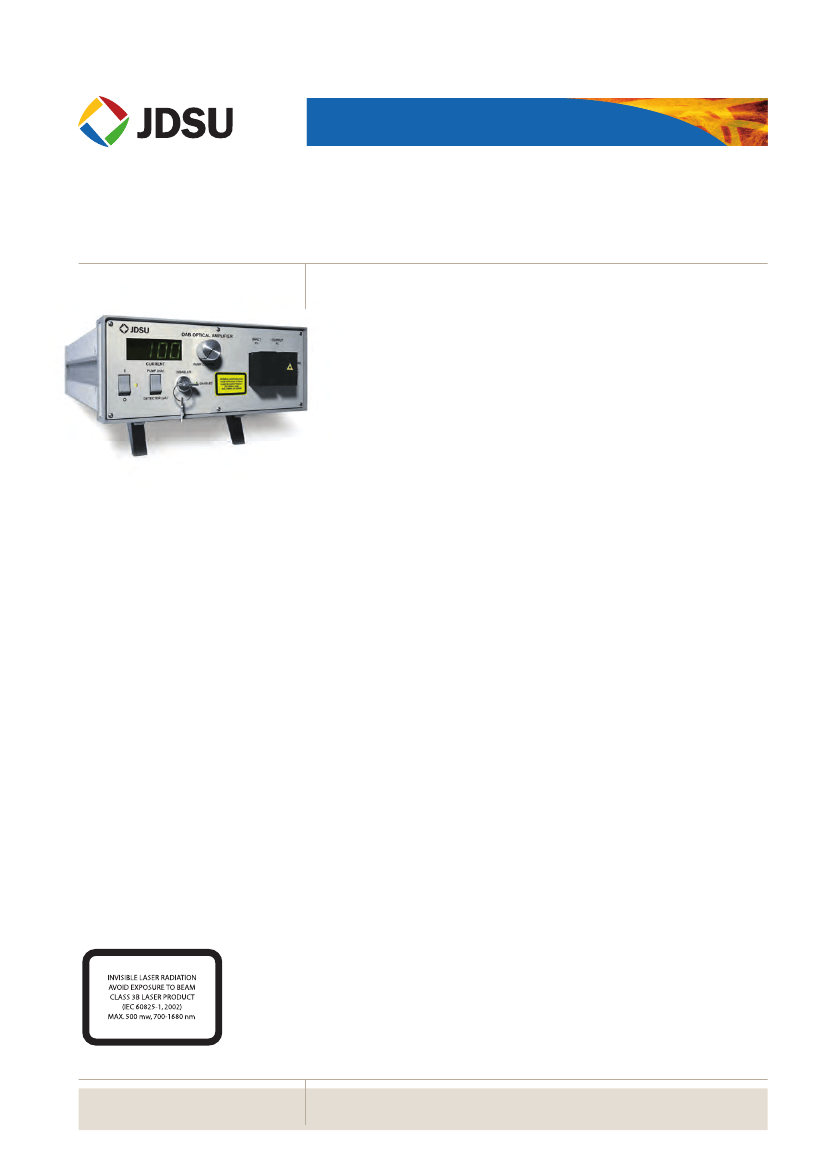

Benchtop Erbium-Doped Fiber Amplifier
EDFA Series
Key Features
• Choice of wavelengths C- or L- bands
• High output power and gain
• Mid-span access
• Compact benchtop design with rackmount kit
• Single channel and multichannel dense wavelength
division multiplexing (DWDM) capabilities
• RS-232 remote control
Applications
• Pre-amp booster, in-line amplifier
emulation
• Dense wavelength division multi-
plexing (DWDM) transmission,
for multichannel applications
• SONET/SDH systems, for single
channel applications
Safety Information
The Benchtop Erbium-Doped Fiber Amplifier (EDFA) amplifies optical signals
across the EDFA window (1528 to 1610 nm). Through optimization of
amplifier gain, noise figure, and saturated output power, the EDFA will expand
your test capabilities in systems, components or sub-assembly manufacturing
as well as research and development (R&D) environments.
The amplifier incorporates a unique design to produce maximum signal gain
and saturated output power in the 1550 and 1590 nm test bands while
minimizing noise figure. It features a user-friendly front panel housing an LCD
displaying input/output power, current control and an optical interface.
The amplifier is offered in C-band, L-band and C+L-band versions and
pre-amplifier, booster, or in-line amplifier configurations.
The Benchtop models provide specialized variants and optical performance not
available in the Multiple Application Platform (MAP) line. Additional EDFA
models are available in the MAP EDFA product line.
Complies to CE requirements plus
UL3101-1 and CAN/CSA-C22.2
No. 1010.1 Meets the requirements
of Class 3B in standard IEC
60825-1(2002) and complies with
21CFR1040.10 except deviations
per Laser Notice No. 50, July 2001.
WEBSITE
:
www.jdsu.com
BENCHTOP ERBIUM-DOPED FIBER AMPLIFIER
2
Specifications
MODEL
Test band
Amplifier type
OAB1552
C-band
Booster
high power
1528 to
1563 nm
Single
>
24 dBm
<
5.0 dB
>
36 dB
N/A
≤
0.2 dB
≤
0.45 ps
45/32 dB
Operating wavelength range
Input signal
Saturated output power
1
Noise figure
2
Small signal gain
3
Spectral gain flatness
4
Polarization dependent loss (PDL)
Polarization mode dispersion (PMD)
Input/output isolation
Input/output monitors
Input voltage
Power consumption
Packaging
Operating temperature
Storage temperature
Humidity
Dimensions (W x H x D)
Weight
OAB1596
OAB1598
OAB1562 OAB1564
L-band
L-band
C+L-band C+L-band
Mid-span
Booster
Booster
In-line
access
DWDM
DWDM
1565 to
1570 to
1570 to
1530 to 1560 nm
1610 nm
1603 nm
1603 nm
1570 to 1600 nm
channel
Multichannel DWDM
Single Channel
>
22 dBm
>
20 dBm
>
20 dBm
>
19 dBm
>
14 dBm
<
5.5 dB
<
5.8 dB
<
5.5 dB
<
6.5 dB
<
6.5 dB
>
29 dB
>
22 dB
>
20 dB
>
22 dB
>
20 dB
(MS loss
≤
7 dB)
N/A
1.7 dB
1.7 dB
N/A
N/A
≤
0.3 dB
≤
0.3 dB
≤
0.9 dB
≤
0.4 dB
≤
0.4 dB
≤
0.8 ps
≤
0.9 ps
≤
0.9 ps
≤
0.7 ps
≤
0.7 ps
40/40 dB
40/40 dB
40/40 dB
40/40 dB
40/40 dB
Yes
100 to 240 V AC, 50 to 60 Hz
90 V A Maximum
Half-rack benchtop and 19-inch rackmount kit
0 to 50 °C
- 40 to 70 °C
Maximum 95 % RH non-condensing from 0 to 45 °C
21.2 x 8.9 x 35.5 cm
> 4 kg
OAB1592
L-band
Booster
high power
1. Saturated Output Power measured:
At 1550 nm at Pin = - 4 dBm for model 1552
At 1590 nm at Pin = 0 dBm for model 1592 and 1598
At 1590 nm at Pin = - 2 dBm for model 1596
At 1550 nm at Pin = - 4 dBm and at 1590 nm and Pin - 0 dBm for model 1562 and 1564
2. Noise figure measured:
At Pin = - 4 dBm for model 1552 and 1592
At Pin = - 4 dBm for model 1596
At Pin = 0 dBm for model 1598
At Pin = - 20 dBm for model 1562 and 1564
3. Small signal gain measured:
At Pin = -20 dBm for model 1552, 1562, 1564, and 1592
At Pin = -2 dBm for model 1596
At Pin = 0 dBm for model 1598
4. Flatness optimized for:
At Pin = -2 dBm (1570-1603 nm)
At Pin = 0 dBm (1570-1603 nm)
BENCHTOP ERBIUM-DOPED FIBER AMPLIFIER
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
sales@jdsu.com.
Sample: OAB1552+20FP0
OAB
+ 2
Code
1552
1592
1596
1598
1562
1564
Description
C-band Booster high power
L-band Booster high power
L-band Mid-span access DWDM
L-band Booster DWDM
C+L-band Booster
C+L-band In-Line
Code
FP
FA
SC
SU
Connector
Type
FC/PC
FC/APC
SC/PC
SC/APC
Code
0
4
6
Output Power
Standard output power
Booster high output power,
22 dBm (available for OAB1592)
Booster high output power,
24 dBm (available for OAB1552)
Code
0
2
Characteristics
unflattened
Gain flattened
DWDM (available for OAB1596
and OAB1598)
Standard Accessories
Part Number
Description
ED000899-A-00 Standard 19-inch rackmount kit
Optional Accessories
Part Number
Description
ED000899-A-01 Rackmount kit (Japan)
