DT34-2010AS: DescriptionTelecom Transformer; CategoryPower management transformer; File Size48KB，1 Pages; ManufacturerDelta Electronics

Download Datasheet Parametric View All

DT34-2010AS Overview

Telecom Transformer

DT34-2010AS Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	TURNS RATIO: 2:1
high	12.5 mm
JESD-609 code	e3
length	17.1 mm
Manufacturer's serial number	DT34-2010AS
Installation features	SURFACE MOUNT
Maximum operating frequency	200 kHz
Minimum operating frequency	40 kHz
physical size	17.1mm X 13.8mm X 12.5mm
surface mount	YES
Terminal surface	TIN
Transformer type	TELECOM TRANSFORMER
width	13.8 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Telecommunication

SDSL Transformer

Components

A

6

5

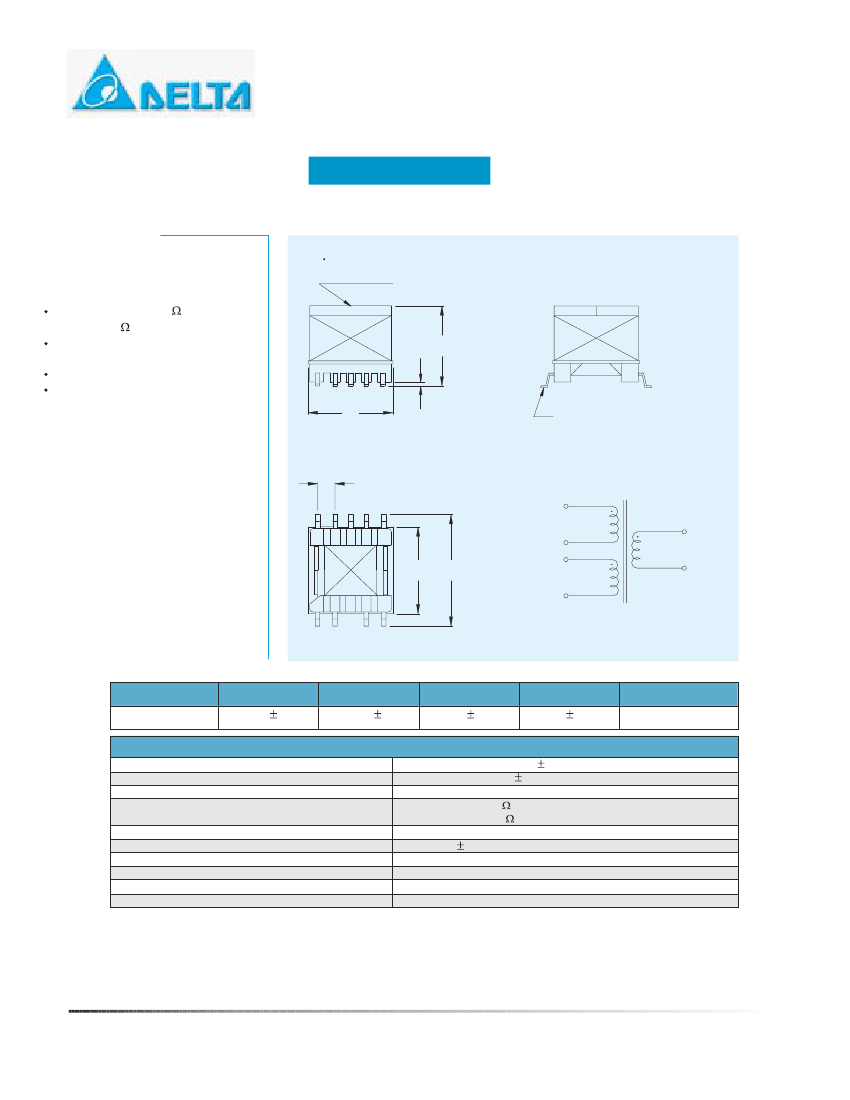

DT34-2010AS

Designed to reflect 135 on the

line with 33.8 on the Ic side.

For use with Globespan G2216 SDSL

Clipset.

Excellent THD performance.

Designed to meet UL1950 requirements.

DT34-2010AS

DELTAXXXX

10

6

B

XXXX : DATE CODE

WHITE DOT ON PIN1

0.3

0.4 x 0.7 TIN PLATED

PHOSPHOR BRONZE

D

10

6

1

N1

PRI

4

(LINE)

9

N3

E

C

2

5

SEC

(DEVICE)

7

N2

1

5

PIN3 CUT OFF

DIMENSIONS IN mm

A

12.5 MAX

B

13.8 0.2

C

17.10 0.2

D

2.54 0.2

E

14.6 0.25

F

ELECTRICAL CHARACTERISTICS

TURNS RATIO

(PRI:SEC) 2:1

1%

INDUCTANCE

PRI: 2mH

6% @10KHz 0.1V

LEAKAGE INDUCTANCE

SEC: 9.6uH Max. @100KHz 0.1V

D.C RESISTANCE

PRI: 2.5 Max.

SEC: 1.4 Max.

INSERTION LOSS

0.5dB Max. @40KHz

FREQENCY RESPONSE

0.1dB @40KHz~200KHz

LONGITUDINAL BALANCE

53dB Min. @40KHz~300KHz

RETURN LOSS

16.5dB Min. @40KHz~300KHz

TOTAL HARMONIC DISTORTION

-70dB Max. @20KHz 4.5Vpp

DIELECTRIC STRENGTH

2050VAC 1 SEC @LINE TO CHIP

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG)

31-1, SHIEN PAN ROAD, KUEI SAN INDUSTRIAL ZONE, TAOYUAN SHIEN, TAIWAN, R.O.C.

TEL: 886-3-3626301; FAX: 886-3-3618901

http://www.deltaww.com
