DOMINANT
Semiconductors
Innovating Illumination
TM
DATA SHEET:
Power DomiLED
TM
AlInGaP : DWx
Power DomiLED
TM
With its significant power in terms brightness, viewing angle and variety of
application possibilities,
Power DomiLED™
truly is a standout performer!
Ideal for automotive interior lighting as well as home, office and industrial
applications, it is also a proven performer in electronic signs and signals.

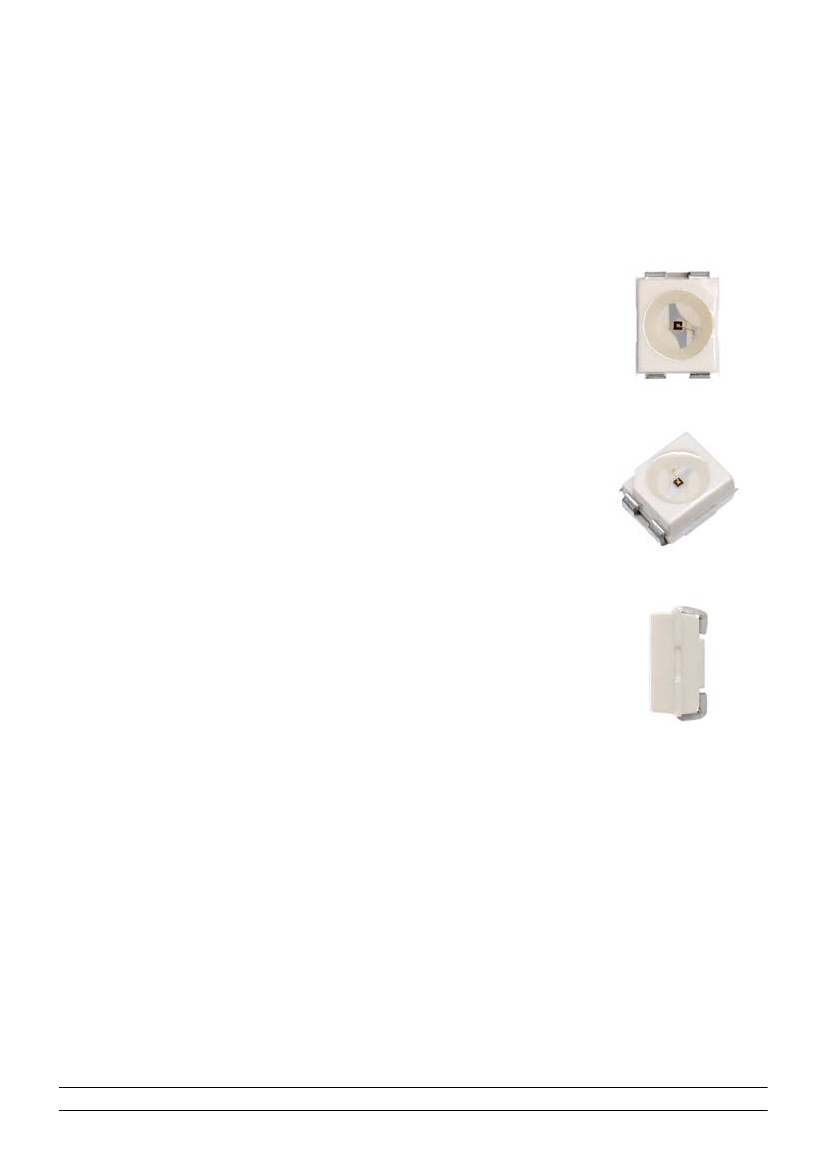

Features:
>
>
>
>
>
>
High brightness surface mount LED using thin film technology.
120° viewing angle.
Small package outline (LxWxH) of 3.2 x 2.8 x 1.8mm.
Qualified according to JEDEC moisture sensitivity Level 2.
Compatible to both IR reflow soldering and TTW soldering.
Environmental friendly; RoHS compliance.
Applications:
>
Automotive: interior applications, eg: switches, telematics,
climate control system, dashboard, etc.
exterior applications, eg: signal lighting,
Center High Mounted Stop Light (CHMSL),
Display: full color display video notice board.
Industry: white goods (eg: Oven, microwave, etc.).
Lighting: architecture lighting, general lighting, garden light, etc
>
>
>
© 2005 DomiLED is a trademark of DOMINANT Semiconductors.
All rights reserved. Product specifications are subject to change without notice.
1
29/09/2005 V8.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP : DWx
Part Ordering
Number
DWP-SJS-PQ1-1
• DWP-SJS-P1
• DWP-SJS-P2
• DWP-SJS-Q1
Chip Technology
/ Color
AS AlIGaP
Pure Green, 560nm
Viewing
Angle˚
120
Total Flux @
IF=50mA, mlm (typ)
150
Luminous Intensity @
IF = 50mA IV (mcd)
45.0 - 90.0
45.0 - 56.0
56.0 - 71.5
71.5 - 90.0
NOTE
1. All part number above comes in a quantity of 2000 units per reel.
2. Other luminous intensity groups may also be available upon request.
2. Luminous intensity is measured with an accuracy of ± 11%.
3. Wavelength binning is carried for all units as per the wavelength-binning table. Only one wavelength group is allowed for each reel.
4. An optional Vf bining is also available upon request. Bining scheme is as per following table.
Wavelength Grouping
Color
DWS; Super Red
DWR-SJ; Red
DWR-TJ; Red (TS)
DWA; Amber
Group
Full
Full
Full
Full
W
X
Wavelength distribution (nm)
625 - 640
620 - 630
620 - 635
610 - 621
610 - 615
615 - 621
600 - 612
600 - 603
603 - 606
606 - 609
609 - 612
582 - 594
582 - 585
585 - 588
588 - 591
591 - 594
552.5 - 564.5
552.5 - 555.5
555.5 - 558.5
558.5 - 561.5
561.5 - 564.5
DWO; Orange
Full
W
X
Y
Z
DWY; Yellow
Full
W
X
Y
Z
DWP; Pure Green
Full
W
X
Y
Z
Dominant wavelength is measured with an accuracy of ± 1 nm.
3
29/09/2005 V8.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP : DWx
Electrical Characteristics at Ta=25˚C
Part Number
DWS-SJS, DWR-SJS, DWA-SJS,
DWO-SJS, DWY-SJS, DWP-SJS
DWR-TJS, DWY-TJS
Vf @ If = 50mA
Typ. (V)
2.1
2.6
V
r
@ I
r
= 10uA
Min. (V)
12
12
Max. (V)
2.6
3.2
Forward voltages are measure using a current pulse of 1 ms and with an accuracy of ± 0.1V.
Vf Bining (Optional)
Vf @ If = 50mA
50
51
52
53
54
Forward voltage, Vf is measured with an accuracy of ± 0.1V.
Please consult sales and marketing for special part number to incorporate Vf binning.
Forward Voltage (V)
1.7 ... 2.0
2.0 ... 2.3
2.3 ... 2.6
2.6 ... 2.9
2.9 ... 3.2
Absolute Maximum Ratings
Maximum Value
DC forward current
Peak pulse current; (tp ≤ 10µs, Duty cycle = 0.1)
Reverse voltage
ESD Thereshold (HBM)
LED junction temperature
Operating temperature
Storage temperature
Power dissipation (at room temperature)
70
100
12
2
125
-40 … +100
-40 … +100
225
Unit
mA
mA
V
kV
˚C
˚C
˚C
mW
4
29/09/2005 V8.0
DOMINANT
TM
Semiconductors
Innovating Illumination
AlInGaP : DWx

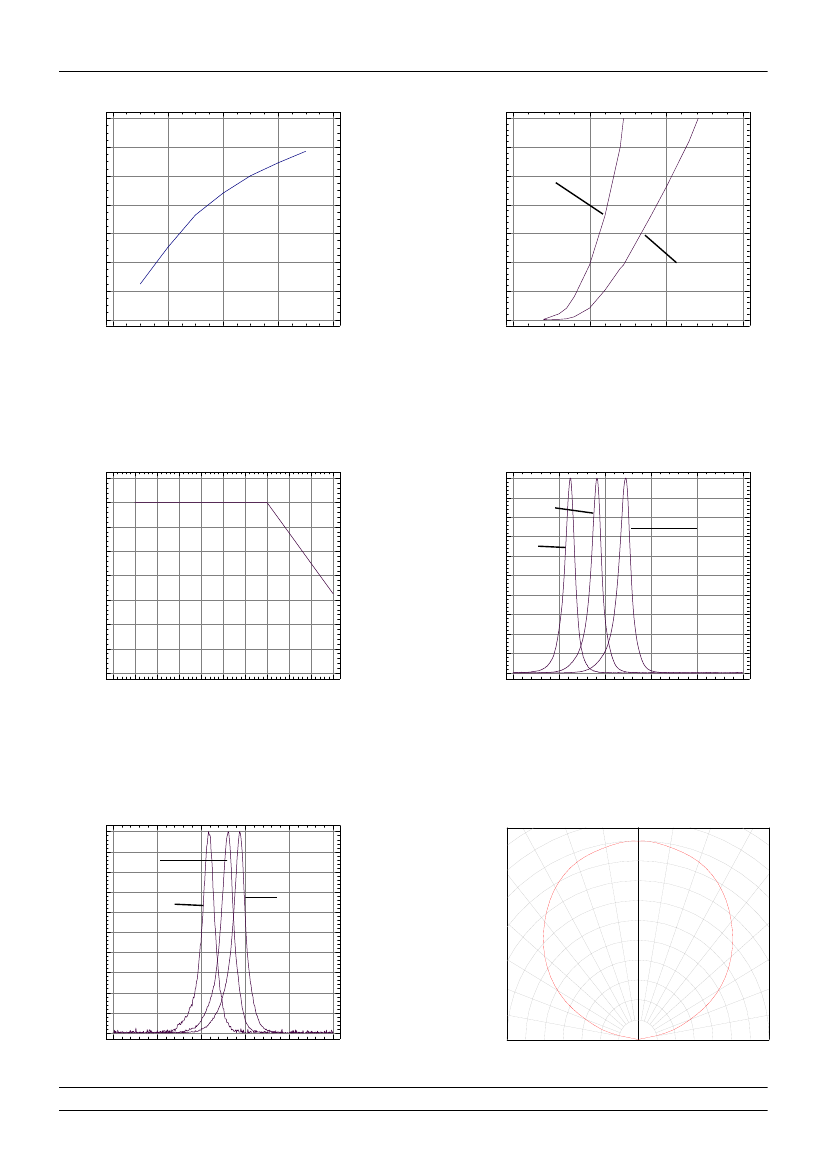

Forward Current Vs Forward Voltage
70
Relative Intensity Vs Forward Current
1.4
Forward Current, mA
1.2
60
50
40
30
20
10
0
Relative Intensity
1
0.8
0.6
0.4
0.2
0
0
20
40
60
80
AS AllnGaP
TS AllnGaP
1.5
2
2.5
3
Forward Current, mA
Forward Voltage, V
Maximum Current Vs Ambient Temperature
80
70
Relative Intensity Vs Wavelength
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
Yellow
Amber
Pure
Green
Forward Current, mA
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90 100
Relative Intensity
500
550
600
650
700
750
Ambient Temperature
Wavelength, nm
Relative Intensity vs Wavelength
1
0.9
0.8
Red
Radiation Pattern
30°
20°
10°
0°
1.0
40°
Super Red
0.8
Relative Intensity
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
500
Orange
50°
0.6
60°
70°
80°
0.4
0.2
550
600
650
700
750
90°
0
Wavelength, nm
5
29/09/2005 V8.0
PCB Design
