D4SB60: DescriptionBridge Rectifier Diode, 6A, 600V V(RRM),; CategoryDiscrete semiconductor diode; File Size104KB，1 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

D4SB60 Overview

Bridge Rectifier Diode, 6A, 600V V(RRM),

D4SB60 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	120 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	6 A
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

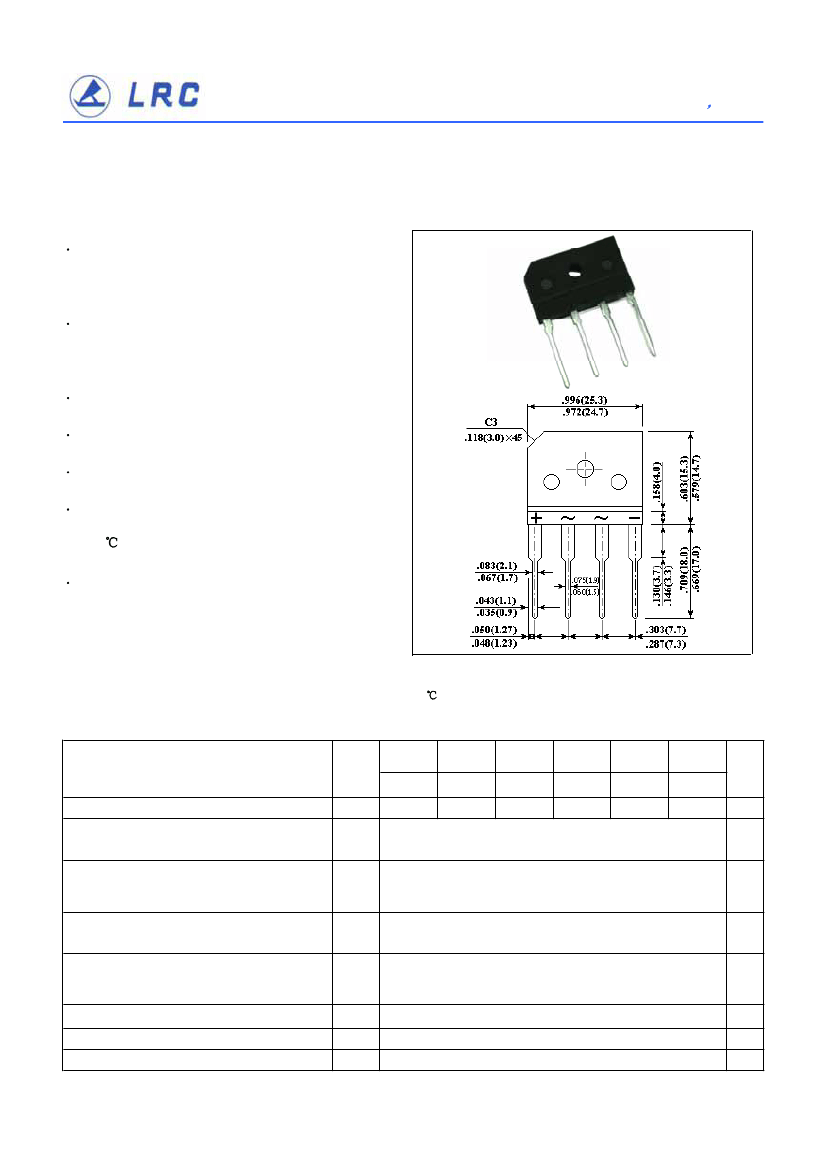

LESHAN RADIO COMPANY

LTD.

D4SB10(KBJ601G) Thru D4SB100(KBJ610G)

FEATURES

Plastic Package has Underwriters Laboratory

Flammability Classification 94V-0

This series is UL listed under the Recognized

Component index,file number E231047

Single-in-line package

High current capality with small package

Superior thermal conductivity

High temperature soldering guaranted:

260

/10 seconds

High I

FSM

Maximum Ratings & Thermal Characteristics

Ratings at 25

ambient temperature unless otherwise specified.

Parameter Symbol

Maximum repetitive voltage

Maximum DC reverse current

at rated DC blocking voltage

TA=25℃

TA=125℃

Symbol

D4SB10

D4SB20

D4SB40

D4SB60

D4SB80

D4SB100

Unit

µA

KBJ601G KBJ602G KBJ604G KBJ606G KBJ608G KBJ610G

100

200

400

500

120

2.5

1.1

150

600

800

1000

Average rectified forward current 60Hz Sine wave

Resistance load with heat sink Tc=100℃

Peak forward surge current 8.3ms single half sine-

wave superimposed on rated load

Dielectric strength Terminals to case，

AC 1 minute Current 1mA

Maximum instantaneous forward voltage at 3A

Operating junction temperature

Storage temperature

FSM

Vdia

Tstg

℃

-40~150

D4SB60 Related Products

	D4SB60	D4SB80
Description	Bridge Rectifier Diode, 6A, 600V V(RRM),	Bridge Rectifier Diode, 6A, 800V V(RRM),
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V
JESD-609 code	e0	e0
Maximum non-repetitive peak forward current	120 A	120 A
Number of components	4	4
Maximum operating temperature	150 °C	150 °C
Maximum output current	6 A	6 A
Maximum repetitive peak reverse voltage	600 V	800 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1
