D4SC6M-4022 datasheet, PDF - EEWORLD Datasheet

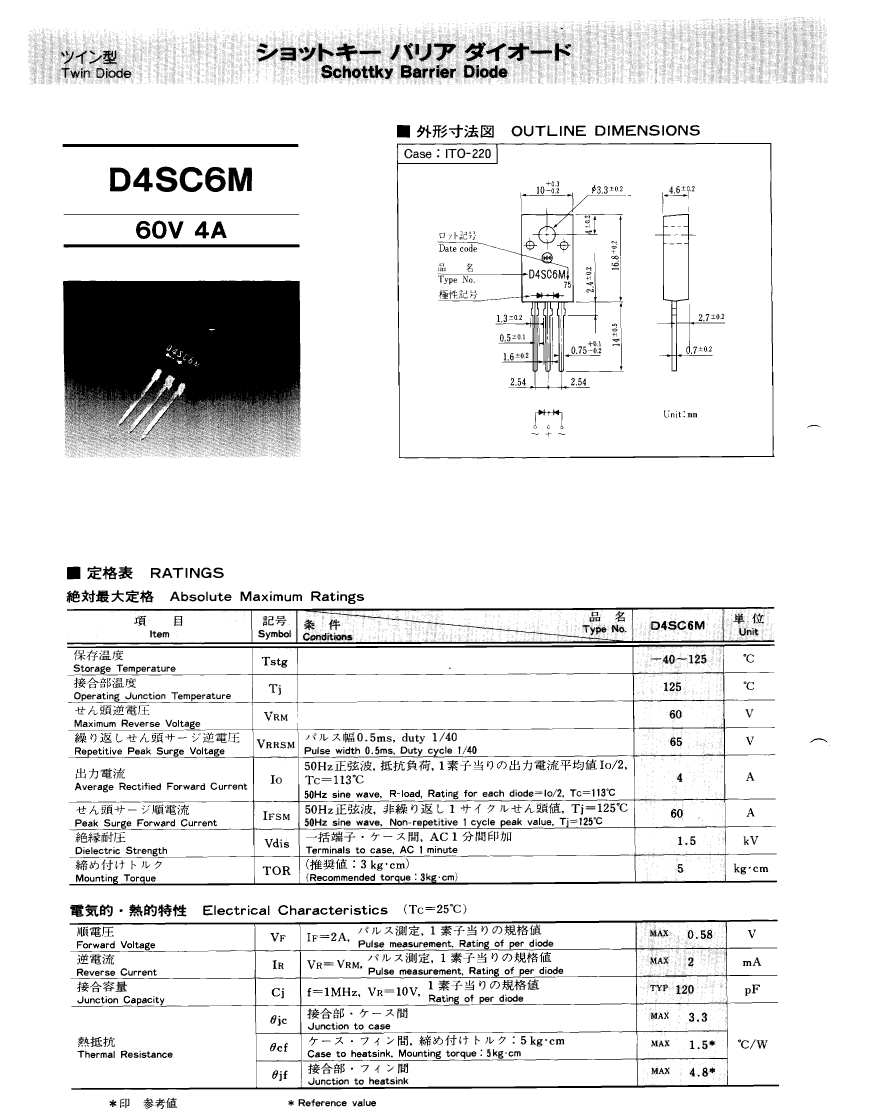

D4SC6M-4022: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 2A, Silicon, ITO-220, 3 PIN; CategoryDiscrete semiconductor diode; File Size320KB，2 Pages; ManufacturerSHINDENGEN; Websitehttps://www.shindengen.com

Download Datasheet Parametric Compare View All

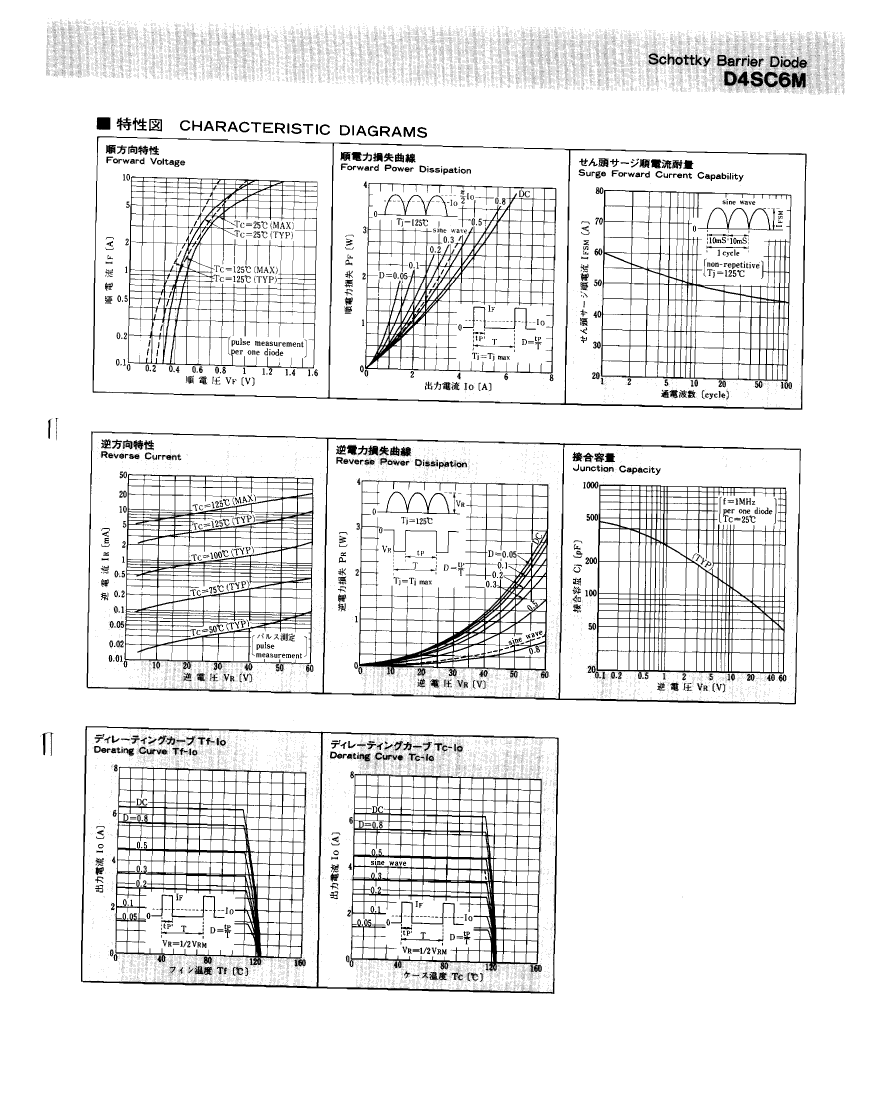

D4SC6M-4022 Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, Silicon, ITO-220, 3 PIN

Parameter Name	Attribute value
Parts packaging code	SFM
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	60 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Maximum output current	2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum reverse current	2000 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

	D4SC6M-4022	D4SC6M-4015
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, Silicon, ITO-220, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 2A, Silicon, ITO-220, 3 PIN
Parts packaging code	SFM	SFM
package instruction	R-PSFM-T3	R-PSFM-T3
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.58 V	0.58 V
JESD-30 code	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	60 A	60 A
Number of components	2	2
Phase	1	1
Number of terminals	3	3
Maximum operating temperature	125 °C	125 °C
Maximum output current	2 A	2 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified
Maximum reverse current	2000 µA	2000 µA
surface mount	NO	NO
technology	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
