DN050
NPN Silicon Transistor
Features
•
Extremely low collector-to-emitter
saturation voltage
( V
CE(SAT)
=0.07V Typ. @I
C
/I
B
=100mA/10mA)
•
Suitable for low voltage large current drivers
•
Complementary pair with DP050
•
Switching Application.
PIN Connection
C
B
C
B
E
E
Ordering Information
Type NO.
DN050
Marking
DN050

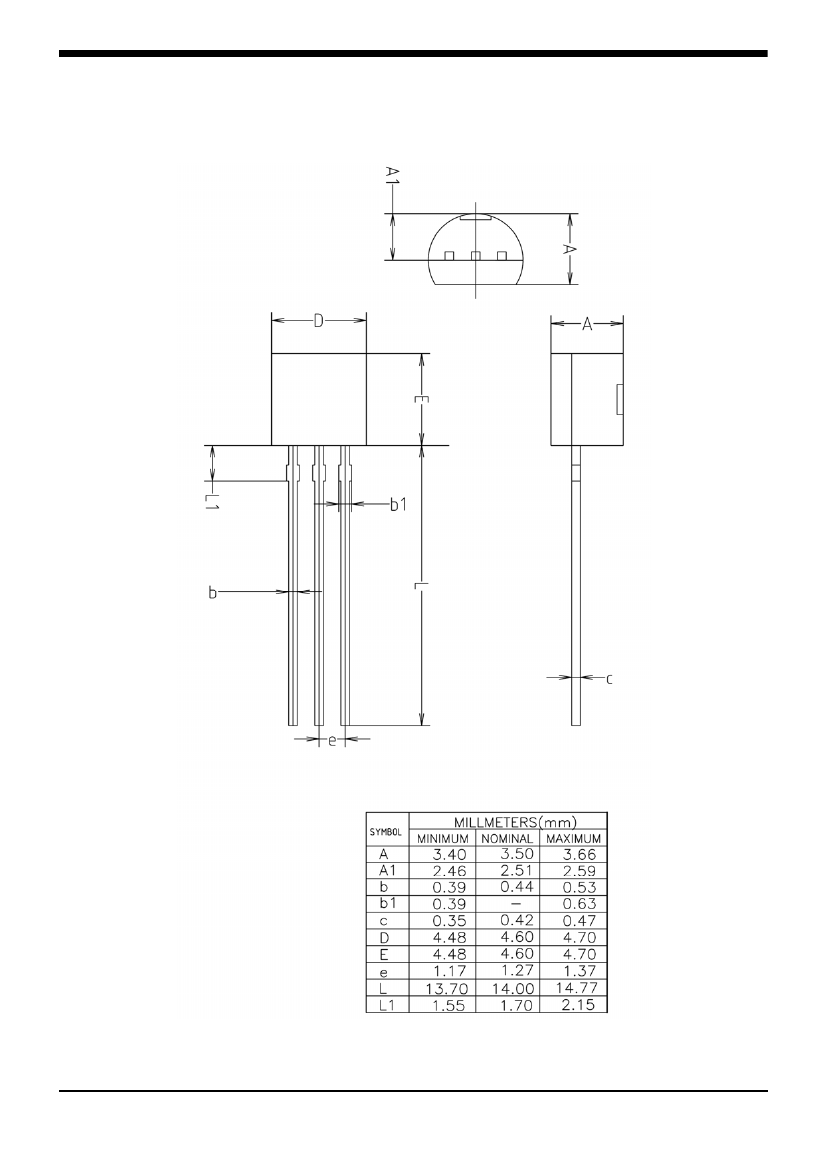

TO-92
Package Code
TO-92
Absolute maximum ratings
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-Base voltage
Collector current
Collector dissipation
Junction temperature
Storage temperature
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
C
T
j
T
stg
Ratings
15
12
5
500
625
150
-55~150
Unit
V
V
V
mA
mW
°C
°C
Electrical Characteristics
Characteristic
Collector-Base breakdown voltage
Collector-Emitter breakdown voltage
Emitter-Base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-Emitter saturation voltage
Base-Emitter saturation voltage
Transition frequency
Collector output capacitance
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE1
h
FE2
V
CE(sat)
V
BE(sat)
f
T
C
ob
Test Condition
I
C
=50μA, I
E
=0
I
C
=1mA, I
B
=0
I
E
=50μA, I
C
=0
V
CB
=12V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=1V, I
C
=100mA
V
CE
=1V, I
C
=500mA
I
C
=100mA, I
B
=10mA
I
C
=100mA, I
B
=10mA
V
CE
=5V, I
C
=20mA
V
CB
=10V, I
E
=0, f=1MHz
Min. Typ. Max.
15
12
5
-
-
200
70
-
-
-
-
-
-
-
-
-
-
-
-
-
120
4.5
-
-
-
0.1
0.1
450
-
0.25
1.2
-
-
Unit
V
V
V
μA
μA
-
-
V
V
MHz
pF
KSD-T0A036-000
1
DN050
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T0A036-000
