DN200F
NPN Silicon Transistor
Features
•
Extremely low collector-to-emitter
saturation voltage
( V
CE(SAT)
= 0.2V Typ. @I
C
/I
B
=1A/50
㎃)
•
Suitable for low voltage large current drivers
•
Complementary pair with DP200F
•
Switching Application
PIN Connection
SOT-89
Ordering Information
Type NO.
DN200F
04: DEVICE CODE,
Marking
N04
YWW
Package Code
SOT-89
YWW(Y : Year code, WW : Weekly code)
Absolute maximum ratings
Characteristic
Collector-Base voltage
Collector-Emitter voltage
Emitter-Base voltage
Collector current
(Ta=25°C)
Symbol
V
CBO
V
CEO
V
EBO
I
C
I
CP
*
P
C
P
C
**
T
J
T
stg
Ratings
15
12
5
2
4
0.5
1
150
-55~150
Unit
V
V
V
A(DC)
A(Pulse)
W
°C
°C
Collector power dissipation
Junction temperature
Storage temperature
* : Single pulse, tp= 300
㎲
** : When mounted on ceramic substrate(250
㎟×0.8t)
KSD-T5B010-001
1
Electrical Characteristics
Characteristic
Collector-Base breakdown voltage
Collector-Emitter breakdown voltage
Emitter-Base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-Emitter saturation voltage
Base-Emitter saturation voltage
Transition frequency
Collector output capacitance
(Ta=25°C)
Symbol
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE1
h
FE2
V
CE(sat)
V
BE(sat)
f
T
C
ob
Test Condition
I
C
=50
㎂
, I
E
=0
I
C
=1
㎃
, I
B
=0
I
E
=50
㎂
, I
C
=0
V
CB
=12V, I
E
=0
V
EB
=5V, I
C
=0
V
CE
=1V, I
C
=100
㎃
V
CE
=1V, I
C
=2A
I
C
=1A, I
B
=50
㎃
I
C
=1A, I
B
=50
㎃
V
CE
=5V, I
C
=50
㎃
V
CB
=10V, I
E
=0, f=1
㎒
Min. Typ. Max.
15
12
5
-
-
200
40
-
-
-
-
-
-
-
-
-
-
-
-
-
260
5
-
-
-
0.1
0.1
450
-
0.3
1.2
-
-
Unit
V
V
V
㎂
㎂
-
-
V
V
㎒
㎊
* hFE rank : 200~450 Only
KSD-T5B010-001
2
DN200F

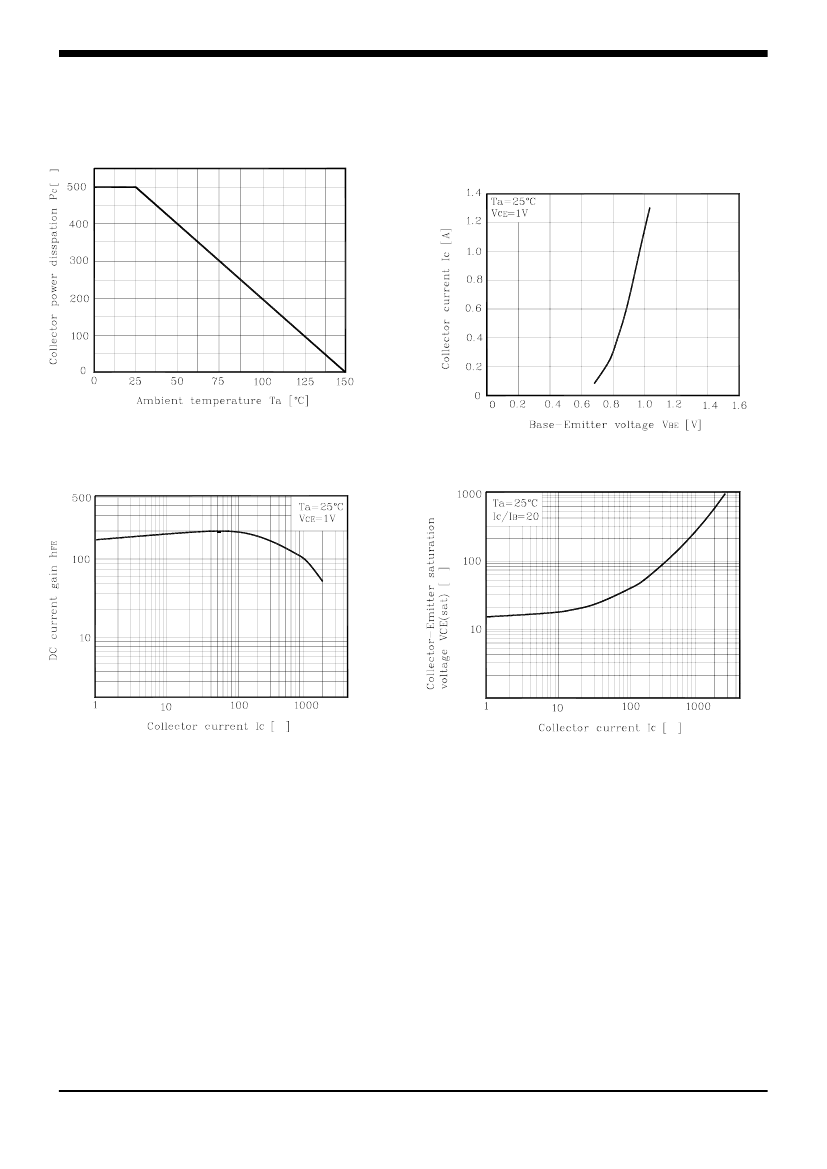

Electrical Characteristic Curves
Fig. 1 P
C
- T
a
½
Fig. 2 I
C
- V
BE
Fig. 3 h
FE-
I
C
Fig. 4 V
CE(sat)-
I
C
㎃
㎷
㎃
KSD-T5B010-001
3
DN200F

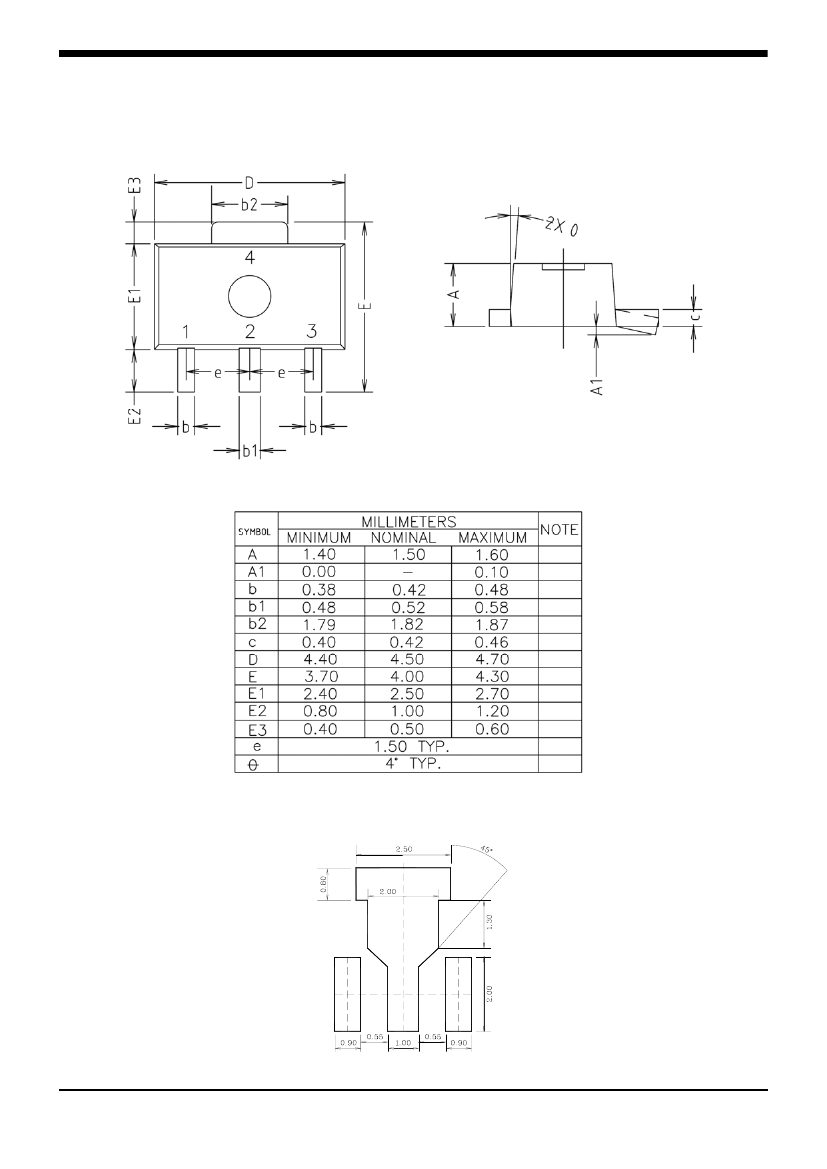

Outline Dimension(mm)
※Recommend
PCB solder land [Unit: mm]
KSD-T5B010-001
4
DN200F
The AUK Corp. products are intended for the use as components in general electronic
equipment (Office and communication equipment, measuring equipment, home
appliance, etc.).
Please make sure that you consult with us before you use these AUK Corp. products
in equipments which require high quality and / or reliability, and in equipments which
could have major impact to the welfare of human life(atomic energy control, airplane,
spaceship, transportation, combustion control, all types of safety device, etc.). AUK
Corp. cannot accept liability to any damage which may occur in case these AUK Corp.
products were used in the mentioned equipments without prior consultation with AUK
Corp..
Specifications mentioned in this publication are subject to change without notice.
KSD-T5B010-001
5
