DT3316P-154

Description
General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, SMD, 5137
CategoryPassive components    inductor
File Size111KB,2 Pages
ManufacturerCOILCRAFT
Websitehttp://www.coilcraft.com/
Environmental Compliance
Download Datasheet Parametric View All

DT3316P-154 Overview

General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, SMD, 5137

DT3316P-154 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction5137
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes5137
structureShielded
core materialFERRITE
DC Resistance0.36 Ω
Nominal inductance(L)150 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee4
Number of functions1
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package height5.08 mm
Package length12.85 mm
Package formSMT
Package width9.4 mm
method of packingTR, 13 Inch
Maximum rated current0.6 A
self resonant frequency8 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
special characteristicsMAXIMUM SWITCHING FREQUENCY IS 500 KHZ
surface mountYES
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1
Document 180-1

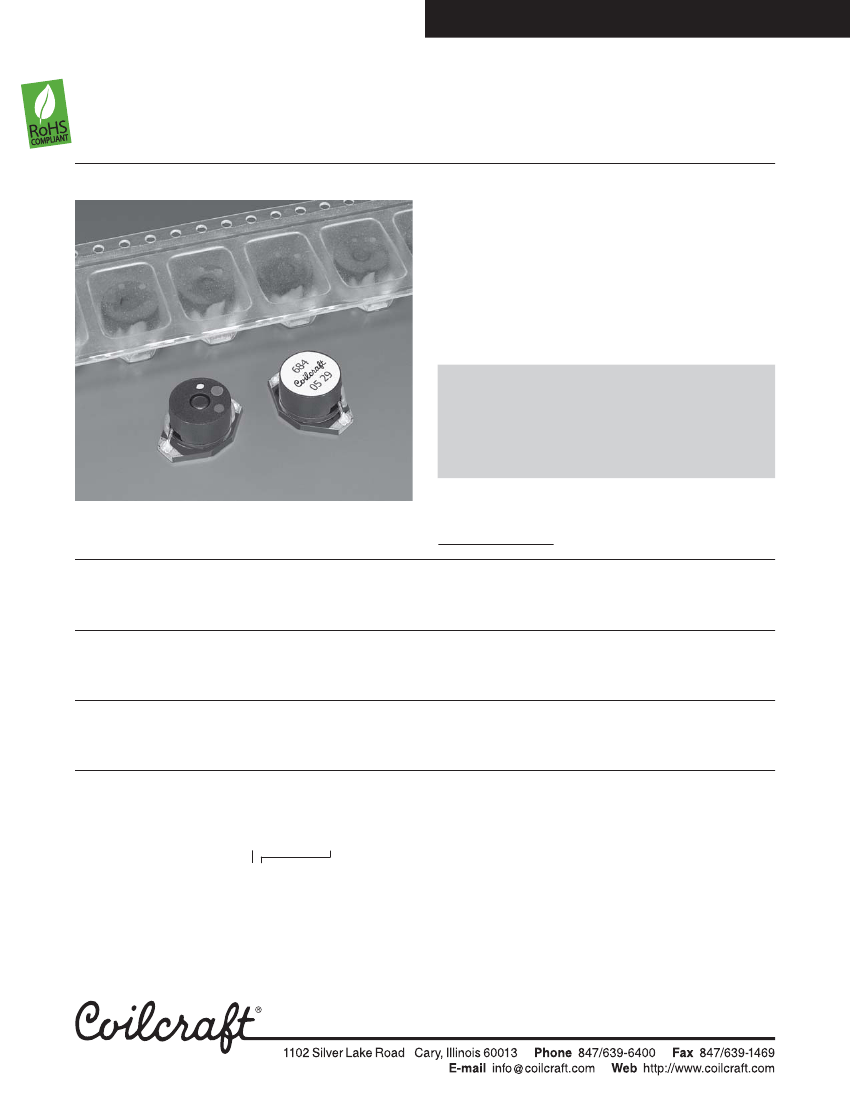

SMT Power Inductors – DT3316P Series
These magnetically shielded inductors are designed for
a wide variety of applications, including board mounted
DC-DC converters, miniature power supplies and volt-
age multiplying circuits. They function equally well in
filter and smoothing circuit applications.
The Coilcraft DT Series is specially designed to provide
the low-loss benefit of ferrite, with a soft saturation
characteristic, allowing best performance at both light
load and high peak current conditions.
For new designs, consider the MSS7341, MSS1038
or MSS1260 as alternatives to this series. These
series are more cost effective and offer better current
handling. In addition, the MSS7341 is a significantly
smaller part. We will continue to manufacture and sup-
port the DT3316P indefinitely.
Part number
1
DT3316P-102ML_
DT3316P-152ML_
DT3316P-222ML_
DT3316P-332ML_
DT3316P-472ML_
DT3316P-682ML_
DT3316P-103ML_
DT3316P-153ML_
DT3316P-223ML_
DT3316P-333ML_
DT3316P-473ML_
DT3316P-683ML_
DT3316P-104ML_
DT3316P-154ML_
DT3316P-224ML_
DT3316P-334ML_
DT3316P-474ML_
DT3316P-684ML_
DT3316P-105ML_
Inductance
2
±20% (µH)
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
DCR max
(Ohms)
0.025
0.030
0.035
0.040
0.045
0.050
0.055
0.060
0.084
0.090
0.11
0.15
0.29
0.36
0.39
0.73
0.88
1.15
1.45
SRF typ
(MHz)
60
55
55
50
45
40
35
25
22
18
16
12
9.0
8.0
6.0
5.0
4.0
3.0
2.5
Isat
(A)
3
20% drop 30% drop
4.5
8.0
4.0
5.5
1.9
3.0
1.6
2.8
1.5
2.4
1.3
2.2
0.80
1.2
0.65
1.1
0.60
1.0
0.55
0.90
0.32
0.50
0.28
0.45
0.28
0.40
0.21
0.35
0.17
0.26
0.13
0.20
0.11
0.18
0.09
0.14
0.085
0.14
Irms
4
(A)
4.0
4.0
4.0
4.0
3.0
2.5
2.0
1.8
1.5
1.3
1.0
0.90
0.80
0.60
0.50
0.40
0.35
0.30
0.25
Energy
storage max
(µJoules)
9
12
15
16
10
14
11
12
11
13
13
17
15
15
10
13
13
13
13
Switching
frequency
max
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
1 MHz
500 kHz
500 kHz
500 kHz
500 kHz
500 kHz
500 kHz
1. When ordering, please specify
termination
and
packaging
codes:
DT3316P-105MLD
Termination: L
= RoHS compliant gold over nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc.
3. DC current at which the inductance drops from its value without current.
4. Current that causes a 10°C temperature rise from 25°C ambient.
5.
Ambient temperature range:
–40°C to +85°C with
Irms
current
+85°C to +95°C with derated current
6.
Storage temperature range:
Component: –40°C to +85°C
Packaging: –40°C to +80°C
7.
Resistance to soldering heat:
Three reflows at >217°C for 90 seconds
(+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room
temperature between.
8. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
See Color Coding section for part marking information.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 180-1
Revised 01/26/09
© Coilcraft, Inc. 2009
