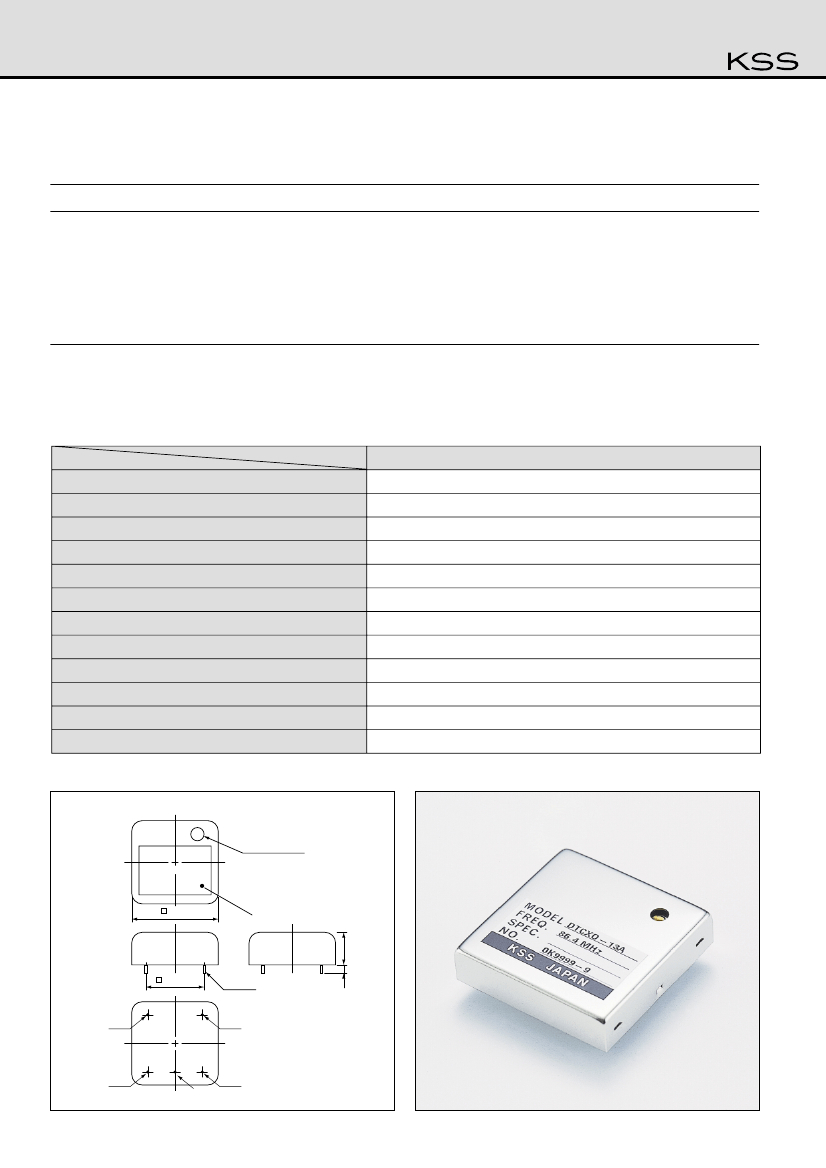

(VC-)DTCXO-13A
Digital TCXO
s
Features
¡Digital
processing Temperature Compensated Crystal Oscillator.
¡Output
50Ω
¡Wide
Frequency Range
s
Typical Applications
¡Reference
Oscillator.
¡PLL
Oscillator.
s
Specifications
Item
Frequency Range
Operating Temperature Range
Storage Temperature Range
Frequency Temperature Characteristics
Frequency Aging
Supply Voltage Change
Frequency Deviation/Control Voltage only VC
Frequency Tuning Range
Power Supply Voltage
Power Supply
Output Level
Harmonics
Type
DTCXO-13A
VC-DTCXO-13A
30~360MHz
-20~+70:
-40~+85:
±0.1×10
–6
MAX./-20~+70: (5pin Open)
±0.5×10
–6
MAX./year
±0.05×10
–6
MAX./5V±5%
±2×10
–6
MIN./2.5V±2.0V (VC-DTCXO-13A only)
±2×10
–6
MIN. (internal trimmer)
+5V±5%
40mA MAX./5V
0dBm MIN./50Ω
-40dB Max
s
Outline
(VC-)DTCXO-13A
φ4(tuning
hole)
KSS
DTCXO-13A
40±1
Example of Marking
10MAX.
4
5
3
2
1
Pin Connection
1 : +DC5V
2 : Output
3 : GND
4 : GND
5 : VC (VC-DTCXO)
NC (DTCXO)
Dimensions(mm)
5±1
30.48±0.5
5-φ0.5
