DESCRIPTION
INITIAL RELEASE
2
REVISIONS
1
DATE
01/23/18
APPROVED
JLABOY
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
WIRING MAP
"P1"
"J1"
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
SHELL
SHELL
1.30
33.0
D
PVC MOLDED HOOD
GRAY(PANTONE 424C)

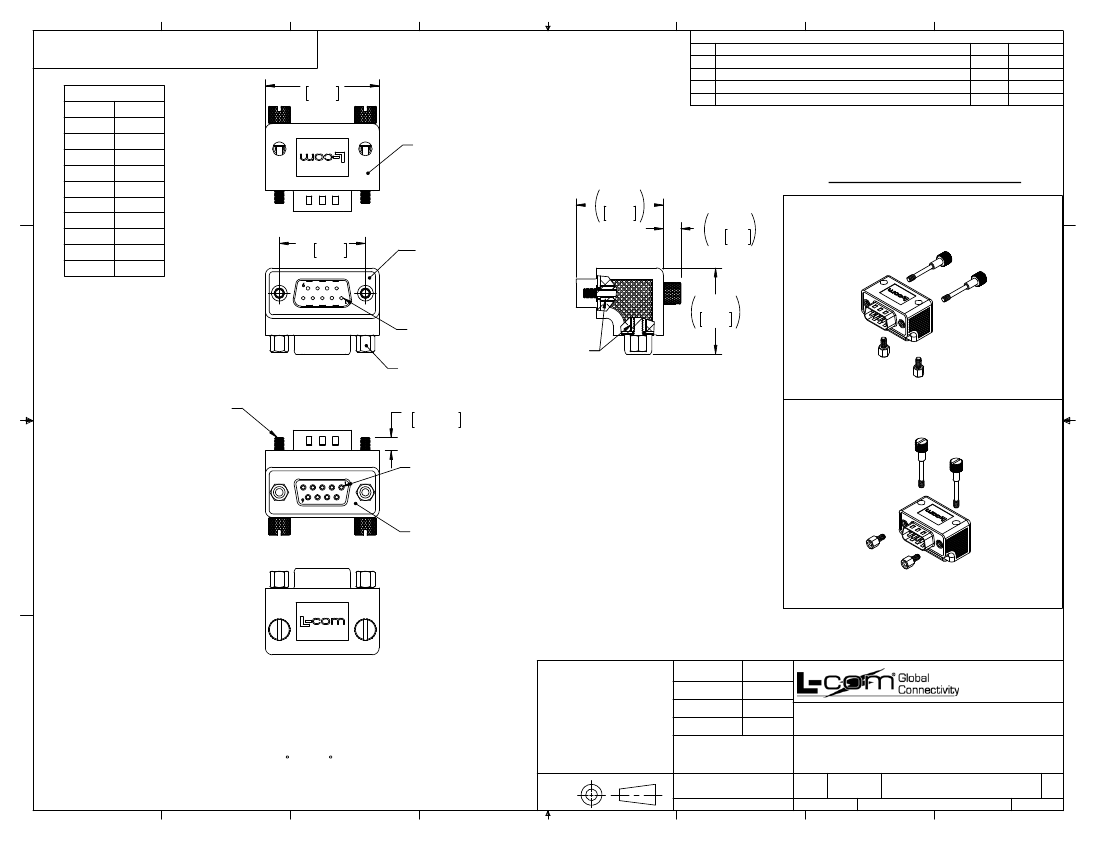

HARDWARE CONFIGURATIONS
1.00
25.4
2x, .984
25.0
"P1"
DB9 MALE
CONNECTOR
2x, .20
5.1
STANDARD HARDWARE CONFIGURATION
C
PIN 1
BACK HEX NUTS
2X #4-40UNC-2B
HEX STANDOFF
2X #4-40 UNC-2A
THUMBSCREW
.149±.014
3.8±.35
1.00
25.4
C
ALTERNATE HARDWARE CONFIGURATION
PIN 1
B
"J1"
DB9 FEMALE
CONNECTOR
B
NOTES:
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm]
OVERALL CABLE LENGTH TOLERANCE:
≤12
[305] = +1 [25] / -0
>12 [305]
≤60
[1524] = +2 [51] / -0
>60 [1524]
≤120
[3048] = +4 [102] / -0
>120 [3048]
≤300
[7620] = +6 [152] / -0
>300 [7620] = +5% / -0%
ALL OTHER DIMENSIONAL TOLERANCES:
.X = ± .2 [5.08]
.XX = ± .02 [.51]
.XXX = ±.005 [.13]
PROJECTION
APPROVALS
DRAWN BY
DATE
01/19/2018
01/19/2018
01/19/2018
PRODUCT DESCRIPTION
CATEGORY
A
1. ADAPTER SHALL BE TESTED FOR CONTINUITY.
2. ADAPTER SHALL BE INDIVIDUALLY PACKAGED IN ACCORDANCE
WITH L-COM SPECIFICATION PS-0031.
3. PRODUCT SHIPPED IN STANDARD HARDWARE CONFIGURATION
SHOWN ABOVE AND IN EXPLODED VIEW.
4. OPERATING TEMPERATURE RANGE: -15 C~+70 C
B.ZHANG
CHECKED BY
50 HIGH STREET
NORTH ANDOVER, MA
01845
J.LABOY
APPROVED BY
B.GATES
D-SUBMINIATURE
ADPT,DB9M/F RA ORIENTATION 1
PREMIUM VERSION
43321
2
FSCM NO.
DWG. NO.
A
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
COLOR VARIATIONS
MAY OCCUR
REGULATORY COMPLIANCE:
CE2011/65/EU(RoHS DIRECTIVE)
A
SIZE
DG909MF1-P
1
REV.
SCALE: NONE
CAD FILE:
DG909MF1-P.SLDDRW
A
SHEET 1 OF 1
