Document 187-1

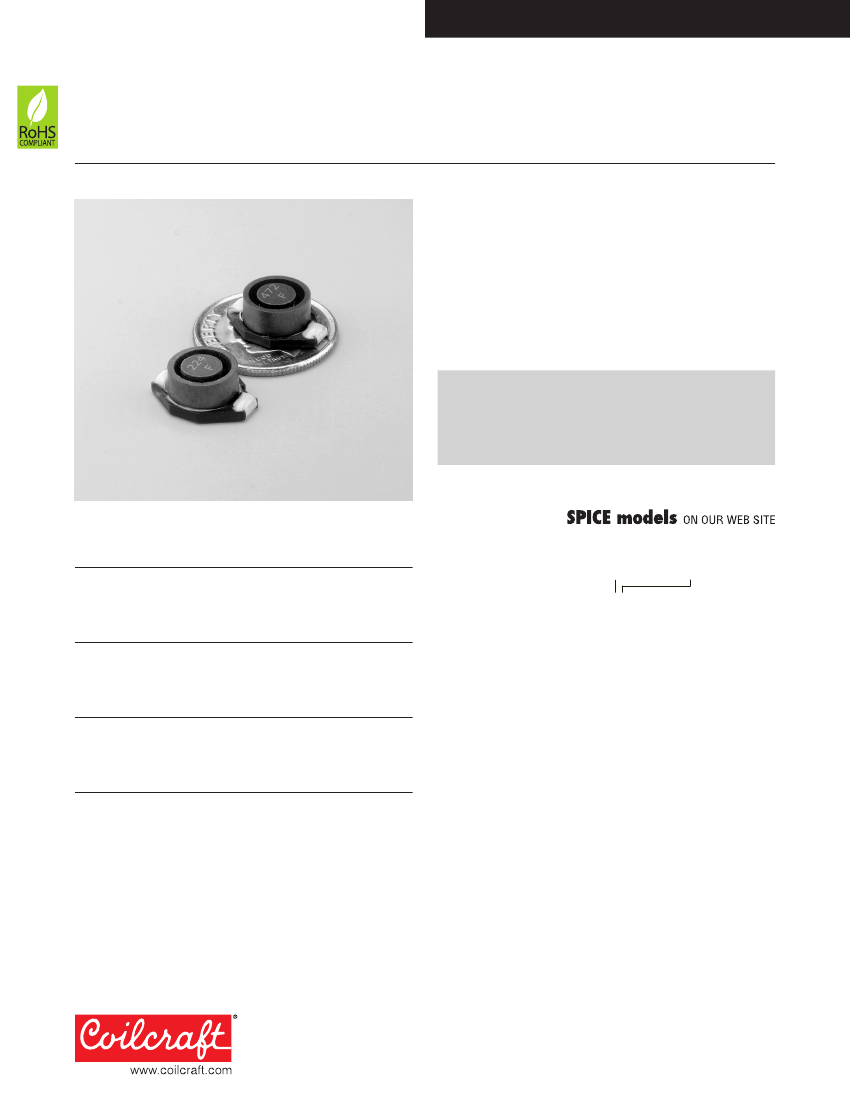

SMT Power Inductors – DS3316P
Magnetic shielding and high efficiency are features of the
DS3316 family of power inductors. They are designed for
high performance DC-DC converter applications, espe-
cially those requiring shielding.
The terminations wrap around the end of the base, ensur-
ing a sound solder fillet and simplifying inspection.
Saturation current ratings up to 11 A and rms current rat-
ings as high as 5 A are available. DC resistance as low as
0.021 Ohms keeps power losses to a minimum.
For new designs, consider the MSS1038 as an alterna-
tive to this series. The MSS1038 series is more cost ef-
fective, features a smaller footprint, lower profile, lower
DCR and better current handling. We will continue to
manufacture and support the DS3316 indefinitely.
Part
DS3316P-102ML_
DS3316P-152ML_
DS3316P-222ML_
DS3316P-332ML_
DS3316P-472ML_
DS3316P-682ML_
DS3316P-822ML_
DS3316P-103ML_
DS3316P-153ML_
DS3316P-223ML_
DS3316P-333ML_
DS3316P-473ML_
DS3316P-683ML_
DS3316P-104ML_
DS3316P-154ML_
DS3316P-224ML_
DS3316P-105ML_
number
1
L
DCR
2
±20%
max
(µH)
(Ohms)
1.0
0.021
1.5
0.022
2.2
0.032
3.3
0.039
4.7
0.054
6.8
0.075
8.2
0.085
10
0.101
15
0.150
22
0.207
33
0.334
47
0.472
68
0.660
100
1.11
150
1.55
220
2.00
1000
8.30
SRF
typ
Isat
3
(MHz) (A)
140 11.0
120
9.5
80
7.8
70
6.0
40
5.4
38
4.5
36
4.0
35
3.5
25
3.0
19
2.0
15
1.8
13
1.4
10
1.3
7
1.2
6
0.80
5
0.70
2
0.32
Irms
4
(A)
5.0
4.5
3.8
3.3
2.7
2.2
2.1
2.0
1.5
1.3
1.1
0.80
0.70
0.60
0.50
0.37
0.17
1. When ordering, please specify
termination
and
packaging
codes:
DS3316P-105MLD
Termination: L
= RoHS compliant gold over nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc.
3. DC current at which the inductance drops 10% (typ) from its value with-
out current.
4. Current that causes a 40°C temperature rise from 25°C ambient.
5.
Ambient temperature range:
–40°C to +85°C with
Irms
current
+85°C to +125°C with derated current
6.
Storage temperature range:
Component: –40°C to +125°C
Packaging: –40°C to +80°C
7.
Resistance to soldering heat:
Three reflows at >217°C for 90 seconds
(+260°C ±5°C for 20 – 40 seconds), allowing parts to cool to room tem-
perature between.
8. Electrical specifications at 25°C.
See Qualification Standards section for environmental and test data.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 187-1
Revised 01/12/11
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 187-2

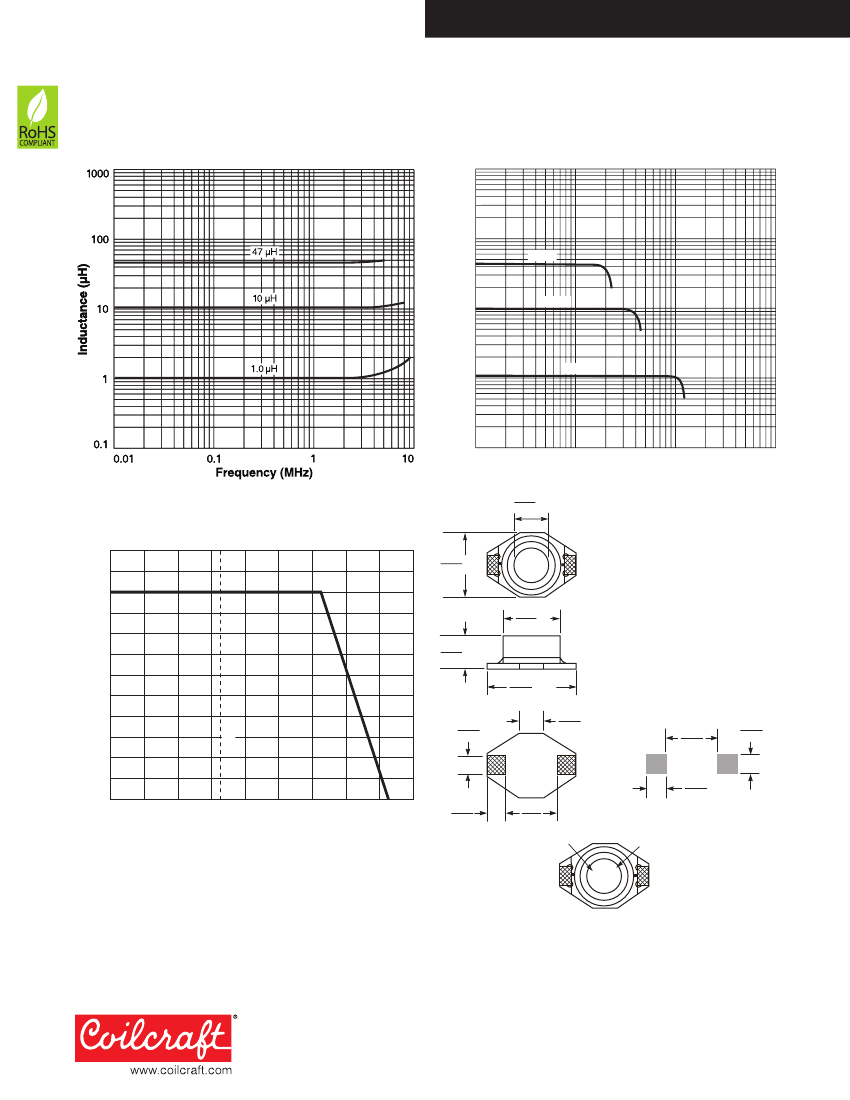

SMT Power Inductors - DS3316P Series
Typical L vs Frequency
Typical L vs Current
1000
100
Inductance (µH)
47 µH
10
10 µH
1
1.0 µH
0.1
0.1
0.190
dia
4,83
1
Current (A)
10
100
Irms Derating
120
110
100
0.370
max
9,40
Percent of rated
I
rms
90
80
70
60
50
40
25°C
0.100
2,54
0.200
max
*
5,08
0.330
dia
8,38
additional 0.01/0,254
*
Allow an and 0.005/0,127 in
in length
height for optional tin-lead and
tin-silver-copper application.
0.510
max
*
12,95
0.145
3,69
Recommended
Land Pattern
0.290
7,37
30
20
10
0
-40
-20
0
20
0.110
2,79
0.115
2,92
40
60
80
100
120 140
Ambient temperature (°C)
0.100
2,54
0.300
7,62
Internal
code
Dash
number
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm
for color dot marking details.
Weight:
0.82 – 0.87 g
Tape and reel:
1000/13″ reel 24 mm tape width
For packaging data see Tape and Reel Specifications section.
XXX
X
Document 187-2
Revised 01/12/11
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
