2
REVISIONS
DESCRIPTION
ECN #1613 - ADDED COMPONENT SPECIFICATION TABLE
ECN #1630 - CHG'D COMPONENT SPECIFICATION TABLE
REVISED;ADDED HRADWARE DETAIL (ECN #1277)
REVISED ELECTRICAL SPECS (ECN# 1311)
1
DATE
12/10/03
01/05/04
01/06/03
02/21/03
APPROVED
B.MAZEJKA
B.MAZEJKA
MCCORMICK
MCCORMICK
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.
D
.72
20°
4X R.130
.806
4-40 UNC-2B THRU
D
.450
2X R.06
.984
C
4-40 UNC-2B
X .180
1.25
.98
.19±.01
.55
.50
.36±.01
.19±.01
C
RECOMMENDED PANEL OPENING
(MAX PANEL THICKNESS: 0.06")
2X 15 PIN FEMALE
HIGH DENSITY
D-SUB CONNECTOR
APPLICATION NOTES:
ALL PINS WIRED STRAIGHT THROUGH
4X .03
+.00
- .03
JACKSCREW & HEX STANDOFF
SPECIFICATION
2X 4-40 JACKSCREW
B
LABELING:
PANTONE 2945 BLUE. "L-COM" FONT MyriaMM ITALIC.
"GENDER CHANGER" FONT ARIAL BOLD, TEXT HEIGHTS; .085"
TEXT COLOR; WHITE.
B
.25
Component Specifications
Material
Shell
Contacts/Terminals
Hardware
Insulator
Finish
Shell
Contacts/Terminals
Hardware
Electrical
Tin/Nickel Plated
Gold Flash Plated: 1 – 1.5µ inches
Nickel Plated
3 AMP
1000 M Min @ 500 VDC
1000 VAC (for One minute)
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
.X .1
.XX .05
.XXX .005
CABLE LENGTH TOLERANCE
≤
300" ±5% >300" ±2%
APPROVALS
DRAWN BY
D.PARHAM
CHECKED BY
T.CLARK
APPROVED BY
R.CARRICK
DATE
11/08/2001
11/08/2001
11/08/2001
SIZE
PRODUCT DESCRIPTION
Steel
Copper Alloy
Brass
PBT Fiber Reinforced (UL 94V-0 Rated)
2X 4-40 HEX STANDOFF
A
Current Rating
Insulation Resistance
Dielectric Withstanding
Voltage
Environmental
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
GENDER CHANGER, HD15 FEMALE/FEMALE
DRAWING TITLE
A
Operational Temperature
-55ºC to +105ºC
Range
CS-131

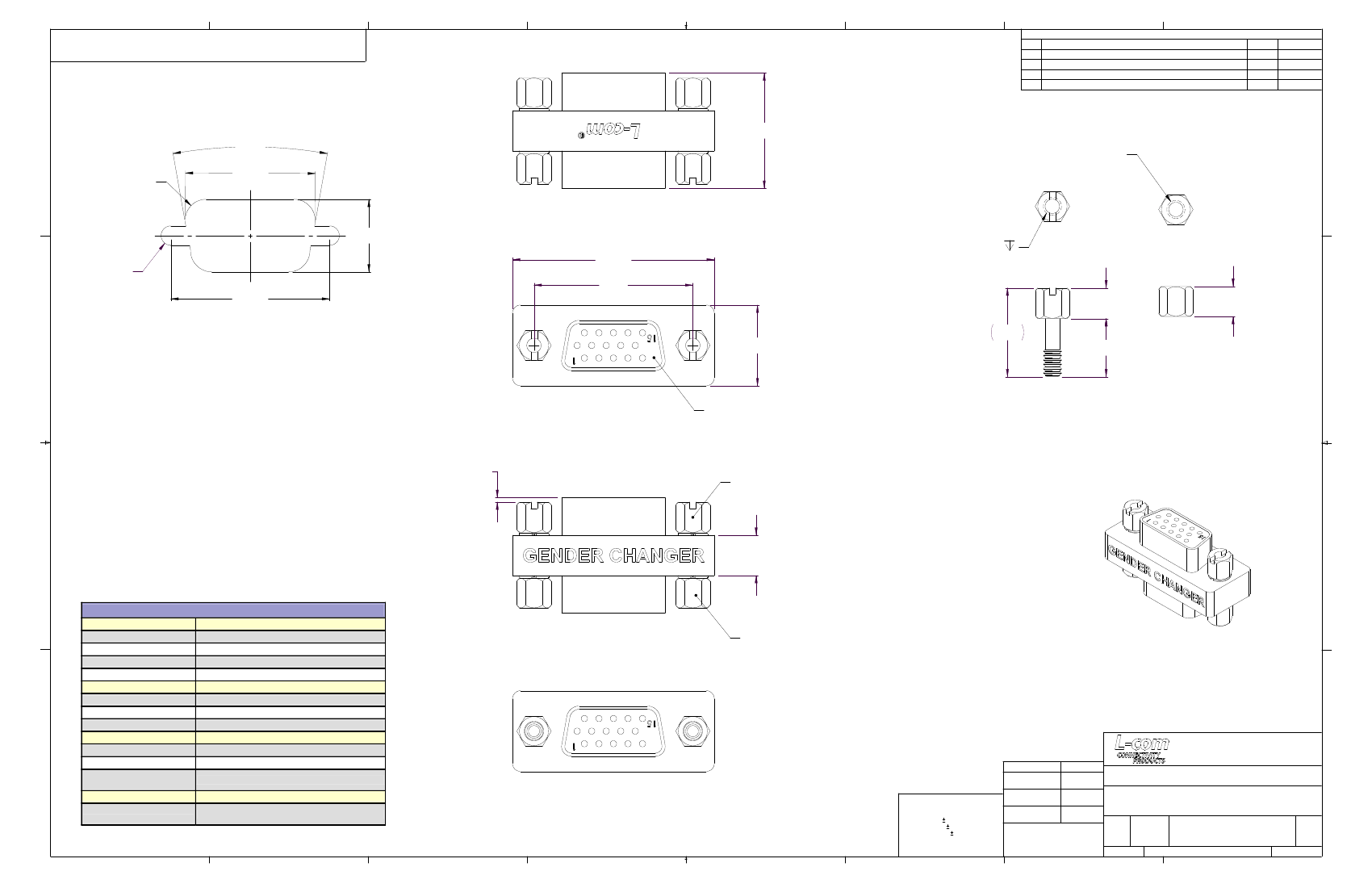

OUTLINE DRAWING
FSCM NO.
DWG. NO.
REV.
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
B
43321
DGBH15F-OD1
1
F
SHEET 1 OF 1
SCALE: 2:1
CAD FILE: DGBH15F-OD1.SLDDRW
8
7
6
5
4
3
2
