DGBH44MF

Description
ADPT, SKT SAVER HD44 SLIM M/F
CategoryThe connector    The connector
File Size146KB,1 Pages
ManufacturerL-com Global Connectivity
Environmental Compliance
Download Datasheet Parametric View All

DGBH44MF Overview

ADPT, SKT SAVER HD44 SLIM M/F

DGBH44MF Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codeunknown
Connector typeRECTANGULAR CONNECTOR ADAPTER
Contact to complete cooperationNOT SPECIFIED
Contact materialNOT SPECIFIED
Base Number Matches1
8
7
6
5
4
3
REV
C
D
E
F
2
REVISIONS
DESCRIPTION
REVISED ELECTRICAL SPECS (ECN# 1311)
ECN #1613 - ADD COMPONENT SPECIFICATION TABLE
ECN #1630 - CHG'D COMPONENT SPECIFICATION TABLE
ECN# 2731 - ADDED ROHS STAMP
1
DATE
02/21/03
12/10/03
01/05/04
10/23/07
CHANGED BY
MCCORMICK
B.MAZEJKA
B.MAZEJKA
D.GRIFFIN
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.
RoHS Compliant
D

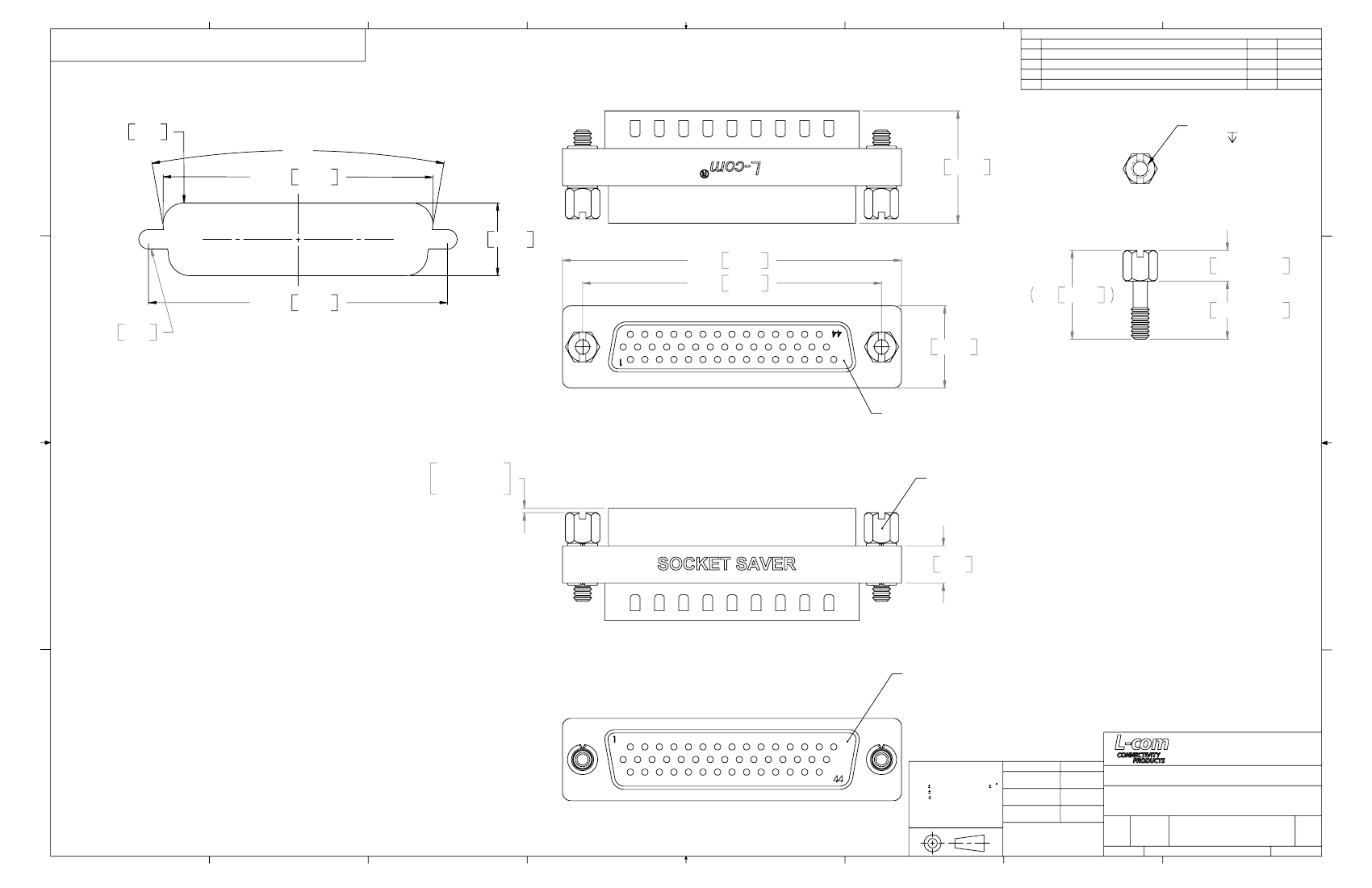

4X R.130 3.30
20°
1.671 42.44
.70 17.65
4-40 UNC-2B
X .180
D
.450 11.43
2.10 53.34
1.85 47.04
1.852 47.04
C
.19±.01 4.83±0.254
.55 13.97
.36±.01 9.14±0.254
C
2X R.06 1.52
NOTES:
RECOMMENDED PANEL OPENING
(MAX PANEL THICKNESS: 0.06")
.51 12.95
JACKSCREW
SPECIFICATION
MATERIAL:
SHELL: STEEL
CONTACTS/TERMINALS: COPPER ALLOY
HARDWARE: BRASS
INSULATOR: PBT FIBER REINFORCED (UL 94V-0
RATED)
FINISH:
SHELL: TIN/NICKEL PLATED
CONTACTS/TERMINALS: GOLD FLASH PLATED:
1 - 1.5 MICROINCHES
HARDWARE: NICKEL PLATED
ELECTRICAL:
CURRENT RATING: 3 AMP
INSULATION RESISTANCE:1000 M MIN@500VDC
DIELECTRIC WITHSTANDING VOLTAGE:
1000 VAC (FOR ONE MINUTE)
ENVIRONMENTAL:
OPERATIONAL TEMPERATURE
RANGE: -55°C TO +105°C
APPLICATION NOTES:
ALL PINS WIRED STRAIGHT THROUGH
A
44 PIN FEMALE
HIGH DENSITY
D-SUB CONNECTOR
+.00
0
2X .03
0.69
- .03
- 0.762
2X 4-40 JACKSCREW
B
B
.23 5.84
44 PIN MALE
HIGH DENSITY
D-SUB CONNECTOR
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
A
LABELING:
PANTONE 2945 BLUE. "L-COM" FONT MyriaMM ITALIC.
"SOCKET SAVER" FONT ARIAL BOLD, TEXT HEIGHTS; .085"
TEXT COLOR; WHITE.
APPROVALS
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES [mm] DRAWN BY
TOLERANCES TO BE:
D.PARHAM
ANGLES 2
.X .1 [2.5]
.XX .01 [.25]
CHECKED BY
.XXX .005 [.13]
T.CLARK
OVERALL CABLE LENGTH TOL:
APPROVED BY
60 [1524] +3 [76.2] / - 0
R.CARRICK
> 60 [1524] +5% / -0%
PROJ
DATE
03/01/2002
CATEGORY
DATA CABLING
PRODUCT DESCRIPTION
11/08/2001
03/01/2002
SIZE
SOCKET SAVER, HD44 MALE/FEMALE
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
B
FSCM NO.
43321
DWG. NO.
REV.
DGBH44MF
1
F
8
7
6
5
4
3
2
SCALE: 2:1
CAD FILE: DGBH44MF.SLDDRW
SHEET 1 OF 1
