D
1.55
D
.23
1.31
A
A
C
.50
C

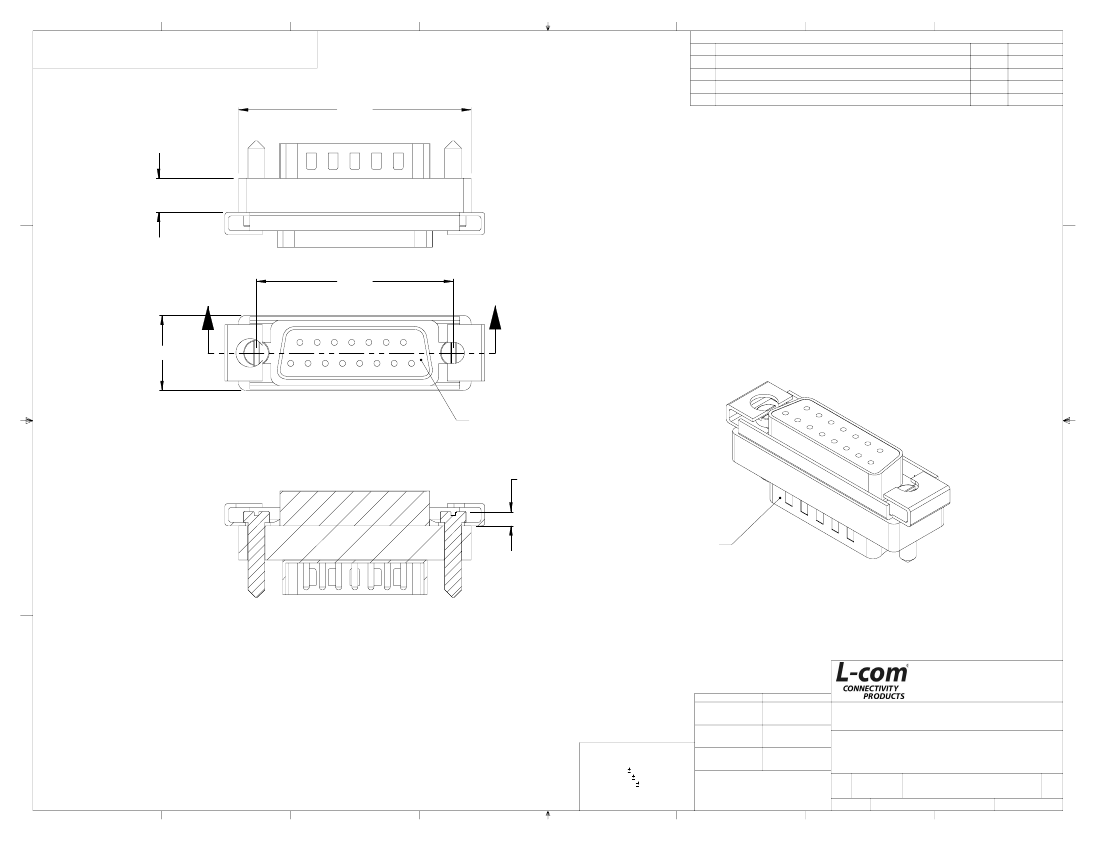

15 PIN FEMALE D-SUB
CONNECTOR
2X .094
B
15 PIN MALE D-SUB
CONNECTOR
B
SECTION A-A
SCALE 1.5 : 1
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
PRODUCT DESCRIPTION
03/18/02
DRAWING TITLE
A
NOTES:
1. CONTACTS: GOLD PLATED BRASS
2. EXPOSED STEEL SURFACES: TIN PLATED
3. SCREWS: NICKEL PLATED
4. INSULATORS: GLASS FILLED PBT (BLUE)
U.L. RECOGNIZED MATERIAL, 94-V0 RATED.
5. CONTACTS WIRED STRAIGHT THROUGH.
APPROVALS
DRAWN
MCCORMICK
CHECKED
DATE
DB15 TO D-SUB SLIDE LATCH ADAPTOR
A
03/18/02
D.PARHAM
UNLESS OTHERWISE SPECIFIED, APPROVED BY
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
03/18/02
R.CARRICK
.X .1
.XX .05
.XXX .005
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
CABLE LENGTH TOLERANCE
MAY VARY
<300" ±5% >300" ±2%
OUTLINE DRAWING
SIZE
SCALE
A
43321
2
FSCM NO.
DWG. NO.
DGBL15MF-OD1
SHEET 1
OF
REV.
CAD FILE:
1:1
DGBL15MF-OD1.SLDDRW
A
1
