D3005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> D3005

D3005: DescriptionRF RELAY, DPDT, MOMENTARY, 0.023A (COIL), 6VDC (COIL), 140mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size76KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

D3005 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D3005	-	-	View	Buy Now

D3005 Overview

RF RELAY, DPDT, MOMENTARY, 0.023A (COIL), 6VDC (COIL), 140mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT

D3005 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	14 weeks 1 day
Other features	RELEASE TIME WITH DIODE IN PARALLEL
body width	9 mm
body height	5 mm
Body length or diameter	14 mm
Maximum coil current (DC)	0.023 A
Coil operating voltage (DC)	4.2 V
Coil power	140 mW
Coil release voltage (DC)	0.6 V
Coil resistance	257 Ω
Maximum coil voltage (DC)	6 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@125VDC
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	125 V
Contact/Output Power Type	AC/DC
Electrical life	100000 Cycle(s)
Maximum insertion loss	-0.25 dB
Maximum isolation	-22.3 dB
Manufacturer's serial number	D30
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	9 ms
Maximum operating frequency	900 MHz
Minimum operating frequency	100 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
method of packing	BOX; TUBE
physical size	14mm X 9mm X 5mm
Guideline	CECC; CSA; UL
Relay action	MOMENTARY
Relay function	DPDT
Relay type	RF RELAY
release time	9 ms
seal	IP67
surface mount	NO
switching time	18 ms
Termination type	SOLDER
voltage standing wave ratio	1.07
Base Number Matches	1

Preview

Download Datasheet

View All

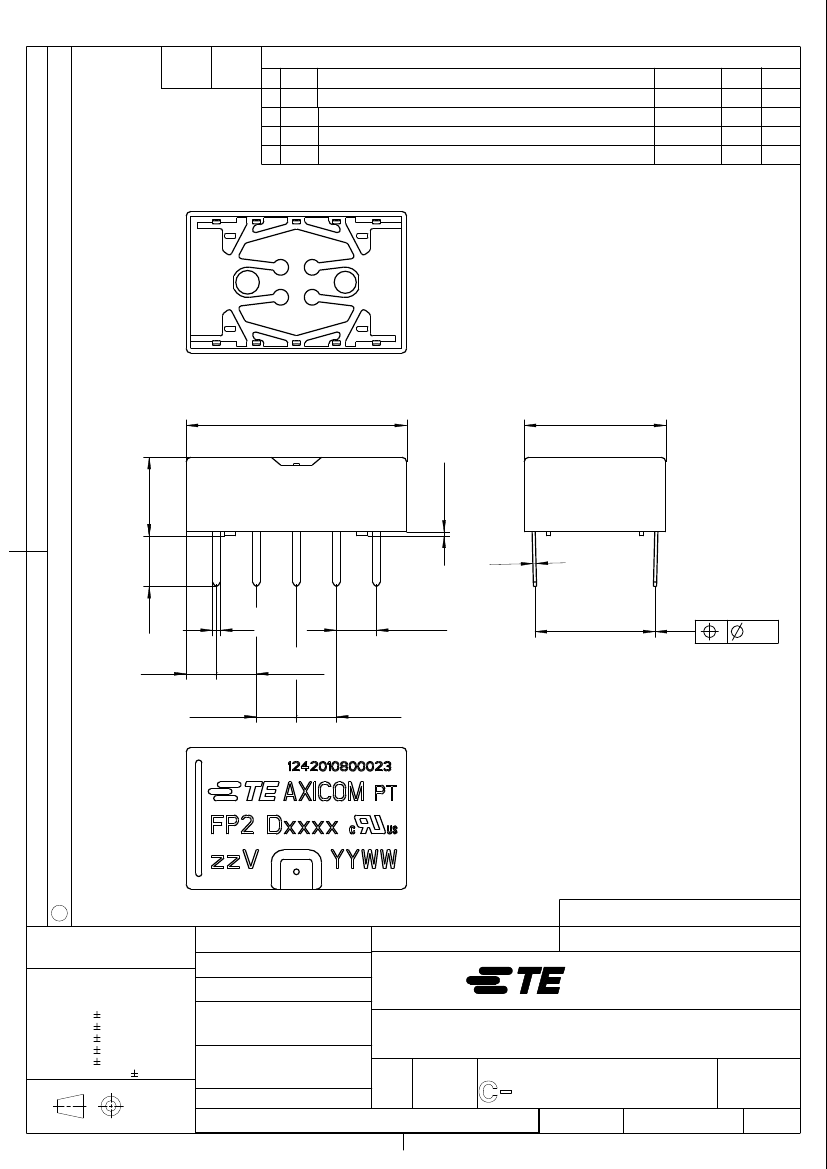

THIS DRAWING IS A CONTROLLED DOCUMENT.

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

Doc change D02239-DOK51 to C-1462033-2

change marking

REVISED PER ECO-11-005150

REVISED PER ECO-13-009556

30Jan2006

28Jul2006

23MAR2011

14JUN2013

UKo

HMR

Relay - bottom view

2006

RELEASED FOR PUBLICATION

±0.05

0.25

±0.05

±0.1

0.2

3.2

+0.3

0.5

2.54

+0.15

-0.15

2.54

+0.15

-0.15

2.54

+0.15

-0.15

7.62

+0.15

-0.15

0.2

(1.92)

2.54

+0.15

-0.15

THIS DRAWING IS UNPUBLISHED.

xxxx = Relay type

zz = nominal voltage

YYWW = Date code

DRAWING ALIAS:

DIMENSIONS:

DWN

CHK

D02239-DOK51

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

AB 9124

HD 9121

PRODUCT SPEC

APVD

23AUG1995

MATERIAL

FINISH

DIN 7168-m

TE Connectivity

NAME

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

APPLICATION SPEC

FP2-Relay

Dimensions

CAGE CODE DRAWING NO

RESTRICTED TO

WEIGHT

CUSTOMER DRAWING

SIZE

00779

1462033-2

SCALE

SHEET

4:1

REV

1469-35 (3/11)

D3005 Related Products

	D3005	D3044	D3065	D3024
Description	RF RELAY, DPDT, MOMENTARY, 0.023A (COIL), 6VDC (COIL), 140mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	RF RELAY, DPDT, LATCHED, 0.017A (COIL), 6VDC (COIL), 100mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	RF RELAY, DPDT, LATCHED, 0.022A (COIL), 9VDC (COIL), 200mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT	RF RELAY, DPDT, MOMENTARY, 0.013A (COIL), 6VDC (COIL), 80mW (COIL), 2A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
body width	9 mm	9 mm	9 mm	9 mm
body height	5 mm	5 mm	5 mm	5 mm
Body length or diameter	14 mm	14 mm	14 mm	14 mm
Maximum coil current (DC)	0.023 A	0.017 A	0.022 A	0.013 A
Coil operating voltage (DC)	4.2 V	4.5 V	6.3 V	4.5 V
Coil power	140 mW	100 mW	200 mW	80 mW
Coil release voltage (DC)	0.6 V	-4.5 V	6.3 V	0.6 V
Coil resistance	257 Ω	360 Ω	405 Ω	450 Ω
Maximum coil voltage (DC)	6 V	6 V	9 V	6 V
Coil/Input Power Type	DC	DC	DC	DC
Contact (AC) maximum rated R load	2A@250VAC	2A@250VAC	2A@250VAC	2A@250VAC
Maximum contact current (AC)	2 A	2 A	2 A	2 A
Maximum contact current (DC)	2 A	2 A	2 A	2 A
Contact (DC) maximum rated R load	2A@125VDC	2A@125VDC	2A@125VDC	2A@125VDC
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Maximum contact voltage (DC)	125 V	125 V	125 V	125 V
Contact/Output Power Type	AC/DC	AC/DC	AC/DC	AC/DC
Electrical life	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)	100000 Cycle(s)
Maximum insertion loss	-0.25 dB	-0.25 dB	-0.25 dB	-0.25 dB
Maximum isolation	-22.3 dB	-22.3 dB	-22.3 dB	-22.3 dB
Installation features	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT	THROUGH HOLE-STRAIGHT MOUNT
operating hours	9 ms	9 ms	9 ms	9 ms
Maximum operating frequency	900 MHz	900 MHz	900 MHz	900 MHz
Minimum operating frequency	100 MHz	100 MHz	100 MHz	100 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
method of packing	BOX; TUBE	BOX; TUBE	BOX; TUBE	BOX; TUBE
physical size	14mm X 9mm X 5mm	14mm x 9mm x 5mm	14mm X 9mm X 5mm	14mm X 9mm X 5mm
Guideline	CECC; CSA; UL	CECC; CSA; UL	CECC; CSA; UL	CECC; CSA; UL
Relay action	MOMENTARY	LATCHED	LATCHED	MOMENTARY
Relay function	DPDT	DPDT	DPDT	DPDT
Relay type	RF RELAY	RF RELAY	RF RELAY	RF RELAY
release time	9 ms	9 ms	9 ms	9 ms
seal	IP67	IP67	IP67	IP67
surface mount	NO	NO	NO	NO
switching time	18 ms	18 ms	18 ms	18 ms
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.07	1.07	1.07	1.07
Manufacturer's serial number	D30	-	D30	D30
Base Number Matches	1	1	1	-
Is it lead-free?	-	Lead free	Lead free	Lead free
