DF60BA40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF60BA40

DF60BA40: DescriptionBridge Rectifier Diode, 60A, 400V V(RRM),; CategoryDiscrete semiconductor diode; File Size278KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric Compare View All

DF60BA40 Overview

Bridge Rectifier Diode, 60A, 400V V(RRM),

DF60BA40 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
Maximum non-repetitive peak forward current	1000 A
Number of components	6
Maximum operating temperature	150 °C
Maximum output current	60 A
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

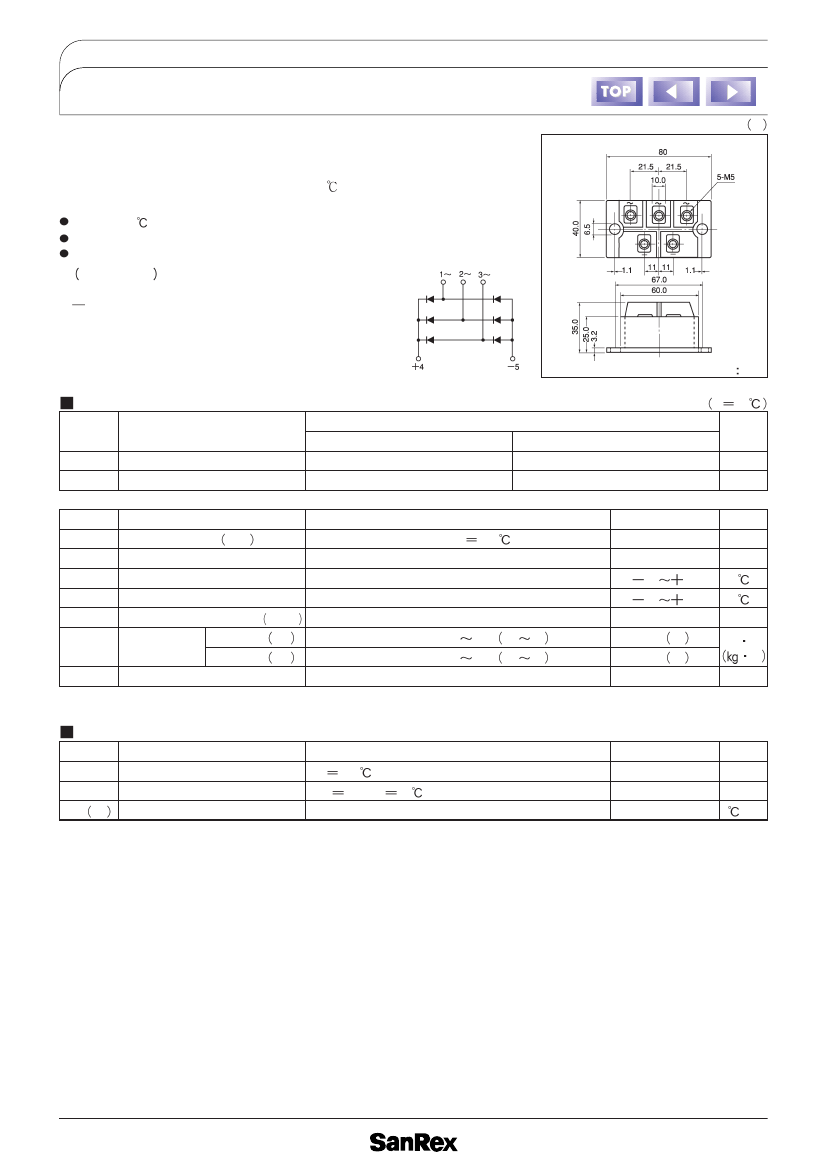

DIODE

(THREE PHASES BRIDGE TYPE)

DF60BA40/80

UL;E76102 M

Power Diode Module

DF60BA

is designed for three phase full wave rectification, which

has six diodes connected in a three phase bridge configuration. The mounting base of the

module is electrically isolated from semiconductor elements for simple heatsink

construction Output DC current is 60Amp (Tc=115 ) Repetitive peak reverse voltage is

up to 800V.

TjMax=150

Isolated Mounting Base

High reliability by unique glass passivation

Applications

AC. DC Motor Drive/AVR/Switching

for three phase rectification

Unit

Maximum Ratings

Symbol

RRM

RSM

Symbol

FSM

Tstg

ISO

Item

Repetitive Peak Reverse Voltage

Non-Repetitive Peak Reverse Voltage

Item

Output current D.C.

Surge Forward Current

Junction Temperature

Storage Temperature

Isolation Breakdown Voltage R.M.S.

Mounting

Torque

Mass

Mounting M6

Terminal M5

Main Terminal to case 1minute

Recommended Value 2.5 3.9 25 40

Recommended Value 1.5 2.5 15 25

Typical Value

Ratings

DF60BA40

400

480

Conditions

Three phase. full wave. T

115

1 cycle, 50/60H

, peak value, non-repetitive

DF60BA80

800

960

Ratings

910/1000

150

125

2500

4.7 48

2.7 28

200

Tj 25

Unit

N m

Electrical Characteristics

Symbol

RRM

Rth j-c

Item

Repetitive Peak Reverse Current, max.

Forward Voltage Drop, max.

Thermal Impedance, max.

Tj 150

60A, Tj 25

Junction to case

Conditions

at V

RRM

Inst. measurement

Ratings

6.0

1.2

0.24

Unit

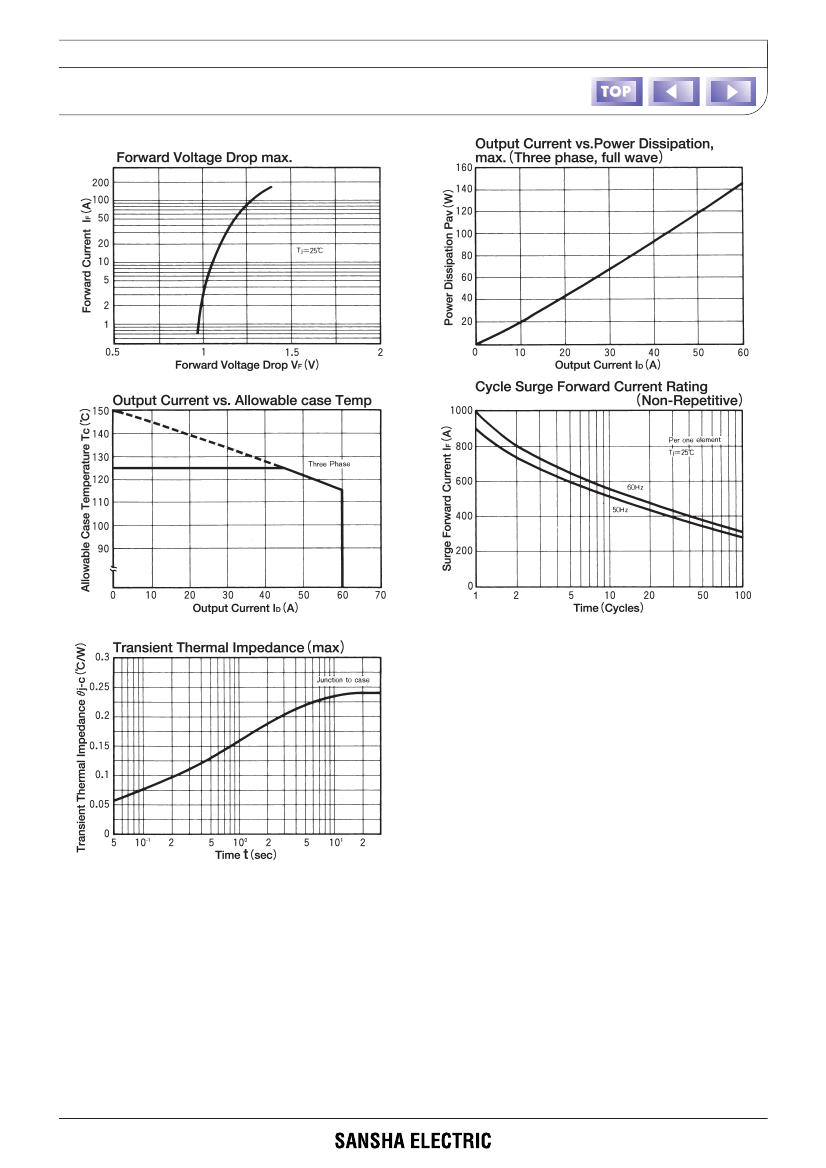

133

DF60BA40 Related Products

	DF60BA40	DF60BA80
Description	Bridge Rectifier Diode, 60A, 400V V(RRM),	Bridge Rectifier Diode, 60A, 800V V(RRM),
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V
Maximum non-repetitive peak forward current	1000 A	1000 A
Number of components	6	6
Maximum operating temperature	150 °C	150 °C
Maximum output current	60 A	60 A
Maximum repetitive peak reverse voltage	400 V	800 V
surface mount	NO	NO
Base Number Matches	1	1
