REVISIONS
DESCRIPTION
RELEASED FOR PRODUCTION
PRODUCT VALIDATION UPDATES (ECN 1293)
ECN 2317: CHANGED CONTACT PLATING TO GOLD FLASH
.
1
DATE
09/28/02
01/23/03
2/27/06
.
APPROVED
R.CARRICK
MCCORMICK
J. KIEZULAS
.
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF
L-COM, INC. ANY REPRODUCTIONS IN PART OR WHOLE WITHOUT THE WRITTEN
PERMISSION OF L-COM, INC. IS PROHIBITED.
D
.70
2.500
2.326
4X R.132
.449
2X R.06
RECOMMENDED
PANEL OPENING
MAX PANEL THICKNESS: 0.06"
.51
2.76
4-40 UNC-2B
X .180
D
.19±.01
2.50
.55
.36±.01
C
C
JACKSCREW
SPECIFICATION
FEMALE, 37 PIN
D-SUB CONNECTOR
ALL PINS
ALL PINS
820 pf±10%
CERAMIC CAPACITOR
VOLTAGE 100 VDC
B
SPECIFICATIONS;
MATERIALS;
SHELL: COLD ROLLED STEEL
CONTACTS: BRASS
INSULATOR: PBT UL94-V0 RATED
FINISH;
SHELL: TIN PLATED
CONTACT: GOLD FLASH
2X .03
+.00
- .03
2X 4-40 JACKSCREW
B
.23
C
ELECTRICAL;
CONTACT CURRENT RATING: 5.0 AMP MAX
OPERATING VOLT: 100 VDC
INSULATION RESISTANCE: 500 M @100 VDC
DIELECTRIC WTHSTAND: 500 VDC, 1 MINUTE
INDIVIDUAL CAPACITACNE ON EACH PIN: 820pF
APPLICATION NOTES:
ALL PINS WIRED STRAIGHT THROUGH
ALL- METAL HOUSING PROVIDES 100% SHIELDING
A
MALE, 37 PIN
D-SUB CONNECTOR
LABELING:
PANTONE 2945 BLUE. "L-COM" FONT MyriaMM ITALIC.
"CAPACITIVE FILTER" FONT ARIAL BOLD, TEXT HEIGHTS; .085"
TEXT COLOR; WHITE.
APPROVALS
DRAWN BY
R.CARRICK
DATE
09/28/2002
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845
PRODUCT DESCRIPTION
A
D-SUB CAPACITIVE FILTER
DRAWING TITLE
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
.X .1
.XX .05
.XXX .005
CABLE LENGTH TOLERANCE
≤
300" ±5% >300" ±2%
CHECKED BY
T.CLARK
APPROVED BY
D.PARHAM
09/28/2002
09/28/02
SIZE

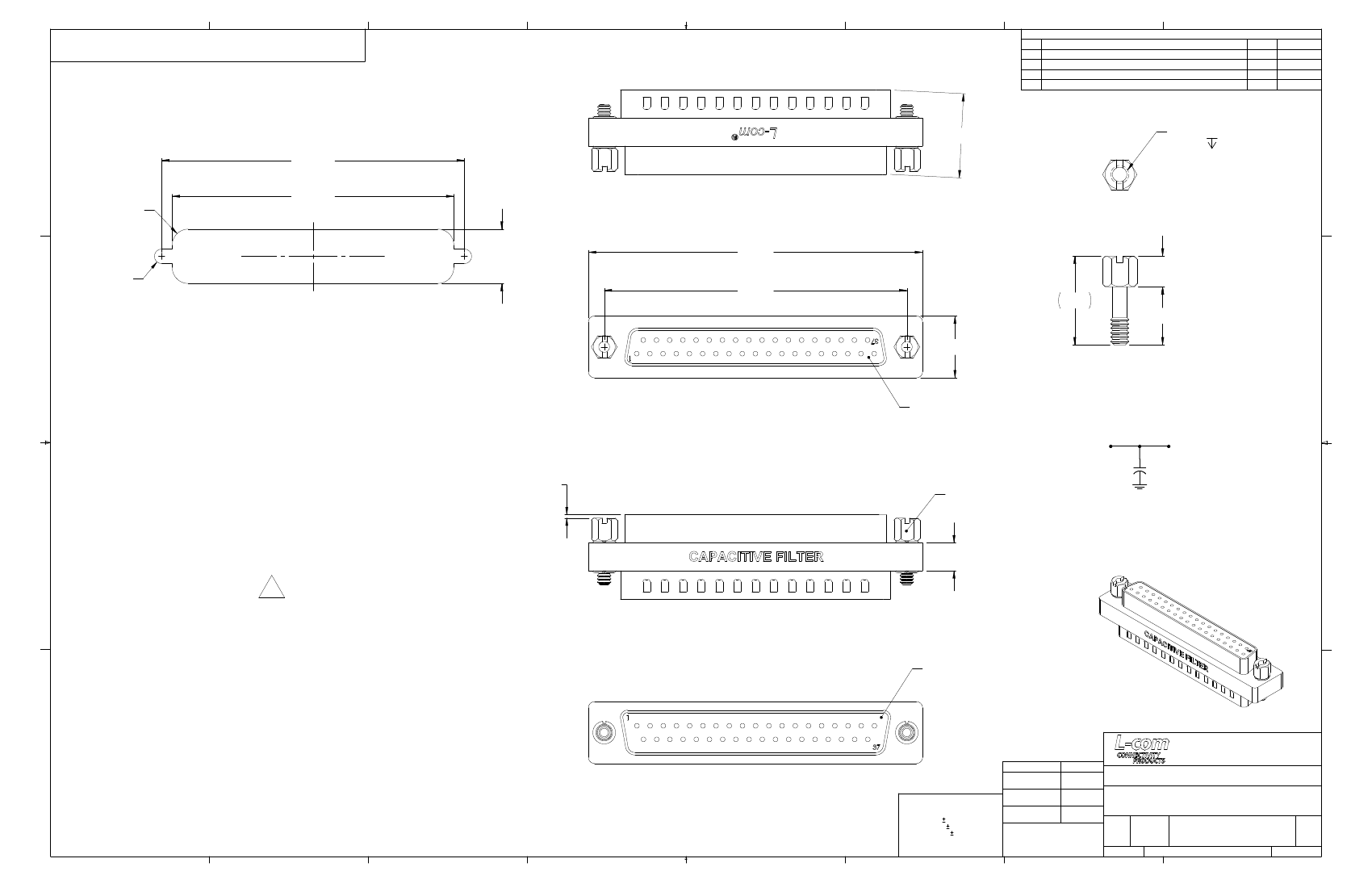

OUTLINE DRAWING
FSCM NO.
DWG. NO.
REV.
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
MAY VARY
B
43321
DGFC37MF-OD1
1
C
SCALE: 2:1
CAD FILE: DGFC37MF-OD1.SLDDRW
SHEET 1 OF 1
