DESCRIPTION
INITIAL RELEASE
2
REVISIONS
DATE
6/2/03
1
APPROVED
DFP
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE
PROPERTY OF L-COM, INC. ANY REPRODUCTION IN PART OR WHOLE
WITHOUT THE WRITTEN PERMISSION OF L-COM, INC. IS PROHIBITED.
D
2.22
D
HOUSING
2.10
C
1.66
C
HEX STANDOFF
SCREW
PRESSURE PLATE
B
.64
B
SPECIFICATIONS
HOUSING: ABS PLASTIC, UL94V-0 RATED
COLOR: BLACK
HARDWARE SUPPLIED: FOUR 4-40 UNC-2A SCREWS
TWO 4-40 UNC-2B HEX STANDOFFS
FOUR PRESSURE PLATES
HOUSING ACCEPTS STANDARD 25 POSITION D-SUB CONNECTORS (NOT SUPPLIED)
NOTE: HALF COVERS SNAP TOGETHER SECURELY , CAPTIVATING
D-SUB CONNECTORS
A
APPROVALS
DRAWN BY
D.PARHHAM
CHECKED BY
C. McCORMICK
DATE
PRODUCT DESCRIPTION
6/2/2003
6/2/2003
DRAWING TITLE
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845

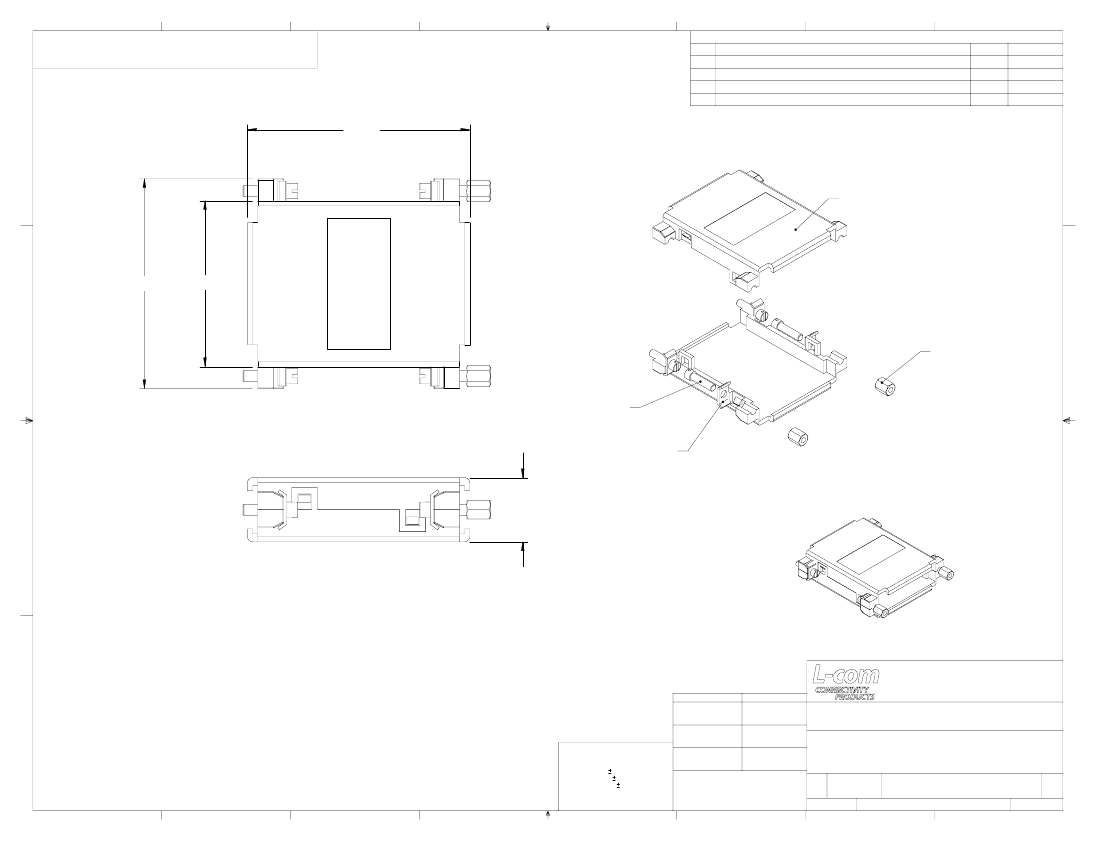

D-SUB HALF COVER PAIR
A
UNLESS OTHERWISE SPECIFIED, APPROVED BY
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
6/2/2003
R. CARRICK
.X .1
.XX .05
CONFIGURATION DETAILS OF
.XXX .005
UNDIMENSIONED FEATURES
CABLE LENGTH TOLERANCE
MAY VARY
<300" ±5% >300" ±2%
OUTLINE DRAWING
SIZE
A
43321
2
FSCM NO.
DWG. NO.
DHP25B-OD1
1
REV.
SHEET 1 OF 1
SCALE: NONE CAD FILE: DHP25B-OD1.SLDDRW
A
8
7
6
5
4
3
