D7C0106N: DescriptionRotary Switch, 6 Positions, Circular, 2.25A, 28VDC, Solder Lug Terminal, Rotary Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size79KB，2 Pages; ManufacturerElectroswitch

Download Datasheet Parametric Compare View All

D7C0106N Overview

Rotary Switch, 6 Positions, Circular, 2.25A, 28VDC, Solder Lug Terminal, Rotary Actuator, Panel Mount

D7C0106N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Executor completed	SILVER
Actuator length	1.875 inch
Actuator material	BRASS
Actuator type	ROTARY
Nozzle length	0.375 inch
Casing type	3/4-32
center contact material	BRASS
Center contact plating	SILVER
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	2.25 A
Contact (DC) maximum rated R load	2.25A@28VDC
Contact resistance	0.003 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1500VAC V
Electrical life	25000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Graduation angle	30 deg
Insulation resistance	1000000000000 Ω
Manufacturer's serial number	D7
Installation features	PANEL MOUNT
Number of positions	2 THRU 6
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
surface mount	NO
Switch action	CIRCULAR
Switch type	ROTARY SWITCH
Termination type	SOLDER LUG
Base Number Matches	1

Preview

Download Datasheet

View All

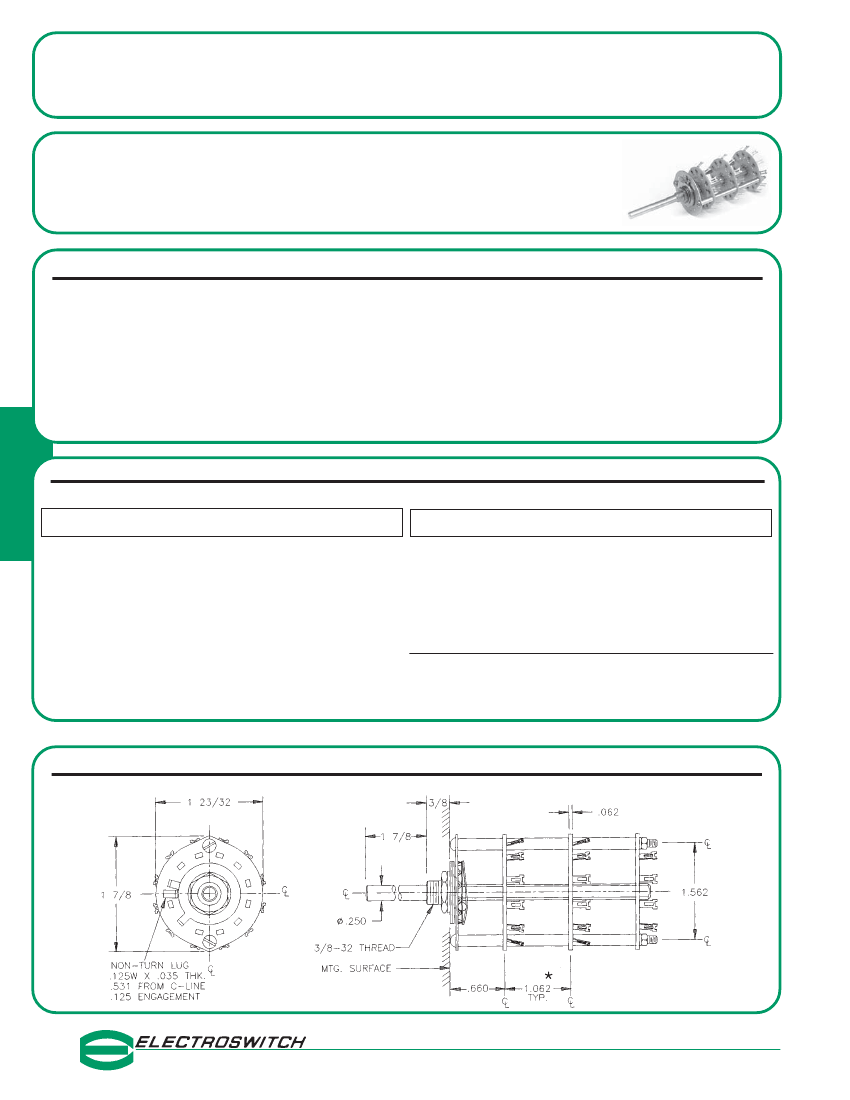

D7 - SERIES

SPECIFICATIONS AND ORDERING INFORMATION

1 7/8" DIAMETER 2.25 AMPS @ 28 VDC

The D7 Series, constructed with a dual-ball, hill and valley index, has in-

creased the physical size of the switch conductors allowing for additional

current carrying capabilities. Standard designs utilize glass epoxy or ceramic

insulations, solder lug terminals, and 30° adjustable stop indexing.

SPECIFICATIONS

ELECTRICAL

Current and Voltage Rating:

Make and break resistive load

2.25 amps @ 28 VDC; 1.0 amp @ 115 VAC.

Current Carrying Capacity:

9 amps.

Dielectric Strength:

1,500 VAC between current carrying parts and

ground.

Contact Resistance:

Average initial 3 milliohms.

Insulation Resistance:

Glass in excess of 750,000 megohms.

Ceramic in excess of 1,000,000 megohms.

Hardware:

Mounting nut and lockwasher are shipped assembled.

MECHANICAL

Materials and Finishes:

All parts utilize non-corrosive materials

as standard.

Clips and Rotors:

Brass with silver plate as standard.

Insulation:

Glass epoxy, or ceramic.

Index:

Dual-ball, hill and valley design.

Index Life:

25,000 cycles minimum.

Index Torque:

Switches have lowest practical torque consistent

with crisp detenting and smooth, reliable operation.

Index Angles:

Positive 30° standard, 60° available.

Index Stops:

Adjustable standard, fixed or continuous.

Stop Strength:

25 in. lbs. minimum.

STANDARD PART NUMBER

D

GLASS EPOXY INSULATION

SWITCHES - 30° INDEXING

ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS.

ACTIVE

POLES/

NO. OF

POLES POSITIONS SECTION SECTIONS

01

02

03

04

05

06

08

09

10

02-11

02-05

02-11

02-03

02-11

02-05

02-11

02-05

02-03

02-11

02-05

02-03

02-05

1

2

1

3

1

2

1

2

3

1

2

3

2

1

2

1

3

1

4

2

5

3

2

6

4

3

5

SHORTING

D7G0111S

D7G0211S

D7G0205S

D7G0311S

D7G0303S

D7G0411S

D7G0405S

D7G0511S

D7G0605S

D7G0603S

D7G0611S

D7G0805S

D7G0903S

D7G1005S

NON-

SHORTING

D7G0111N

D7G0211N

D7G0205N

D7G0311N

D7G0303N

D7G0411N

D7G0405N

D7G0511N

D7G0605N

D7G0603N

D7G0611N

D7G0805N

D7G0903N

D7G1005N

FIG.

DA

DH

DA

DM

DA

DH

DA

DH

DM

DA

DH

DM

DH

CERAMIC INSULATION

SWITCHES - 30° INDEXING

ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS.

*

ACTIVE

POLES/

NO. OF

POLES POSITIONS SECTION SECTIONS

01

02

03

04

06

01

02

03

04

05

02-11

02-05

02-11

02-03

02-05

02-03

02-06

1

2

1

3

2

3

1

2

1

3

1

2

3

2

60

°

INDEXING

1

2

3

4

5

SHORTING

D7C0111S

D7C0211S

D7C0205S

D7C0311S

D7C0303S

D7C0405S

D7C0605S

D7C0603S

________

NON-

SHORTING

D7C0111N

D7C0211N

D7C0205N

D7C0311N

D7C0303N

D7C0405N

D7C0605N

D7C0603N

FIG.

DA

DH

DA

DM

DH

DM

DK

*

D7C0106N-60

D7C0206N-60

D7C0306N-60

D7C0406N-60

D7C0506N-60

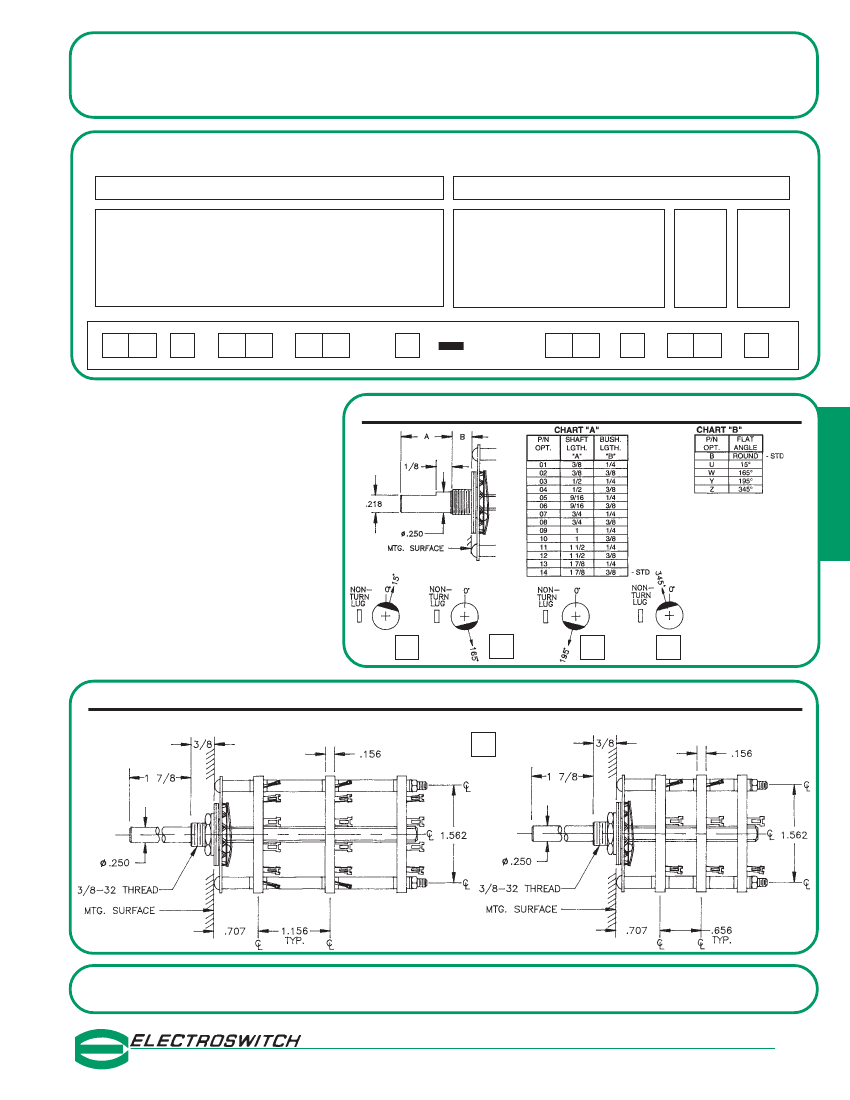

* FIGURES ARE SHOWN ON PAGES 55 AND 56.

DIMENSIONS

STANDARD CONSTRUCTION

D7G

- GLASS EPOXY CONSTRUCTION

*

•

ELECTRONIC PRODUCTS

UNIT OF ELECTRO SWITCH CORP.

.500 FOR DESIGNS OF FIVE OR

MORE SECTIONS

2010 Yonkers Road

Raleigh, NC 27604

Telephone: (888) ROTARYS or (919) 833-0707

Fax: (800) 909-9171 or (919) 833-8016

30
