NOTES:
1. MATERIAL: COLD ROLLED STEEL 0.024" THK
2. FINISH: BRIGHT CHROME PLATE
3. CONNECTOR HARDWARE SUPPLIED:
TWO #4 JACKSCREWS
TWO #4 SLOTTED SCREWS
TWO #4 HEX NUTS
TWO RETAINING CLIPS
4. FOR USE WITH TWO DB25 OR HD44 D-SUBMINIATURE
CONNECTORS
APPROVALS
DRAWN BY
MCCORMICK
CHECKED BY
DATE
PRODUCT DESCRIPTION
07/12/02
45 BEECHWOOD DRIVE
NORTH ANDOVER, MA
01845

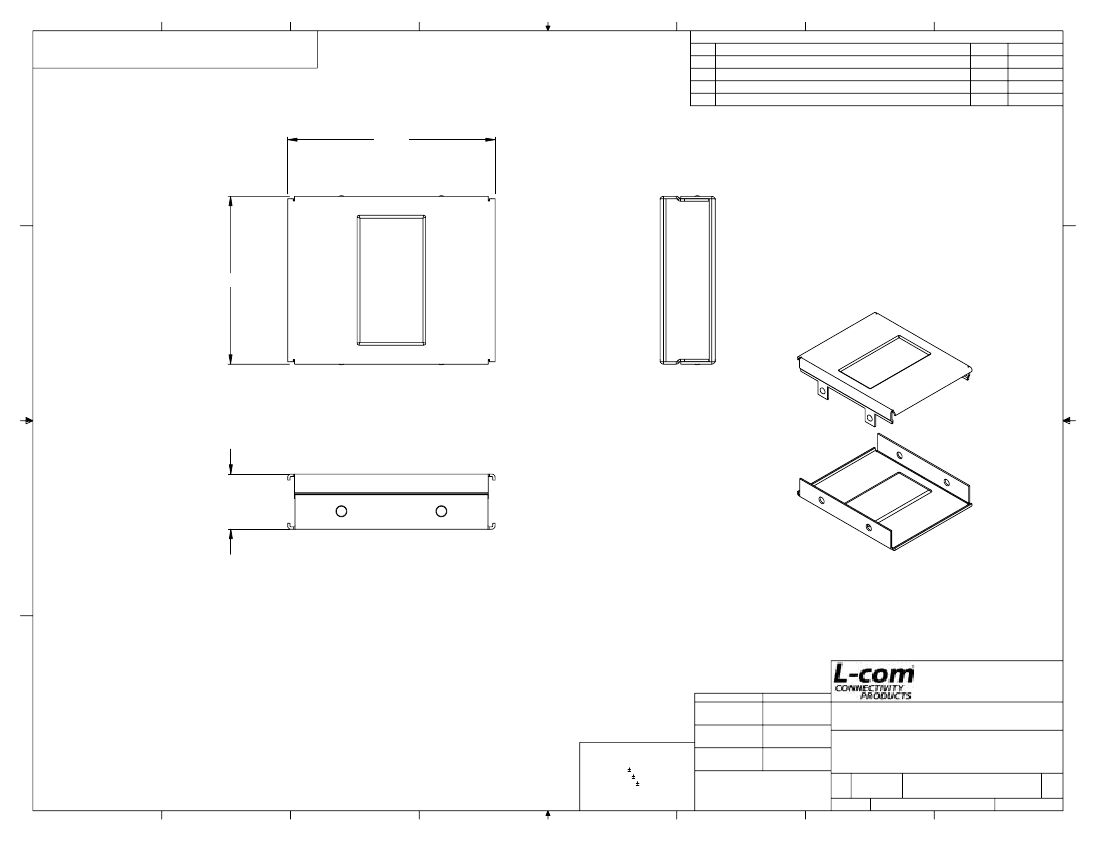

DB25 SHIELDED ADAPTOR COVERS
DRAWING TITLE
A
12/04/02
D.PARHAM
UNLESS OTHERWISE SPECIFIED, APPROVED BY
DIMENSIONS ARE IN INCHES
TOLERANCES ARE:
12/04/02
R.CARRICK
.X .1
.XX .05
.XXX .005
CONFIGURATION DETAILS OF
UNDIMENSIONED FEATURES
CABLE LENGTH TOLERANCE
MAY VARY
<300" ±5% >300" ±2%
OUTLINE DRAWING
SIZE
SCALE
A
43321
2
FSCM NO.
DWG. NO.
DHS25-OD1
SHEET 1
OF
REV.
CAD FILE:
1:2
DHS25-OD1.SLDDRW
A
1
8
7
6
5
4
3
1
