DF30BA80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF30BA80

DF30BA80: DescriptionBridge Rectifier Diode, 30A, 800V V(RRM),; CategoryDiscrete semiconductor diode; File Size263KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric Compare View All

DF30BA80 Overview

Bridge Rectifier Diode, 30A, 800V V(RRM),

DF30BA80 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
Maximum non-repetitive peak forward current	450 A
Number of components	6
Maximum operating temperature	150 °C
Maximum output current	30 A
Maximum repetitive peak reverse voltage	800 V
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

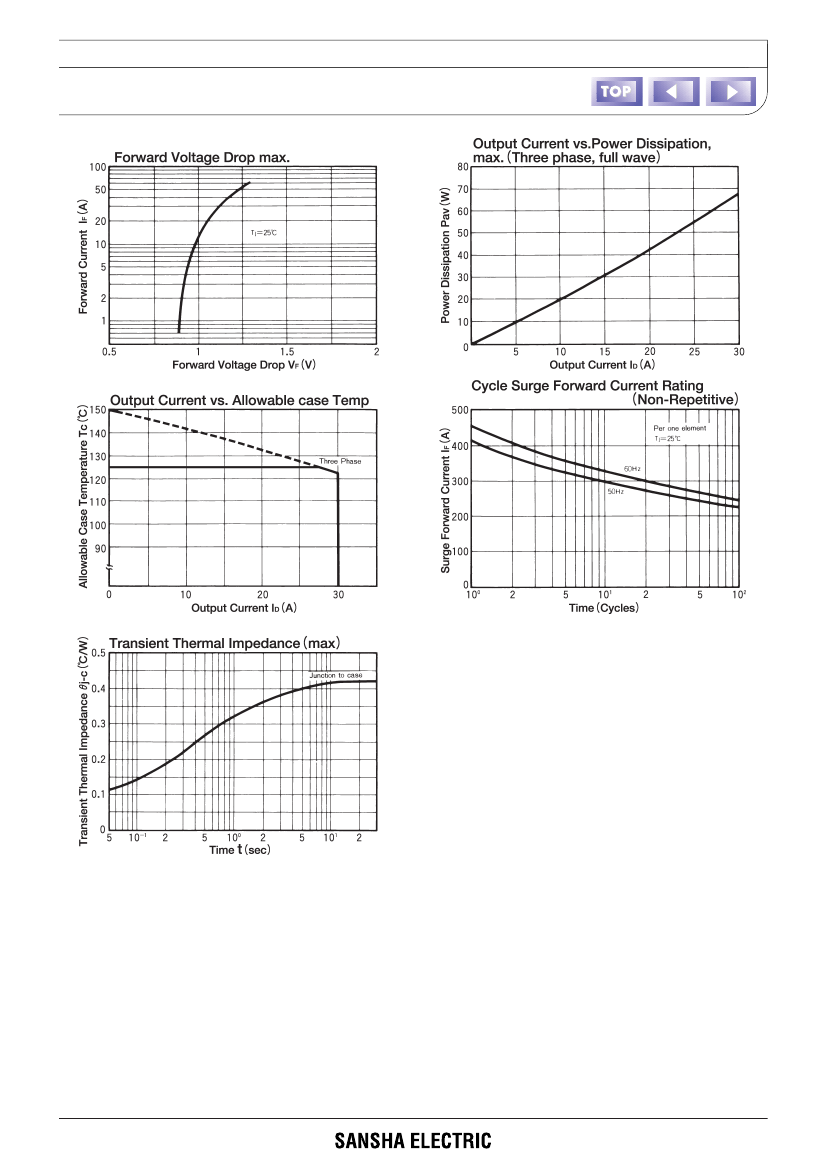

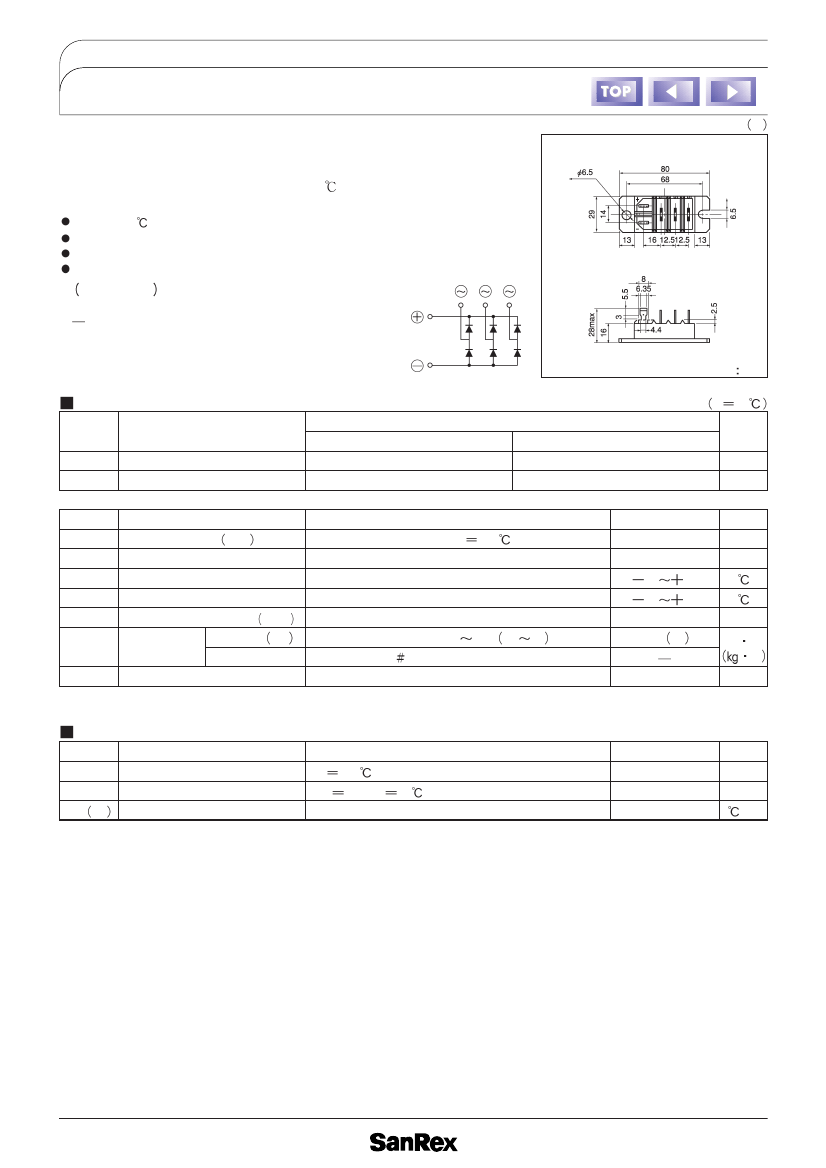

DIODE

(THREE PHASES BRIDGE TYPE)

DF30BA40/80

UL;E76102 M

Power Diode Module

DF30BA

is designed for three phase full wave rectification, which

has six diodes connected in a three phase bridge configuration. The mounting base of the

module is electrically isolated from semiconductor elements for simple heatsink

construction output DC current is 30Amp (Tc=122 ) Repetitive peak reverse voltage is

up to 800V.

TjMax=150

Isolated Mounting Base

High reliability by unique glass passivation

Easy Assemble by the #250 terminal Tab

Applications

AC. DC Motor Drive/AVR/Switching

for three phase rectification

Unit

Maximum Ratings

Symbol

RRM

RSM

Symbol

FSM

Tstg

ISO

Item

Repetitive Peak Reverse Voltage

Non-Repetitive Peak Reverse Voltage

Item

Output current D.C.

Surge Forward Current

Junction Temperature

Storge Temperature

Isolation Breakdown Voltage R.M.S.

Mounting

Torque

Mass

Mounting M6

Terminal

Main Terminal to case 1minute

Recommended Value 2.5 3.9 25 40

Tub Terminal

Typical Value

250

Ratings

DF30BA40

400

480

Conditions

Three phase. full wave. T

122

1 cycle, 50/60H

, peak value, non-repetitive

DF30BA80

800

960

Ratings

410/450

150

125

2500

4.7 48

Tj 25

Unit

N m

Electrical Characteristics

Symbol

RRM

Rth j-c

Item

Repetitive Peak Reverse Current, max.

Forward Voltage Drop, max.

Thermal Impedance, max.

Tj 150

30A, Tj 25

Junction to case

Conditions

at V

RRM

Inst. measurement

Ratings

1.5

1.1

0.42

Unit

117

DF30BA80 Related Products

	DF30BA80	DF30BA40
Description	Bridge Rectifier Diode, 30A, 800V V(RRM),	Bridge Rectifier Diode, 30A, 400V V(RRM),
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Configuration	BRIDGE, 6 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V
Maximum non-repetitive peak forward current	450 A	450 A
Number of components	6	6
Maximum operating temperature	150 °C	150 °C
Maximum output current	30 A	30 A
Maximum repetitive peak reverse voltage	800 V	400 V
surface mount	NO	NO
Base Number Matches	1	1
