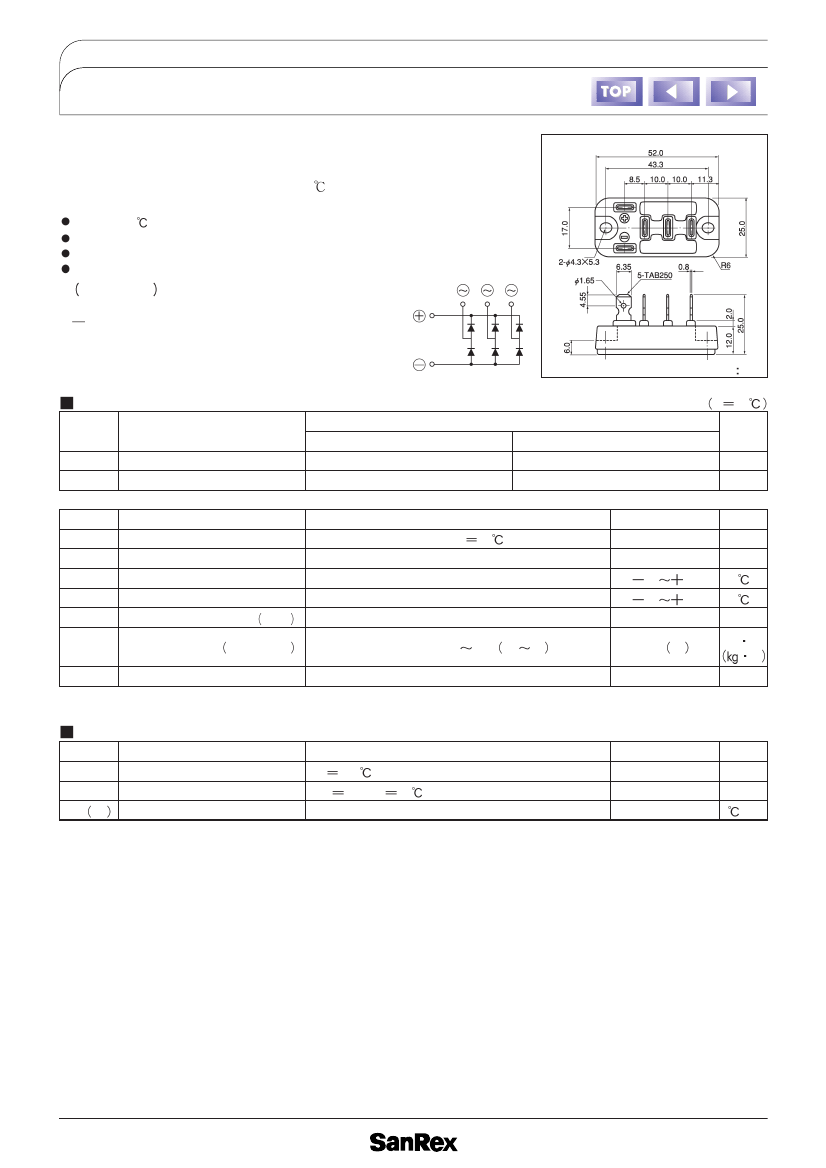

DIODE
(THREE PHASES BRIDGE TYPE)
DF30DB40/80
Power Diode Module
DF30DB
is designed for three phase full wave rectification, which
has six diodes connected in a three phase bridge configuration. The mounting base of the
module is electrically isolated from semiconductor elements for simple heatsink
construction output DC current is 30Amp (Tc=83 ) Repetitive peak reverse voltage is up
to 800V.
TjMax=150
Isolated Mounting Base
High reliability by unique glass passivation
Easy Assemble by the #250 terminal Tab
Applications
AC. DC Motor Drive/AVR/Switching
for three phase rectification
Unit
a
Maximum Ratings
Symbol
V
RRM
V
RSM
Symbol
I
D
I
FSM
Tj
Tstg
V
ISO
Item
Repetitive Peak Reverse Voltage
Non-Repetitive Peak Reverse Voltage
Item
Output current (D.C.)
Surge Forward Current
Junction Temperature
Storage Temperature
Isolation Breakdown Voltage R.M.S.
Mounting Torque Terminal M4
Mass
Main Terminal to case 1minute
Recommended Value 1.0 1.4 10 14
Typical Value
Ratings
DF30DB40
400
500
Conditions
Three phase. full wave. T
C
83
1 cycle, 50/60H
Z
, peak value, non-repetitive
DF30DB80
800
900
Ratings
30
365/400
40
150
40
125
2000
1.5 15
32
Tj 25
Unit
V
V
Unit
A
A
V
N m
f
B
g
Electrical Characteristics
Symbol
I
RRM
V
FM
Rth j-c
Item
Repetitive Peak Reverse Current, max.
Forward Voltage Drop, max.
Thermal Impedance, max.
Tj 150
I
FM
30A, Tj 25
Junction to case
Conditions
at V
RRM
Inst. measurement
Ratings
1.5
1.1
1.0
Unit
mA
V
/W
