D25SB10(RBV2502S) Thru D25SB100(RBV2507S)
FEATURES
Plastic Package has Underwriters Laboratory
Flammability Classification 94V-0
This series is UL listed under the Recognized
Component index,file number E231047
Single-in-line package
High current capality with small package
Superior thermal conductivity
High temperature soldering guaranted:
260
/10 seconds
High I
FSM
Maximum Ratings & Thermal Characteristics
Ratings at 25
ambient temperature unless otherwise specified.
Parameter Symbol
Maximum repetitive voltage
Maximum DC reverse current
at rated DC blocking voltage
TA=25℃
TA=125℃
Symbol
V
RM
I
R
D25SB10 D25SB20
D25SB40
D25SB60 D25SB80 D25SB100
Unit
V
µA
RBV2502S RBV2503S RBV2504S RBV2505S RBV2506S RBV2507S
100
200
400
5
500
25
350
2.5
1.1
150
600
800
1000
Average rectified forward current 60Hz Sine wave
Resistance load with heat sink Tc=100℃
Peak forward surge current 8.3ms single half sine-
wave superimposed on rated load
Dielectric strength Terminals to case，
AC 1 minute Current 1mA
Max instantaneous forward voltage at 12.5A
Operating junction temperature
Storage temperature
Io
I
FSM
Vdia
V
F
T
J
Tstg
A
A
KV
V
℃
℃
-40~150
LESHAN RADIO COMPANY
LTD.
D25SB10(RBV2502S) Thru D25SB100(RBV2507S)

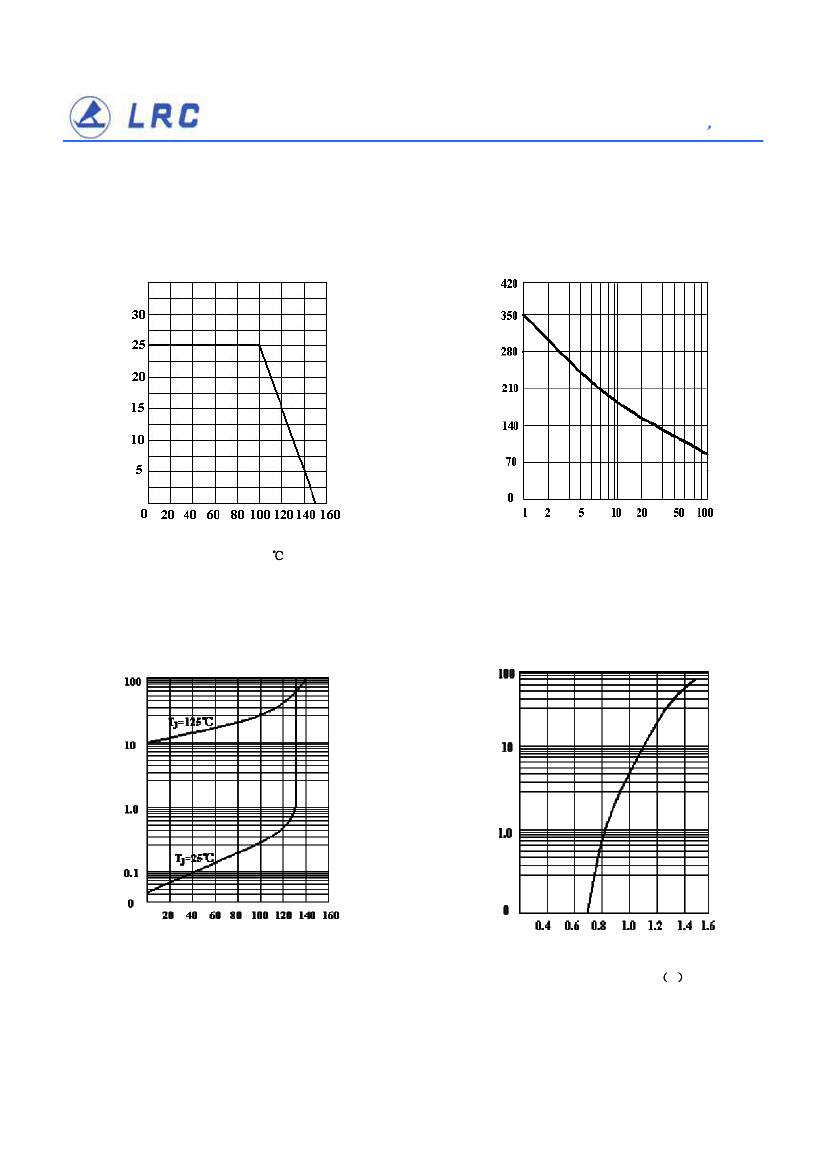

Fig. 1
derating Curve
Peak Surge Forward Current IFSM(A)
Fig.2
Peak Surge Forward capability
Average Rectified Forward Current
Case Temperature Tc(
)
Number of Cycles at 60 Hz(cycles)
Fig.3
Typical Reverse Characteristics
Fig.4
Forward Voltage
Instantaneous Reverse Current Microamperes
Forward Current IF(A)
Percent of Rated Peak Reverse Voltage%
Forward Voltage V
F
V
