D8G0417N: DescriptionRotary Switch, 1 Positions, SP17T, Momentary, 2.25A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size70KB，2 Pages; ManufacturerElectroswitch; Environmental Compliance

Download Datasheet Parametric Compare View All

D8G0417N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D8G0417N	-	-	View	Buy Now

D8G0417N Overview

Rotary Switch, 1 Positions, SP17T, Momentary, 2.25A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded

D8G0417N Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	SHAFT TYPE
body height	50.8 mm
Body length or diameter	54.77 mm
Contact (AC) maximum rated R load	1A@115VAC
Maximum contact current (AC)	1 A
Maximum contact current (DC)	2.25 A
Contact (DC) maximum rated R load	2.25A@28VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Graduation angle	20 deg
Installation features	PANEL MOUNT-THREADED
Number of positions	1
Number of switching segments	4
surface mount	NO
Switch action	MOMENTARY
switch function	SP17T
Switch type	ROTARY SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

D8 - SERIES

2 5/16" DIAMETER

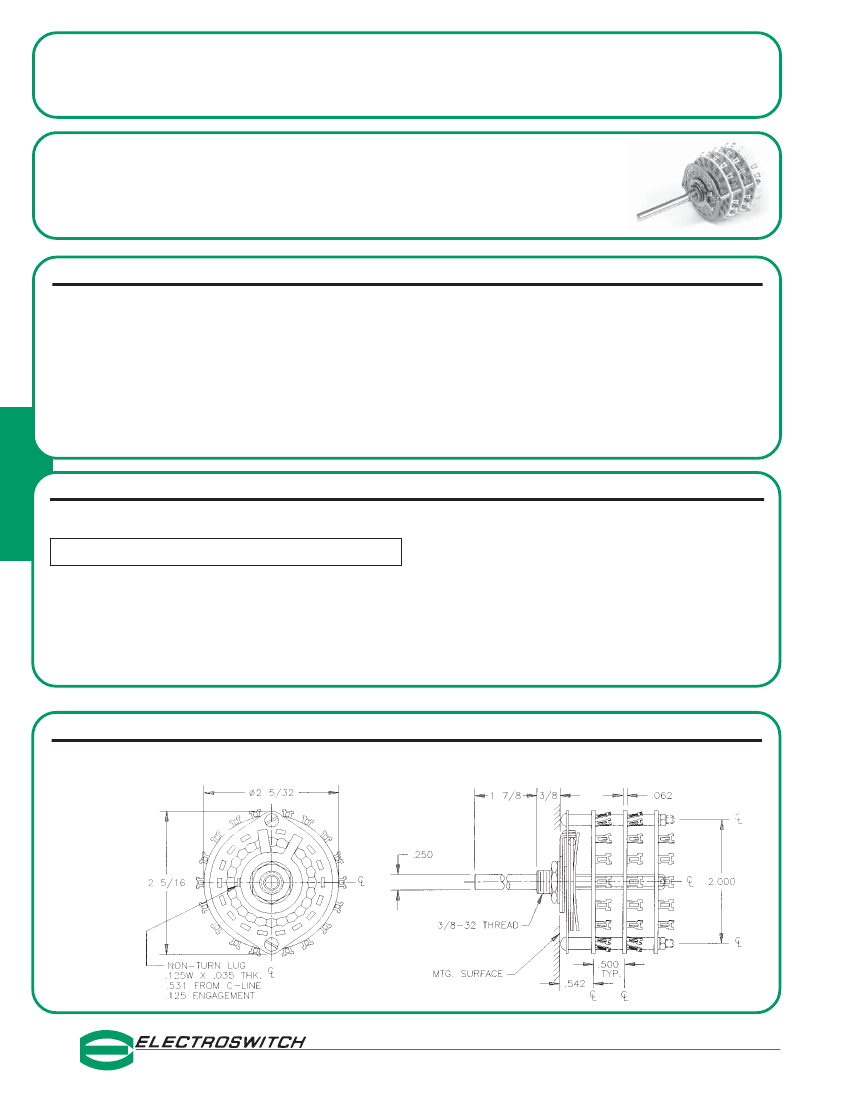

SPECIFICATIONS AND ORDERING INFORMATION

2.25 AMPS @ 28 VDC

The D8 Series switches are heavy duty, 18 position, 20° index, and glass

epoxy insulation. Double eyelet construction is standard to assist in

supporting larger wiring harness applications. Positive indexing is provided

by a dual-ball, hill and valley index assembly.

SPECIFICATIONS

ELECTRICAL

Current and Voltage Rating:

Make and break resistive load

2.25 amps @ 28 VDC; 1.0 amp @ 115 VAC.

Current Carrying Capacity:

9 amps.

Dielectric Strength:

1,000 VAC between current carrying parts and

ground.

Contact Resistance:

Average initial 5 milliohms.

Insulation Resistance:

In excess of 750,000 megohms.

Hardware:

Mounting nut and lockwasher are shipped assembled.

MECHANICAL

Materials and Finishes:

All parts utilize non-corrosive materials

as standard.

Clips and Rotors:

Brass with silver plate as standard.

Insulation:

Glass epoxy.

Index:

Dual-ball, hill and valley.

Index Life:

25,000 cycles minimum.

Index Torque:

Switches have lowest practical torque consistent

with crisp detenting and smooth, reliable operation.

Index Angles:

Positive 20° standard.

Index Stops:

Adjustable standard, fixed or continuous.

Stop Strength:

25 in. lbs. minimum.

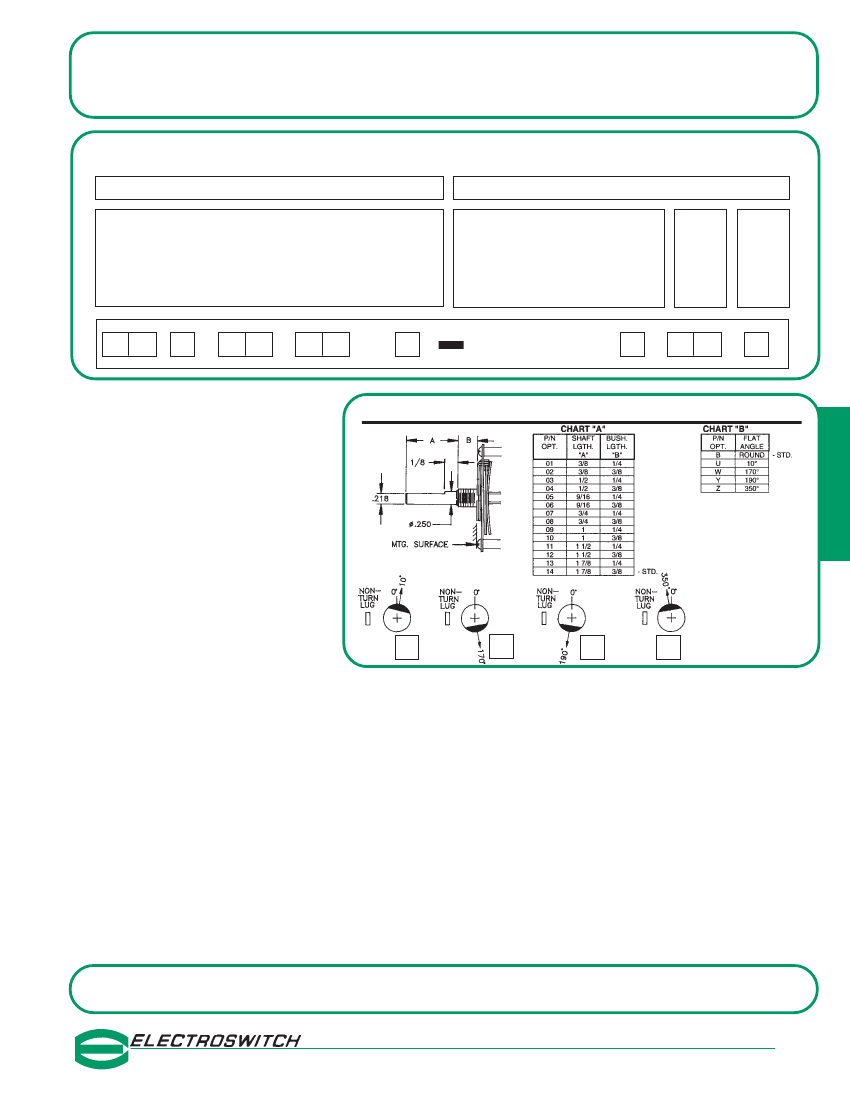

STANDARD PART NUMBER

GLASS EPOXY INSULATION

SWITCHES - 20° INDEXING

ADJUSTABLE STOPS SET @ 2 POS. - SOLDER LUG TERMINALS

ACTIVE

POLES/

POLES POSITIONS SECTION

02-17

NO. OF SHORTING

NON-

SECTIONS

SHORTING

D8G0117S

D8G0217S

D8G0317S

D8G0417S

D8G0517S

D8G0617S

D8G0717S

D8G0817S

D8G0117N

D8G0217N

D8G0317N

D8G0417N

D8G0517N

D8G0617N

D8G0717N

D8G0817N

FIG.

* FIGURES ARE SHOWN ON PAGE 57.

DIMENSIONS

STANDARD CONSTRUCTION

D8G

- GLASS EPOXY

CONSTRUCTION

•

ELECTRONIC PRODUCTS

UNIT OF ELECTRO SWITCH CORP.

2010 Yonkers Road

Raleigh, NC 27604

Telephone: (888) ROTARYS or (919) 833-0707

Fax: (800) 909-9171 or (919) 833-8016

D8G0417N Related Products

	D8G0417N	D8G0317N
Description	Rotary Switch, 1 Positions, SP17T, Momentary, 2.25A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded	Rotary Switch, 1 Positions, SP17T, Momentary, 2.25A, 28VDC, Solder Terminal, Shaft Type Actuator, Panel Mount-threaded
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Actuator type	SHAFT TYPE	SHAFT TYPE
body height	50.8 mm	38.1 mm
Body length or diameter	54.77 mm	54.77 mm
Contact (AC) maximum rated R load	1A@115VAC	1A@115VAC
Maximum contact current (AC)	1 A	1 A
Maximum contact current (DC)	2.25 A	2.25 A
Contact (DC) maximum rated R load	2.25A@28VDC	2.25A@28VDC
Maximum contact voltage (AC)	115 V	115 V
Maximum contact voltage (DC)	28 V	28 V
Graduation angle	20 deg	20 deg
Installation features	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Number of positions	1	1
Number of switching segments	4	3
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SP17T	SP17T
Switch type	ROTARY SWITCH	ROTARY SWITCH
Termination type	SOLDER	SOLDER
Base Number Matches	1	1
