D9G0123N: DescriptionRotary Switch, 23 Positions, SP23T, On-on, Circular, 1.5A, 28VDC, 24 PCB Hole Cnt, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount; CategoryMechanical and electronic products switch; File Size78KB，2 Pages; ManufacturerElectroswitch

Download Datasheet Parametric View All

D9G0123N Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	D9G0123N	-	-	View	Buy Now

D9G0123N Overview

Rotary Switch, 23 Positions, SP23T, On-on, Circular, 1.5A, 28VDC, 24 PCB Hole Cnt, Solder Lug Terminal, Rotary Shaft Actuator, Panel Mount

D9G0123N Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator length	0.875 inch
Actuator material	BRASS
Actuator type	ROTARY SHAFT
body height	39.1668 mm
Body length or diameter	24.6126 mm
Nozzle length	0.375 inch
Casing type	3/8-32
Contact (AC) maximum rated R load	.25A@115VAC
Maximum contact current (AC)	0.25 A
Maximum contact current (DC)	1.5 A
Contact (DC) maximum rated R load	1.5A@28VDC
Contact function	ON-ON
Contact resistance	0.005 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VAC V
Electrical life	25000 Cycle(s)
Graduation angle	15 deg
Insulation resistance	100000000 Ω
Installation features	PANEL MOUNT-THREADED
Number of positions	24
Number of switching segments	1
PCB hole count	24
seal	EPOXY
surface mount	NO
Switch action	LATCHED
switch function	SP23T
Switch type	ROTARY SWITCH
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

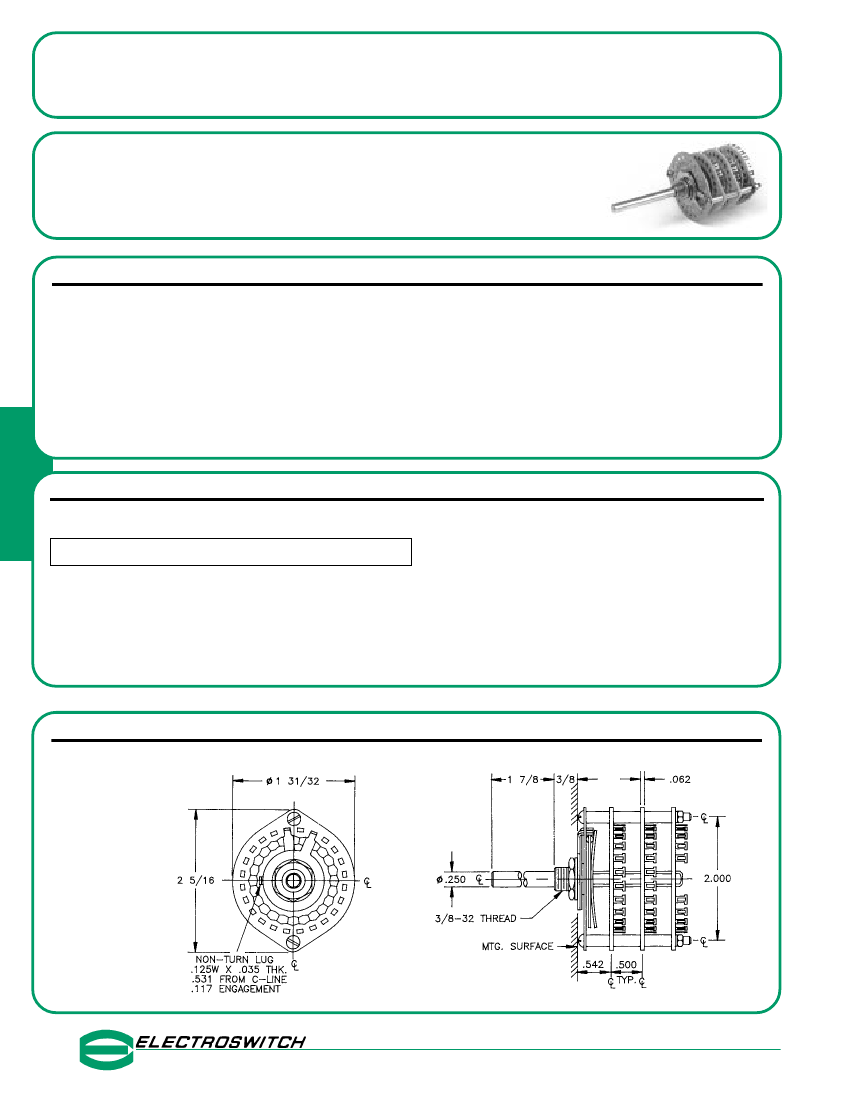

D9 - SERIES

2 5/16" DIAMETER

SPECIFICATIONS AND ORDERING INFORMATION

1.5 AMPS @ 28 VDC

The D9 Series has a 15° index with a maximum of 24 positions.

Indexing is provided by a dual-ball hill and valley design. Standard

features include solder lug terminals, adjustable stops and glass

epoxy insulation.

SPECIFICATIONS

ELECTRICAL

Current and Voltage Rating:

Make and break resistive load

1.5 amps @ 28 VDC; 0.25 amp @ 115 VAC.

Current Carrying Capacity:

9 amps.

Dielectric Strength:

1,000 VAC between current carrying parts and

ground.

Contact Resistance:

Average initial 5 milliohms.

Insulation Resistance:

In excess of 750,000 megohms.

Hardware:

Mounting nut and lockwasher are shipped assembled.

MECHANICAL

Materials and Finishes:

All parts utilize non-corrosive materials

as standard.

Clips and Rotors:

Brass with silver plate as standard.

Insulation:

Glass epoxy.

Index:

Dual-ball, hill and valley design.

Index Life:

25,000 cycles minimum.

Index Torque:

Switches have lowest practical torque consistent

with crisp detenting and smooth, reliable operation.

Index Angles:

Positive 15° standard.

Index Stops:

Adjustable standard, fixed or continuous.

Stop Strength:

25 in. lbs. minimum.

D

STANDARD PART NUMBER

GLASS EPOXY INSULATION

SWITCHES - 15° INDEXING

ADJUSTABLE STOPS - SOLDER LUG TERMINALS - STOPS SET @ 2 POS.

ACTIVE

POLES/

NO. OF

POLES POSITIONS SECTION SECTIONS

01

02

03

04

05

06

07

08

02-23

1

2

3

4

5

6

7

8

SHORTING

D9G0123S

D9G0223S

D9G0323S

D9G0423S

D9G0523S

D9G0623S

D9G0723S

D9G0823S

NON-

SHORTING

D9G0123N

D9G0223N

D9G0323N

D9G0423N

D9G0523N

D9G0623N

D9G0723N

D9G0823N

FIG.

DU

*

* FIGURES ARE SHOWN ON PAGE 57.

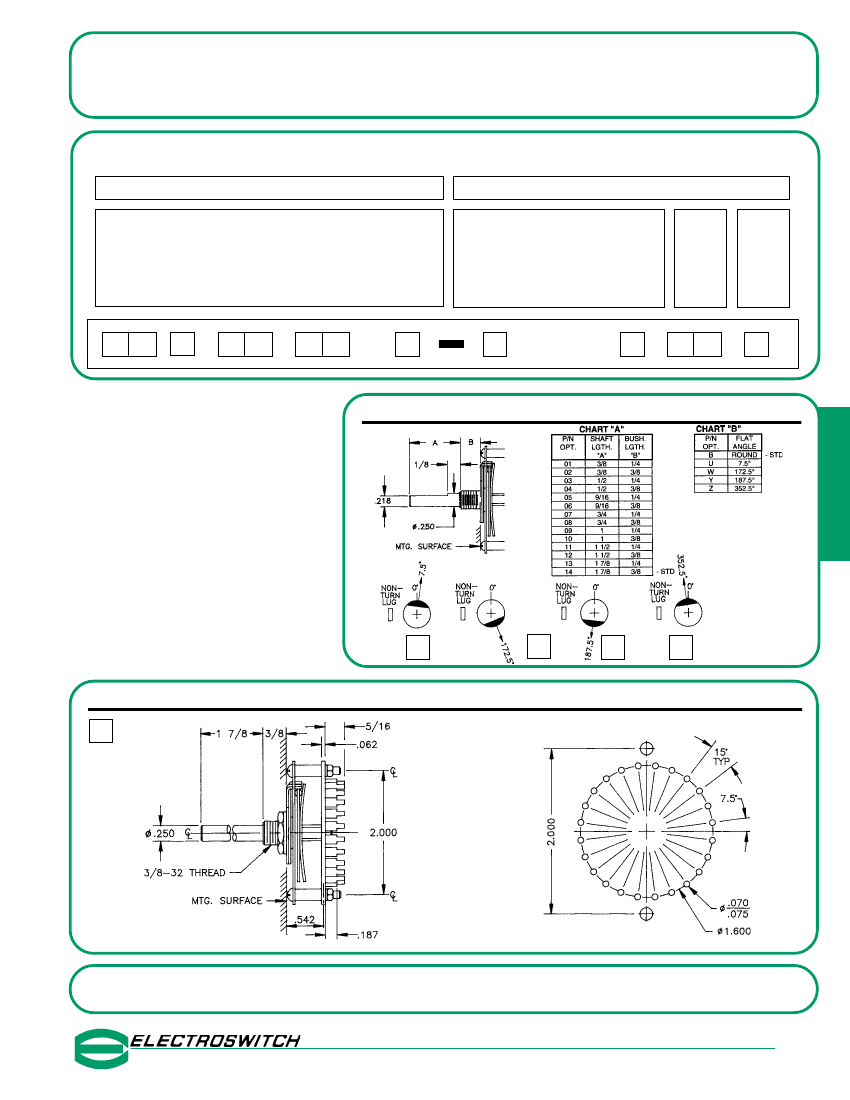

DIMENSIONS

STANDARD CONSTRUCTION

D9G

- GLASS EPOXY

CONSTRUCTION

•

ELECTRONIC PRODUCTS

UNIT OF ELECTRO SWITCH CORP.

2010 Yonkers Road

Raleigh, NC 27604

Telephone: (888) ROTARYS or (919) 833-0707

Fax: (800) 909-9171 or (919) 833-8016

34
