Catalog 1308242
Issued 3-03 (PDF Rev. 4-04)
AXICOM
FP2
series
DPDT Low Profile
Telecom/Signal PC Board Relays
File E111441
File 169679-1079886
16501-003
Users should thoroughly review the technical data before selecting a product part
number. It is recommended that users also seek out the pertinent approvals files of
the agencies/laboratories and review them to ensure the product meets the
requirements for a given application.
Features
• Through hole PC board terminals.
• Meets FCC Part 68 and ITU-T K20.
• For applications in telecommunications, office automation, consumer
electronics, medical equipment, measurement and control equipment.
• Immersion cleanable, plastic sealed case.
• 80mW coil for high sensitivity models, 140mW coil for sensitive types.
• Ultrasonic cleaning not recommended.
Coil Data @ 23
°
C
Nom. Operate/Set Range
Minimum
Nom.
Voltage
Min.
Max. Release/Reset Power
(VDC) Voltage
Voltage
Voltage
(mW)
(VDC)
(VDC)
(VDC)
Non-latching 1 coil versions
3
2.1
6.8
0.3
140
4.5
3.15
10.3
0.45
140
5
3.5
11.4
0.5
140
6
4.2
13.7
0.6
140
9
6.3
20.4
0.9
140
12
8.4
27.3
1.2
140
24
16.8
45.7
2.4
200
48
33.6
67.5
4.8
300
Non-latching, sensitive 1 coil versions
3
2.25
9.0
0.3
80
4.5
3.38
13.5
0.45
80
5
3.75
15.0
0.5
80
6
4.5
18.0
0.6
80
9
6.75
27.1
0.9
80
12
9.0
36.1
1.2
80
24
18.0
54.7
2.4
140
48
36.0
72.5
4.8
260
Latching 1 coil versions
3
2.25
8.1
-2.25
100
4.5
3.375
12.1
-3.375
100
5
3.75
13.5
-3.75
100
6
4.5
16.2
-4.5
100
9
6.75
24.2
-6.75
100
12
9.0
29.0
-9.0
100
24
18.0
47.5
-18.0
150
Latching 2 coil versions
3
2.1
5.7
2.1
200
4.5
3.15
8.6
3.15
200
5
3.5
9.5
3.5
200
6
4.2
11.4
4.2
200
9
6.3
17.1
6.3
200
12
8.4
22.6
8.4
200
24
16.8
33.7
16.8
200
Resis-
tance
±
10%
(Ohms)
64
145
178
257
574
1,028
2,880
7,680
113
253
313
450
1,013
1,800
4,114
8,882
90
203
250
360
810
1,440
3,840
45
101
125
180
405
720
1,920
Part
Number
Contact Data @ 23
°
C (except as noted)
Arrangement:
2 Form C (DPDT) bifurcated contacts.
Material: Stationary:
Silver-nickel, gold covered.
Ratings: Max. Switched Current:
2A.
Max. Carry Current:
2A (at max ambient temperature.
Max. Switched Voltage:
125VDC, 250VAC.
Max. Switched Power:
30W DC or 62.5VA AC.
UL/CSA Ratings:
500mA @ 50VDC; 1.25A @ 30VDC;
500mA @ 50VAC.
Initial Contact Resistance:
<70 milliohms @ 10mA / 20mV.
Expected Mechanical Life:
100 million operations.
Expected Electrical Life:
2.5 million operations @ 10mA / 30mVDC.
2 million operations @ cable load open end.
100,000 operations @ 240mA / 125VDC.
100,000 operations @ 250mA / 250VDC.
100,000 operations @ 1.25A / 24VDC.
Thermoelectric potential:
<10µV.
D3006
D3004
D3009
D3005
D3010
D3002
D3012
D3013
D3021
D3022
D3023
D3024
D3025
D3026
D3027
D3028
D3041
D3042
D3043
D3044
D3045
D3046
D3047
D3061
D3062
D3063
D3064
D3065
D3066
D3067
High Frequency Data
Capacitance: Between Open Contacts:
1pF, max.
Between Coil and Contacts:
4pF, max.
Between Poles:
1pF, max.
RF Characteristics: Isolation at 100 / 900 MHz:
-40.2 db / -22.3 db.
Insertion loss at 100 / 900 MHz:
-0.03 db / -0.25 db.
V. S. W. R. at 100 / 900 MHz:
1.01 / 1.07 .
Initial Dielectric Strength
Between Open Contacts:
700Vrms for 1 minute.
Between Coil and Contacts:
1,000Vrms for 1 minute.
Between Poles:
1,000Vrms for 1 minute.
Surge Voltage Resistance per FCC 68 (10 / 160
µ
s) and
IEC (10 / 700
µ
s):
Between Open Contacts:
1,500V.
Between Coil and Contacts:
1,500V.
Between Poles:
1,500V.
Operate Data @ 23
°
C
Operate and Release Voltage:
See values in chart above.
Operate Time
(at nominal voltage): 3 ms, typ.; 4 ms, max.
Reset Time
[latching](at nominal voltage): 3 ms, typ.; 4 ms, max.
Release Time
[non-latching](w/o diode in parallel): 1 ms, typ.; 3 ms, max.
Release Time
[non-latching](with diode in parallel): 3 ms, typ.; 4 ms, max.
Bounce Time
(at contact close): 1 ms, typ.; 5 ms, max.
Maximum Switching Rate
(no load): 50 operations/s.
Initial Insulation Resistance
Between Contact and Coil:
10
9
ohms or more @ 500VDC.
Environmental Data
Temperature Range:
-55°C to +85°C.
Maximum Allowable Coil Temperature:
110°C.
Thermal Resistance:
< 185K/W.
Shock, half sinus, 11 ms: Functional:
50g.
Shock, half sinus, 11 ms: Destructive:
1,500g.
Vibration, 10-500 Hz.: Functional:
20g.
Needle Flame Test:
Application Time 20s.
Resistance to Soldering:
260°C for 10s.
Coil Data @ 23
°
C
Voltage:
3 to 48VDC.
Nominal Power:
80-300mW depending on models. See coil data tables.
Duty Cycle:
Continuous.
Mechanical Data
Termination:
Through-hole printed circuit terminals.
Mounting Position:
Any.
Enclosure Type:
Immersion cleanable (IP67) plastic case.
Weight:
0.08 oz. (2g) approximately.
Dimensions are shown for
reference purposes only.
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
323
Refer to inside back cover.

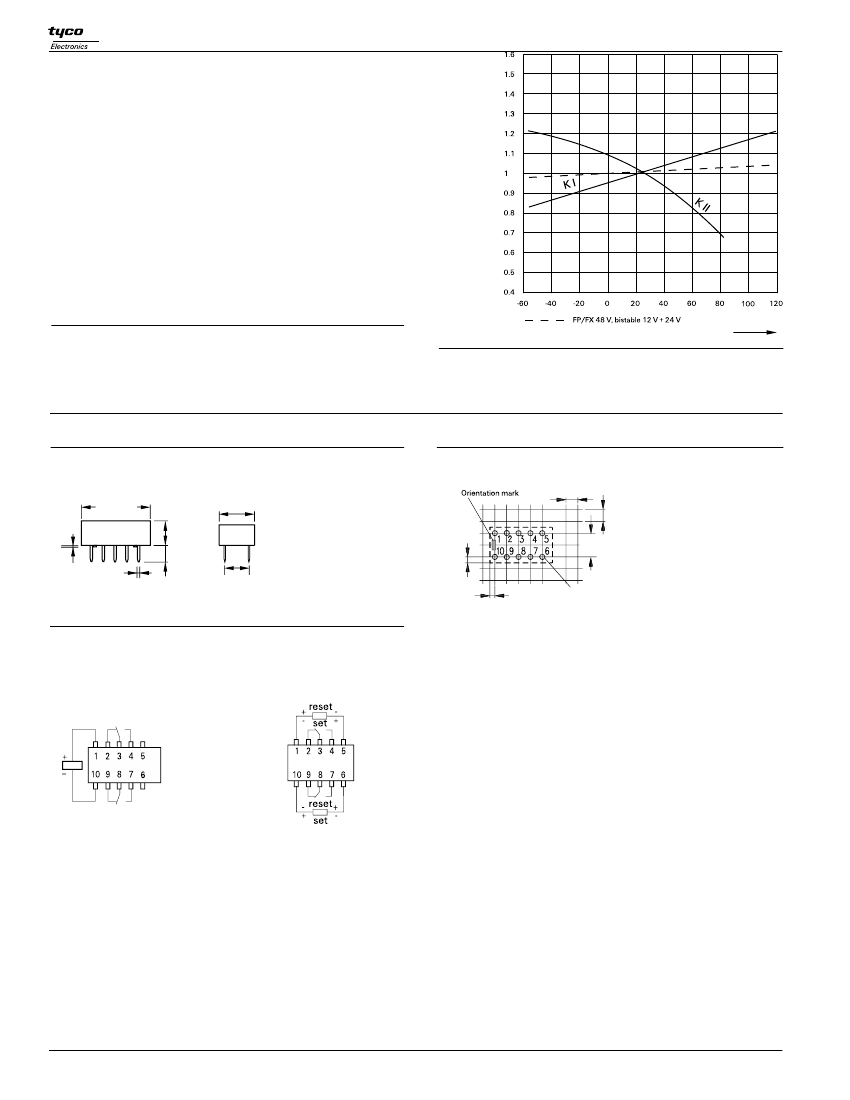

Catalog 1308242
Issued 3-03
U
I
=
U
II
=
Minimum voltage at 23° C after pre-energizing
with nominal voltage without contact current
Maximum continous voltage at 23°
AXICOM
The operating voltage limits
U
I
and
U
II
depend on
the temperature according to the formula:
U
I tamb
=
and
U
II tamb
=
t
amb
U
I tamb
U
II tamb
k
I
,
k
II
K
I
· U
I
23° C
K
Il
· U
Il 23° C
= Ambient temperature
= Minimum voltage at ambient temperature, t
amb
= Maximum voltage at ambient temperature, t
amb
= Factors (dependent on temperature), see diagram
Ordering Information
See "Part Number" column in Coil Data chart on previous page for available
part numbers in the FP2 series.
Ambient temperature
t
amb
[°C]
Packaging Information
FP2 series relays are shipped in tubes of 50. There are 1,000 relays in a
full carton.
Our authorized distributors are more likely to stock the following items for immediate delivery.
None at present.
Outline Dimensions
.35
±
.003
(9.02
±
.08
)
.196
±
.004
(5
±
.1
)
PC Board Layout (Bottom View)
.1
(2.54)
.1
(2.54)
.0275
±
.004
(.7
±
.1
)
.3
(7.62)
.574
±
.003
(14.2
±
.08
)
.009
±
.002
(.25
±
.05
)
.02
(.5)
.125
±
.011
(3.2
±
.3
)
.3
±
.004
(7.62
±
.1
)
.076
±
.004
(1.93
±
.1
)
.0335
DIA. MIN.
(.85)
Wiring Diagrams
(Bottom Views)
Non-Latching and Latching, 1 Coil
Release or Reset Condition
Latching, 2 Coil
Reset Condition
324
reference purposes only.
Dimensions are shown for
Dimensions are in inches over
(millimeters) unless otherwise
specified.
Specifications and availability
subject to change.
www.tycoelectronics.com
Technical support:
Refer to inside back cover.
Special Edition for Assessment Centres
