D20SB100: DescriptionBridge Rectifier Diode, 20A, 1000V V(RRM),; CategoryDiscrete semiconductor diode; File Size112KB，1 Pages; ManufacturerLRC; Websitehttp://www.lrc.cn

Download Datasheet Parametric Compare View All

D20SB100 Overview

Bridge Rectifier Diode, 20A, 1000V V(RRM),

D20SB100 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	300 A
Number of components	4
Maximum operating temperature	150 °C
Maximum output current	20 A
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

LESHAN RADIO COMPANY

LTD.

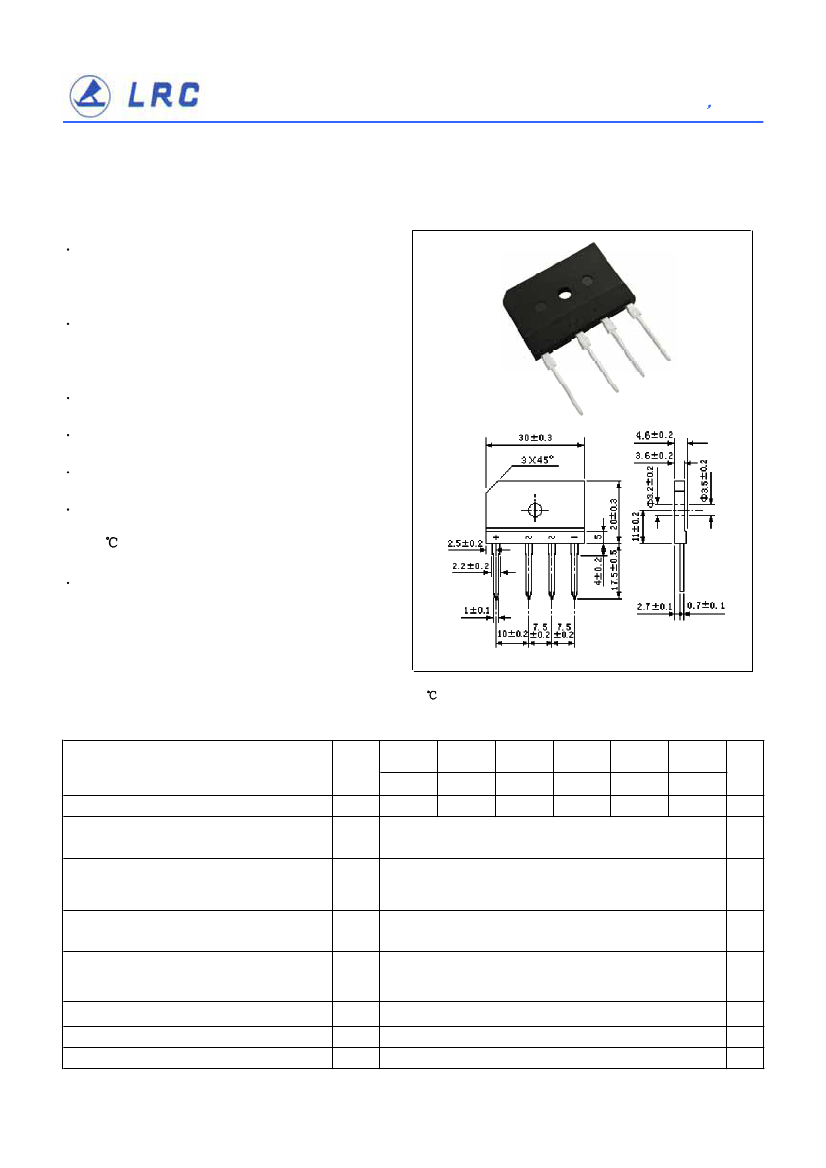

D20SB10(RBV2002S) Thru D20SB100(RBV2007S)

FEATURES

Plastic Package has Underwriters Laboratory

Flammability Classification 94V-0

This series is UL listed under the Recognized

Component index,file number E231047

Single-in-line package

High current capality with small package

Superior thermal conductivity

High temperature soldering guaranted:

260

/10 seconds

High I

FSM

Maximum Ratings & Thermal Characteristics

Ratings at 25

ambient temperature unless otherwise specified.

Parameter Symbol

Maximum repetitive voltage

Maximum DC reverse current

at rated DC blocking voltage

TA=25℃

TA=125℃

Symbol

V

RM

I

R

D20SB10 D20SB20

D20SB40

D20SB60 D20SB80 D20SB100

Unit

V

µA

RBV2002S RBV2003S RBV2004S RBV2005S RBV2006S RBV2007S

100

200

400

5

500

20

300

2.5

1.1

150

600

800

1000

Average rectified forward current 60Hz Sine wave

Resistance load with heat sink Tc=100℃

Peak forward surge current 8.3ms single half sine-

wave superimposed on rated load

Dielectric strength Terminals to case，

AC 1 minute Current 1mA

Maximum instantaneous forward voltage at 10A

Operating junction temperature

Storage temperature

Io

I

FSM

Vdia

V

F

T

J

Tstg

A

KV

V

℃

-40~150

D20SB100 Related Products

	D20SB100	D20SB80
Description	Bridge Rectifier Diode, 20A, 1000V V(RRM),	Bridge Rectifier Diode, 20A, 800V V(RRM),
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknown	unknown
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V
JESD-609 code	e0	e0
Maximum non-repetitive peak forward current	300 A	300 A
Number of components	4	4
Maximum operating temperature	150 °C	150 °C
Maximum output current	20 A	20 A
Maximum repetitive peak reverse voltage	1000 V	800 V
surface mount	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1
