DBA200UA40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DBA200UA40

DBA200UA40: DescriptionDiode,; CategoryDiscrete semiconductor diode; File Size119KB，2 Pages; ManufacturerSanRex; Websitehttp://www.ecomallbiz.com/sanrex

Download Datasheet Parametric View All

DBA200UA40 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DBA200UA40	-	-	View	Buy Now

DBA200UA40 Overview

Diode,

DBA200UA40 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum forward voltage (VF)	1.2 V
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum repetitive peak reverse voltage	400 V
Maximum reverse current	100000 µA
Maximum reverse recovery time	0.13 µs
Reverse test voltage	400 V
Base Number Matches	1

Preview

Download Datasheet

View All

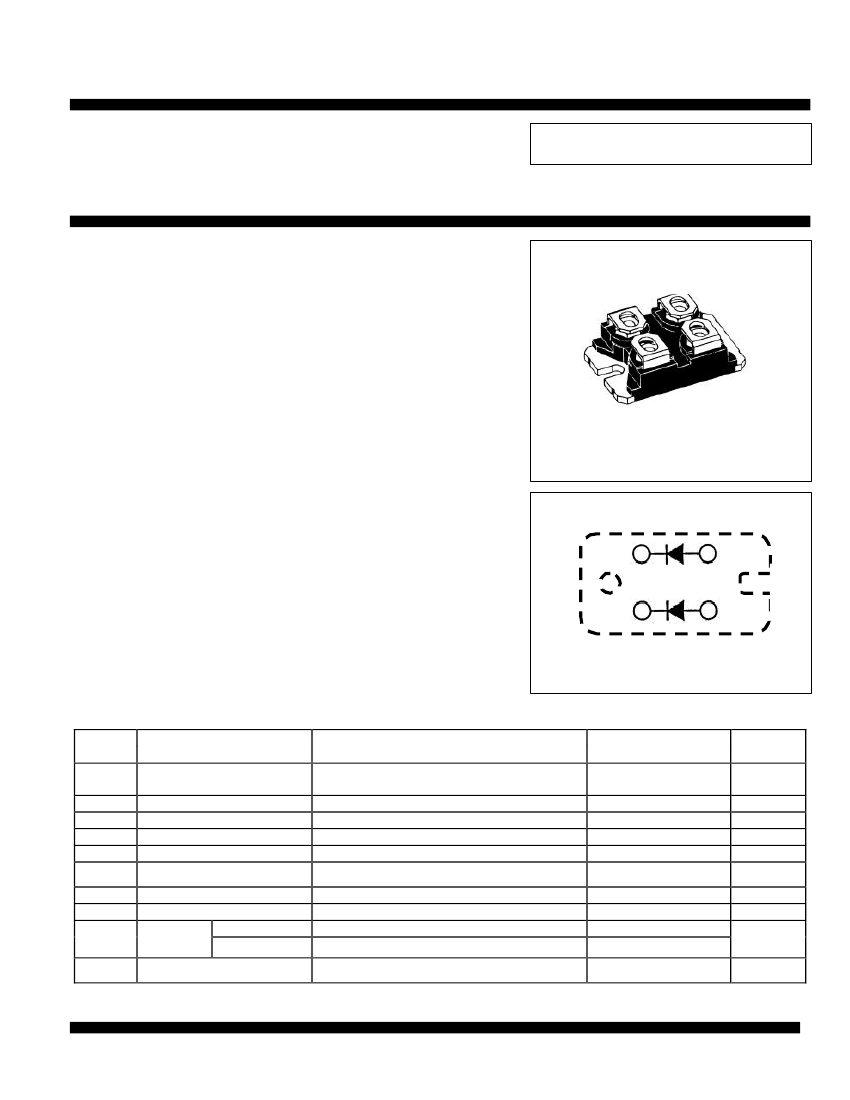

SanRex

Fast &

Soft Recovery Diode

DBA200UA40

F(AV)

= 2x100A, V

RRM

=400V, t

rr=

100ns

SanRex

Fast & Soft Recovery Diode Module

DBA200UA40

is designed for applications requiring fast switching and soft

recovery wave shape to reduce or eliminate the need for

snubber components in the circuit. The modules are isolated

for easy mounting with other components or a common heatsink.

Features

* Very Fast Reverse Recovery Time

* Soft Recovery Characteristics

* Low Forward Voltage Drop

* Compact isolated SOT-227 package

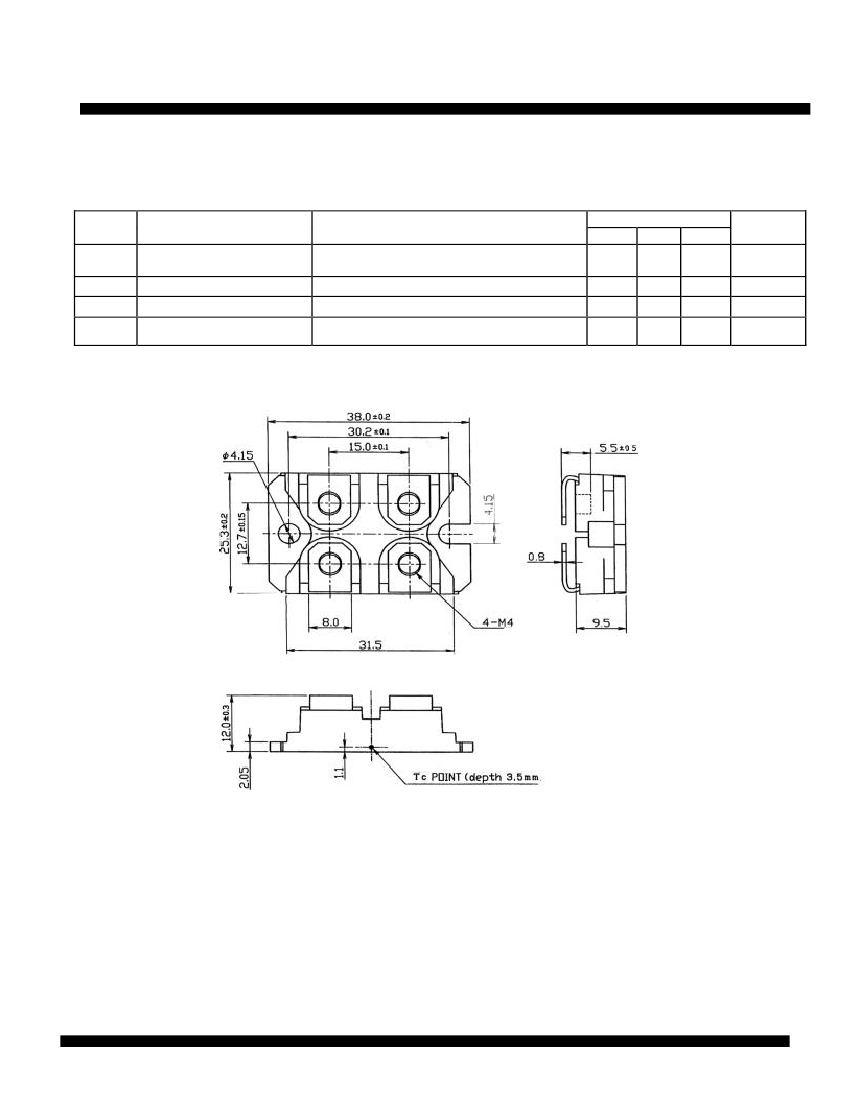

Isolated

SOT-227 Package

Typical Applications

* Welding and Plasma Cutting Machines

* DC chopper

* Rectifier in Switch Mode Power Supplies (SMPS)

* Uninterruptible Power Supplies (UPS)

* Free Wheeling Diode in converters and motor control circuits

Internal schematic diagram

< Maximum Ratings >

Symbol

Item

RRM

R(DC)

F(AV)

FSM

stg

ISO

Repetitive Peak Reverse

Voltage

Reverse D.C. Voltage

Average Forward Current

Surge Forward Current

t (for fusing)

Junction Temperature

Storage Temperature

Isolation Voltage (R.M.S.)

Mounting Mounting M4

Torque

Terminal M4

Mass

Conditions

Tj = 25 C (unless otherwise noted) per diode

Ratings

Unit

400

320

100

700

2100

-40 to +150

-40 to +125

2500

1.5

°C

D.C., T

= 96°C

½ cycle, 60Hz, Peak value, non-repetitive

Value for one cycle surge current

A.C. 1 minute

Recommended 1.0-1.4

Typical Value

SanRex

50 Seaview Blvd. Port Washington, NY 11050-4618 PH.(516)625-1313 FAX(516)625-8845 E-mail: semi@sanrex.com
