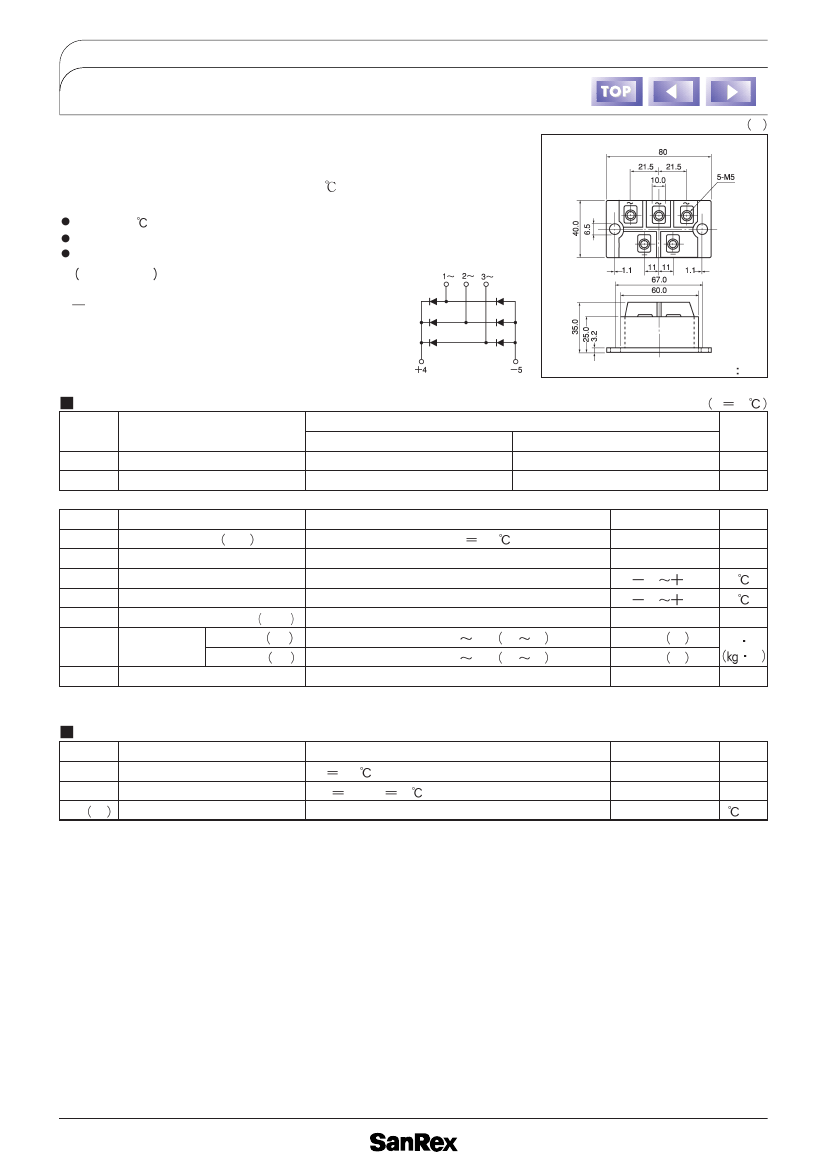

DIODE
(THREE PHASES BRIDGE TYPE)
DF40BA40/80
UL;E76102 M
Power Diode Module
DF40BA
is designed for three phase full wave rectification, which
has six diodes connected in a three phase bridge configuration. The mounting base of the
module is electrically isolated from semiconductor elements for simple heatsink
construction output DC current is 40Amp (Tc=119 ) Repetitive peak reverse voltage is
up to 800V.
TjMax=150
Isolated Mounting Base
High reliability by unique glass passivation
Applications
AC. DC Motor Drive/AVR/Switching
for three phase rectification
Unit
a
Maximum Ratings
Symbol
V
RRM
V
RSM
Symbol
I
D
I
FSM
Tj
Tstg
V
ISO
Item
Repetitive Peak Reverse Voltage
Non-Repetitive Peak Reverse Voltage
Item
Output current D.C.
Surge Forward Current
Junction Temperature
Storage Temperature
Isolation Breakdown Voltage R.M.S.
Mounting
Torque
Mass
Mounting M6
Terminal M5
Main Terminal to case 1minute
Recommended Value 2.5 3.9 25 40
Recommended Value 1.5 2.5 15 25
Typical Value
Ratings
DF40BA40
400
480
Conditions
Three phase. full wave. T
C
119
1 cycle, 50/60H
Z
, peak value, non-repetitive
DF40BA80
800
960
Ratings
40
640/700
40
150
40
125
2500
4.7 48
2.7 28
200
Tj 25
Unit
V
V
Unit
A
A
V
N m
f
B
g
Electrical Characteristics
Symbol
I
RRM
V
FM
Rth j-c
Item
Repetitive Peak Reverse Current, max.
Forward Voltage Drop, max.
Thermal Impedance, max.
Tj 150
I
FM
40A, Tj 25
Junction to case
Conditions
at V
RRM
Inst. measurement
Ratings
4.0
1.2
0.32
Unit
mA
V
/W

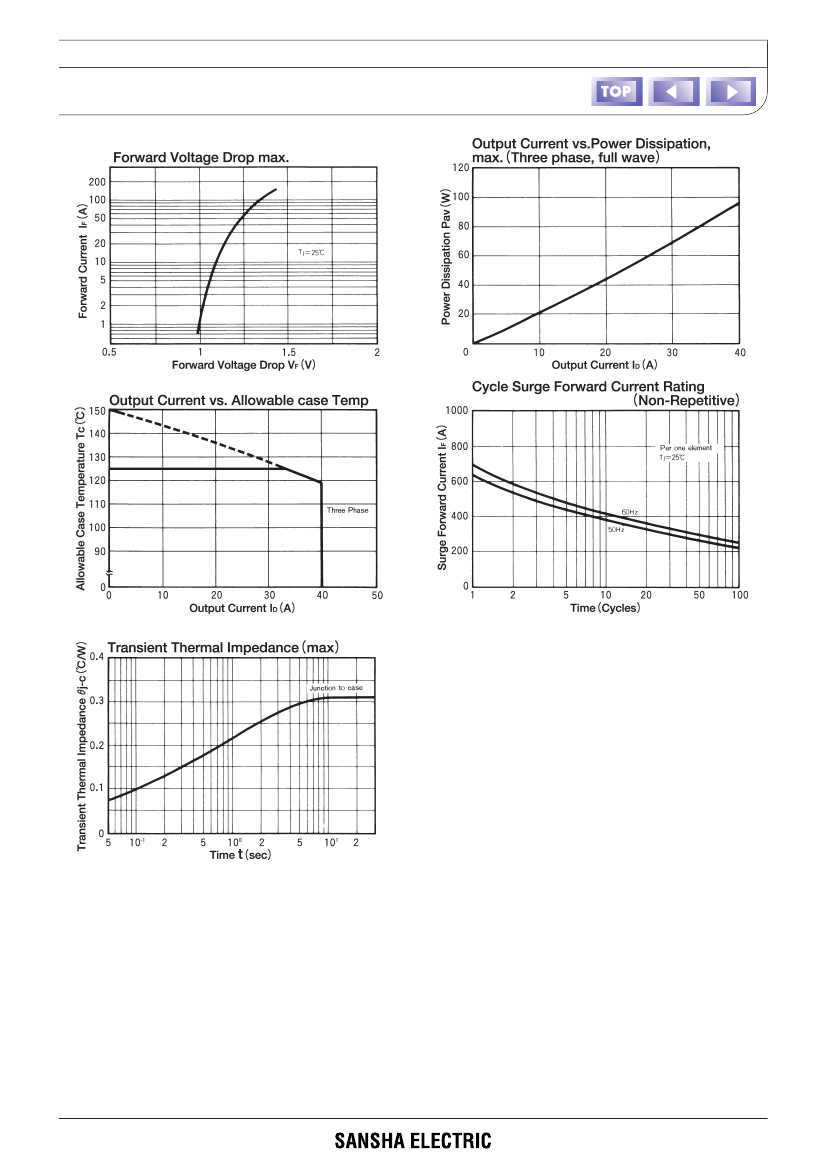

125
