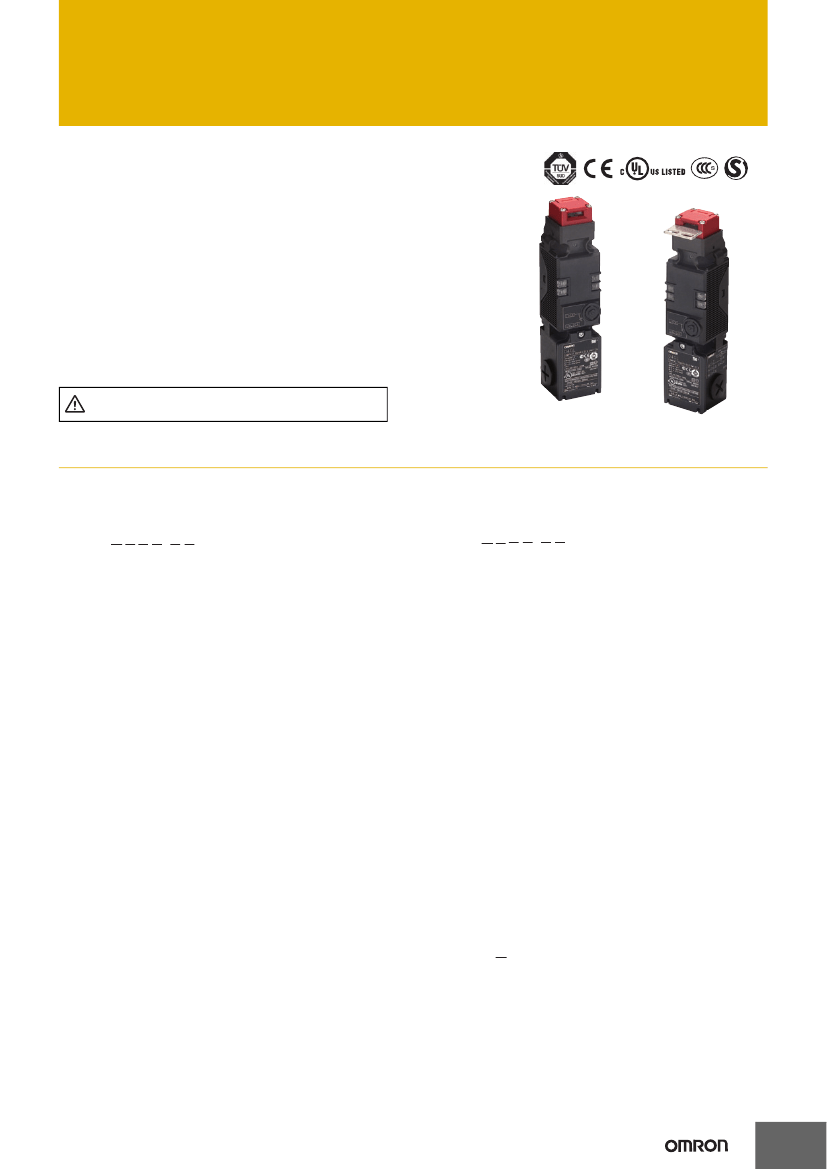

Guard Lock Safety-door Switch
D4GL
CSM_D4GL_DS_E_4_1
Vertically Mounting Guard Lock Safety-door
Switch Ideal for Limited Installation Space
• Selectable Operation Key insertion direction.
• Slim safety-door switch with an electromagnetic lock or unlock
mechanism.
• Built-in switches with multiple-contact construction are
available.
• A key holding force of 1,000 N minimum.
• Can be used for either standard loads or microloads.
• Lineup includes models with a conduit size of M20.
• Variety of Metallic Heads Available.
Be sure to read the
“Safety Precautions”
on page 15 and
the
“Precautions for All Safety Door Switches”.
Model Number Structure
Model Number Legend
Switch (Standard type)
Switch (Metallic release key type)
D4GL-@@@@-@@
1 2 3 4
5 6
1. Conduit Size
1: Pg13.5
2: G1/2
4: M20
2. Built-in Switch (with Door Open/Closed Detection Switch and
Lock Monitor Switch Contacts)
A: 1NC/1NO (slow-action contacts) + 1NC/1NO (slow-action
contacts)
B: 1NC/1NO (slow-action contacts) + 2NC (slow-action contacts)
C: 2NC (slow-action contacts) + 1NC/1NO (slow-action contacts)
D: 2NC (slow-action contacts) + 2NC (slow-action contacts)
E: 2NC/1NO (slow-action contacts) + 1NC/1NO (slow-action
contacts)
F: 2NC/1NO (slow-action contacts) + 2NC (slow-action contacts)
G: 3NC (slow-action contacts) + 1NC/1NO (slow-action contacts)
H: 3NC (slow-action contacts) + 2NC (slow-action contacts)
3. Head Mounting Direction and Material
F: Four mounting directions possible (Front-side mounting at
shipping)/plastic
D: Four mounting directions possible (Front-side mounting at
shipping)/metal
4. Door Lock and Release
A: Mechanical lock/24 VDC solenoid release
G: 24 VDC solenoid lock/mechanical release
5. Indicator
A: 24 VDC (orange/green LED indicator)
6. Release Key Type
Blank: Standard release key (resin)
4:
Special release key (resin)
(Note: Release keys are provided.)
D4GL-@@@@-@@-SJ
1 2 3 4
5 6
1. Conduit Size
2: G1/2 (1-conduit)
4: M20 (1-conduit)
2. Built-in Switch
A: 1NC/1NO + 1NC/1NO
B: 1NC/1NO + 2NC
C: 2NC + 1NC/1NO
D: 2NC + 2NC
E: 2NC/1NO + 1NC/1NO
F: 2NC/1NO + 2NC
G: 3NC + 1NC/1NO
H: 3NC + 2NC
3. Head Material
F: resin
4. Door Lock and Release
A: Mechanical lock/24 VDC solenoid release
G: 24 VDC solenoid lock/ mechanical release
5. Indicator
A: 24 VDC (orange/green LED indicator)
Note:
The wiring specification is different from the wiring
specification for the standard type.
Please refer to the "Connection" section for details.
6. Release Key Type
Blank: Standard release key (metal)
Operation Key
D4DS-K@
1
1. Operation Key Type
1: Horizontal mounting
2: Vertical mounting
3: Adjustable mounting (horizontal)
5: Adjustable mounting (horizontal/vertical)
1
D4GL
Operation Keys
Type
Model
D4DS-K1
Horizontal mounting
Vertical mounting
D4DS-K2
Adjustable mounting
(Horizontal)
D4DS-K3
Adjustable mounting
(Horizontal/Vertical)
D4DS-K5
Specifications
Standards and EC Directives
Conforms to the following EC Directives:
•
•
•
•
•
Machinery Directive
Low Voltage Directive
EN1088
EN60204-1
GS-ET-19
Certified Standards
Standard type
Certification body
TÜV SÜD
UL
*1
CQC (CCC)
KOSHA
*2
Standard
EN60947-5-1
(certified direct opening)
UL508, CSA C22.2 No.14
GB14048.5
EN 60947-5-1
File No.
Consult your OMRON
representative for details.
E76675
2003010305064264
2007-26
*1.
Certification for CSA C22.2 No. 14 is authorized by the UL mark.
*2.
Only certain models have been certified.
Metallic release key type
Certification body
TÜV SÜD
KOSHA
Standard
EN60947-5-1
(certified direct opening)
EN 60947-5-1
File No.
Consult your OMRON
representative for details.
Pending
Certified Standard Ratings
TÜV (EN60947-5-1), CCC (GB14048.5)
Item
Utilization
category
AC-15
0.75 A
240 V
DC-13
0.27 A
250 V
Q300
Rated
voltage
125 VAC
250 VAC
Carry current
2.5 A
Current (A)
Make
0.55
0.27
Break
0.55
0.27
Volt-amperes (VA)
Make
69
Break
69
Rated operating current (I
e
)
Rated operating voltage (U
e
)
Note:
Use a 10 A fuse type
gI
or
gG
that conforms to IEC60269 as a
short-circuit protection device.
Solenoid Coil Characteristics
Item
Type
24 VDC
24 VDC
±10%
Approx. 200 mA
Class B (130°C max.)
Rated operating voltage
(100% ED)
UL/CSA (UL508, CSA C22.2 No. 14)
C300
Rated
voltage
120 VAC
240 VAC
Carry current
2.5 A
Current (A)
Make
15
7.5
Break
1.5
0.75
Volt-amperes (VA)
Make
1,800
Break
180
Current consumption
Insulation
Indicator Characteristics
Item
Rated voltage
Current leakage
Color (LED)
Type
LED
24 VDC
Approx. 3 mA
Orange/Green
5
