DBA200UA60 Overview

Diode,

DBA200UA60 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum forward voltage (VF)	1.35 V
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	100000 µA
Maximum reverse recovery time	0.25 µs
Reverse test voltage	600 V
Base Number Matches	1

Preview

Download Datasheet

View All

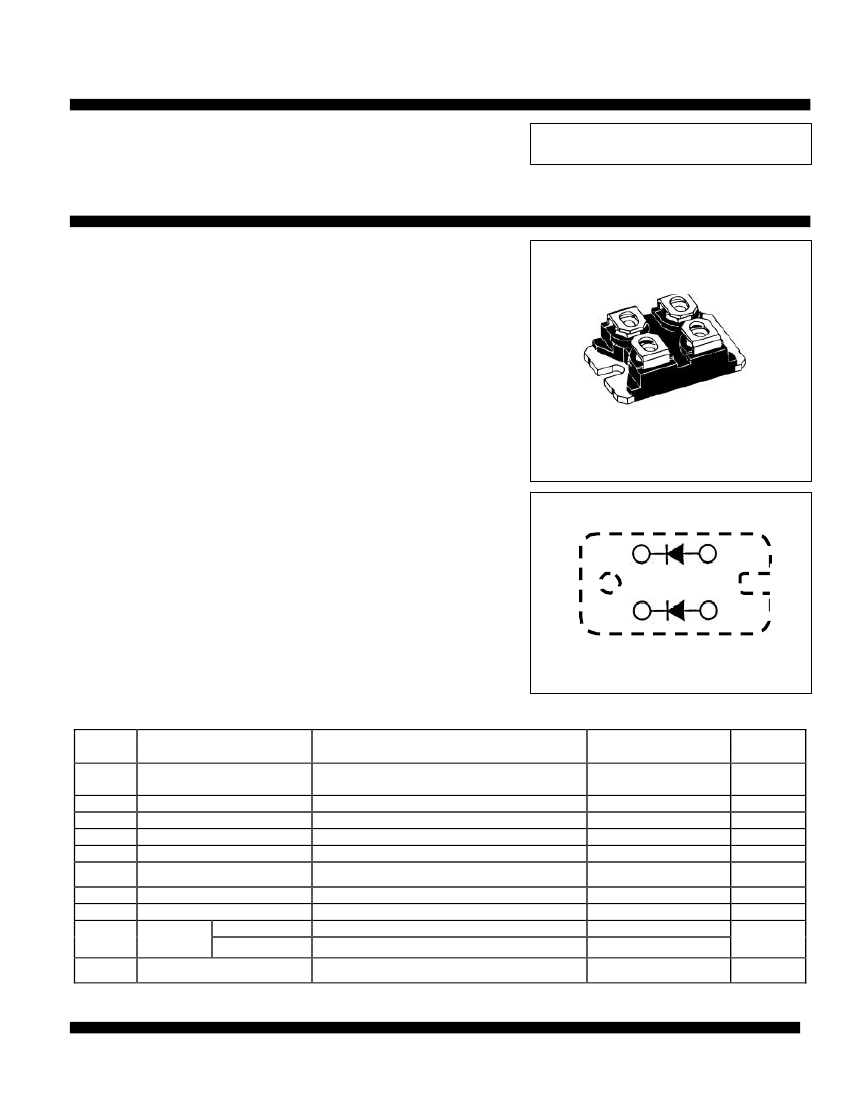

SanRex

Fast &

Soft Recovery Diode

DBA200UA60

F(AV)

= 2x100A, V

RRM

=600V, t

rr=

150ns

SanRex

Fast & Soft Recovery Diode Module

DBA200UA60

is designed for applications requiring fast switching and soft

recovery wave shape to reduce or eliminate the need for

snubber components in the circuit. The modules are isolated

for easy mounting with other components or a common heatsink.

Features

* Very Fast Reverse Recovery Time

* Soft Recovery Characteristics

* Low Forward Voltage Drop

* Compact isolated SOT-227 package

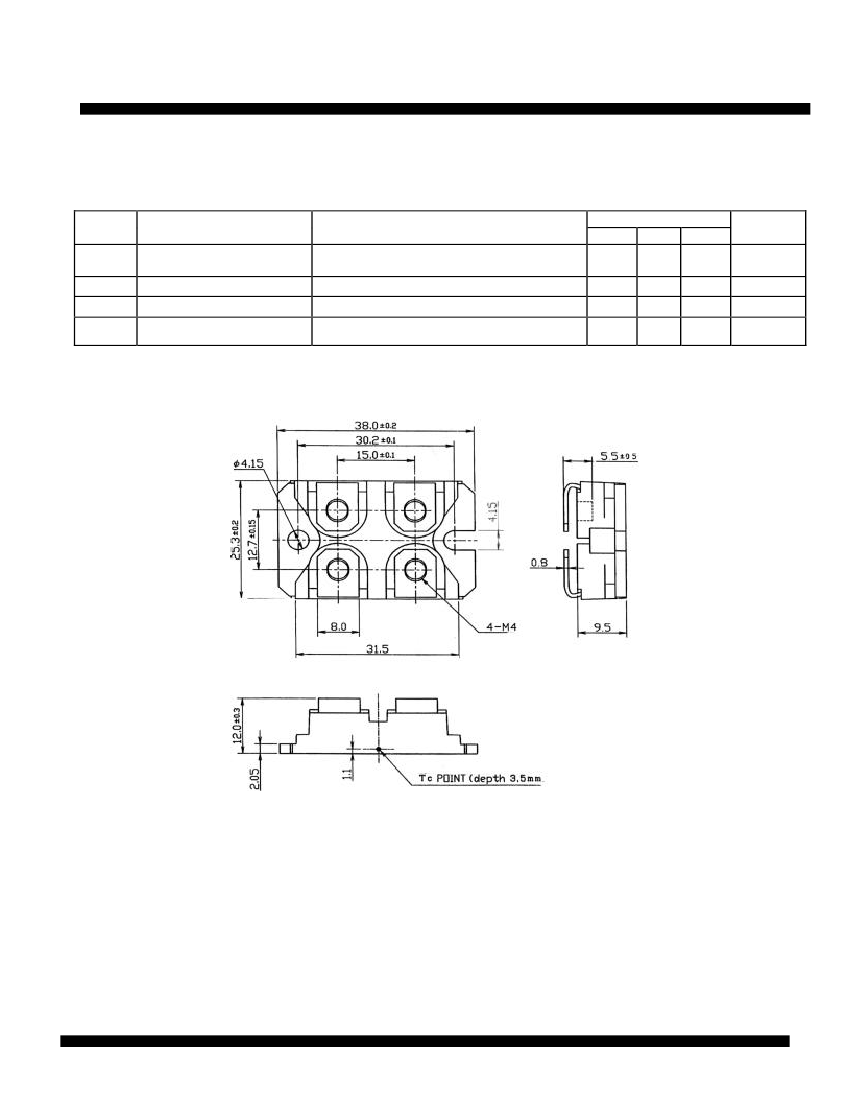

Isolated

SOT-227 Package

Typical Applications

* Welding and Plasma Cutting Machines

* DC chopper

* Rectifier in Switch Mode Power Supplies (SMPS)

* Uninterruptible Power Supplies (UPS)

* Free Wheeling Diode in converters and motor control circuits

Internal schematic diagram

< Maximum Ratings >

Symbol

Item

RRM

R(DC)

F(AV)

FSM

stg

ISO

Repetitive Peak Reverse

Voltage

Reverse D.C. Voltage

Average Forward Current

Surge Forward Current

t (for fusing)

Junction Temperature

Storage Temperature

Isolation Voltage (R.M.S.)

Mounting Mounting M4

Torque

Terminal M4

Mass

Conditions

Tj = 25 C (unless otherwise noted) per diode

Ratings

Unit

600

480

100

700

2100

-40 to +150

-40 to +125

2500

1.5

°C

D.C., T

= 89°C

½ cycle, 60Hz, Peak value, non-repetitive

Value for one cycle surge current

A.C. 1 minute

Recommended 1.0-1.4

Typical Value

SanRex

50 Seaview Blvd. Port Washington, NY 11050-4618 PH.(516)625-1313 FAX(516)625-8845 E-mail: semi@sanrex.com
