MD3624A datasheet, PDF - EEWORLD Datasheet

MD3624A: DescriptionOTP ROM, 512X8, 90ns, TTL, CDIP24,; Categorystorage storage; File Size136KB，2 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

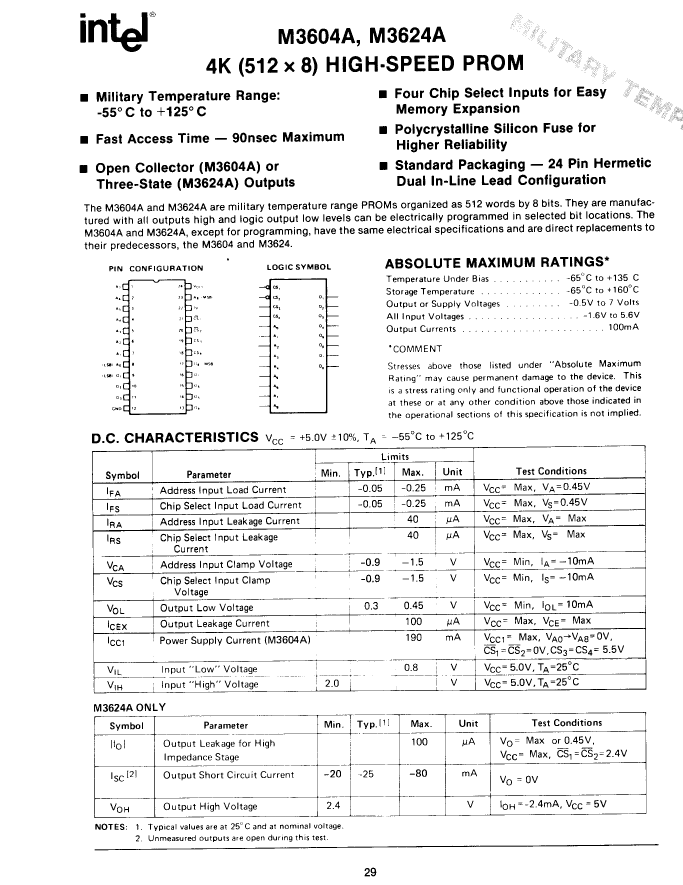

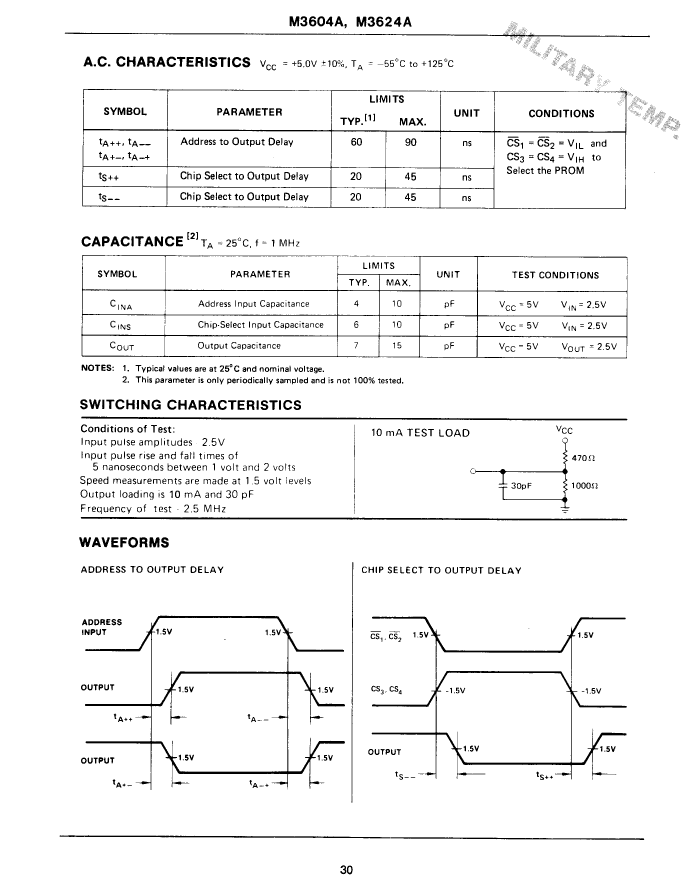

MD3624A Overview

OTP ROM, 512X8, 90ns, TTL, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.6
Reach Compliance Code	compliant
Maximum access time	90 ns
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
memory density	4096 bit
Memory IC Type	OTP ROM
memory width	8
Number of terminals	24
word count	512 words
character code	512
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	512X8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	MD3624A	D3624	MD3624A/B	5962-01-102-3846
Description	OTP ROM, 512X8, 90ns, TTL, CDIP24,	OTP ROM, 512X8, 70ns, TTL, CDIP24,	OTP ROM, 512X8, 90ns, TTL, CDIP24,	OTP ROM, 512X8, 70ns, TTL, CDIP24,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	compliant	unknown	compliant	compli
Maximum access time	90 ns	70 ns	90 ns	70 ns
JESD-30 code	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24	R-XDIP-T24
memory density	4096 bit	4096 bit	4096 bit	4096 bi
Memory IC Type	OTP ROM	OTP ROM	OTP ROM	OTP ROM
memory width	8	8	8	8
Number of terminals	24	24	24	24
word count	512 words	512 words	512 words	512 words
character code	512	512	512	512
Maximum operating temperature	125 °C	70 °C	125 °C	70 °C
organize	512X8	512X8	512X8	512X8
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO
technology	TTL	TTL	TTL	TTL
Temperature level	MILITARY	COMMERCIAL	MILITARY	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
JESD-609 code	e0	e0	e0	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Base Number Matches	1	1	1	-
