D3628 datasheet, PDF - EEWORLD Datasheet

D3628: DescriptionOTP ROM, 1KX8, 80ns, TTL, CDIP24,; Categorystorage storage; File Size157KB，3 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

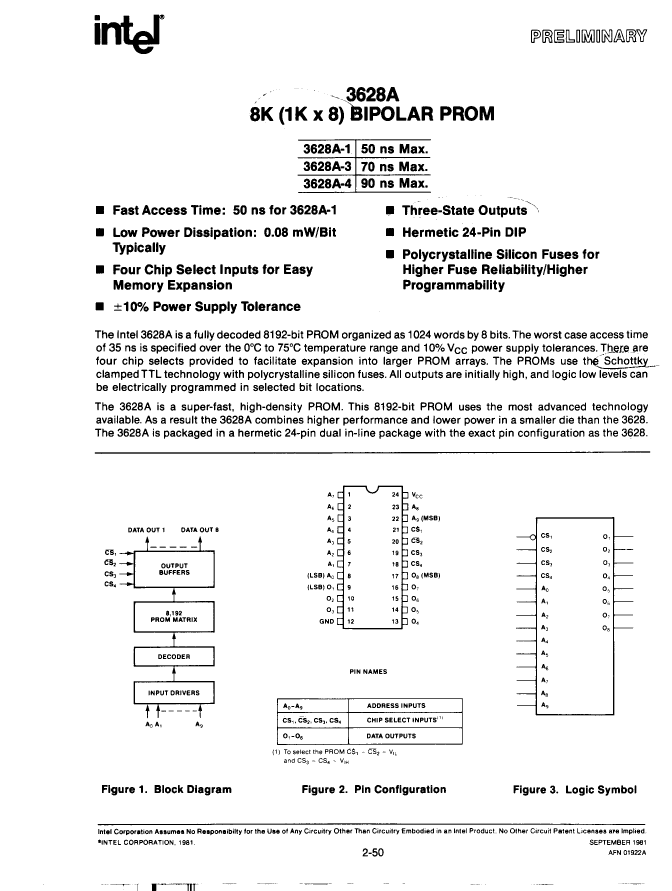

D3628 Overview

OTP ROM, 1KX8, 80ns, TTL, CDIP24,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP24,.6
Reach Compliance Code	unknown

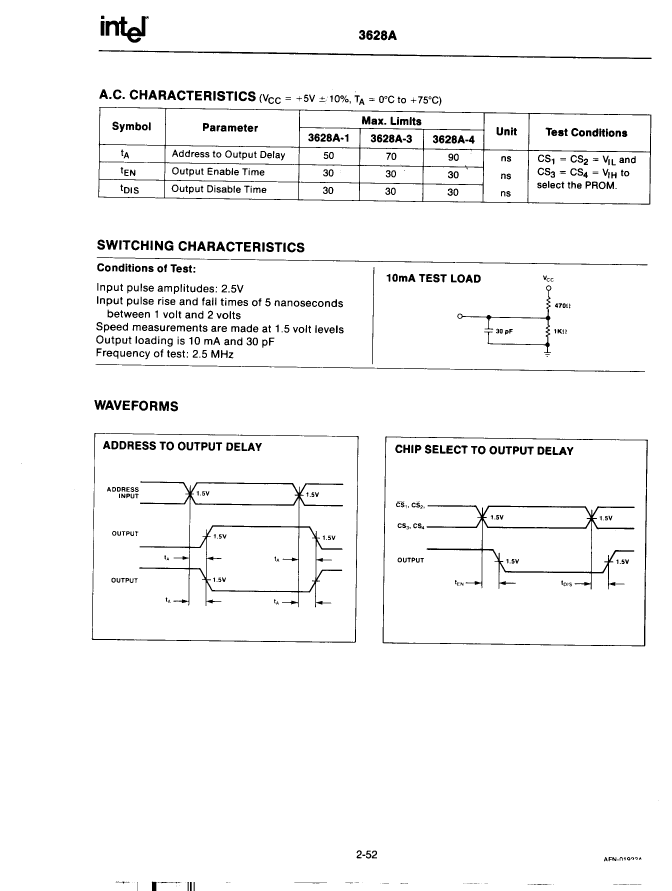

Maximum access time	80 ns
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
memory density	8192 bit
Memory IC Type	OTP ROM
memory width	8
Number of terminals	24
word count	1024 words
character code	1000

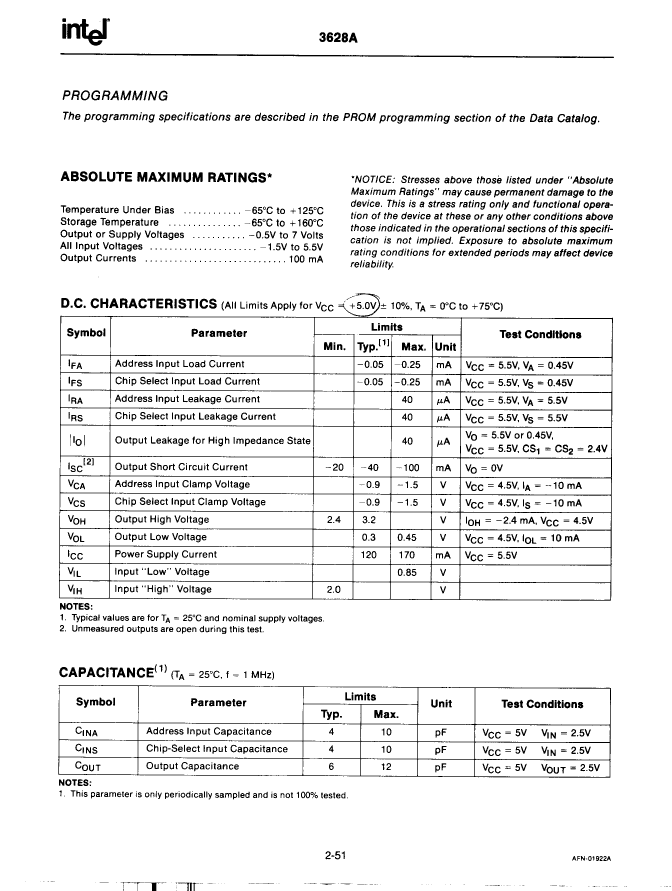

Maximum operating temperature	70 °C
Minimum operating temperature
organize	1KX8
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	D3628	5962-01-346-4217
Description	OTP ROM, 1KX8, 80ns, TTL, CDIP24,	OTP ROM, 1KX8, 70ns, TTL, CDIP24,
Is it Rohs certified?	incompatible	incompatible
package instruction	DIP, DIP24,.6	DIP, DIP24,.6
Reach Compliance Code	unknown	compli
Maximum access time	80 ns	70 ns
JESD-30 code	R-XDIP-T24	R-XDIP-T24
memory density	8192 bit	8192 bi
Memory IC Type	OTP ROM	OTP ROM
memory width	8	8
Number of terminals	24	24
word count	1024 words	1024 words
character code	1000	1000
Maximum operating temperature	70 °C	70 °C
organize	1KX8	1KX8
Package body material	CERAMIC	CERAMIC
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
