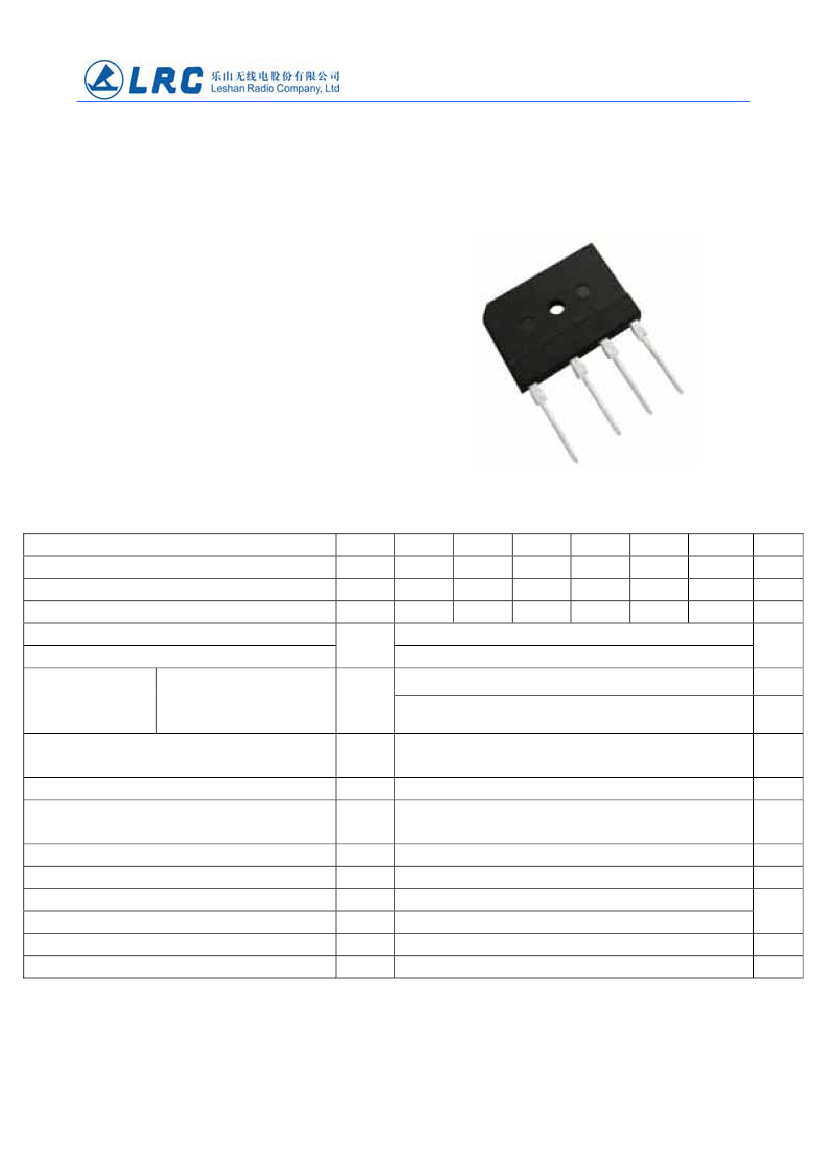

D5SB10 Thru D5SB100
High Current Glass Passivated Molding Single-Phase Bridge Rectifier
Reverse Voltage 100 to 1000V
FEATURES
Plastic Package has Underwriters Laboratory
Flammability Classification 94V-0
High current capacity with small package
Glass passivated chip junctions
Superior thermal conductivity
High IFSM
Forward Current 6.0 A
1.
Maximum & Thermal Characteristics Ratings
at 25℃ ambient temperature unless otherwise specified.
Parameter Symbol
Maximum repetitive voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum DC reverse current TA=25
℃
at rated DC blocking voltage TA=125℃
Maximum average
forward rectified
output current at
With heatsink Tc=100℃
（
1
）
（
2
）
Symbol
V
RRM
V
RMS
V
DC
IR
D5SB10
100
70
100
D5SB20
200
140
200
D5SB40
400
280
400
5
D5SB60
600
420
600
500
6.0
D5SB80
800
560
800
D5SB100
1000
700
1000
Unit
V
V
V
µA
A
A
A
A sec
KV
V
℃
℃/W
℃
N.m
2
Without heatsink Ta=25℃
Io
2.8
IFSM
I t
Vdia
VF
TJ
R
θJA
R
θJC
Tstg
Tor
2
Peak forward surge current 8.3ms single half
sine-wave superimposed on rated load
Rating of fusing (t<8.3ms)
Dielectric strength terminals to case， AC 1 minute
Current 1mA
Max instantaneous forward voltage at 3.0A
Operating junction temperature
Maximum thermal on P.C.B. without heat-sink
resistance per leg on Al plate heat-sink
Storage temperature
Mounting torque
Notes:
175
127
2.5
1.05
-55~150
22
2.8
-55~150
Rating Torque : 0.8（Suggests 0.45~0.65）
(1) Unit case mounted on aluminum plate heatsink
(2) Units mounted on P.C.B. without heatsink
2
D5SB10 Thru D5SB100
2.

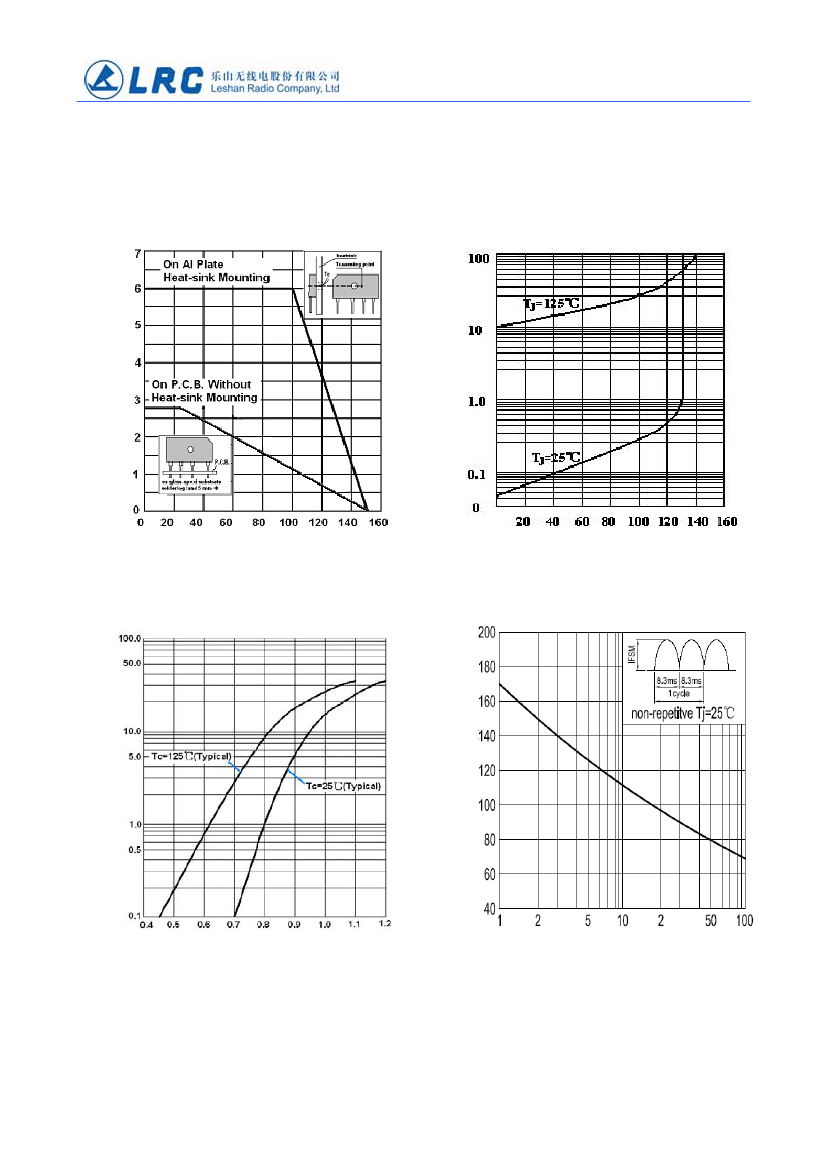

Ratings and Characteristic Curves
( TA = 25°C unless otherwise noted )
Fig.2
Typical Reverse Characteristics
Fig. 1 Derating Curve
Average Rectified Forward Current Io(A)
Temperature (℃)
Fig.3
Forward Voltage
nstantaneous Reverse Current (µA)
Percent of Rated Peak Reverse Voltage％
Fig.4
Peak Surge Forward Capability
Forward Voltage VF
Peak Surge Forward Current IFSM(A)
Forward Current (A)
Number of Cycles
3
D5SB10 Thru D5SB100
3. Marking Identification
Note：
生产日期码包含4½数字，例如
“1010”，前两个数字“10”
表示为2010年，另外二个数字
“18”
是指第18周，即表示该产品为2010年18周生产。
型号：
D
5
SB
80
bridge reverse voltage=800V
mean：single -in-line bridge
average rectified forward Current=6A
mean：D series bridge

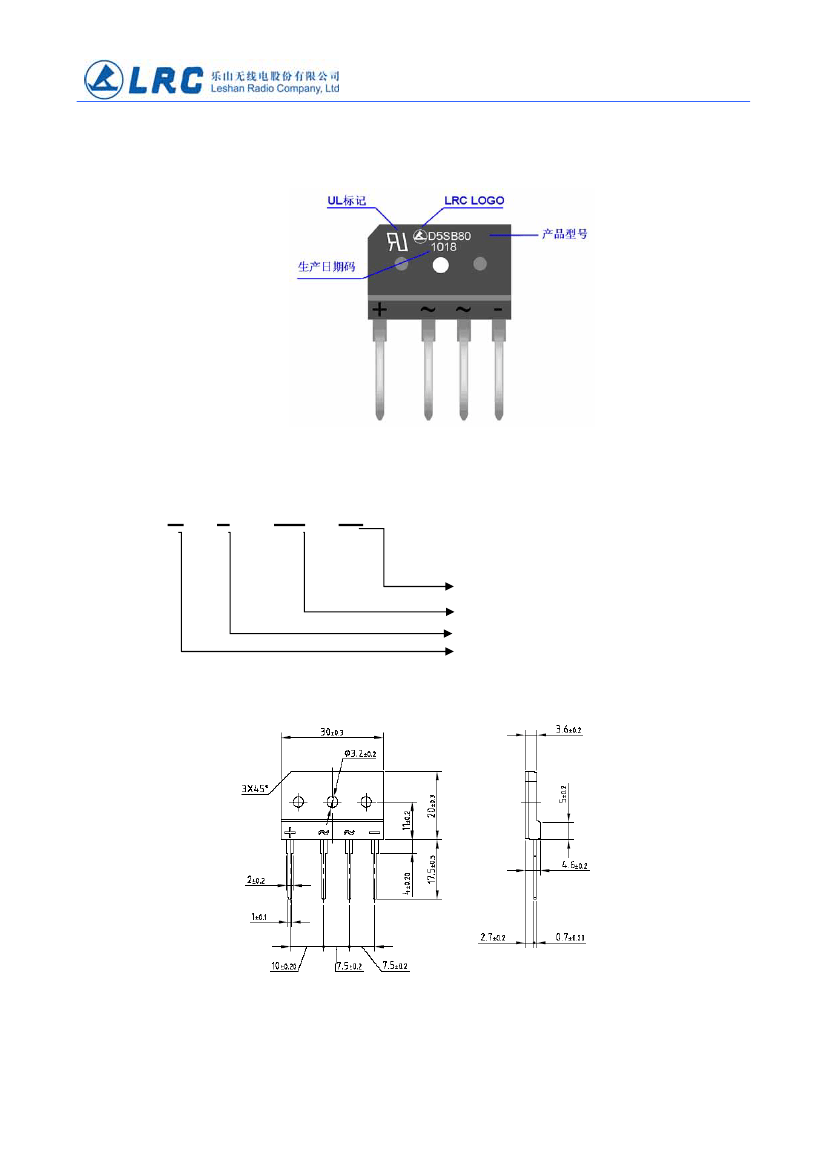

4. Dimension
4
