DA8110A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DA8110A

DA8110A: DescriptionRectifier Diode, 8 Element, 0.6A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-9; CategoryDiscrete semiconductor diode; File Size177KB，2 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com

Download Datasheet Parametric Compare View All

DA8110A Overview

Rectifier Diode, 8 Element, 0.6A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-9

DA8110A Parametric

Parameter Name	Attribute value
package instruction	R-PSIP-T9
Contacts	9
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON ANODE, 8 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSIP-T9
Number of components	8
Number of terminals	9
Maximum output current	0.6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum power dissipation	1.2 W
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1000 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

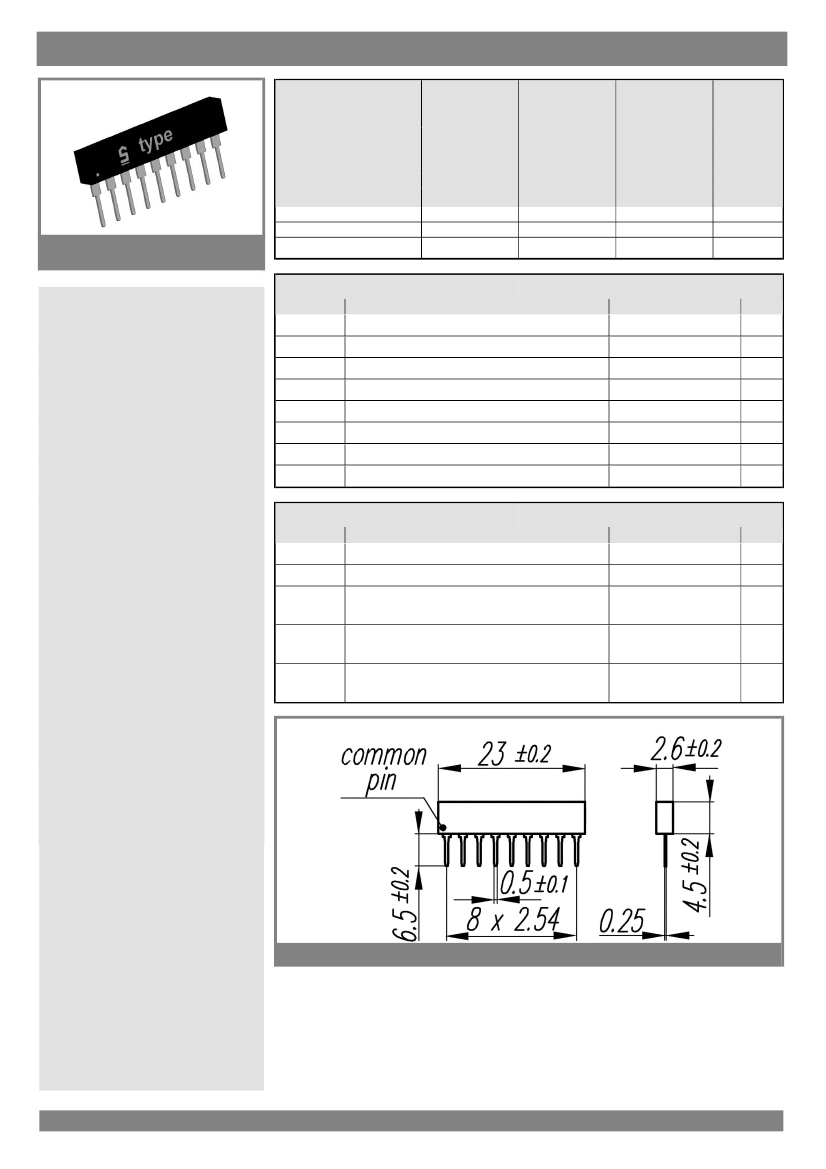

DA 811AK ... 8110AK 1,2W ...

Diode arrays

Silicon rectifiers arrays

DA 811AK ... 8110AK 1,2W

Forward Current: 0,6 A

Reverse Voltage: 100 to 1000 V

Publish Data

Absolute Maximum Ratings

Symbol Conditions

Values

Units

Features

Mechanical Data

Characteristics

Symbol Conditions

Values

Units

Dimensions in mm

10-04-2006 SCT

DA8110A Related Products

	DA8110A	DA814A	DA811A	DA811K	DA814K	DA8110K
Description	Rectifier Diode, 8 Element, 0.6A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-9	Rectifier Diode, 8 Element, 0.6A, 400V V(RRM), Silicon, PLASTIC PACKAGE-9	Rectifier Diode, 8 Element, 0.6A, 100V V(RRM), Silicon, PLASTIC PACKAGE-9	Rectifier Diode, 8 Element, 0.6A, 100V V(RRM), Silicon, PLASTIC PACKAGE-9	Rectifier Diode, 8 Element, 0.6A, 400V V(RRM), Silicon, PLASTIC PACKAGE-9	Rectifier Diode, 8 Element, 0.6A, 1000V V(RRM), Silicon, PLASTIC PACKAGE-9
package instruction	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9
Contacts	9	9	9	9	9	9
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 8 ELEMENTS	COMMON ANODE, 8 ELEMENTS	COMMON ANODE, 8 ELEMENTS	COMMON CATHODE, 8 ELEMENTS	COMMON CATHODE, 8 ELEMENTS	COMMON CATHODE, 8 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9	R-PSIP-T9
Number of components	8	8	8	8	8	8
Number of terminals	9	9	9	9	9	9
Maximum output current	0.6 A	0.6 A	0.6 A	0.6 A	0.6 A	0.6 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Maximum power dissipation	1.2 W	1.2 W	1.2 W	1.2 W	1.2 W	1.2 W
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1000 V	400 V	100 V	100 V	400 V	1000 V
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	-
